SEF029Z

Description

NBEC0636

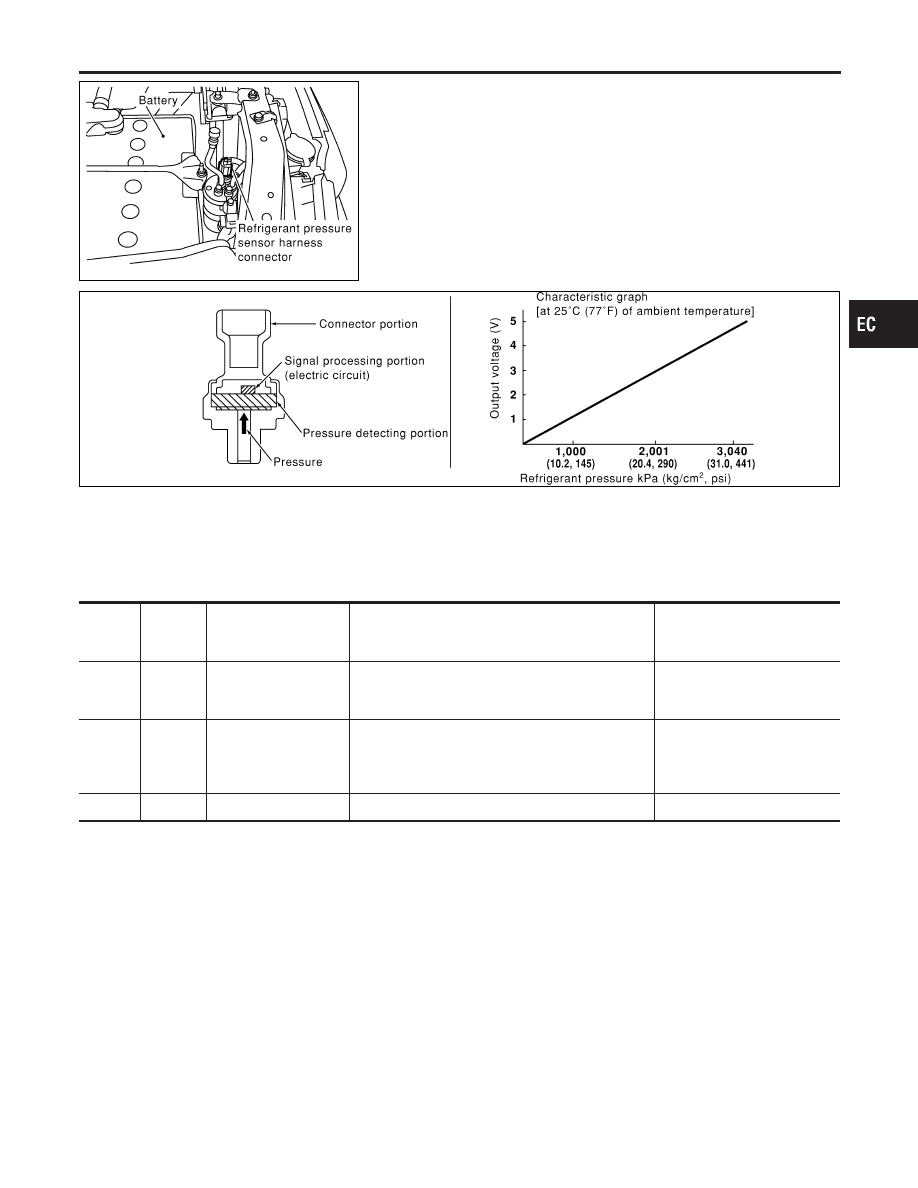

The refrigerant pressure sensor is installed at the liquid tank of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan sys-
tem.

SEF099XA

ECM Terminals and Reference Value

NBEC0689

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

58

B/P

Sensors’ ground

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 0V

81

W/PU

Refrigerant pressure
sensor

[Engine is running]

I

Warm-up condition

I

Both A/C switch and blower switch are “ON”.

(Compressor operates.)

1.0 - 4.0V

111

P/B

Sensors’ power supply

[Ignition switch “ON”]

Approximately 5V

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REFRIGERANT PRESSURE SENSOR

Description

EC-639

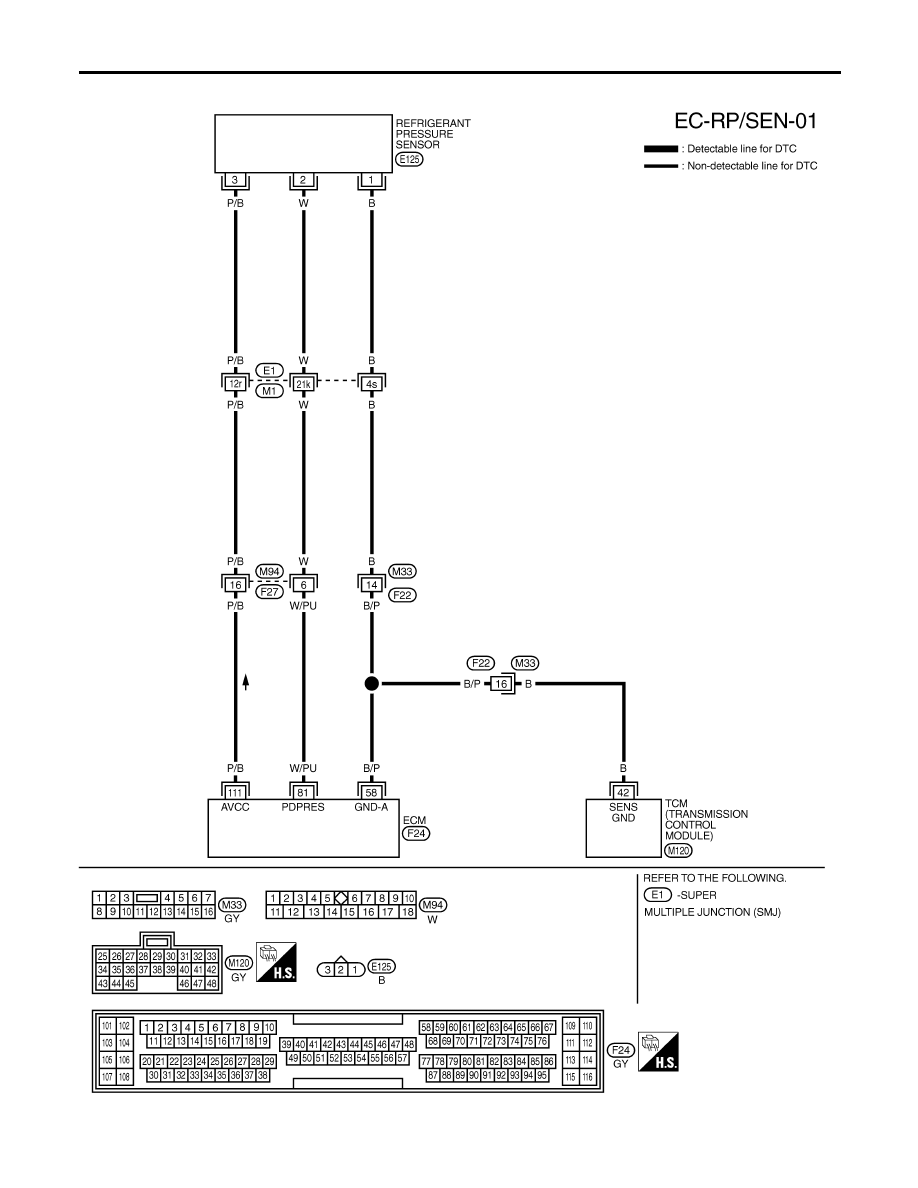

Wiring Diagram

NBEC0637

MEC982C

REFRIGERANT PRESSURE SENSOR

Wiring Diagram

EC-640

Diagnostic Procedure

NBEC0638

1

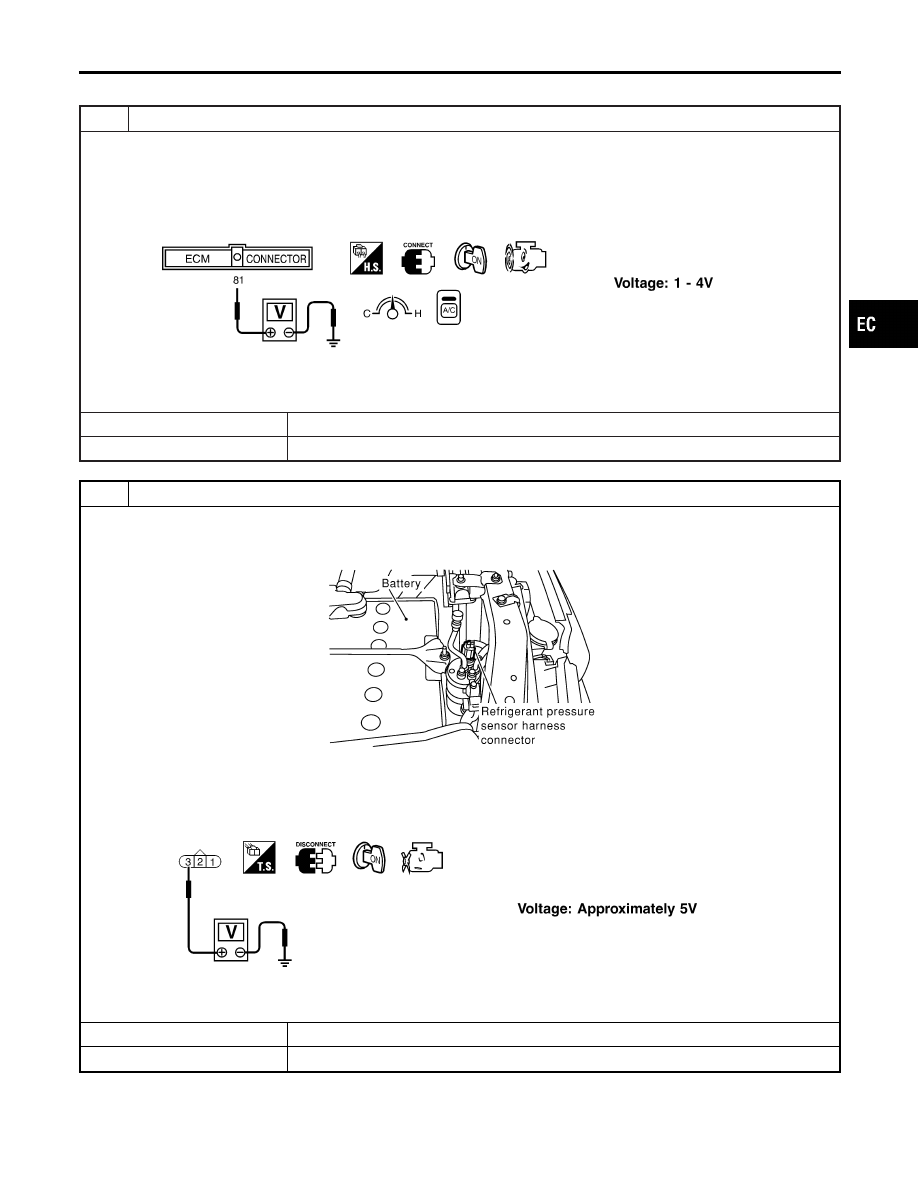

CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION

1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch “ON”.
3. Check voltage between ECM terminal 81 and ground with CONSULT-II or tester.

SEF617XA

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 2.

2

CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT

1. Turn A/C switch and blower switch “OFF”.
2. Stop engine.
3. Disconnect refrigerant pressure sensor harness connector.

SEF029Z

4. Turn ignition switch “ON”.
5. Check voltage between refrigerant pressure sensor terminal 1 and ground with CONSULT-II or tester.

SEF030Z

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REFRIGERANT PRESSURE SENSOR

Diagnostic Procedure

EC-641

3

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E1, M1

I

Harness for open or short between ECM and refrigerant pressure sensor

©

Repair harness or connectors.

4

CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Check harness continuity between refrigerant pressure sensor terminal 1 and engine ground. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to power.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

5

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E1, M1 and M33, F22

I

Harness connectors F23, M32

I

Harness for open between ECM and refrigerant pressure sensor

I

Harness for open between TCM (Transmission control module) and refrigerant pressure sensor

©

Repair open circuit or short to power in harness or connectors.

6

CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 81 and refrigerant pressure sensor terminal 2. Refer to Wiring Dia-

gram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 8.

NG

©

GO TO 7.

7

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E1, M1 and M94, F27

I

Harness for open or short between ECM and refrigerant pressure sensor

©

Repair open circuit or short to ground or short to power in harness or connectors.

8

CHECK REFRIGERANT PRESSURE SENSOR

Refer to HA-14, “Refrigerant pressure sensor”.

OK or NG

OK

©

GO TO 9.

NG

©

Replace refrigerant pressure sensor.

9

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-140.

©

INSPECTION END

REFRIGERANT PRESSURE SENSOR

Diagnostic Procedure (Cont’d)

EC-642
