Infiniti QX4 (R50). Manual - part 292

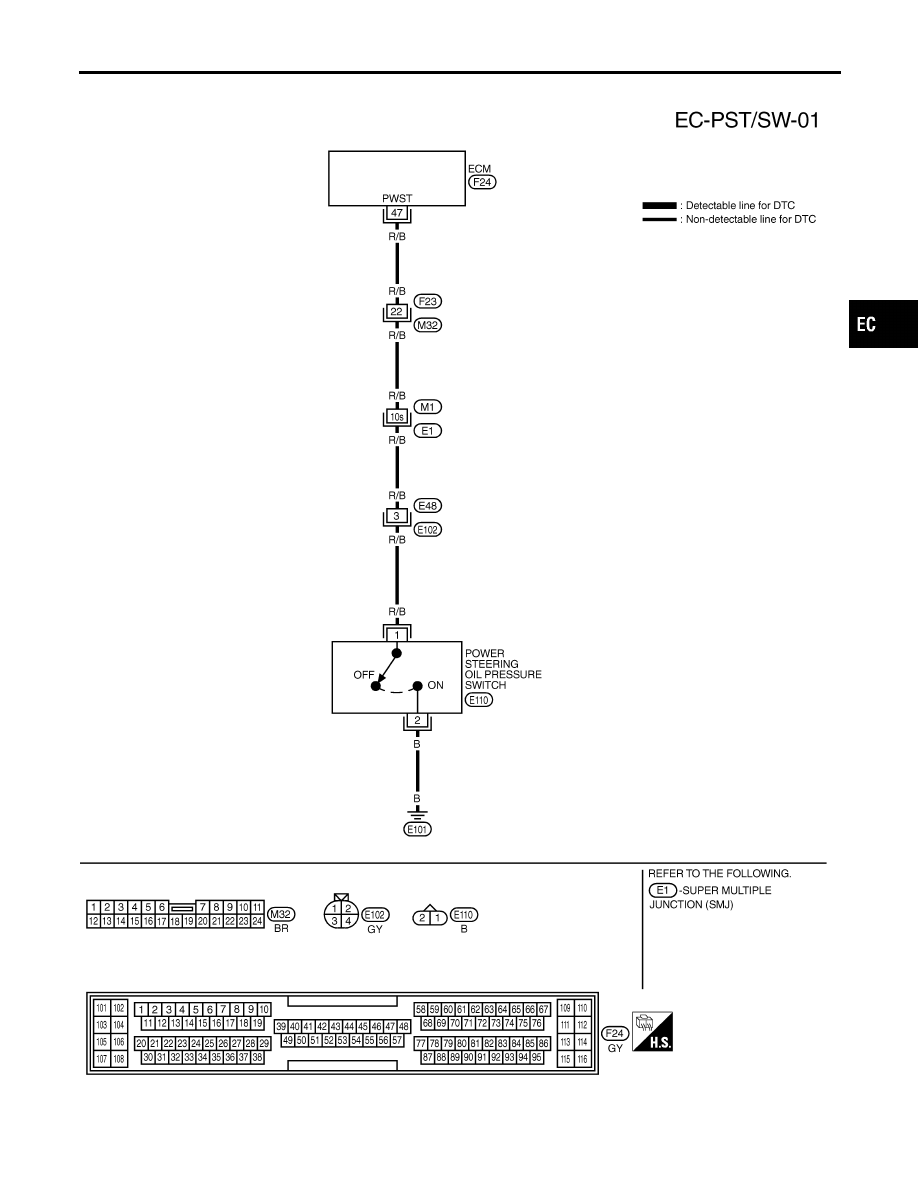

Wiring Diagram

NBEC0401

MEC977C

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

POWER STEERING OIL PRESSURE SWITCH

Wiring Diagram

EC-635

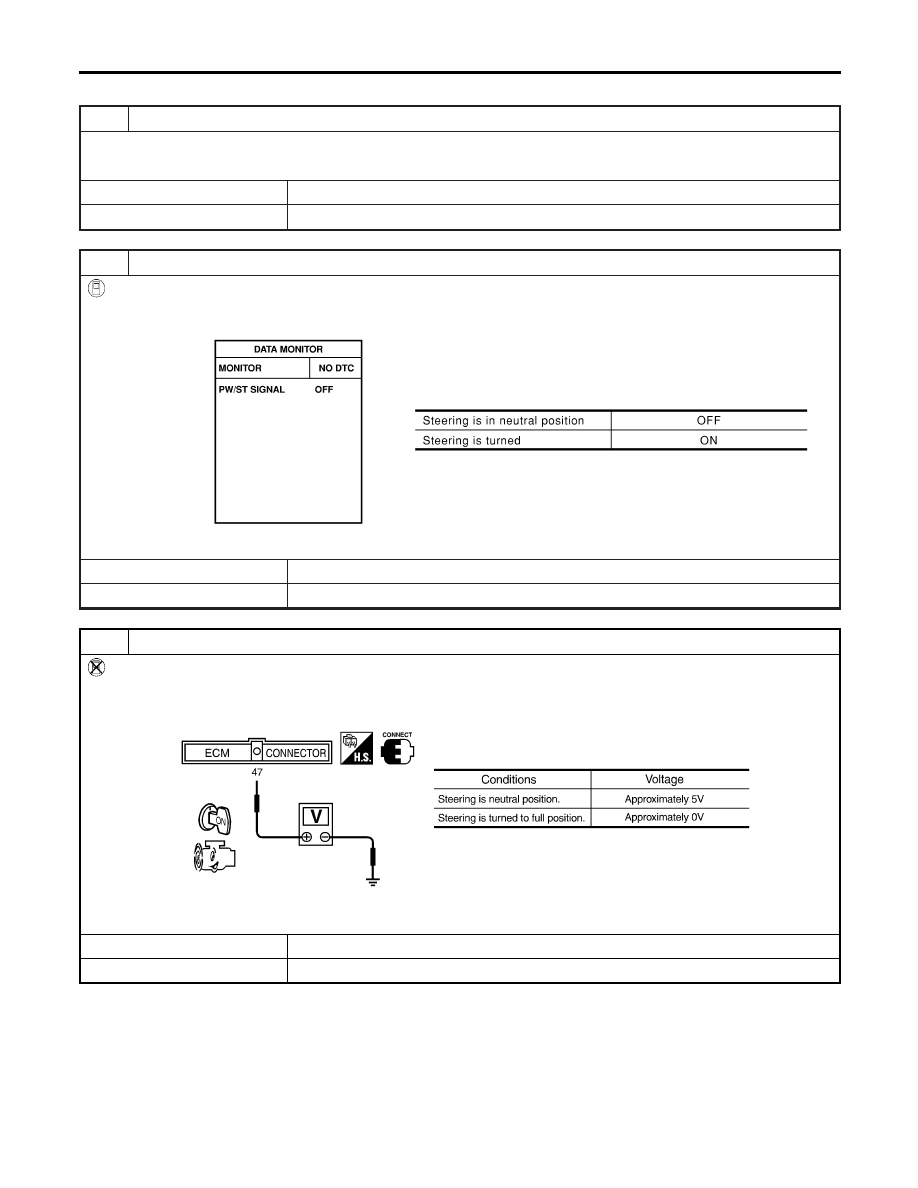

Diagnostic Procedure

NBEC0402

1

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

CHECK OVERALL FUNCTION

With CONSULT-II

1. Start engine.
2. Check “PW/ST SIGNAL” in “DATA MONITOR” mode with CONSULT-II under the following conditions.

SEF228Y

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 4.

3

CHECK OVERALL FUNCTION

Without CONSULT-II

1. Start engine.
2. Check voltage between ECM terminal 47 and ground under the following conditions.

SEF363X

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 4.

POWER STEERING OIL PRESSURE SWITCH

Diagnostic Procedure

EC-636

4

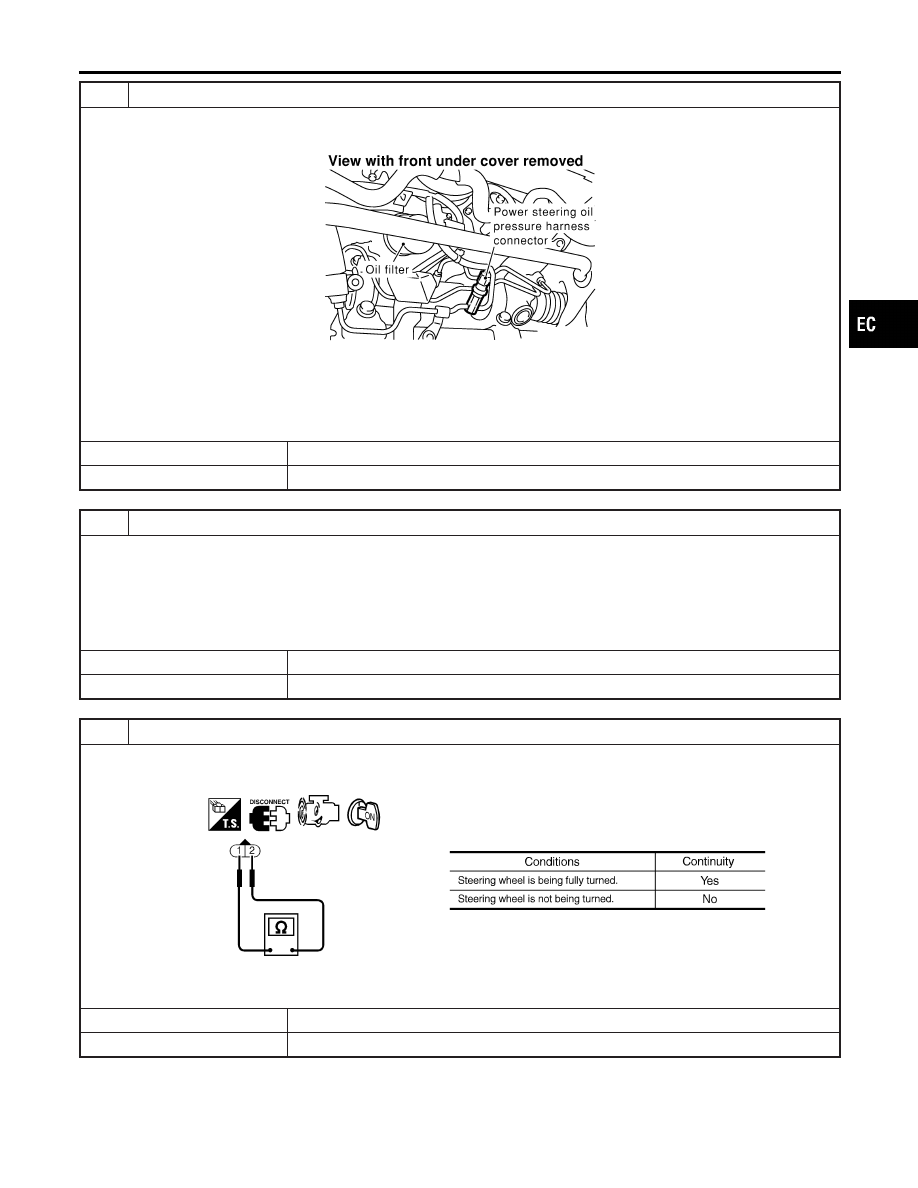

CHECK POWER STEERING OIL PRESSURE SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect power steering oil pressure switch harness connector.

SEF028Z

3. Check harness continuity between power steering oil pressure switch terminal 2 and engine ground. Refer to Wiring

Diagram.

Continuity should exist.

4. Also check harness for short to power.

OK or NG

OK

©

GO TO 5.

NG

©

Repair open circuit or short to power in harness or connectors.

5

CHECK POWER STEERING OIL PRESSURE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 47 and power steering oil pressure switch terminal 1. Refer to Wiring

Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

6

CHECK POWER STEERING OIL PRESSURE SWITCH

1. Disconnect power steering oil pressure switch harness connector then start engine.
2. Check continuity between power steering oil pressure switch terminals 1 and 2 under the following conditions.

SEF364X

OK or NG

OK

©

GO TO 7.

NG

©

Replace power steering oil pressure switch.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

POWER STEERING OIL PRESSURE SWITCH

Diagnostic Procedure (Cont’d)

EC-637

7

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-140.

©

INSPECTION END

POWER STEERING OIL PRESSURE SWITCH

Diagnostic Procedure (Cont’d)

EC-638
