Infiniti QX4 (R50). Manual - part 258





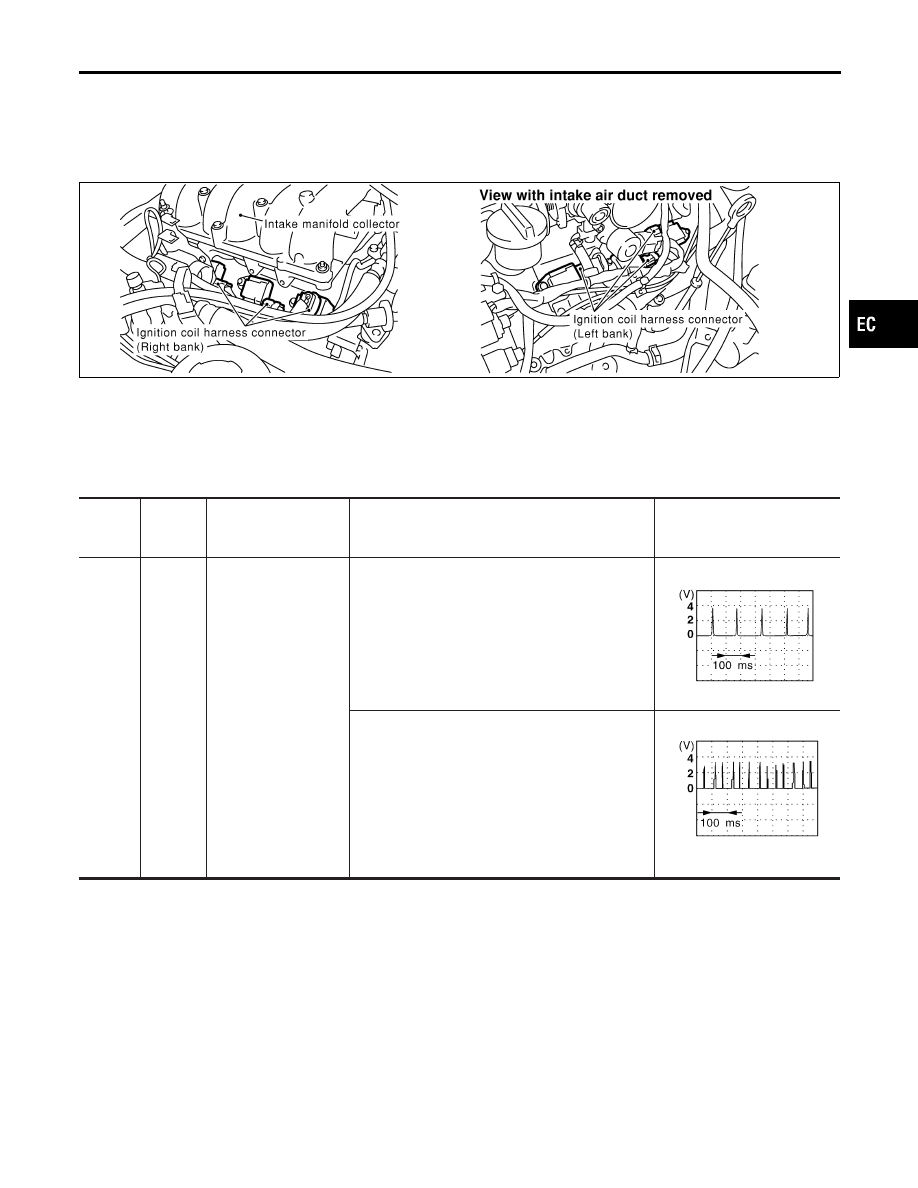

Component Description

NBEC0286

IGNITION COIL & POWER TRANSISTOR

NBEC0286S01

The ignition signal from the ECM is sent to and amplified by the power transistor. The power transistor turns
on and off the ignition coil primary circuit. This on-off operation induces the proper high voltage in the coil
secondary circuit.

SEF975Y

ECM Terminals and Reference Value

NBEC0675

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

21
22
23
30
31
32

Y/R
G/R
L/R
GY
PU/W
GY/R

Ignition signal No. 1
Ignition signal No. 2
Ignition signal No. 3
Ignition signal No. 4
Ignition signal No. 5
Ignition signal No. 6

[Engine is running]

I

Warm-up condition

I

Idle speed

0 - 0.2V

SEF399T

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,500 rpm.

0.1 - 0.3V

SEF645T

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

NBEC0288

Malfunction is detected when the ignition signal in the primary cir-
cuit is not sent to ECM during engine cranking or running.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1320 IGNITION SIGNAL

Component Description

EC-499

Possible Cause

NBEC0572

I

Harness or connectors (The ignition primary circuit is open or
shorted.)

I

Power transistor unit built into ignition coil

I

Condenser

I

Crankshaft position sensor (REF)

I

Crankshaft position sensor (REF) circuit

SEF058Y

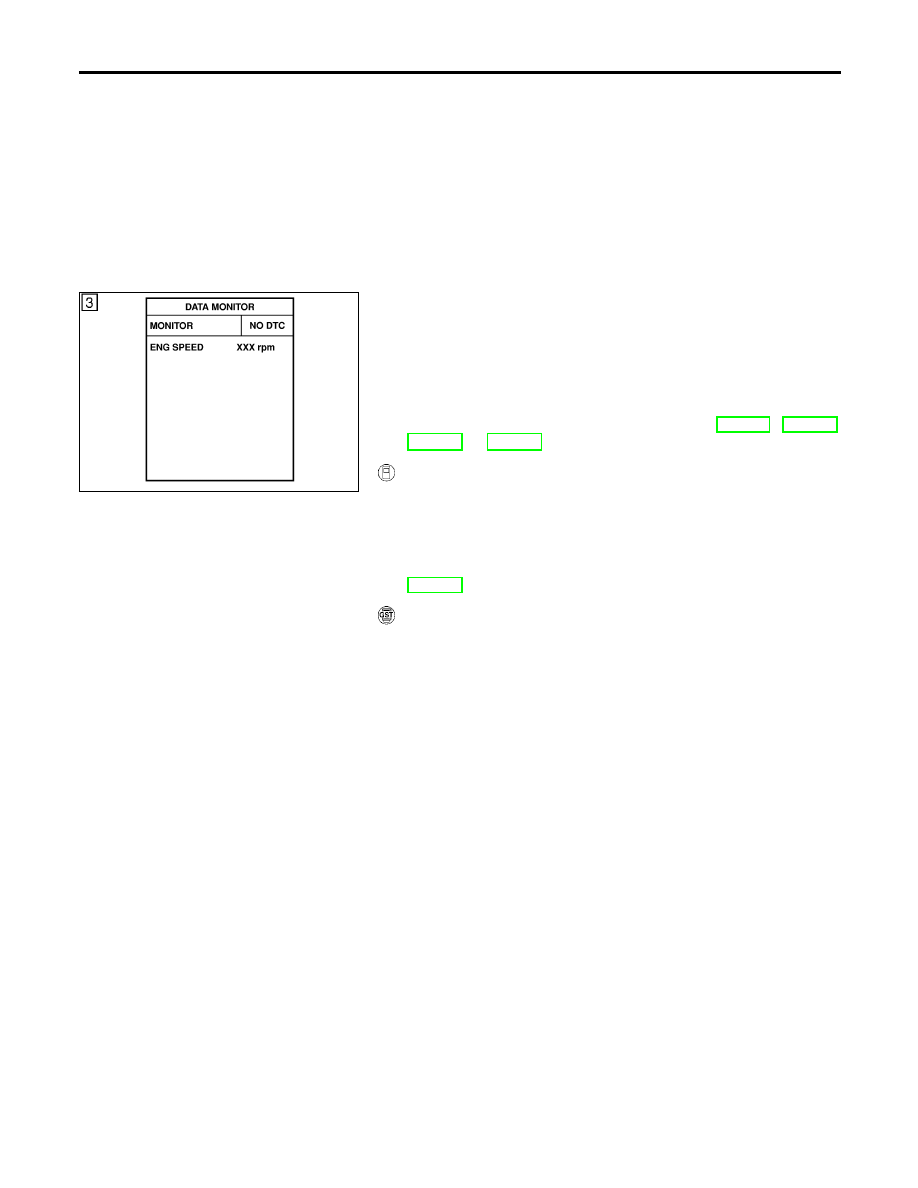

DTC Confirmation Procedure

NBEC0289

NOTE:

I

If

“DTC

Confirmation

Procedure”

has

been

previously

conducted, always turn ignition switch “OFF” and wait at least
10 seconds before conducting the next test.

I

If DTC P1320 is displayed with DTC P0335, P0340, P1335
or P1336, perform trouble diagnosis for DTC P0335,
P0340, P1335 or P1336 first. Refer to EC-334,
EC-342,
EC-510 or EC-517.

WITH CONSULT-II

NBEC0289S01

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine. (If engine does not run, turn ignition switch to
“START” for at least 5 seconds.)

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-504.

WITH GST

NBEC0289S02

Follow the procedure “WITH CONSULT-II” above.

DTC P1320 IGNITION SIGNAL

Possible Cause

EC-500

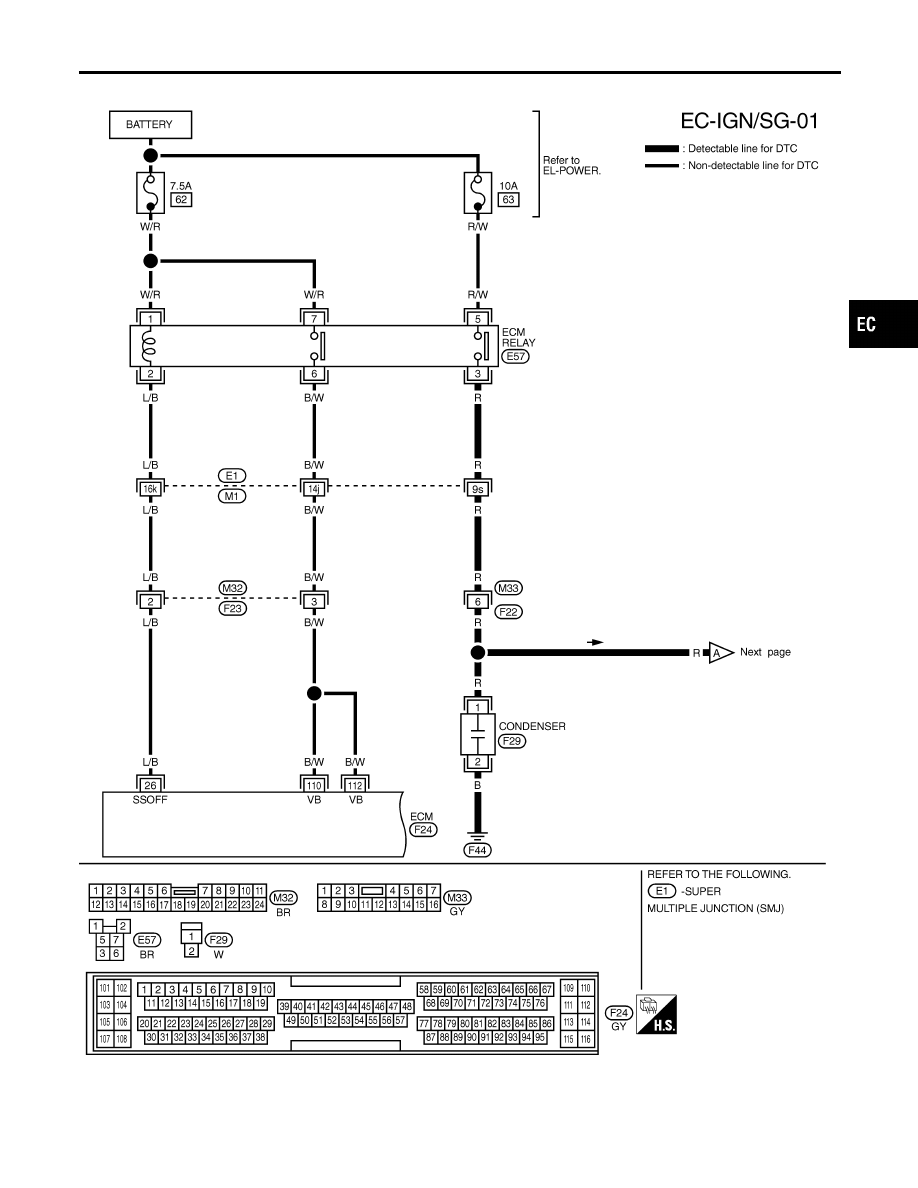

Wiring Diagram

NBEC0290

MEC969C

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1320 IGNITION SIGNAL

Wiring Diagram

EC-501

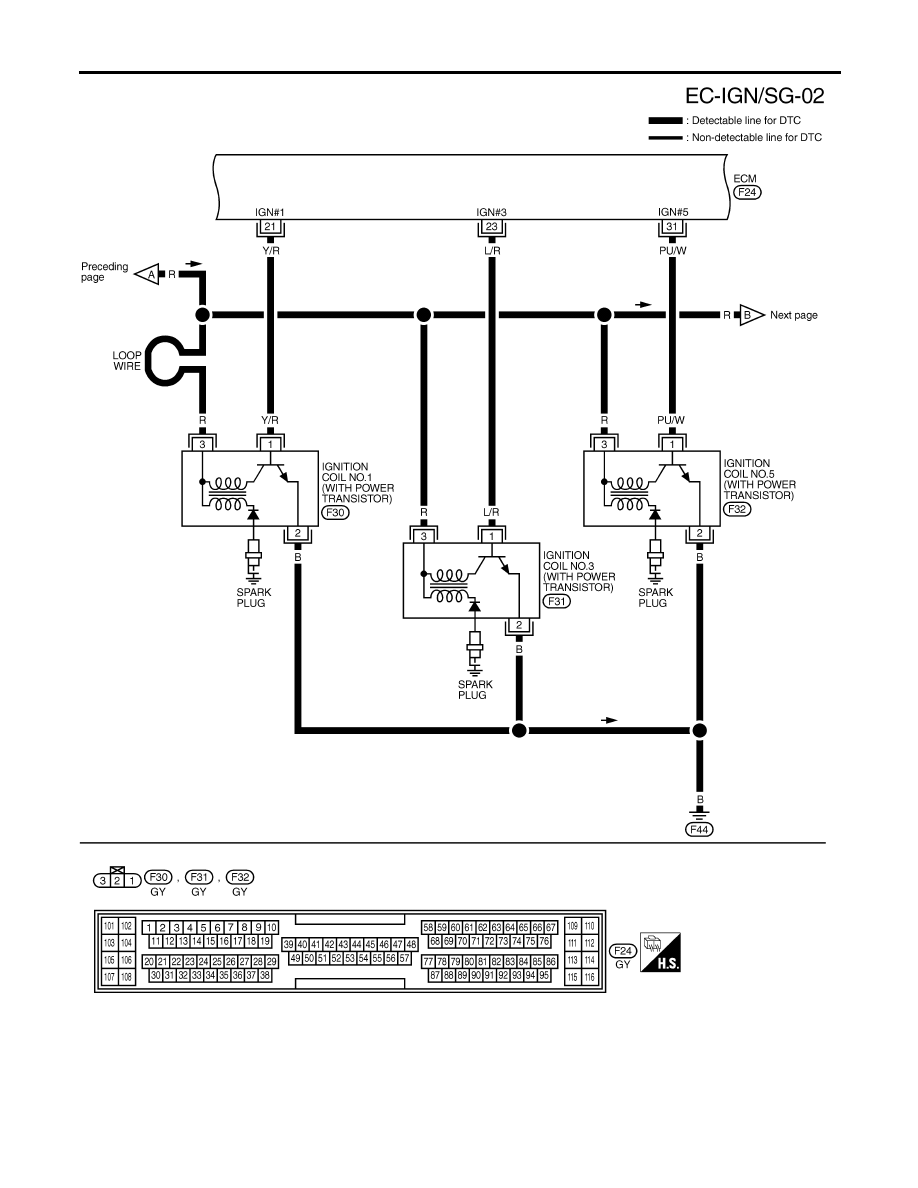

MEC970C

DTC P1320 IGNITION SIGNAL

Wiring Diagram (Cont’d)

EC-502
