TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

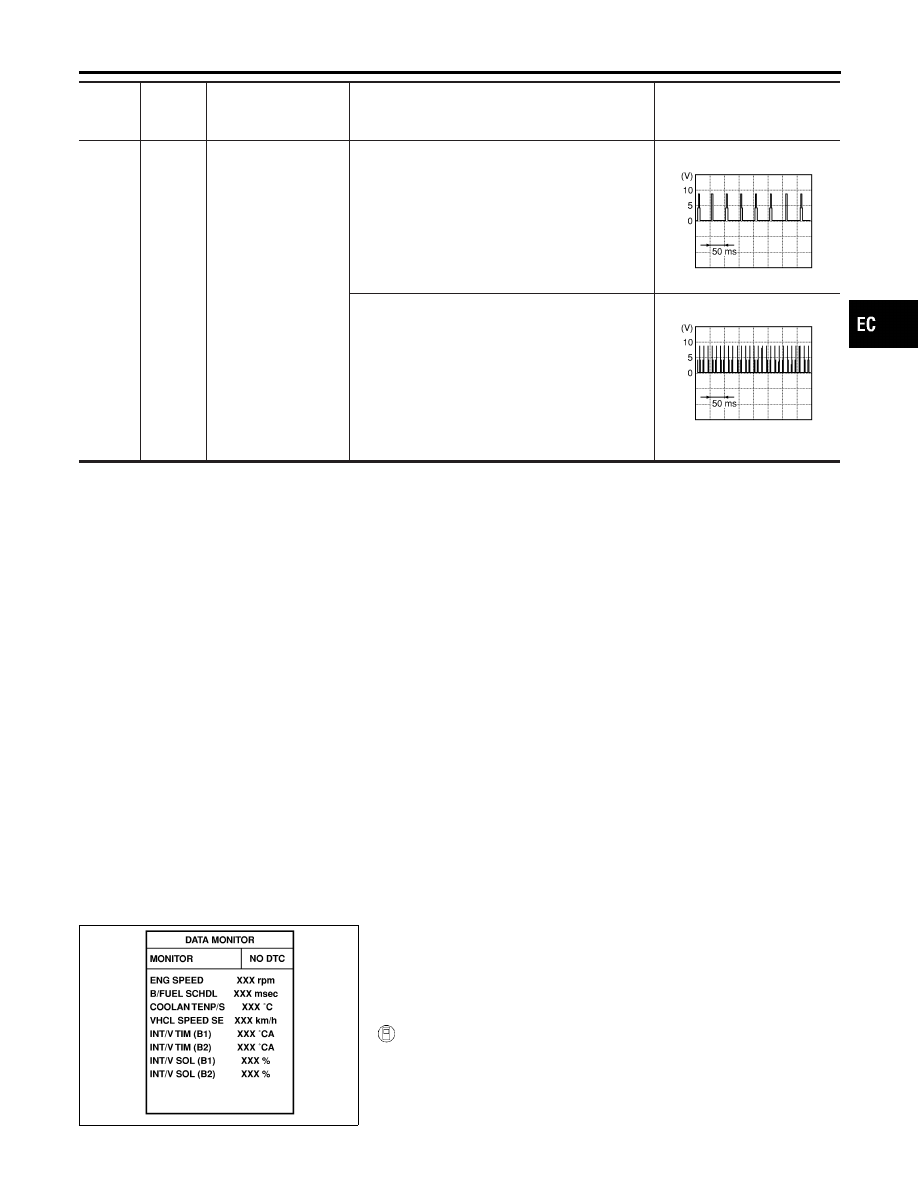

DATA (DC Voltage)

89

OR

Intake valve timing
control position sen-
sors (LH)

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 0.5V

SEF351Z

[Engine is running]

I

Warm-up condition

I

Engine speed is 2,000 rpm.

Approximately 0.5V

SEF352Z

On Board Diagnosis Logic

NBEC0708

Malfunction is detected when an excessively high or low voltage
from the sensor is sent to ECM.

Possible Cause

NBEC0709

I

Harness or connectors
(Intake valve timing control position sensor circuit is open or
shorted)

I

Intake valve timing control position sensor.

I

Crankshaft position sensor (REF)

I

Crankshaft position sensor (POS)

I

Camshaft position sensor (PHASE)

SEF353Z

DTC Confirmation Procedure

NBEC0710

NOTE:
If “DTC Confirmation Procedure” has been previously
conducted, always turn ignition switch “OFF” and wait at least
10 seconds before conducting the next test.

WITH CONSULT-II

NBEC0710S01

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Maintain the following conditions for at least 10 seconds.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1140 (RIGHT, -B1), P1145 (LEFT, -B2) INTAKE VALVE TIMING CONTROL

POSITION SENSOR (CIRCUIT)

ECM Terminals and Reference Value (Cont’d)

EC-483

Engine speed

More than Idle speed

Selector lever

“P” or “N” position

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-487.

WITH GST

NBEC0710S02

Follow the procedure “With CONSULT-II” above.

DTC P1140 (RIGHT, -B1), P1145 (LEFT, -B2) INTAKE VALVE TIMING CONTROL

POSITION SENSOR (CIRCUIT)

DTC Confirmation Procedure (Cont’d)

EC-484

Wiring Diagram

NBEC0711

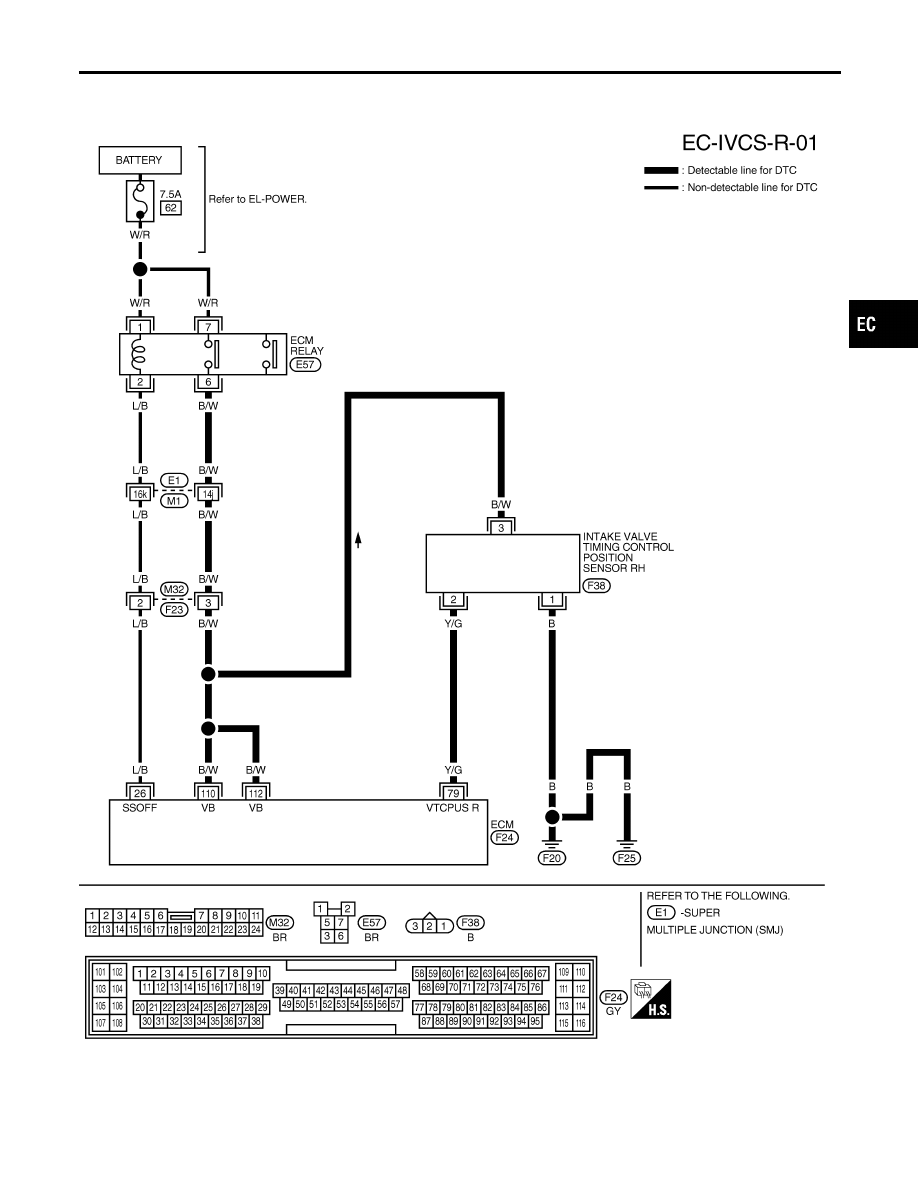

RIGHT BANK

NBEC0711S01

MEC987C

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1140 (RIGHT, -B1), P1145 (LEFT, -B2) INTAKE VALVE TIMING CONTROL

POSITION SENSOR (CIRCUIT)

Wiring Diagram

EC-485

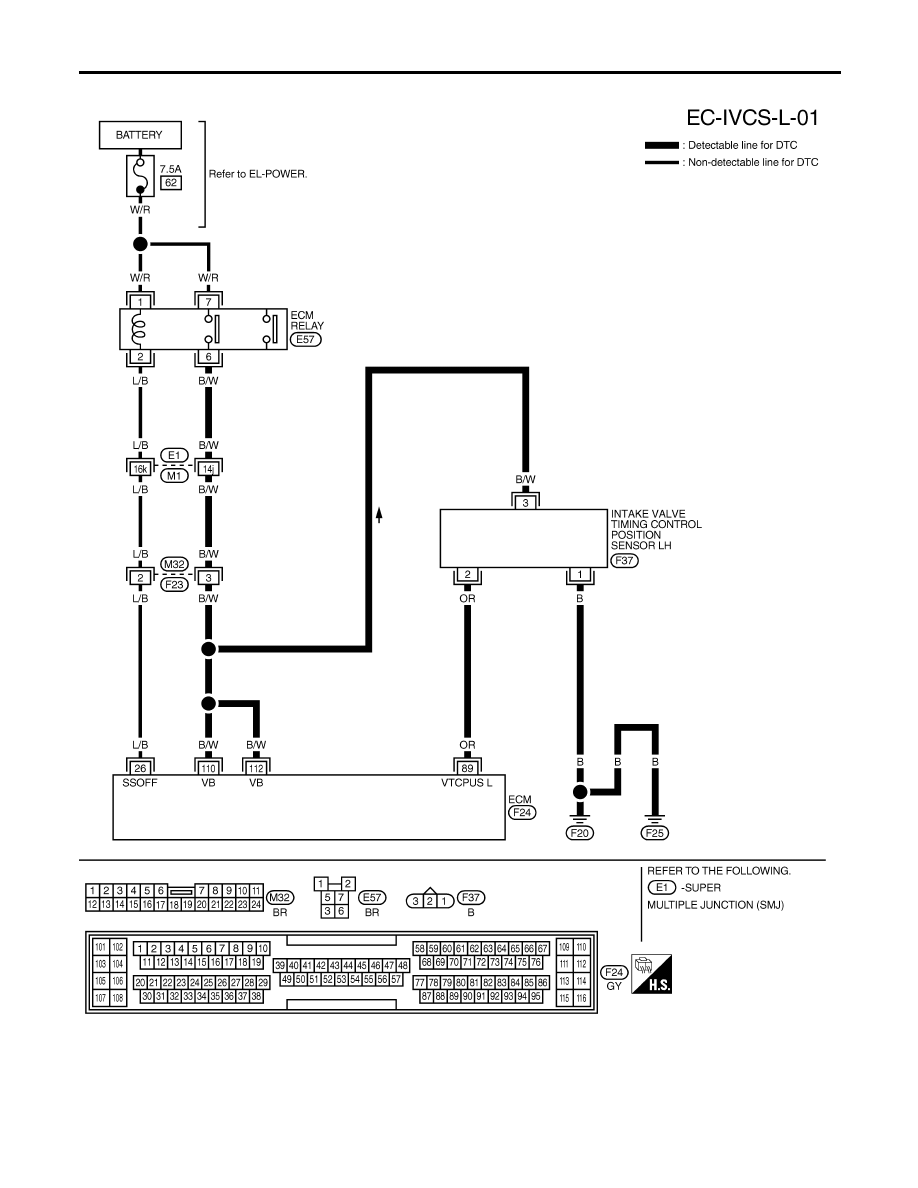

LEFT BANK

NBEC0711S02

MEC986C

DTC P1140 (RIGHT, -B1), P1145 (LEFT, -B2) INTAKE VALVE TIMING CONTROL

POSITION SENSOR (CIRCUIT)

Wiring Diagram (Cont’d)

EC-486
