Infiniti QX4 (R50). Manual - part 252





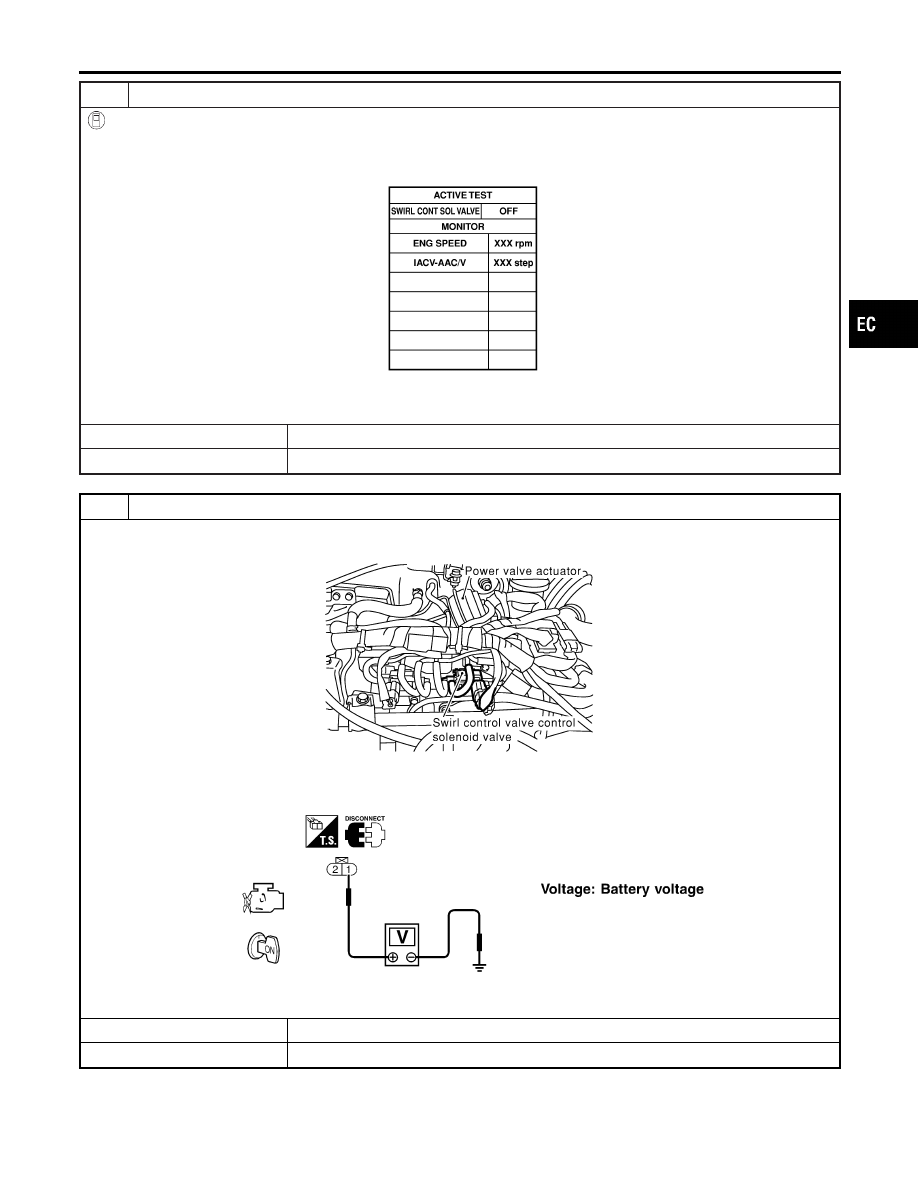

2

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE CIRCUIT

With CONSULT-II

1. Turn ignition switch “OFF”.
2. Select “SWIRL CONT SOL VALVE” in “ACTIVE TEST” mode with CONSULT-II.
3. Touch “ON” and “OFF” on CONSULT-II screen.

SEF003Z

4. Make sure that clicking sound is heard from the swirl control valve control solenoid valve.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 3.

3

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect swirl control valve control solenoid valve harness connector.

SEF002Z

3. Turn ignition switch “ON”.
4. Check voltage between swirl control valve control solenoid valve terminal 1 and ground with CONSULT-II or tester.

SEF619X

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-475

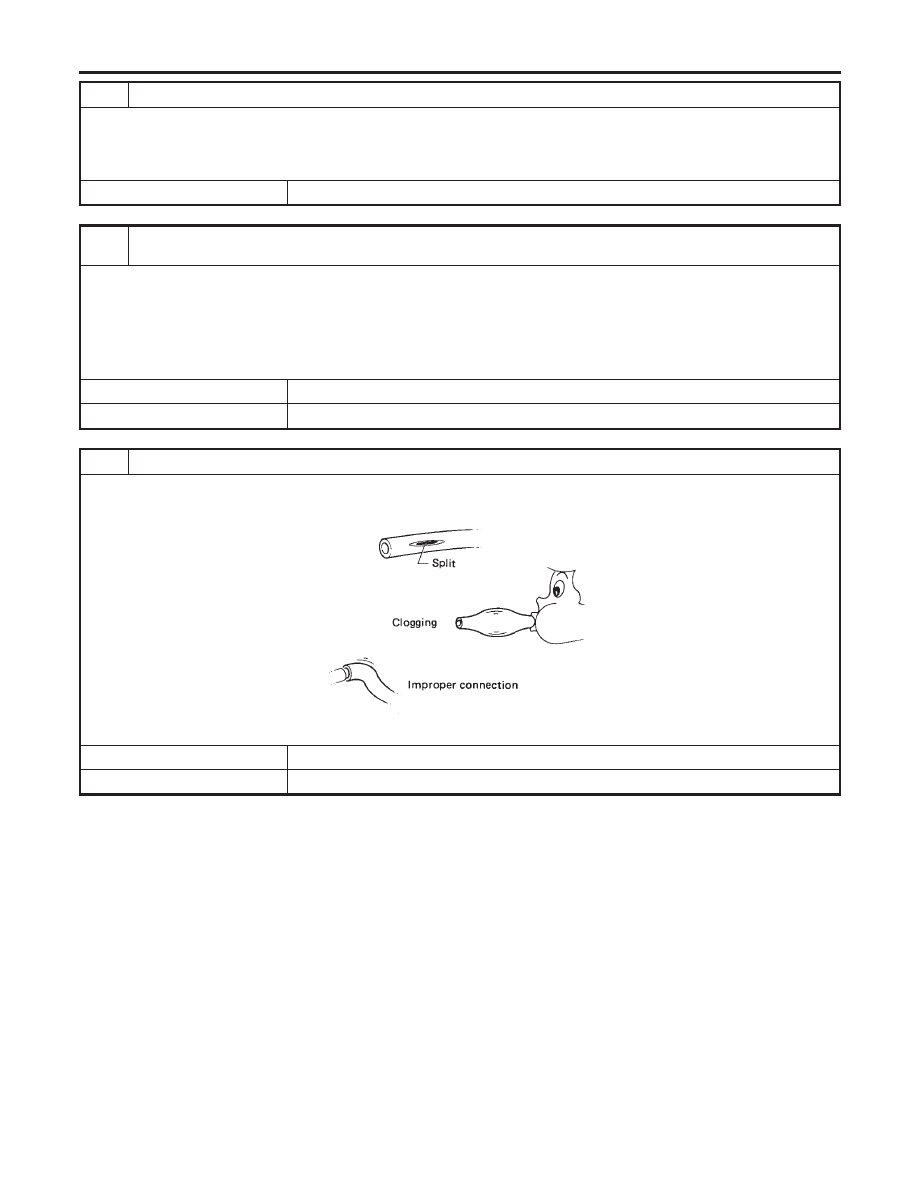

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M32, F23

I

15A fuse

I

Harness for open or short between swirl control valve control solenoid valve and fuse

©

Repair harness or connectors.

5

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and terminal 2. Refer to Wiring Diagram.

Continuity should exist.

4. Also, check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

Repair open circuit, short to ground or short to power in harness connectors.

6

CHECK HOSES

Check hoses and tubes between air cleaner and swirl control valve vacuum check switch for clogging or improper connec-
tion.

SEF109L

OK or NG

OK

©

GO TO 7.

NG

©

Repair hoses or tubes.

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-476

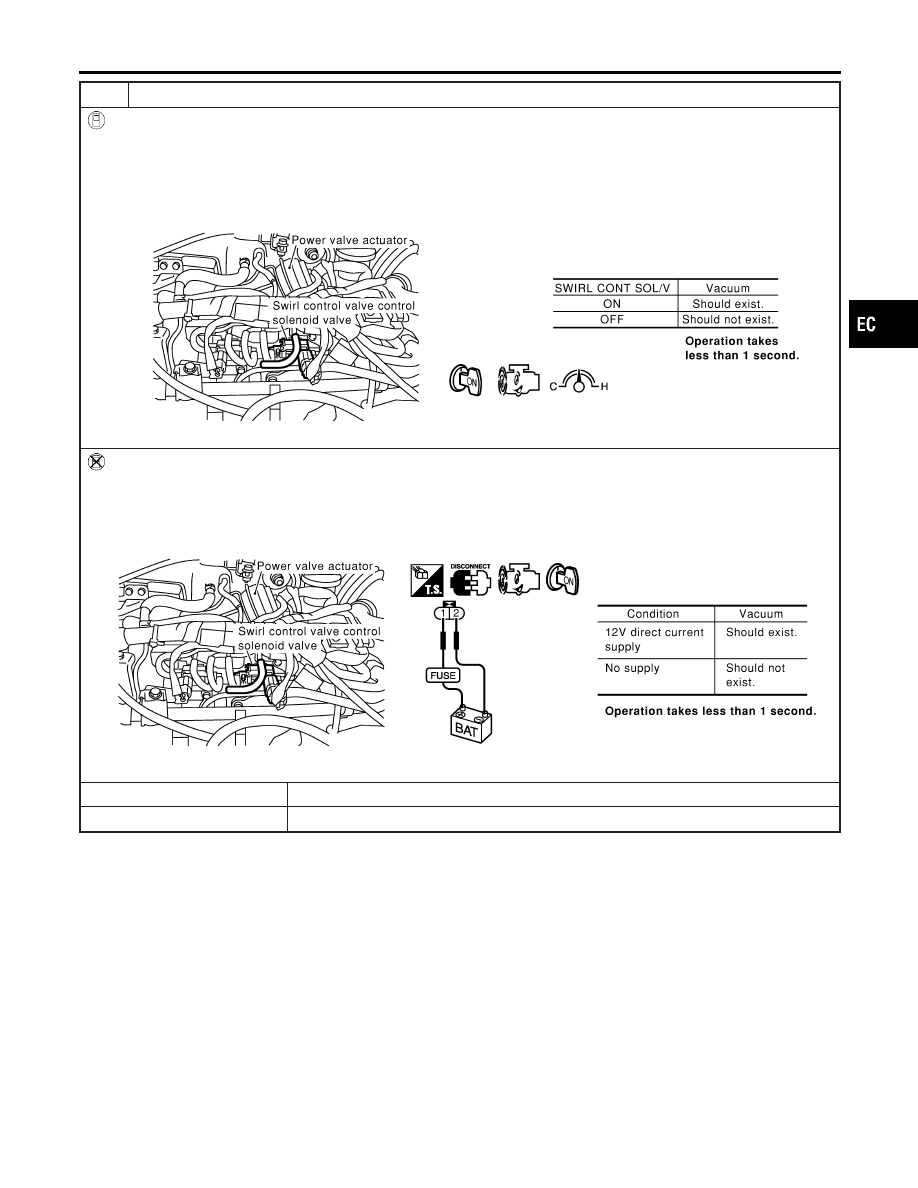

7

CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

With CONSULT-II

1. Reconnect the disconnected harness connectors.
2. Start engine and let it idle.
3. Remove vacuum hose connected to swirl control valve actuator.
4. Select “SWIRL CONT SOL/V” in “ACTIVE TEST” mode with CONSULT-II.
5. Touch “ON” and “OFF” on CONSULT-II screen.
6. Check vacuum existence and operation delay time under the following conditions.

SEF004Z

Without CONSULT-II

1. Reconnect ECM harness connector.
2. Remove vacuum hose connected to swirl control valve actuator.
3. Start engine and let it idle.
4. Apply 12V of direct current between swirl control valve control solenoid valve terminals 1 and 2.
5. Check vacuum existence and operation delay time under the following conditions.

SEF005Z

OK or NG

OK

©

GO TO 8.

NG

©

Replace intake manifold collector assembly.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-477

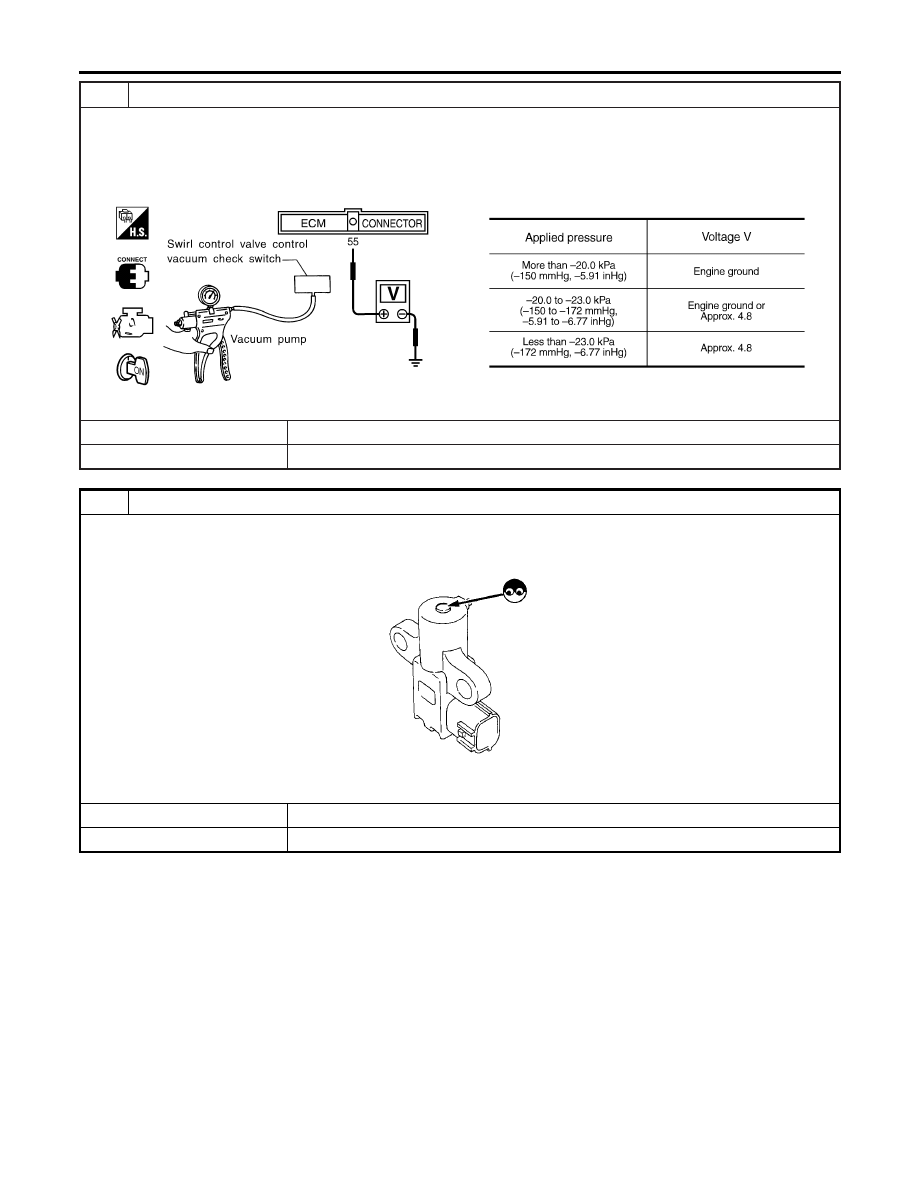

8

CHECK SWIRL CONTROL VALVE CONTROL VACUUM CHECK SWITCH

1. Turn ignition switch “OFF”.
2. Disconnect vacuum hose connected to swirl control valve control vacuum check switch.
3. Attach vacuum pump to swirl control valve control vacuum check switch.
4. Turn ignition switch “ON”.
5. Check voltage between ECM terminal 55 and ground under the following conditions.

SEF709X

OK or NG

OK

©

GO TO 9.

NG

©

Replace swirl control valve control vacuum check switch.

9

CHECK CRANKSHAFT POSITION SENSOR (REF)-I

1. Turn ignition switch “OFF”.
2. Loosen the fixing bolts and remove the CKPS (REF).
3. Visually check the CKPS (REF) for chipping.

SEF585P

OK or NG

OK

©

GO TO 10.

NG

©

Replace crankshaft position sensor (REF).

DTC P1130 SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-478
