CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-II

1. Start engine.

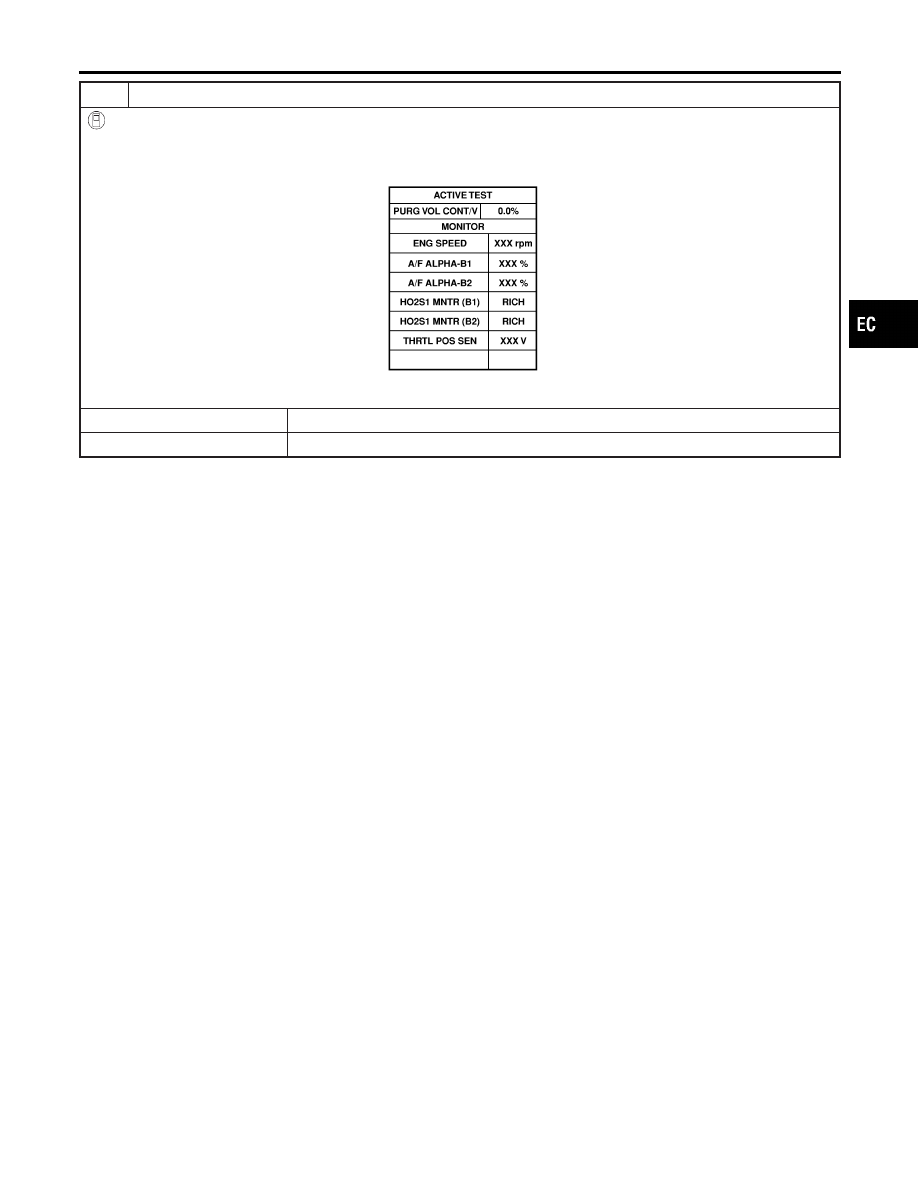

2. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-II. Check that engine speed varies according

to the valve opening.

SEF985Y

OK or NG

OK

©

GO TO 16.

NG

©

GO TO 15.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0455 EVAP CONTROL SYSTEM (GROSS LEAK)

Diagnostic Procedure (Cont’d)

EC-403

15

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-II

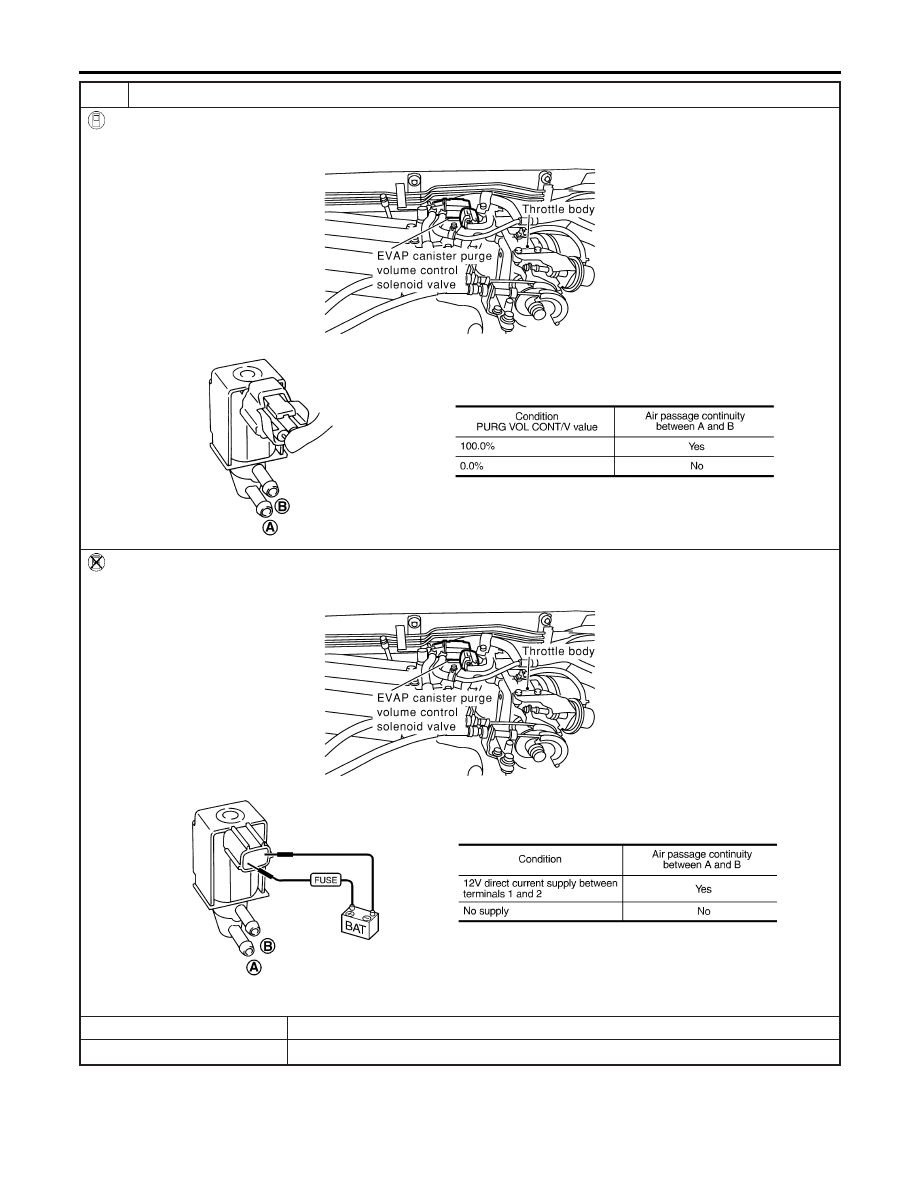

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

SEF986Y

SEF334X

Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

SEF986Y

SEF335X

OK or NG

OK

©

GO TO 16.

NG

©

Replace EVAP canister purge volume control solenoid valve.

DTC P0455 EVAP CONTROL SYSTEM (GROSS LEAK)

Diagnostic Procedure (Cont’d)

EC-404

16

CHECK ABSOLUTE PRESSURE SENSOR

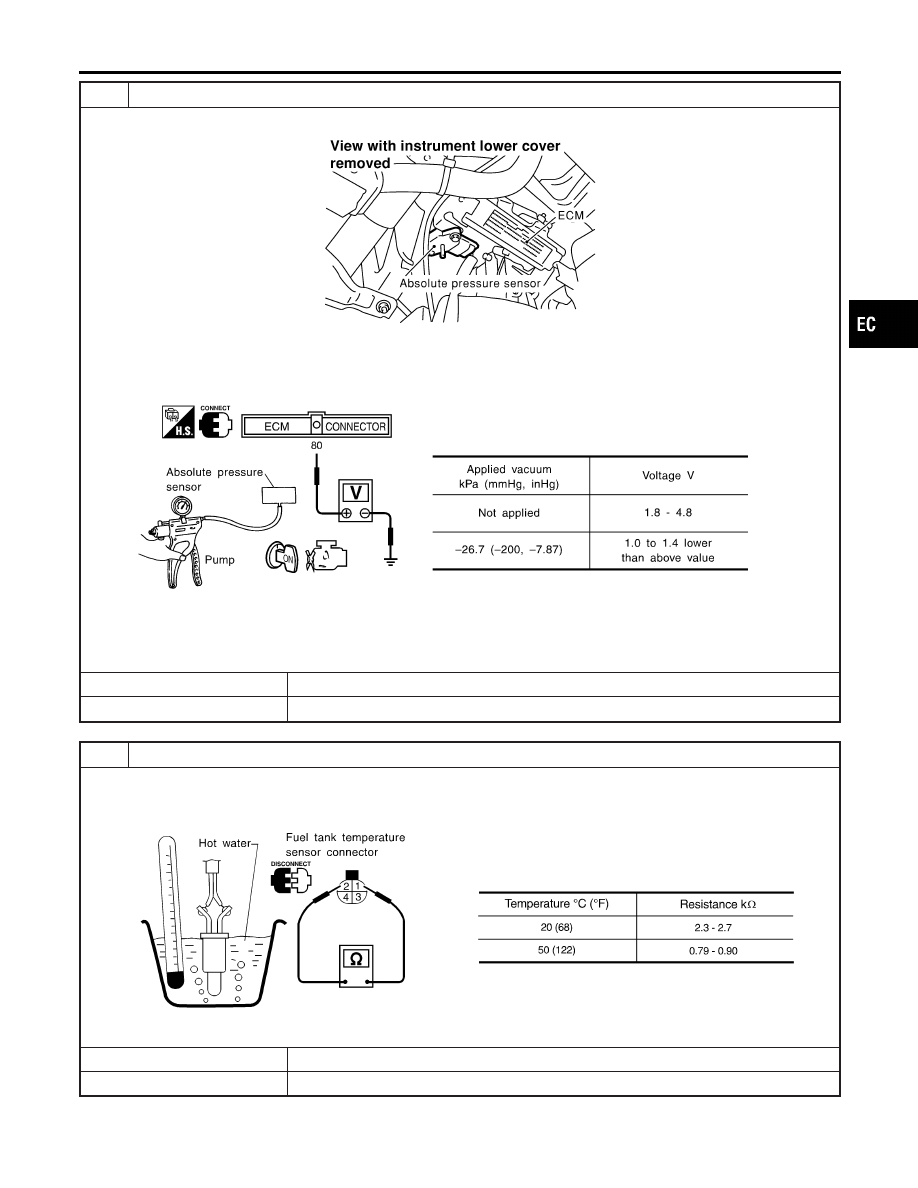

1. Remove absolute pressure sensor with its harness connector connected.

SEF961Y

2. Remove hose from absolute pressure sensor.
3. Install a vacuum pump to absolute pressure sensor.
4. Turn ignition switch “ON” and check output voltage between ECM terminal 80 and engine ground under the following

conditions.

SEF300XA

CAUTION:

I

Always calibrate the vacuum pump gauge when using it.

I

Do not apply below −93.3 kPa (–700 mmHg, –27.56 inHg) or over 101.3 kPa (760 mmHg, 29.92 inHg) of pressure.

OK or NG

OK

©

GO TO 17.

NG

©

Replace absolute pressure sensor.

17

CHECK FUEL TANK TEMPERATURE SENSOR

1. Remove fuel level sensor unit.
2. Check resistance between fuel level sensor unit and fuel pump terminals 4 and 5 by heating with hot water or heat gun

as shown in the figure.

SEF974Y

OK or NG

OK

©

GO TO 18.

NG

©

Replace fuel level sensor unit.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0455 EVAP CONTROL SYSTEM (GROSS LEAK)

Diagnostic Procedure (Cont’d)

EC-405

18

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

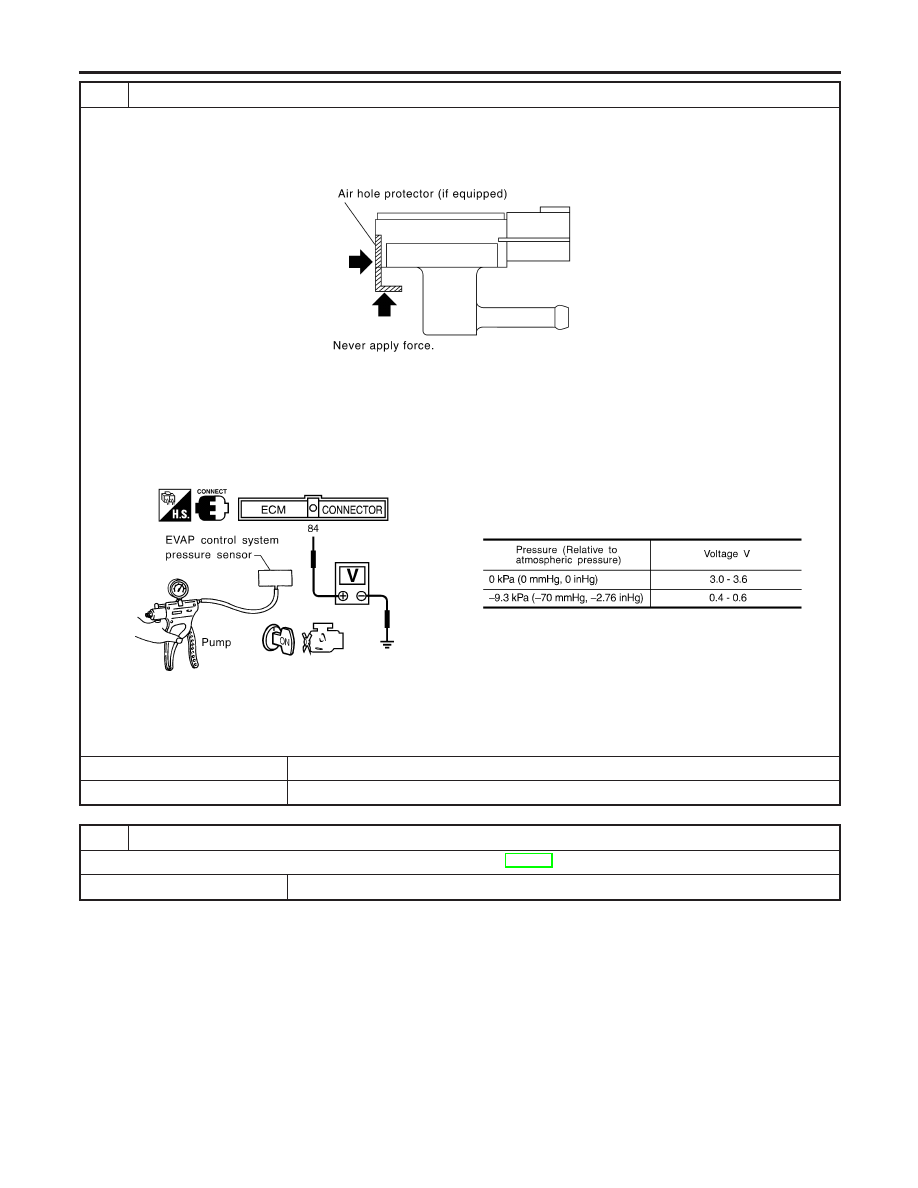

1. Remove EVAP control system pressure sensor with its harness connector connected.

CAUTION:

I

Never apply force to the air hole protector of the sensor if equipped.

SEF799W

2. Remove hose from EVAP control system pressure sensor.
3. Turn ignition switch “ON”.
4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

CAUTION:

I

Always calibrate the vacuum pump gauge when using it.

I

Do not apply below −20 kPa (−150 mmHg, −5.91 inHg) or over 20 kPa (150 mmHg, 5.91 inHg) of pressure.

5. Check input voltage between ECM terminal 84 and ground.

SEF342X

CAUTION:

I

Discard and EVAP control system pressure sensor which has been dropped from a height of more than 0.5m
(19.7in) onto a hard surface such as a concrete floor; use a new one.

OK or NG

OK

©

GO TO 19.

NG

©

Replace EVAP control system pressure sensor.

19

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-140.

©

INSPECTION END

DTC P0455 EVAP CONTROL SYSTEM (GROSS LEAK)

Diagnostic Procedure (Cont’d)

EC-406
