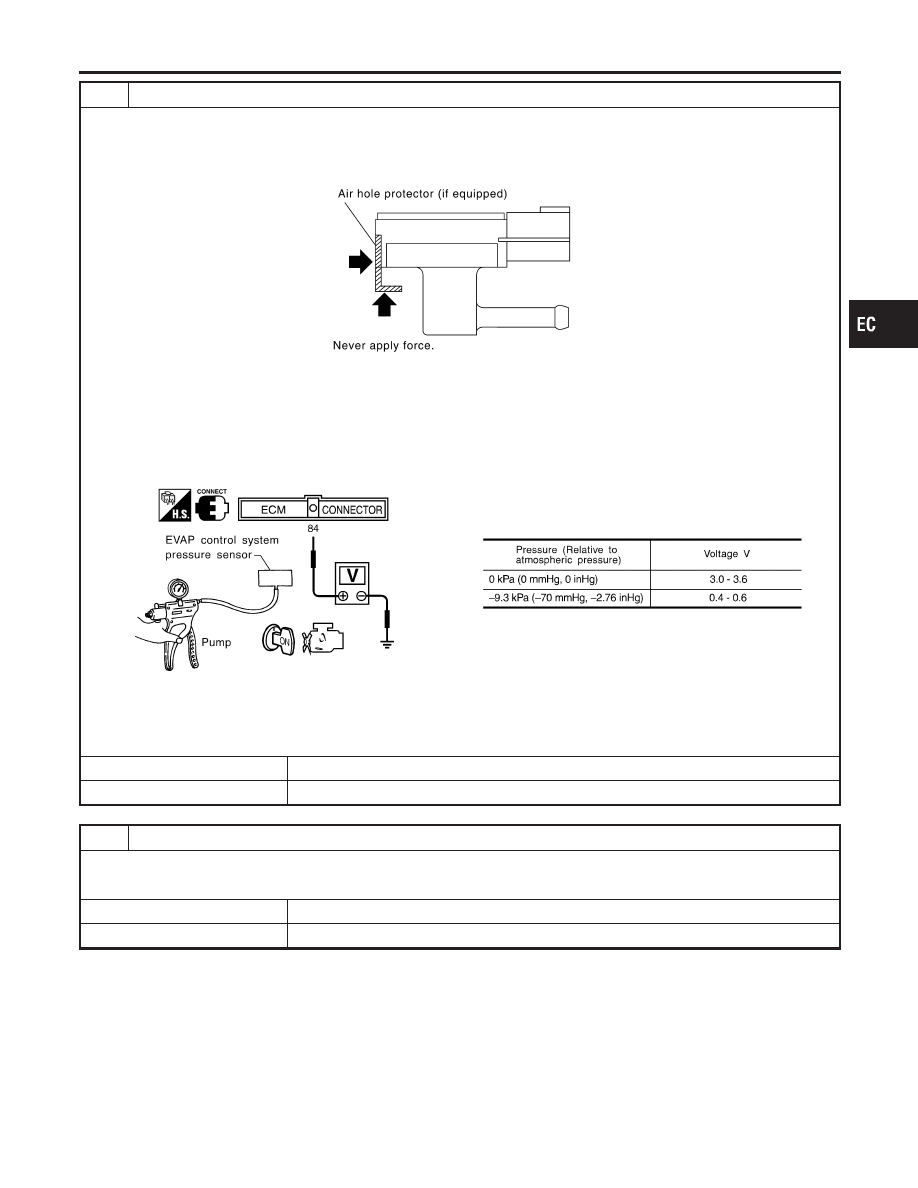

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1. Remove EVAP control system pressure sensor with its harness connector connected.

CAUTION:

I

Never apply force to the air hole protector of the sensor if equipped.

SEF799W

2. Remove hose from EVAP control system pressure sensor.
3. Turn ignition switch “ON”.
4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

CAUTION:

I

Always calibrate the vacuum pump gauge when using it.

I

Do not apply below −20 kPa (−150 mmHg, −5.91 inHg) or over 20 kPa (150 mmHg, 5.91 inHg) of pressure.

5. Check input voltage between ECM terminal 84 and ground.

SEF342X

CAUTION:

I

Discard and EVAP control system pressure sensor which has been dropped from a height of more than 0.5
m (19.7 in) onto a hard surface such as a concrete floor; use a new one.

OK or NG

OK

©

GO TO 17.

NG

©

Replace EVAP control system pressure sensor.

17

CHECK RUBBER TUBE

Check obstructed rubber tube connected to EVAP canister vent control valve.

OK or NG

OK

©

GO TO 18.

NG

©

Clean rubber tube using an air blower, repair or replace rubber tube.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0450 EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM PRESSURE

SENSOR

Diagnostic Procedure (Cont’d)

EC-391

18

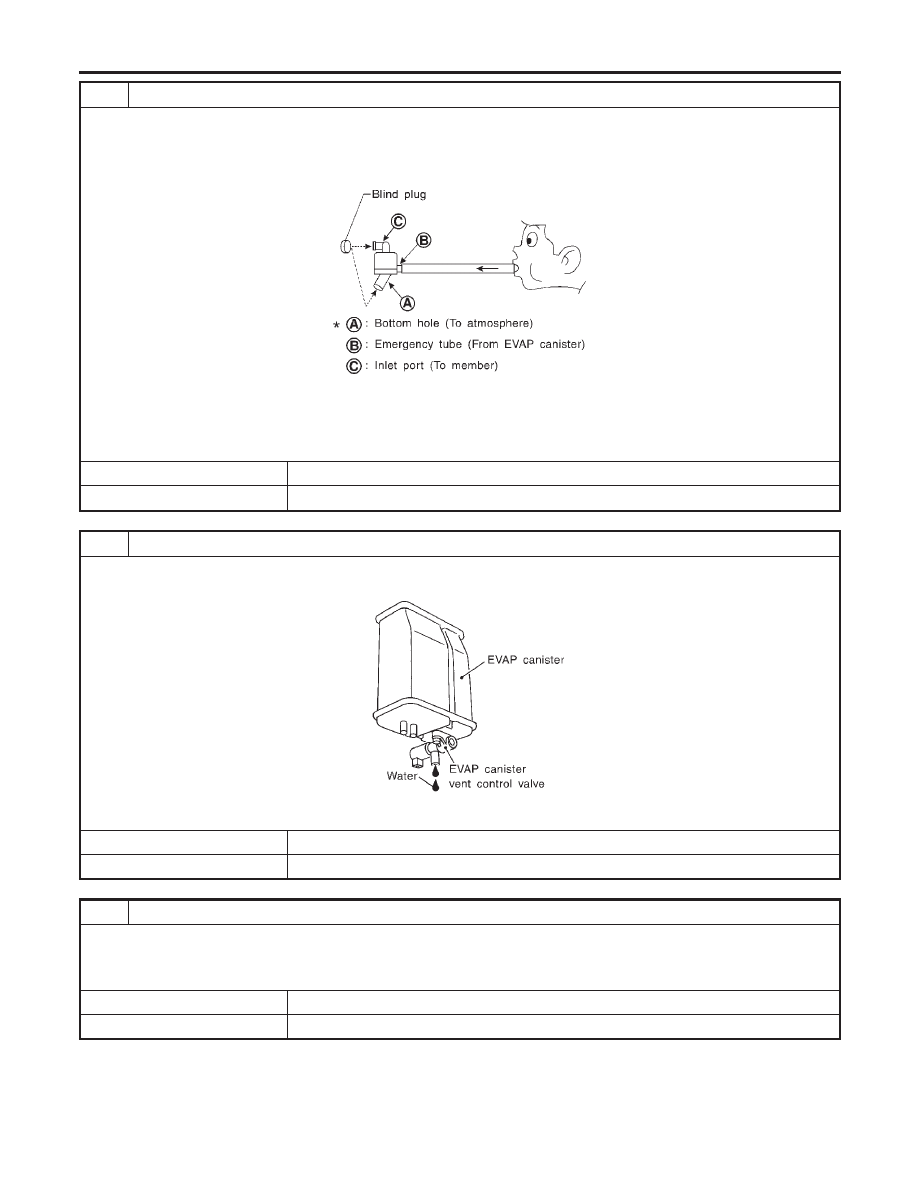

CHECK WATER SEPARATOR

1. Check visually for insect nests in the water separator air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Check that and are not clogged by blowing air into with A, and then plugged.

SEF829T

5. In case of NG in items 2 - 4, replace the parts.
NOTE:

I

Do not disassemble water separator.

OK or NG

OK

©

GO TO 19.

NG

©

Replace water separator.

19

CHECK IF EVAP CANISTER SATURATED WITH WATER

1. Remove EVAP canister with EVAP canister vent control valve attached.
2. Check if water will drain from the EVAP canister.

SEF596U

Yes or No

Yes

©

GO TO 20.

No

©

GO TO 22.

20

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve attached.
The weight should be less than 1.8 kg (4.0 lb).

OK or NG

OK

©

GO TO 22.

NG

©

GO TO 21.

DTC P0450 EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM PRESSURE

SENSOR

Diagnostic Procedure (Cont’d)

EC-392

21

DETECT MALFUNCTIONING PART

Check the following.

I

EVAP canister for damage

I

EVAP hose between EVAP canister and water separator for clogging or poor connection

©

Repair hose or replace EVAP canister.

22

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-140.

©

INSPECTION END

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0450 EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM PRESSURE

SENSOR

Diagnostic Procedure (Cont’d)

EC-393

On Board Diagnosis Logic

NBEC0644

NOTE:
If DTC P0455 is displayed with P1448, perform trouble diagno-
sis for DTC P1448 first. (See EC-573.)

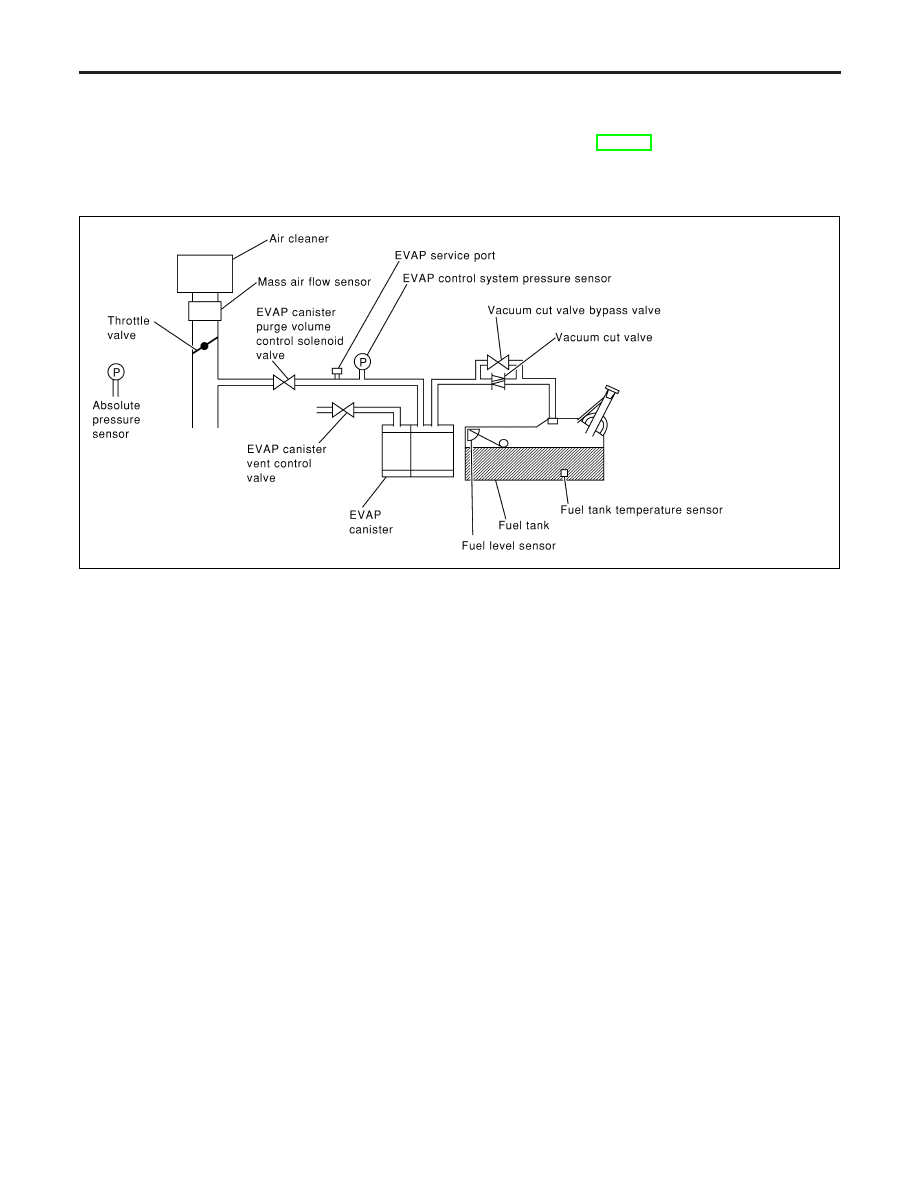

This diagnosis detects a very large leak (fuel filler cap fell off etc.)
in EVAP system between the fuel tank and EVAP canister purge
volume control solenoid valve.

SEF373Z

Malfunction is detected when EVAP control system has a very large
leak such as fuel filler cap fell off, EVAP control system does not
operate properly.

CAUTION:

I

Use only a genuine NISSAN fuel filler cap as a replace-
ment. If an incorrect fuel filler cap is used, the MIL may
come on.

I

If the fuel filler cap is not tightened properly, the MIL may
come on.

I

Use only a genuine NISSAN rubber tube as a replacement.

Possible Cause

NBEC0645

I

Fuel filler cap remains open or fails to close.

I

Incorrect fuel tank vacuum relief valve

I

Incorrect fuel filler cap used

I

Foreign matter caught in fuel filler cap.

I

Leak is in line between intake manifold and EVAP canister
purge volume control solenoid valve.

I

Foreign matter caught in EVAP canister vent control valve.

I

EVAP canister or fuel tank leaks

I

EVAP purge line (pipe and rubber tube) leaks

DTC P0455 EVAP CONTROL SYSTEM (GROSS LEAK)

On Board Diagnosis Logic
