Infiniti QX4 (R50). Manual - part 226





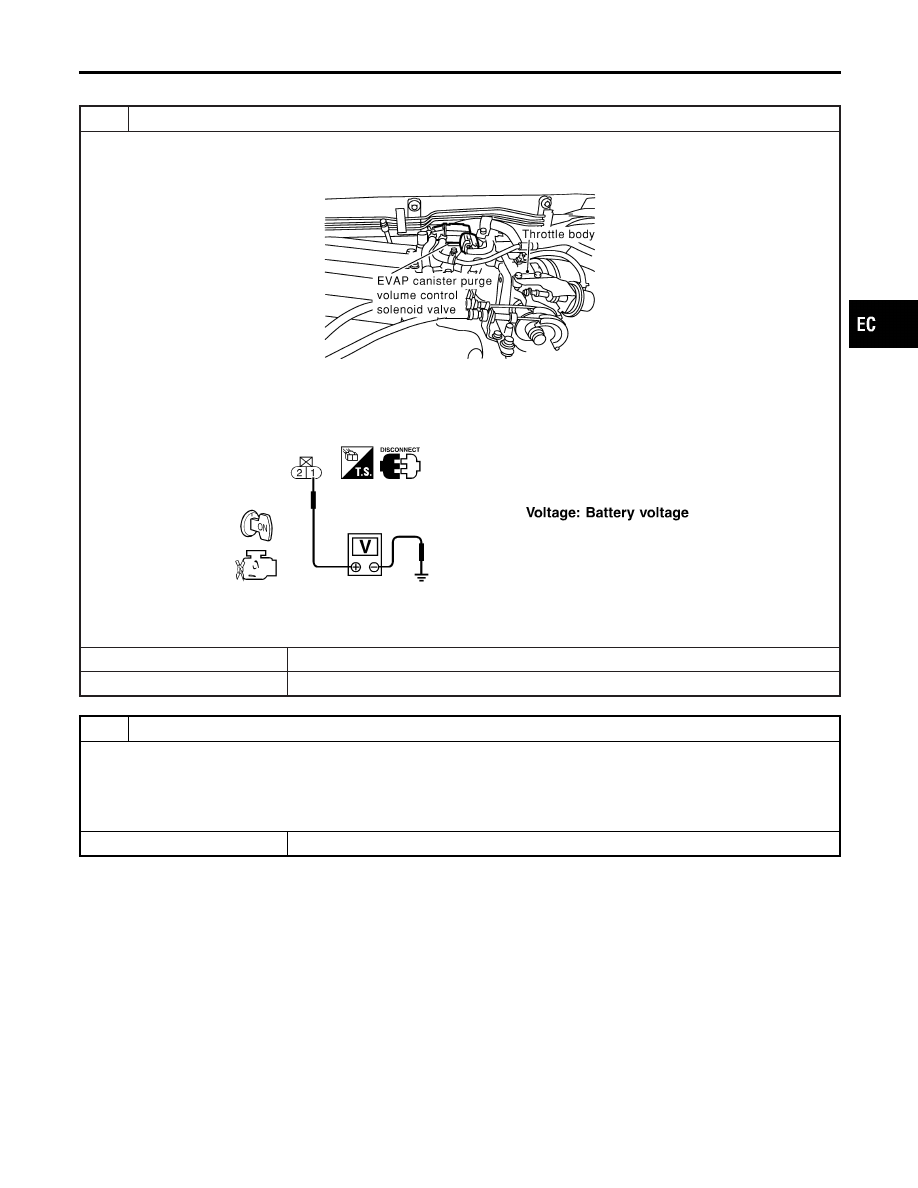

Diagnostic Procedure

NBEC0227

1

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

SEF986Y

3. Turn ignition switch “ON”.
4. Check voltage between EVAP canister purge volume control solenoid valve terminal 1 and ground with CONSULT-II or

tester.

SEF988Y

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M32, F23

I

Fuse block (J/B) connector M10

I

10A fuse

I

Harness for open or short between EVAP canister purge volume control solenoid valve and fuse

©

Repair harness or connectors.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

(CIRCUIT)

Diagnostic Procedure

EC-371

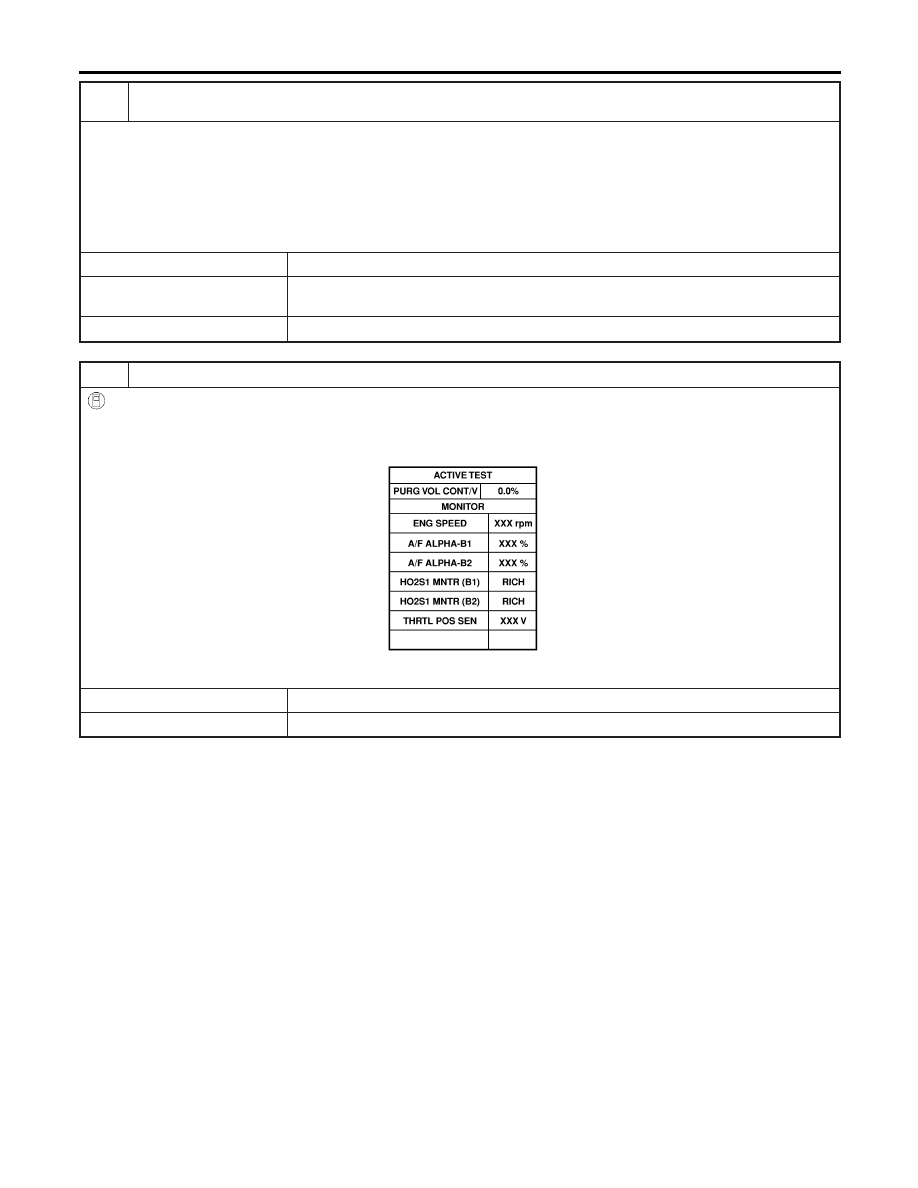

3

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT
FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 1 and EVAP canister purge volume control solenoid valve terminal 2.

Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK (With CONSULT-II)

©

GO TO 4.

OK (Without CONSULT-
II)

©

GO TO 5.

NG

©

Repair open circuit or short to ground and short to power in harness or connetors.

4

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

With CONSULT-II

1. Start engine.
2. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-II. Check that engine speed varies according

to the valve opening.

SEF985Y

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

(CIRCUIT)

Diagnostic Procedure (Cont’d)

EC-372

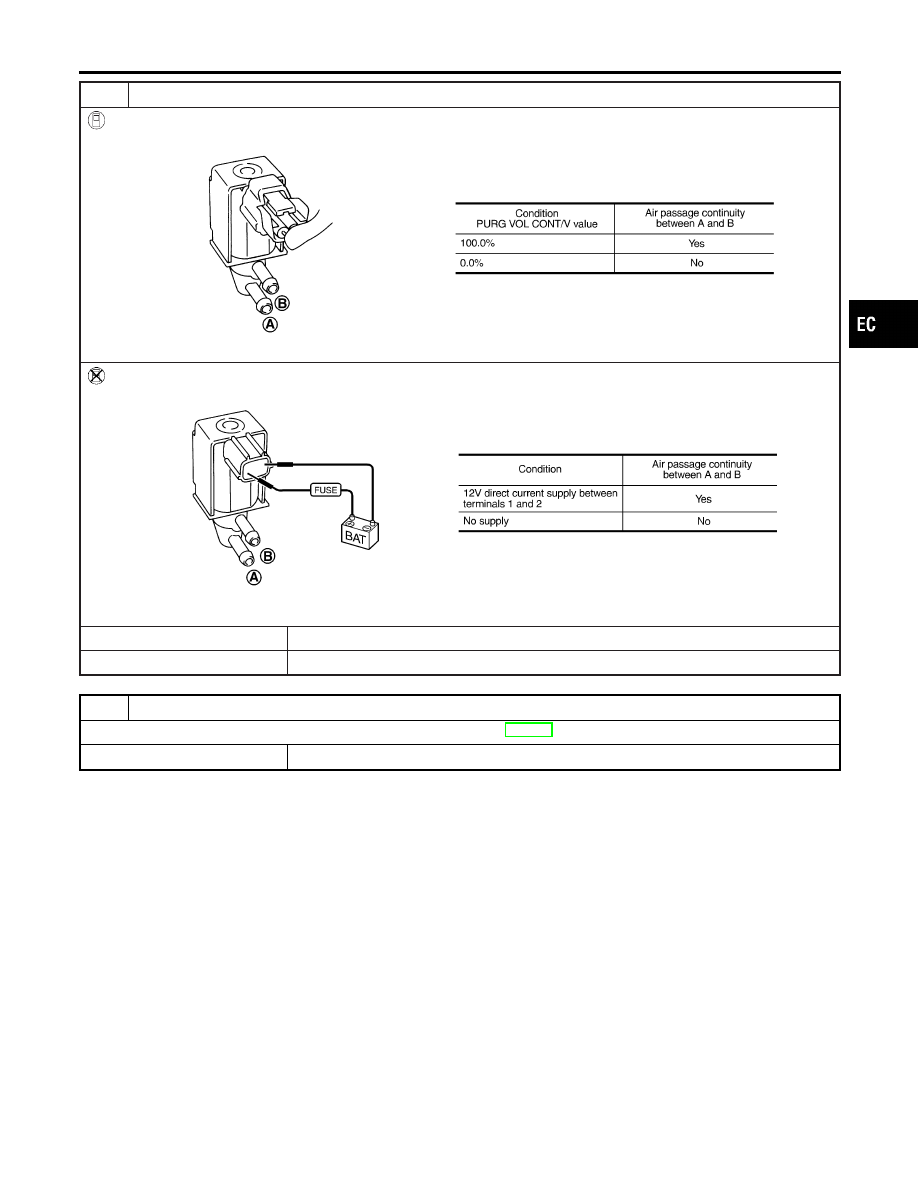

5

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

SEF334X

Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

SEF335X

OK or NG

OK

©

GO TO 6.

NG

©

Replace EVAP canister purge volume control solenoid valve.

6

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-140.

©

INSPECTION END

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

(CIRCUIT)

Diagnostic Procedure (Cont’d)

EC-373

SEF032W

SEF143S

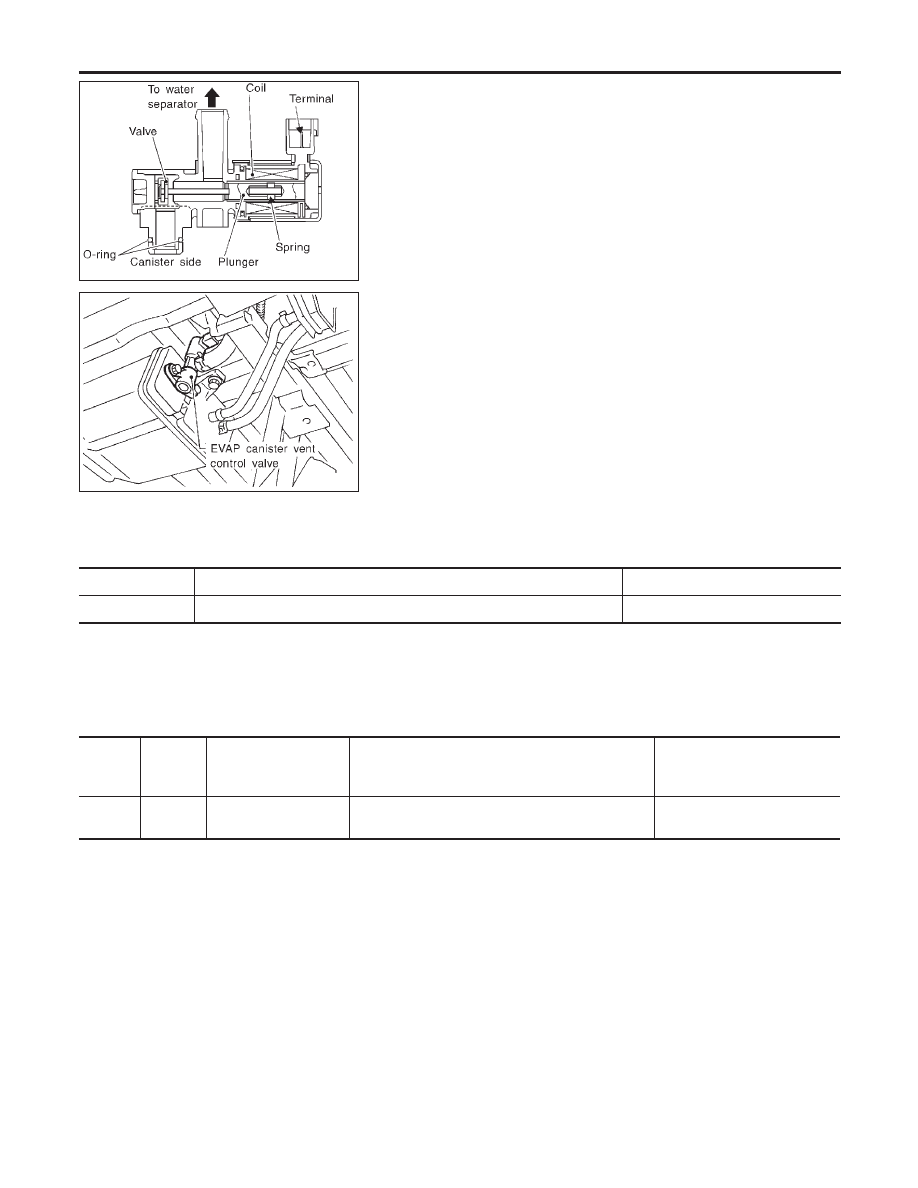

Component Description

NBEC0228

The EVAP canister vent control valve is located on the EVAP can-
ister and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is ener-
gized. A plunger will then move to seal the canister vent. The abil-
ity to seal the vent is necessary for the on board diagnosis of other
evaporative emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the
evaporative emission control system is depressurized and allows
“EVAP Control System (Small Leak)” diagnosis.

CONSULT-II Reference Value in Data Monitor
Mode

NBEC0229

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

VENT CONT/V

I

Ignition switch: ON

OFF

ECM Terminals and Reference Value

NBEC0667

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

40

G/Y

EVAP canister vent
control valve

[Ignition switch “ON”]

BATTERY VOLTAGE
(11 - 14V)

On Board Diagnosis Logic

NBEC0231

Malfunction is detected when an improper voltage signal is sent to
ECM through EVAP canister vent control valve.

DTC P0446 EVAPORATIVE EMISSION (EVAP) CANISTER VENT CONTROL

VALVE (CIRCUIT)

Component Description

EC-374
