1 right signal) or 71 (HO2S2 bank 2 left signal) and engine
ground.

4)

Check the voltage when racing up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be below 1.4V during this procedure.

5)

If NG, go to “Diagnostic Procedure”, EC-282.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0140, P0160 HEATED OXYGEN SENSOR 2 (REAR) (BANK 1)/(BANK 2)

(HIGH VOLTAGE)

Overall Function Check (Cont’d)

EC-279

Wiring Diagram

NBEC0160

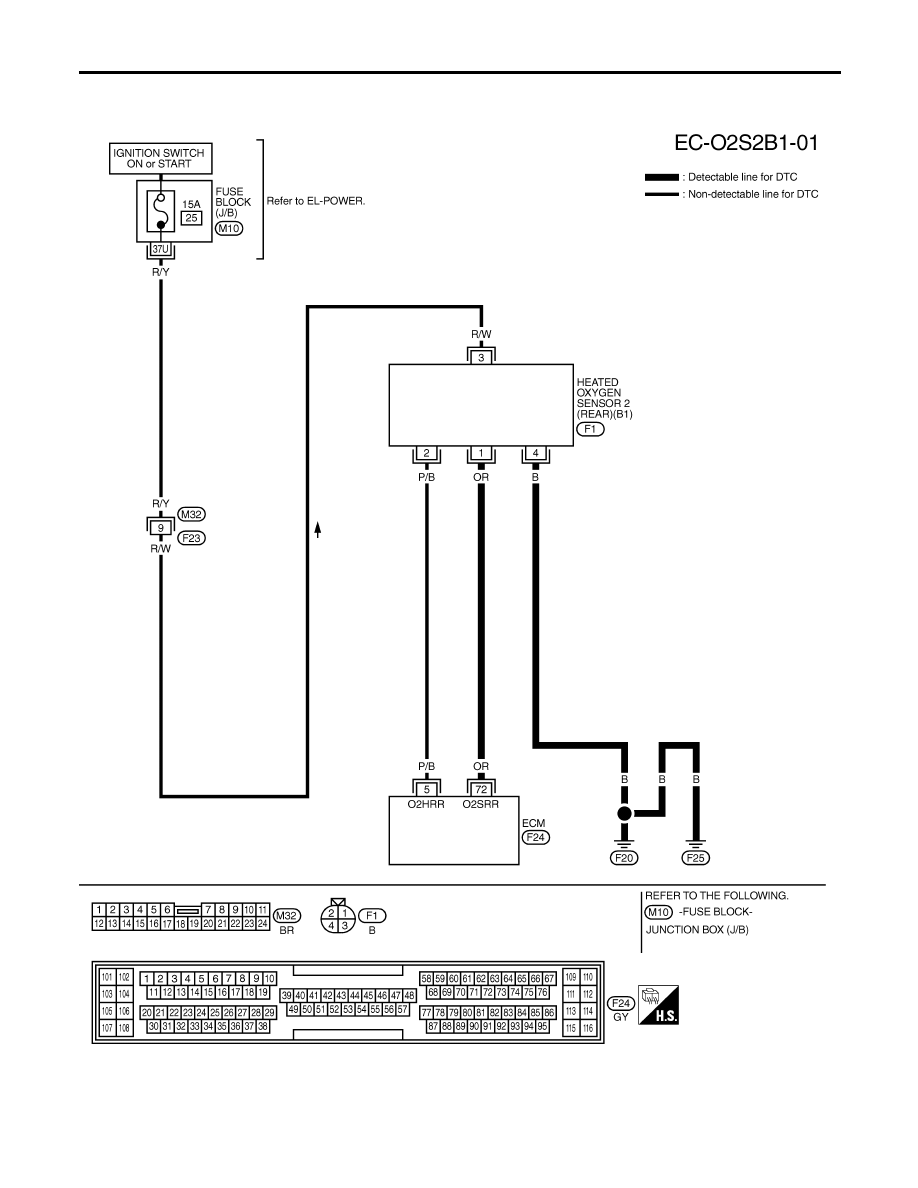

RIGHT BANK

NBEC0160S01

MEC951C

DTC P0140, P0160 HEATED OXYGEN SENSOR 2 (REAR) (BANK 1)/(BANK 2)

(HIGH VOLTAGE)

Wiring Diagram

EC-280

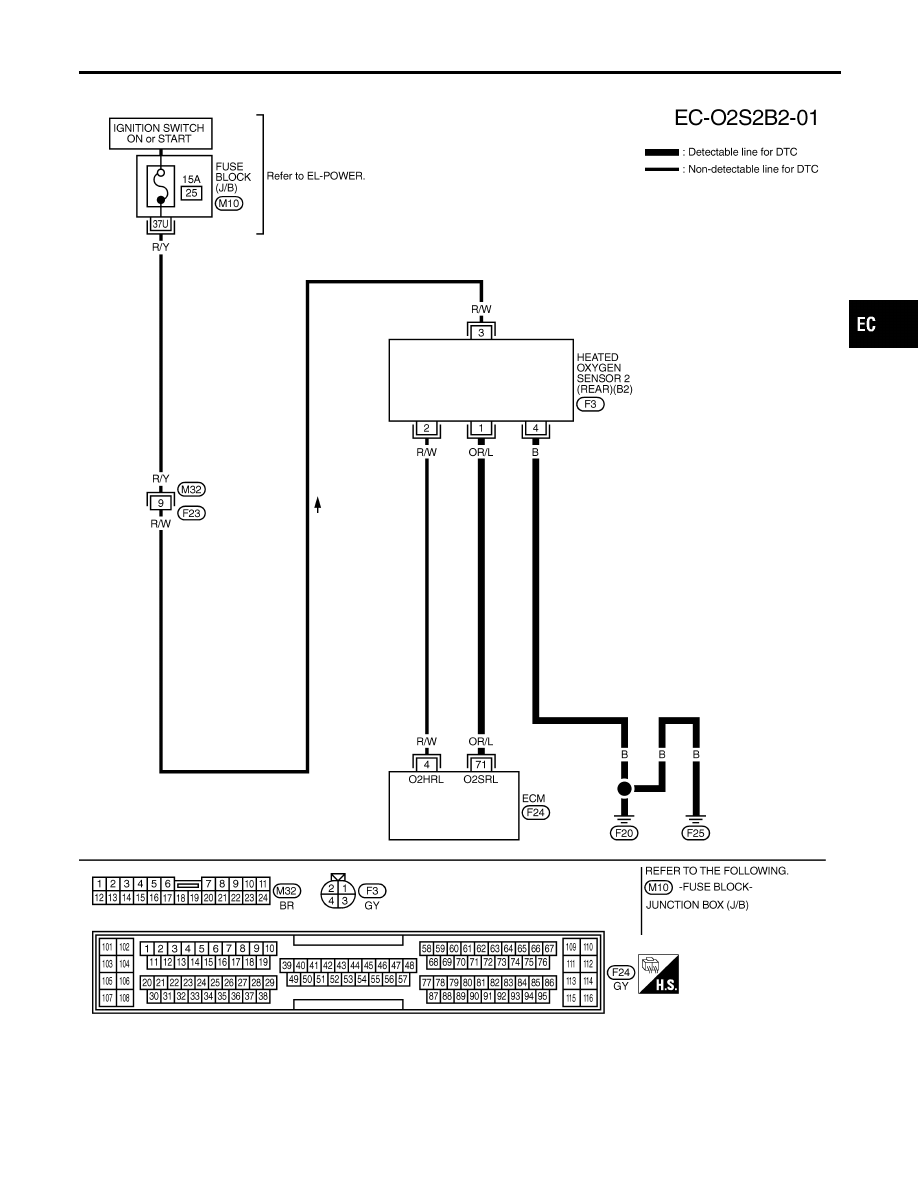

LEFT BANK
