Infiniti QX4 (R50). Manual - part 159





6

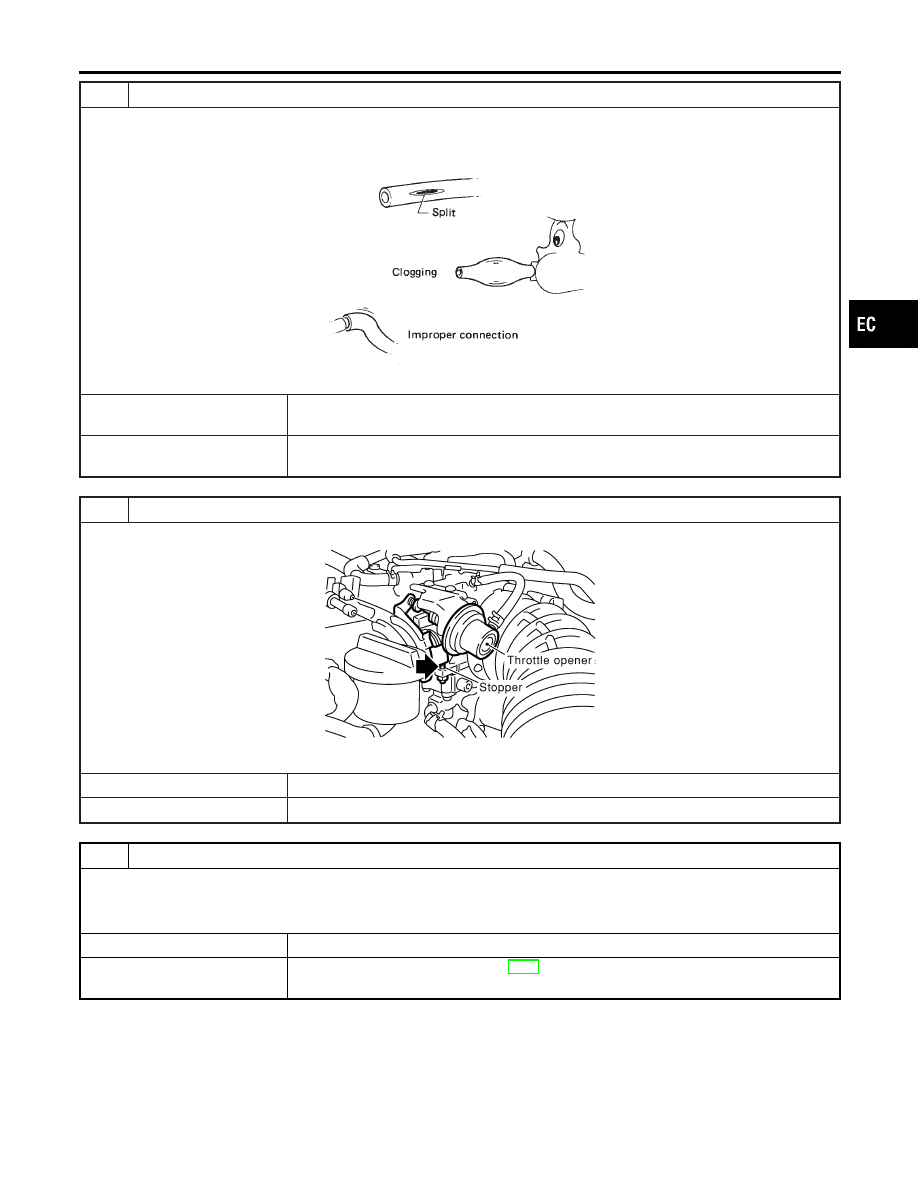

CHECK VACUUM HOSE

1. Stop engine.
2. Remove the vacuum hose.
3. Check the vacuum hose for splits, kinks and clogging.

SEF109L

OK or NG

OK

©

1. Clean vacuum port by blowing air.
2. GO TO 4.

NG

©

1. Replace vacuum hose.
2. GO TO 4.

7

CHECK THROTTLE DRUM OPERATION

Confirm that throttle drum moves to contact the stopper.

SEF950Y

OK or NG

OK

©

GO TO 10.

NG

©

GO TO 8.

8

CHECK ACCELERATOR WIRE INSTALLATION

1. Stop engine.
2. Check accelerator wire for slack.

OK or NG

OK

©

GO TO 9.

NG

©

1. Adjust accelerator wire. Refer to FE-3, “Adjusting Accelerator Wire”.
2. GO TO 7.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-103

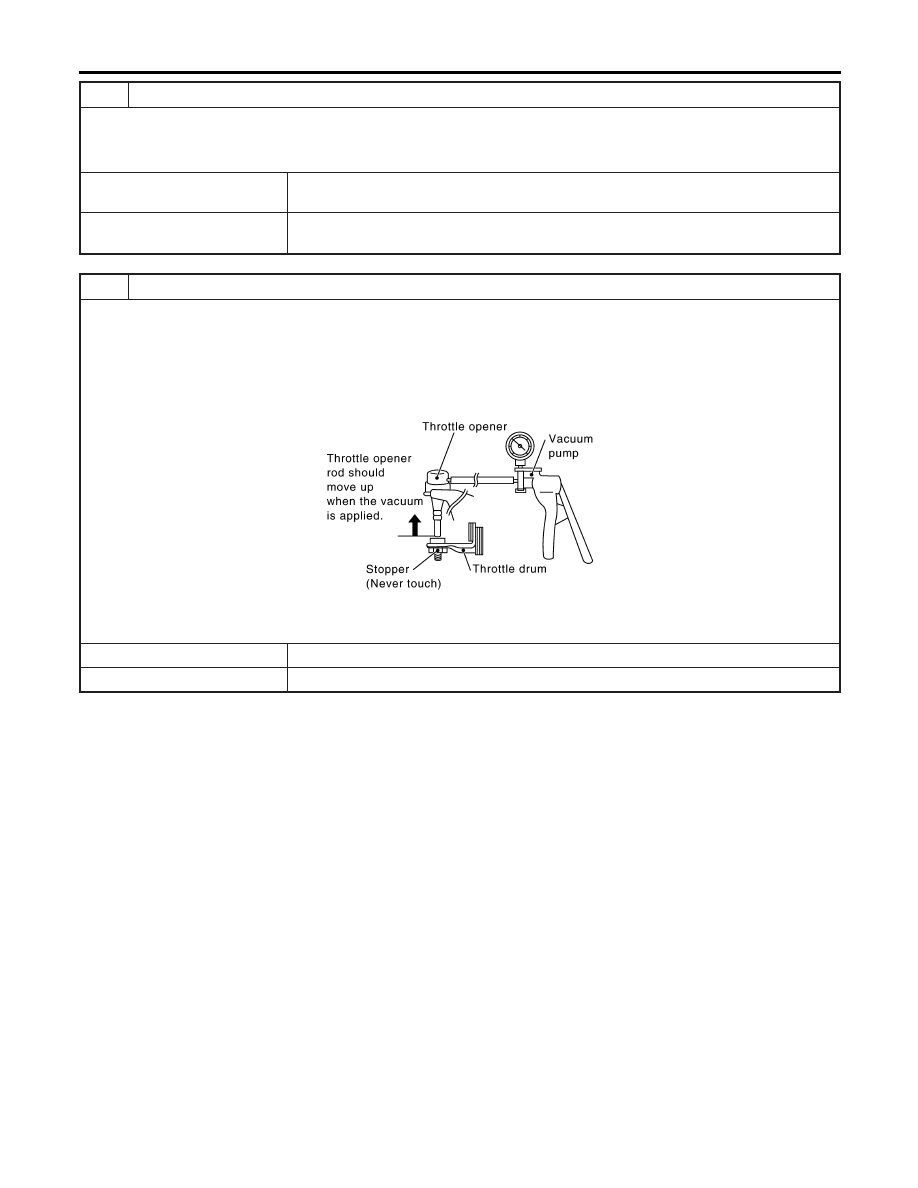

9

CHECK THROTTLE VALVE OPERATION

1. Remove intake air ducts.
2. Check throttle valve operation when moving throttle drum by hand.

OK or NG

OK

©

1. Retighten the throttle drum fixing nuts.
2. GO TO 7.

NG

©

1. Clean the throttle body and throttle valve.
2. GO TO 7.

10

CHECK THROTTLE POSITION SWITCH CLOSED POSITION-I

NOTE:
Always check ignition timing before performing the following.
1. Warm up engine to normal operating temperature.
2. Stop engine.
3. Remove the vacuum hose connected to the throttle opener.
4. Connect suitable vacuum hose to vacuum pump as shown below.

SEF793WA

5. Apply vacuum [more than −40.0 kPa (−300 mmHg, −11.81 inHg)] until the throttle drum is free from the throttle opener

rod.

With CONSULT-II

©

GO TO 11.

Without CONSULT-II

©

GO TO 15.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-104

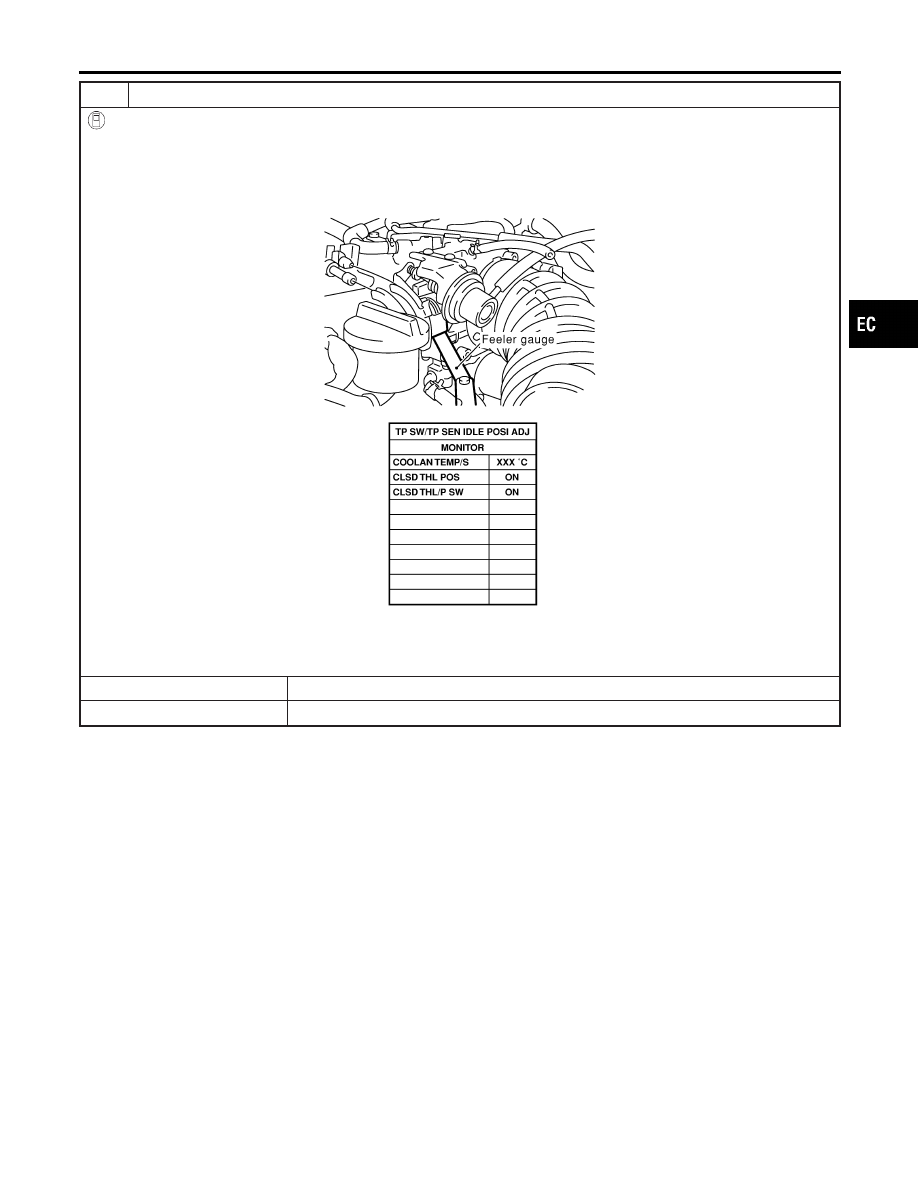

11

CHECK THROTTLE POSITION SWITCH CLOSED POSITION-II

With CONSULT-II

1. Turn ignition switch “ON”.
2. Select “TP SW/TP SEN IDLE POSI ADJ” in “WORK SUPPORT” mode with CONSULT-II.
3. Read “CLSD THL/P SW” signal under the following conditions.

I

Insert a 0.05 mm (0.0020 in) and 0.15 mm (0.0059 in) feeler gauge alternately between stopper and throttle drum as
shown in the figure and check the signal.

SEF953Y

SEF987Y

“CLSD THL/P SW” signal should remain “ON” while inserting 0.05 mm (0.0020 in) feeler gauge.
“CLSD THL/P SW” signal should remain “OFF” while inserting 0.15 mm (0.0059 in) feeler gauge.

OK or NG

OK

©

GO TO 14.

NG

©

GO TO 12.

GI

MA

EM

LC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-105

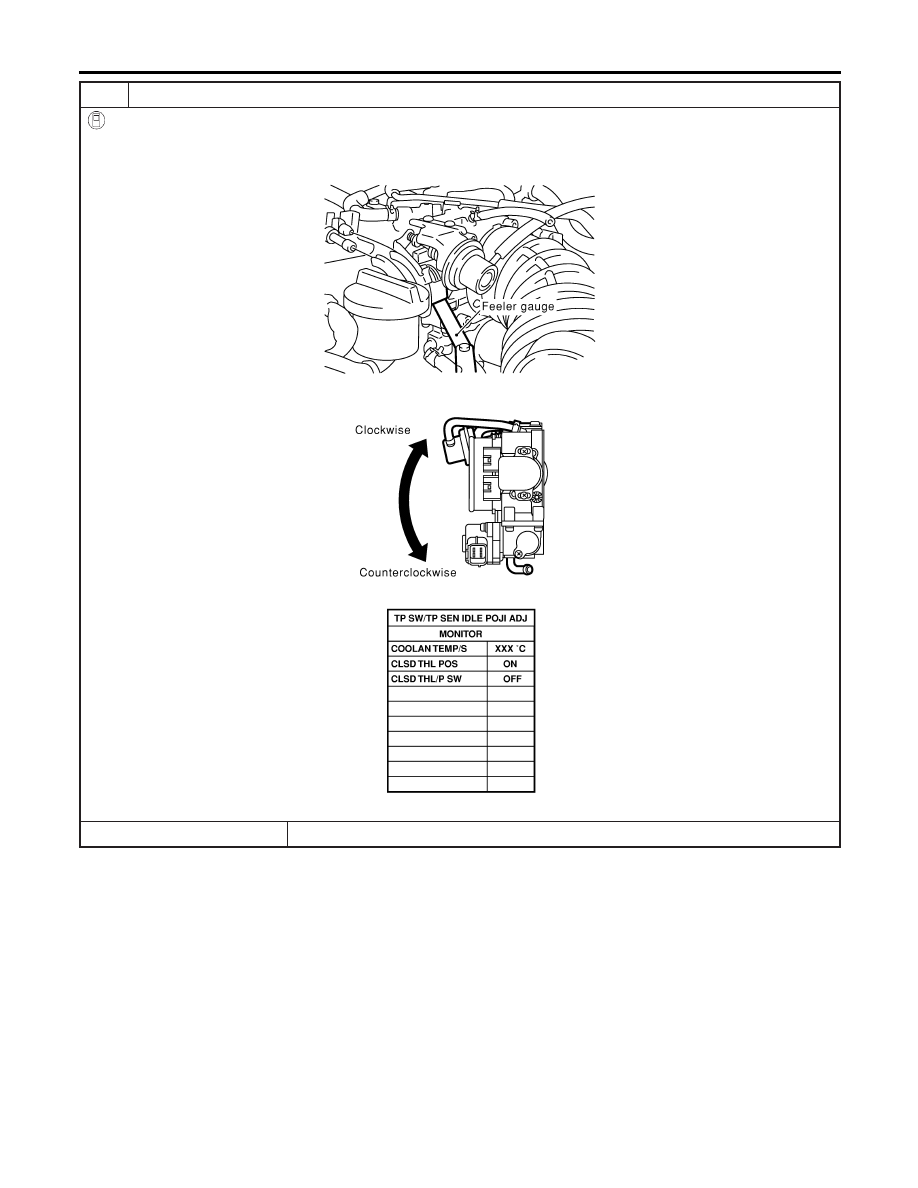

12

ADJUSTMENT THROTTLE POSITION SWITCH CLOSED POSITION-I

With CONSULT-II

1. Loosen throttle position sensor fixing bolts.
2. Confirm that proper vacuum is applied. Refer to test No. 10. During adjustment, vacuum should be applied.
3. Insert 0.05 mm (0.0020 in) feeler gauge between stopper and throttle drum as shown in the figure.

SEF953Y

4. Turn throttle position sensor body counterclockwise until “CLSD THL/P SW” signal switches to “OFF”.

SEF954Y

SEF007Z

©

GO TO 13.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Basic Inspection (Cont’d)

EC-106
