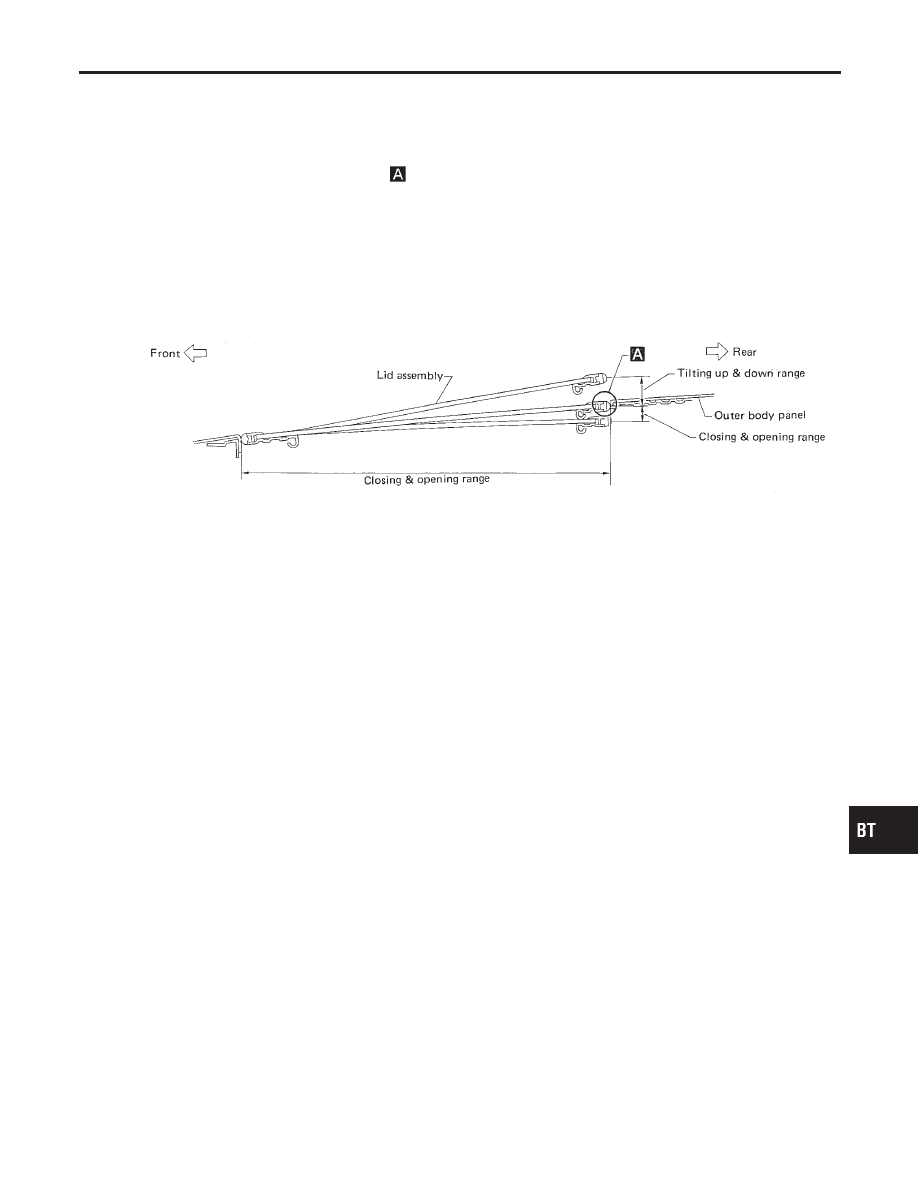

Adjustment

NBBT0016

Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunroof connector to sunroof switch and positive (+) power supply.
3. Set lid assembly to fully closed position

by operating OPEN switch and TILT switch.

4. Fit outer side of lid assembly to the surface of roof on body outer panel.
5. Remove motor, and keep OPEN switch pressed until motor pinion gear reaches the end of its rotating

range.

6. Install motor.
7. Check that motor drive gear fits properly in wires.
8. Press TILT-UP switch to check lid assembly for normal tilting.
9. Check sunroof lid assembly for normal operations (tilt-up, tilt-down, open, and close).

SBF920F

Removal and Installation

NBBT0017

I

After any adjustment, check sunroof operation and lid align-
ment.

I

Handle finisher plate and glass lid with care so not to cause
damage.

I

It is desirable for easy installation to mark each point before
removal.

CAUTION:

I

Always work with a helper.

I

Before removal, fully close the glass lid assembly, then
after removal, do not move motor assembly.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

Adjustment

BT-45

SBT515-C

*1

BT-32

*2

EL-174

SUNROOF

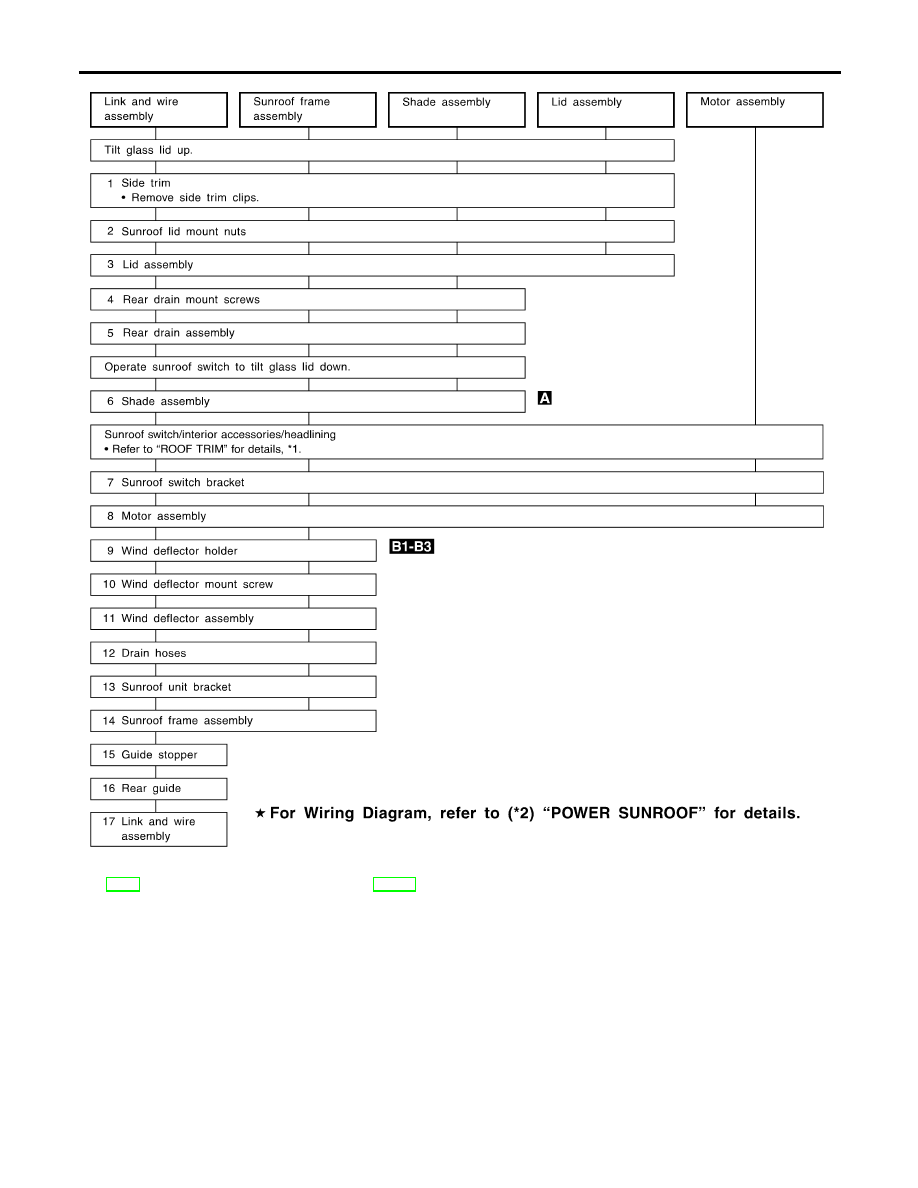

Removal and Installation (Cont’d)

BT-46

MBF462BG

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

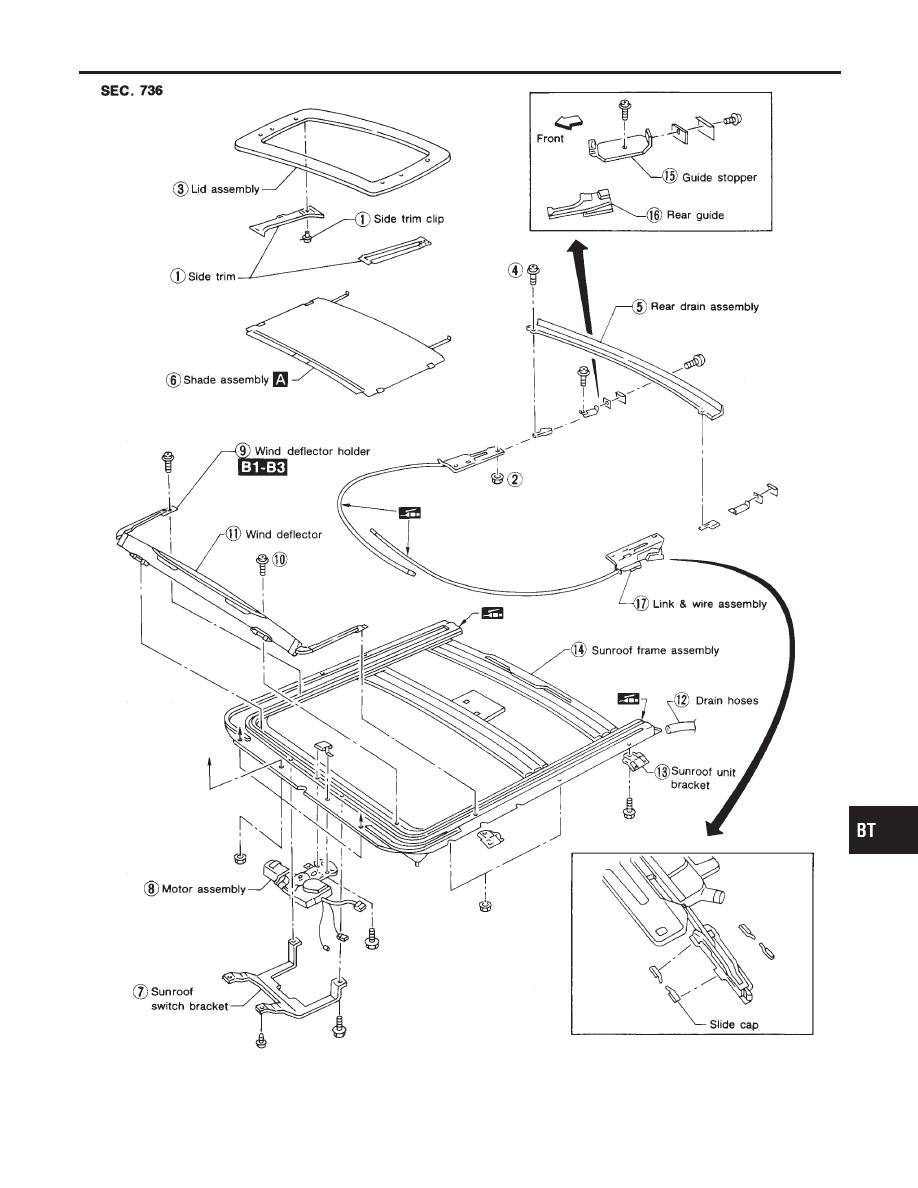

Removal and Installation (Cont’d)

BT-47

SBT082

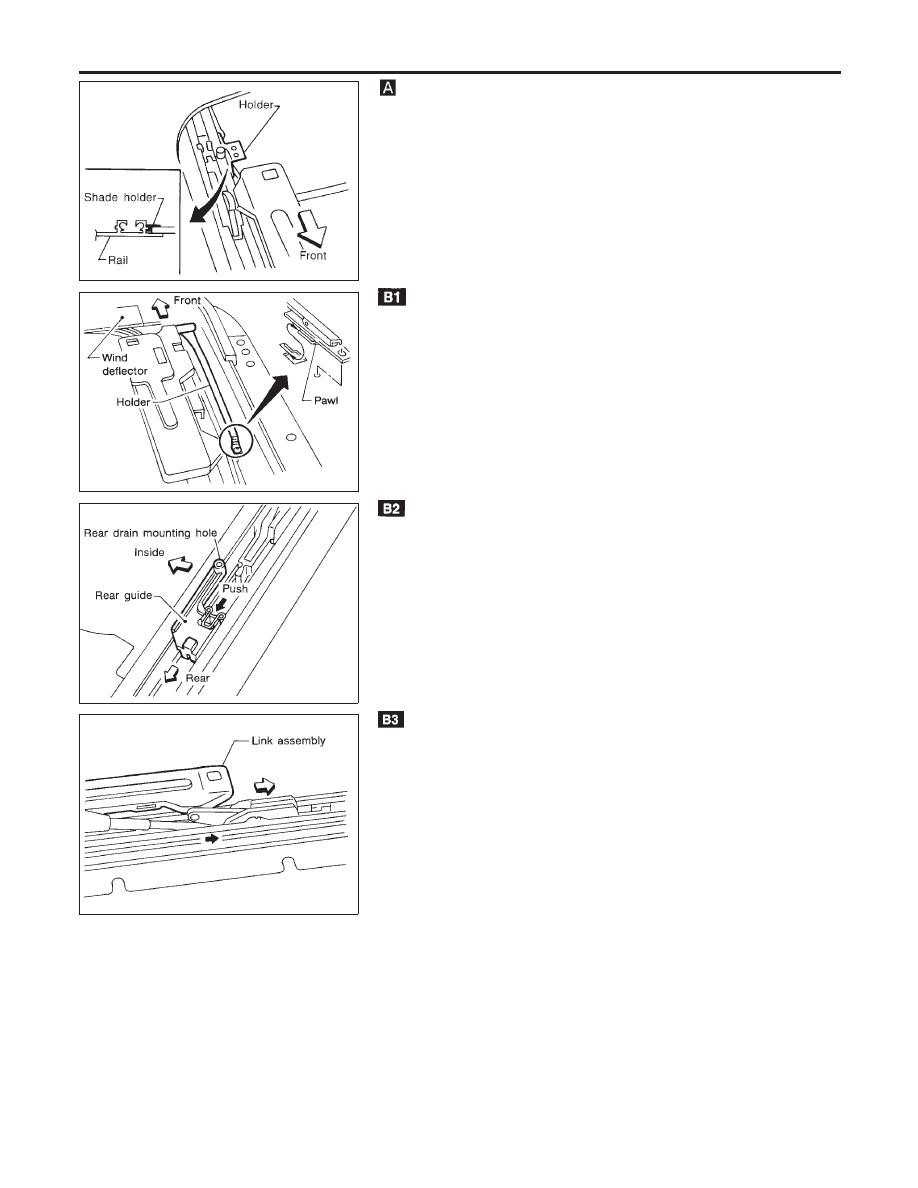

Using flat-bladed screwdriver, pry shade assembly holder off

rail. Then pull shade assembly forward to remove it from rail.

MBF491BA

Disengage pawls from rail, then remove wind deflector holder.

MBF492B

Using flat-bladed screwdriver, pry stopper spring off rail

groove. Then slide rear guide backward to remove it from rail.

MBF493B

Remove wire and link assembly from rail while pushing link

back with flat-bladed screwdriver.

SUNROOF

Removal and Installation (Cont’d)

BT-48
