BODY & TRIM

SECTION

BT

CONTENTS

PRECAUTIONS ...............................................................2

Service Notice..............................................................2
Supplemental Restraint System (SRS)

AIR

BAG

and

SEAT BELT PRE-TENSIONER

...............2

PREPARATION ...............................................................3

Special Service Tools ..................................................3
Commercial Service Tools ...........................................3

SQUEAK AND RATTLE TROUBLE DIAGNOSES.........4

Work Flow....................................................................4

CUSTOMER INTERVIEW

...........................................4

DUPLICATE THE NOISE AND TEST DRIVE

................5

CHECK RELATED SERVICE BULLETINS

...................5

LOCATE THE NOISE AND IDENTIFY THE ROOT
CAUSE

.....................................................................5

REPAIR THE CAUSE

.................................................5

CONFIRM THE REPAIR

.............................................6

Generic Squeak and Rattle Troubleshooting ..............6

INSTRUMENT PANEL

................................................6

CENTER CONSOLE

..................................................6

DOORS

.....................................................................6

TRUNK

.....................................................................7

SUNROOF/HEADLINER

.............................................7

SEATS

......................................................................7

UNDERHOOD

...........................................................7

Diagnostic Worksheet..................................................8

CLIP AND FASTENER..................................................10

Description .................................................................10

BODY FRONT END.......................................................12

Removal and Installation ...........................................12

FRONT BUMPER ASSEMBLY

..................................12

BODY REAR END AND OPENER................................15

Removal and Installation ...........................................15

REAR BUMPER ASSEMBLY

....................................15

FRONT DOOR ...............................................................18

Overhaul ....................................................................18
Front Door Limit Switch Reset ..................................19

RESET CONDITIONS

..............................................19

RESET PROCEDURES

............................................19

REAR DOOR .................................................................20

Overhaul ....................................................................20

INSTRUMENT PANEL ASSEMBLY .............................21

Removal and Installation ...........................................21

SIDE AND FLOOR TRIM...............................................28

Removal and Installation ...........................................28

DOOR TRIM ...................................................................30

Removal and Installation ...........................................30

ROOF TRIM ...................................................................32

Removal and Installation ...........................................32

BACK DOOR TRIM .......................................................34

Removal and Installation ...........................................34

EXTERIOR .....................................................................35

Removal and Installation ...........................................35

FRONT SEAT ................................................................41

Removal and Installation ...........................................41

HEATED SEAT

........................................................43

REAR SEAT...................................................................44

Removal and Installation ...........................................44

SUNROOF......................................................................45

Adjustment .................................................................45
Removal and Installation ...........................................45
Trouble Diagnoses.....................................................49

DIAGNOSTIC TABLE

................................................49

WIND DEFLECTOR

.................................................49

ADJUSTMENT

.........................................................50

DRAIN HOSES

........................................................51

WEATHERSTRIP

.....................................................51

LINK AND WIRE ASSEMBLY

....................................52

WINDSHIELD AND WINDOWS ....................................53

Removal and Installation ...........................................53

REMOVAL

...............................................................53

INSTALLATION

........................................................53

WINDSHIELD

..........................................................54

REAR SIDE WINDOW

..............................................55

DOOR MIRROR .............................................................56

Removal and Installation ...........................................56

BODY (ALIGNMENT) ....................................................57

Alignment ...................................................................57

ENGINE COMPARTMENT

........................................58

UNDERBODY

..........................................................60

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

HA

SC

EL

IDX

Service Notice

NBBT0001

I

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

I

Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil
or damage them.

I

Apply sealing compound where necessary when installing parts.

I

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

I

When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NBBT0002

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to INFINITI QX4 is as follows:

I

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), seat belt
pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

I

For a side collision
The Supplemental Restraint System consists of side air bag module (located in the outer side of front seat),
satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision), wiring harness,
warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

I

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized INFINITI dealer.

I

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

I

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

PRECAUTIONS

Service Notice

BT-2

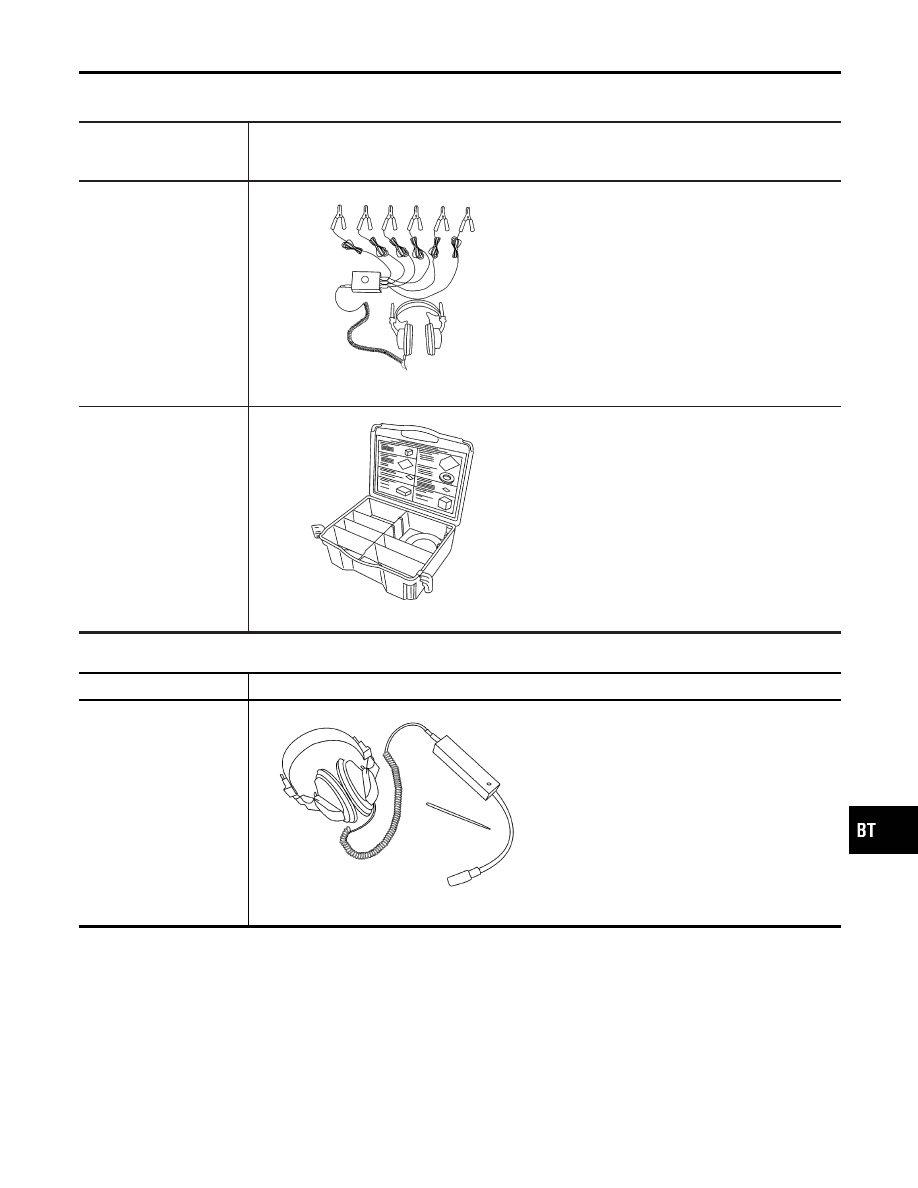

Special Service Tools

NBBT0022

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

SBT839

Locating the noise

(J-43980)
Nissan Squeak and Rattle
kit

SBT840

Repairing the cause of noise

Commercial Service Tools

NBBT0023

Tool name

Description

Engine ear

SBT841

Locating the noise

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

HA

SC

EL

IDX

PREPARATION

Special Service Tools

BT-3

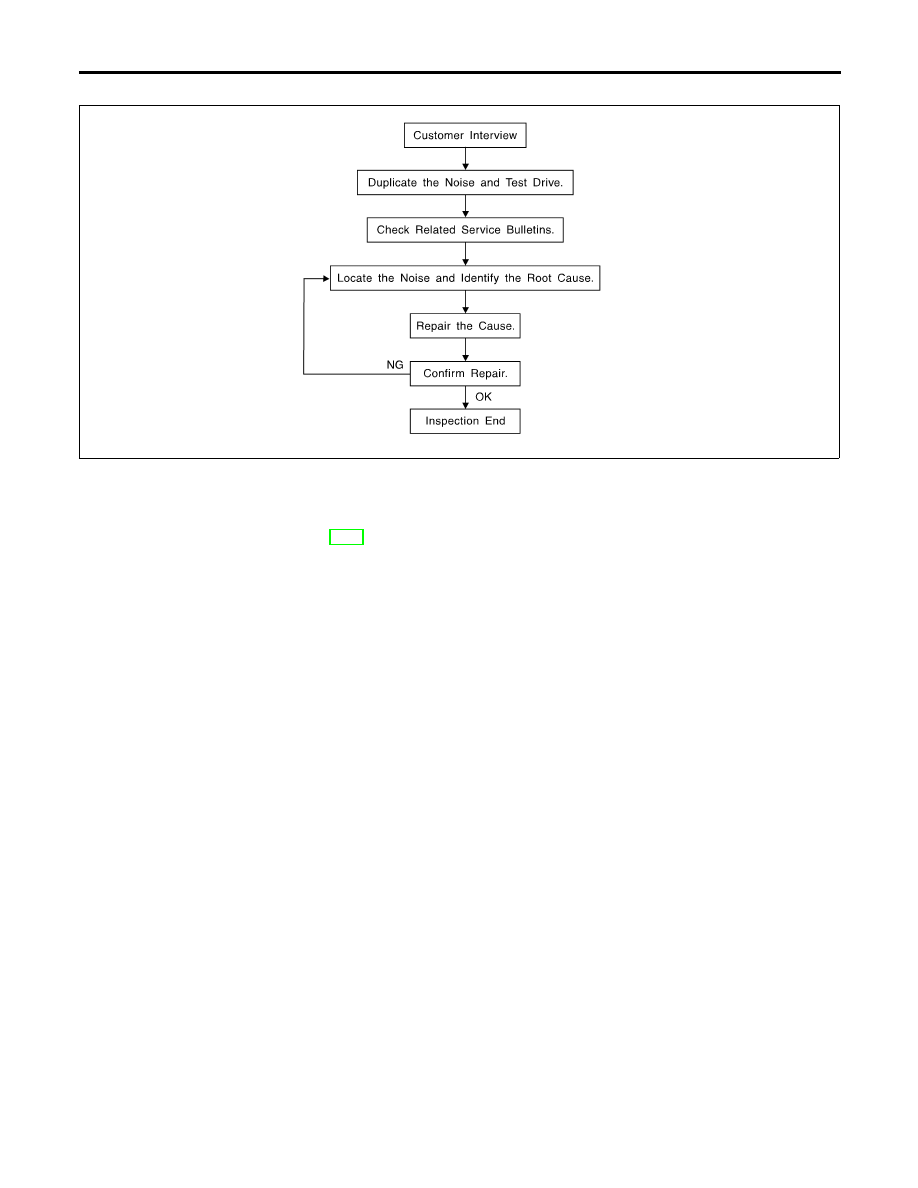

Work Flow

NBBT0024

SBT842

CUSTOMER INTERVIEW

NBBT0024S01

Interview the customer, if possible, to determine the conditions that exist when the noise occurs. Use the
Diagnostic Worksheet during the interview to document the facts and conditions when the noise occurs and
any customer’s comments; refer to BT-8. This information is necessary to duplicate the conditions that exist
when the noise occurs.

I

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

I

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

I

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteris-
tics are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

I

Squeak — (Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

I

Creak — (Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

I

Rattle — (Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

I

Knock — (Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

I

Tick — (Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

I

Thump — (Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

I

Buzz — (Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

I

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge
as acceptable may be very irritating to the customer.

I

Weather conditions, especially humidity and temperature, may have a great effect on noise level.

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Work Flow

BT-4
