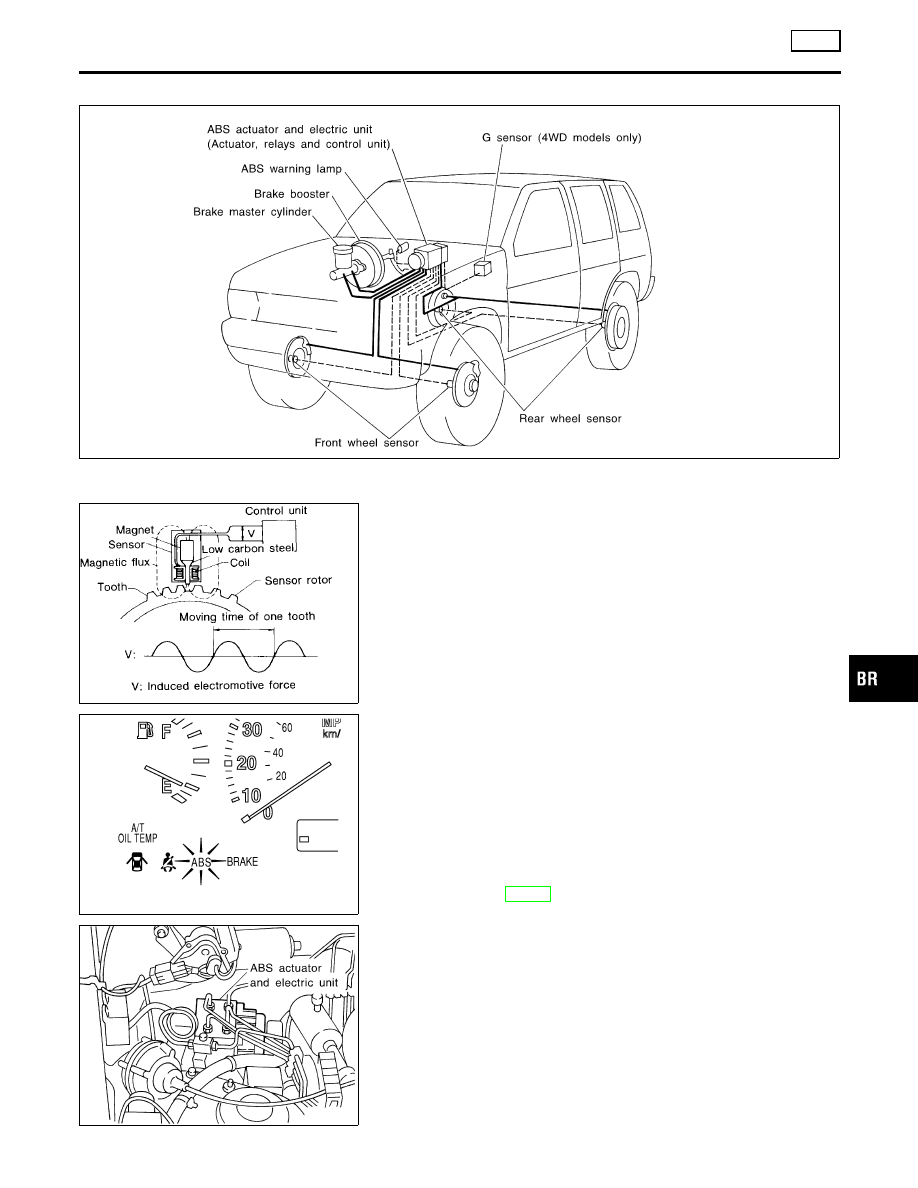

System Components

NBBR0090

SBR447EB

SBR124B

System Description

NBBR0091

SENSOR

NBBR0091S01

The sensor unit consists of a gear-shaped sensor rotor and a sen-
sor element. The element contains a bar magnet around which a
coil is wound. The front sensors are installed on the front spindles
and the rear sensors are installed on the rear spindles. As the
wheel rotates, the sensor generates a sine-wave pattern. The fre-
quency and voltage increase(s) as the rotating speed increases.

SBR668E

CONTROL UNIT (BUILT-IN ABS ACTUATOR AND
ELECTRIC UNIT)

NBBR0091S02

The control unit computes the wheel rotating speed by the signal
current sent from the sensor. Then it supplies a DC current to the
actuator solenoid valve. It also controls ON-OFF operation of the
valve relay and motor relay. If any electrical malfunction should be
detected in the system, the control unit causes the warning lamp
to light up. In this condition, the ABS will be deactivated by the
control unit, and the vehicle’s brake system reverts to normal
operation. (For control unit layout, refer to ABS ACTUATOR AND
ELECTRIC UNIT, BR-33.)

SBR482E

ABS ACTUATOR AND ELECTRIC UNIT

NBBR0091S03

The ABS actuator and electric unit contains:

I

An electric motor and pump

I

Two relays

I

Six solenoid valves, each inlet and outlet for
— LH front
— RH front
— Rear

I

ABS control unit

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

ST

RS

BT

HA

SC

EL

IDX

DESCRIPTION

ABS

System Components

BR-33

This component controls the hydraulic circuit and increases, holds
or decreases hydraulic pressure to all or individual wheels. The
ABS actuator and electric unit is serviced as an assembly.

ABS Actuator Operation

NBBR0091S0301

Inlet solenoid
valve

Outlet solenoid
valve

Normal brake operation

OFF (Open)

OFF (Closed)

Master cylinder brake fluid pressure is directly
transmitted to caliper via the inlet solenoid valve.

ABS operation

Pressure hold

ON (Closed)

OFF (Closed)

Hydraulic circuit is shut off to hold the caliper
brake fluid pressure.

Pressure
decrease

ON (Closed)

ON (Open)

Caliper brake fluid is sent to reservoir via the out-
let solenoid valve. Then it is pushed up to the
master cylinder by pump.

Pressure increase OFF (Open)

OFF (Closed)

Master cylinder brake fluid pressure is transmitted
to caliper.

G SENSOR (4WD MODELS ONLY)

NBBR0091S05

The G sensor senses deceleration during braking to determine
whether the vehicle is being driven on a high µ road (asphalt road,
etc.) or a low µ road (snow-covered road, etc.). It then sends a
signal to the ABS control unit.

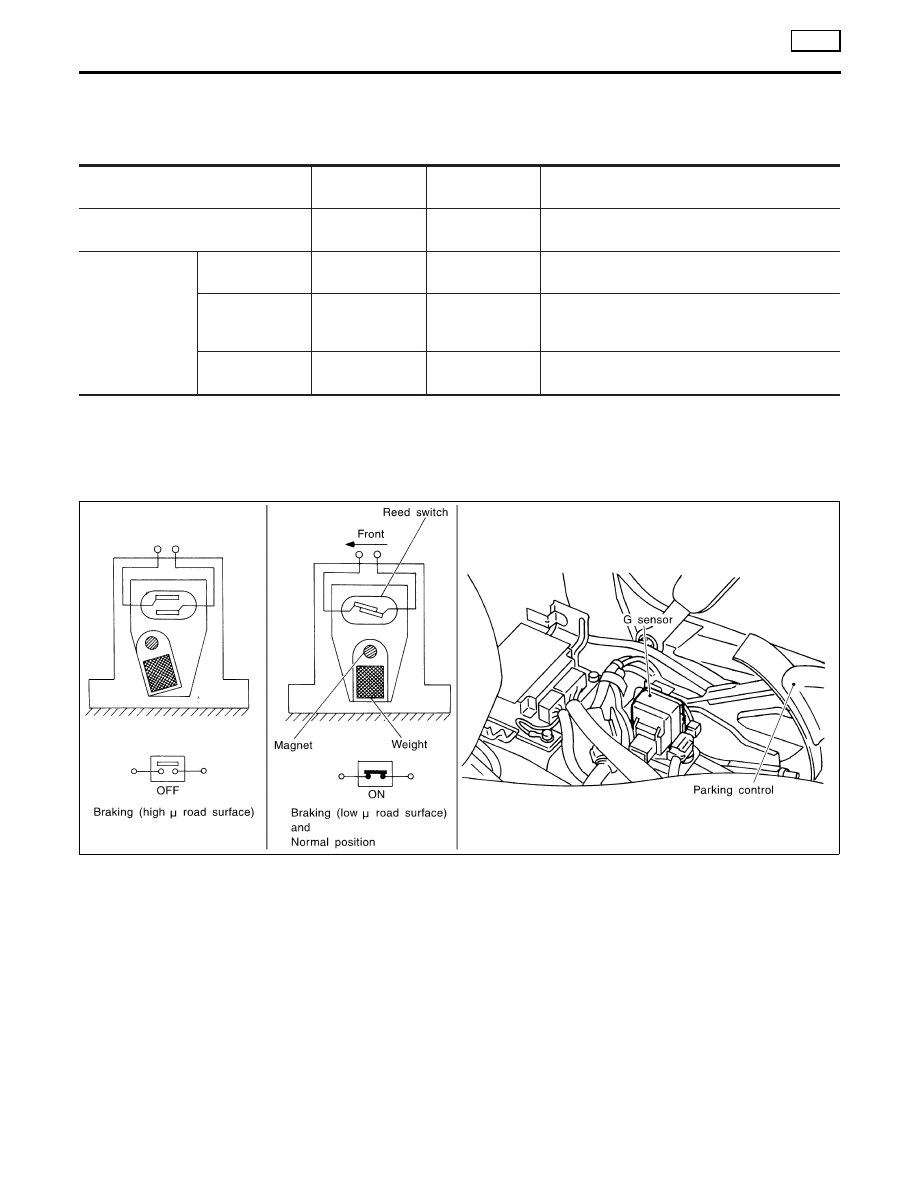

SBR456E

The reed switch turns on when it is affected by a magnetic field.
During sudden deceleration (braking on a high µ road), the weight
moves and the magnet in the weight moves away from the reed
switch. The magnetic field then diminishes and the reed switch
turns off.

DESCRIPTION

ABS

System Description (Cont’d)

BR-34

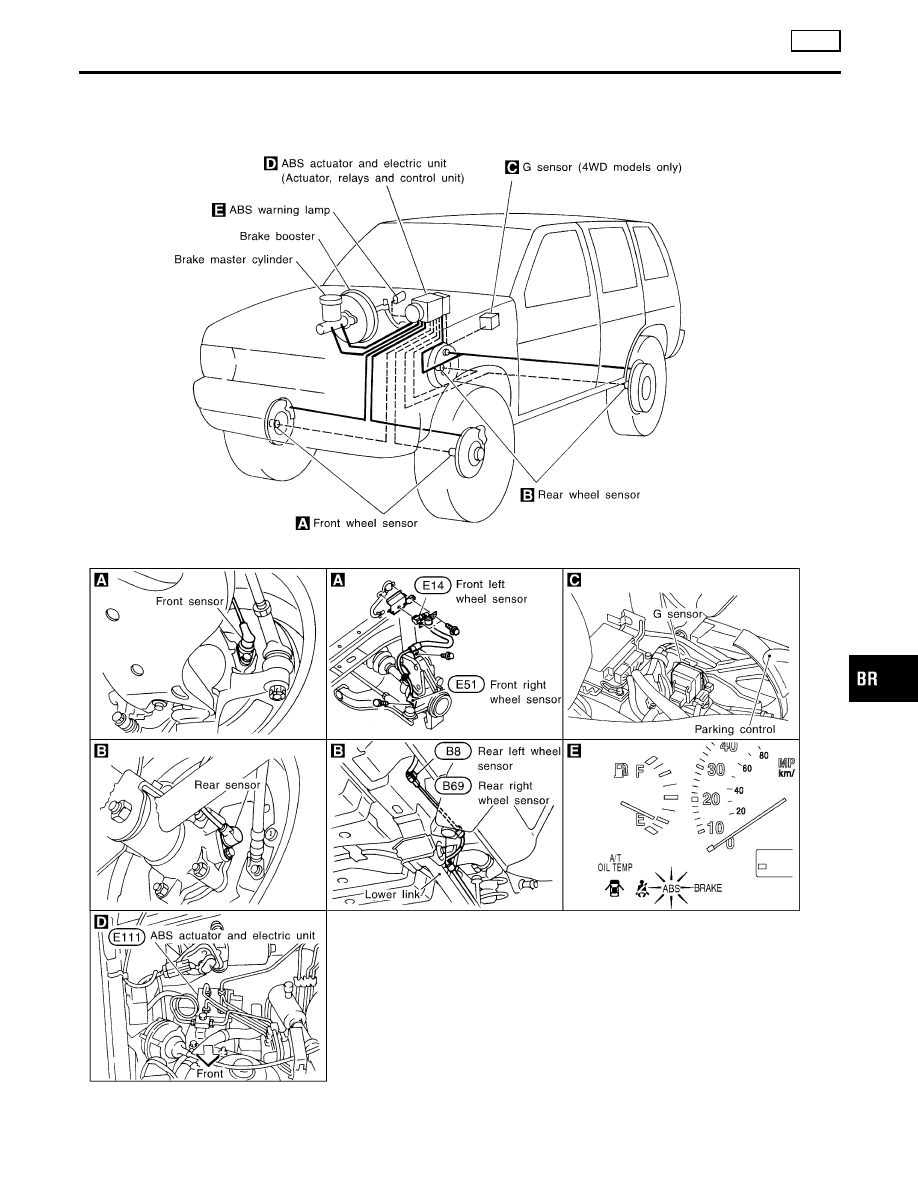

Component Parts and Harness Connector
Location

NBBR0092

SBR669E

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

ST

RS

BT

HA

SC

EL

IDX

DESCRIPTION

ABS

Component Parts and Harness Connector Location

BR-35

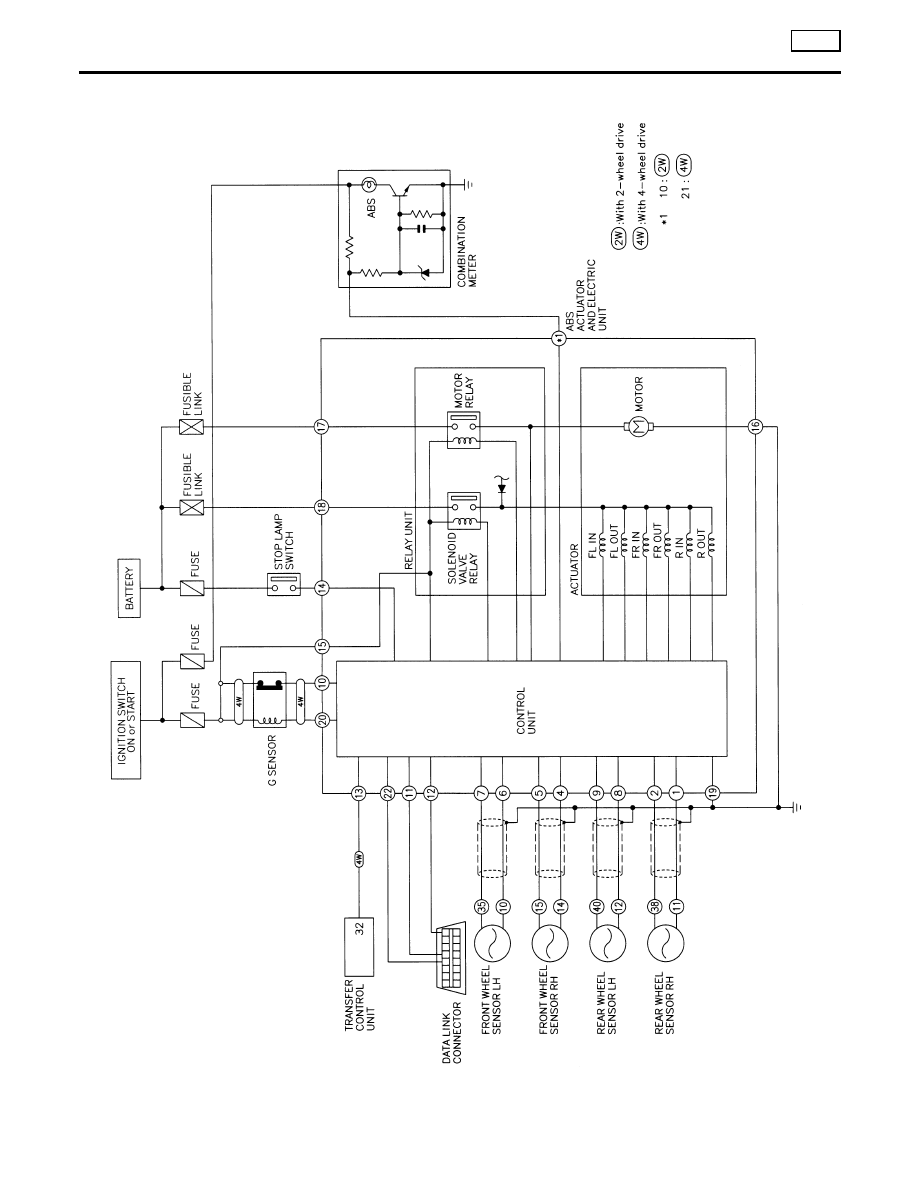

Schematic

NBBR0093

MBR436A

DESCRIPTION
