Infiniti QX4 (R50). Manual - part 104





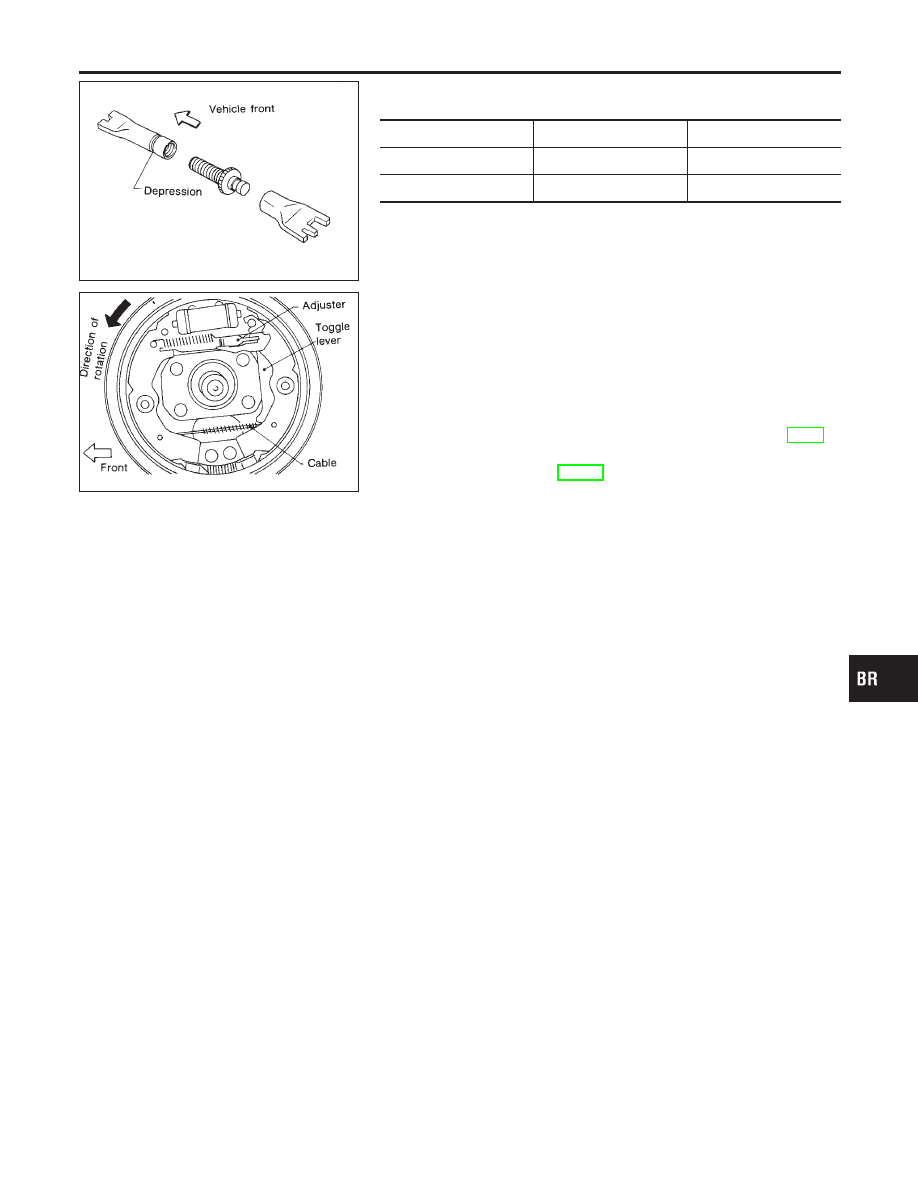

SBR217B

3.

Shorten adjuster by rotating it.

I

Pay attention to direction of adjuster.

Wheel

Screw

Depression

Left

Left-hand thread

Yes

Right

Right-hand thread

No

SBR279B

4.

Connect parking brake cable to toggle lever.

5.

Install all parts.

Be careful not to damage wheel cylinder piston boots.
6.

Check all parts are installed properly.

Pay attention to direction of adjuster assembly.
7.

Install brake drum.

8.

When installing new wheel cylinder or overhauling wheel
cylinder, bleed air. Refer to “Bleeding Brake System”, BR-8.

9.

Adjust parking brake. Refer to “Adjustment”, “PARKING
BRAKE CONTROL”, BR-31.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

ST

RS

BT

HA

SC

EL

IDX

REAR DRUM BRAKE

Installation (Cont’d)

BR-29

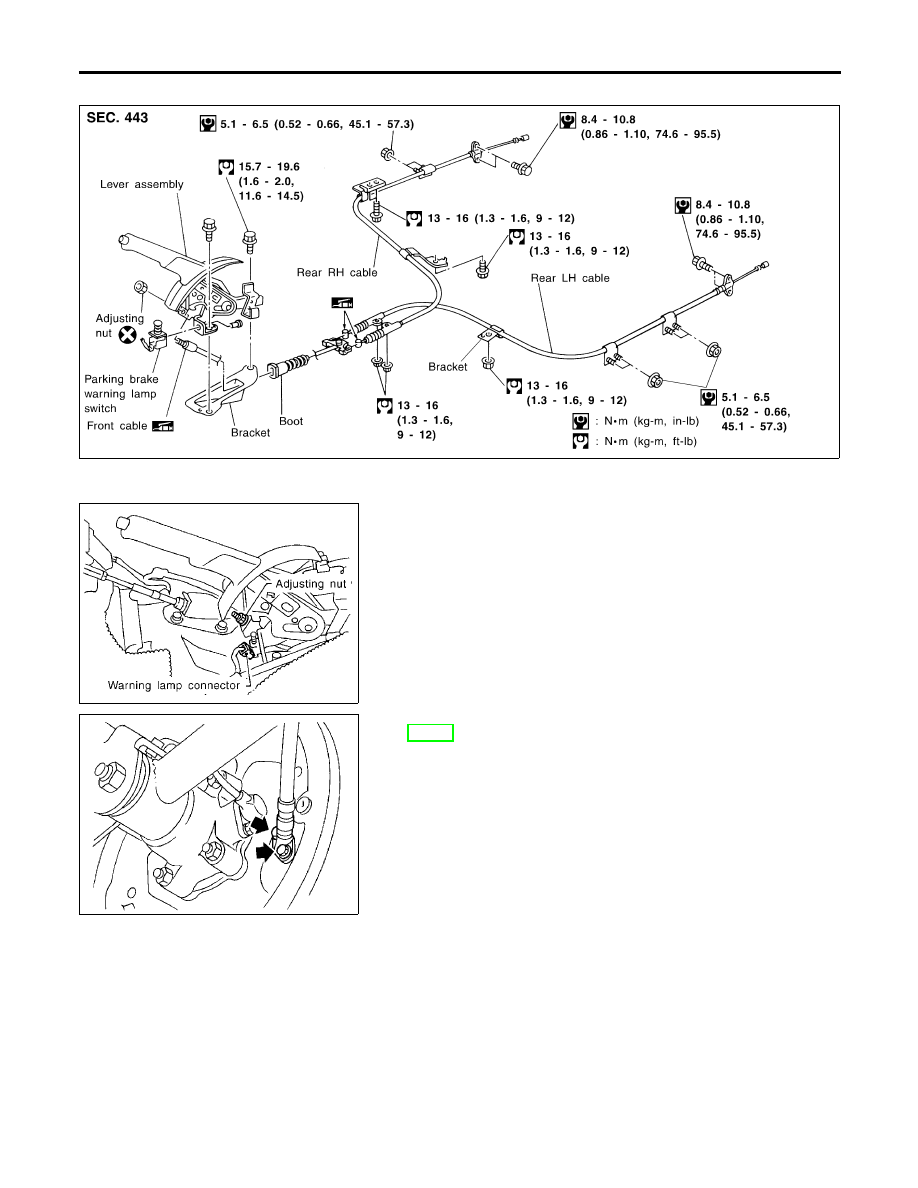

Components

NBBR0044

SBR667E

SBR390D

Removal and Installation

NBBR0045

1.

To remove parking brake cable, first remove center console.

2.

Disconnect warning lamp connector.

3.

Remove bolts, slacken off and remove adjusting nut.

SBR391D

4.

Disconnect cable. Refer to “Removal”, “REAR DRUM BRAKE”,
BR-26.

Inspection

NBBR0046

1.

Check control lever for wear or other damage. Replace if nec-
essary.

2.

Check wires for discontinuity or deterioration. Replace if nec-
essary.

3.

Check warning lamp and switch. Replace if necessary.

4.

Check parts at each connecting portion and, if deformed or
damaged, replace.

PARKING BRAKE CONTROL

Components

BR-30

SBR042D

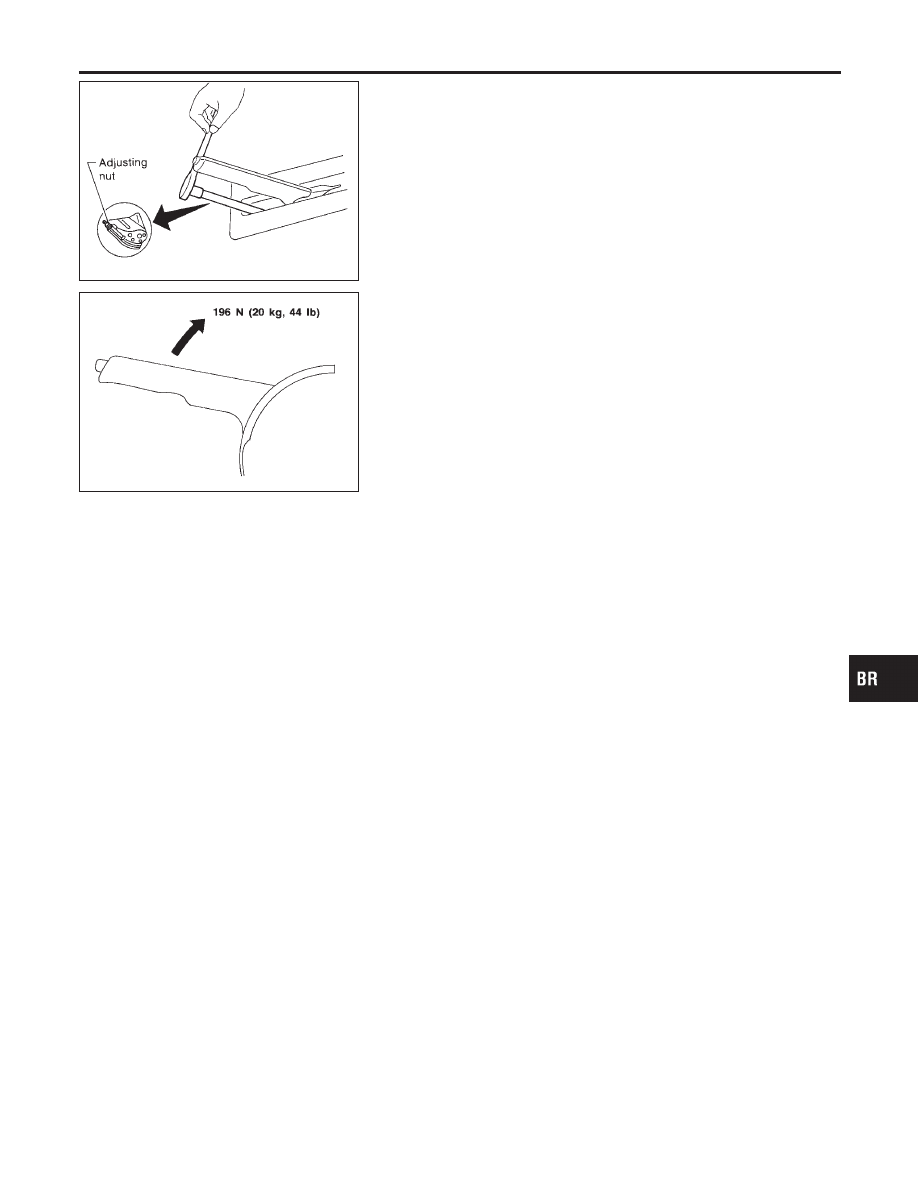

Adjustment

NBBR0047

1.

Adjust clearance between shoe and drum as follows:

a.

Release parking brake lever and loosen adjusting nut.

b.

Depress brake pedal fully at least 10 times with engine run-
ning.

2.

Pull control lever 4 - 5 notches. Then adjust control lever by
turning adjusting nut.

SBR073D

3.

Pull control lever with specified amount of force. Check lever
stroke and ensure smooth operation.

Number of notches: 6 - 8

4.

Bend warning lamp switchplate to ensure:

I

Warning lamp comes on when lever is lifted “A” notches.

I

Warning lamp goes out when lever is fully released.

Number of “A” notches: 1 or less

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

ST

RS

BT

HA

SC

EL

IDX

PARKING BRAKE CONTROL

Adjustment

BR-31

Purpose

NBBR0087

The Anti-Lock Brake System (ABS) consists of electronic and hydraulic components. It allows for control of
braking force so locking of the wheels can be avoided.
1) Improves proper tracking performance through steering wheel operation.
2) Eases obstacle avoidance through steering wheel operation.
3) Improves vehicle stability.

Operation

NBBR0088

I

When the vehicle speed is less than 10 km/h (6 MPH) this system does not work.

I

The Anti-Lock Brake System (ABS) has a self-test function. The system turns on the ABS warning lamp
for 1 second each time the ignition switch is turned “ON”. After the engine is started, the ABS warning lamp
turns off. The system performs a test the first time the vehicle reaches 6 km/h (4 MPH). A mechanical noise
may be heard as the ABS performs this self-test. This is a normal part of the self-test feature. If a mal-
function is found during this check, the ABS warning lamp will stay on.

I

While driving, a mechanical noise may be heard during ABS operation. This is a normal condition.

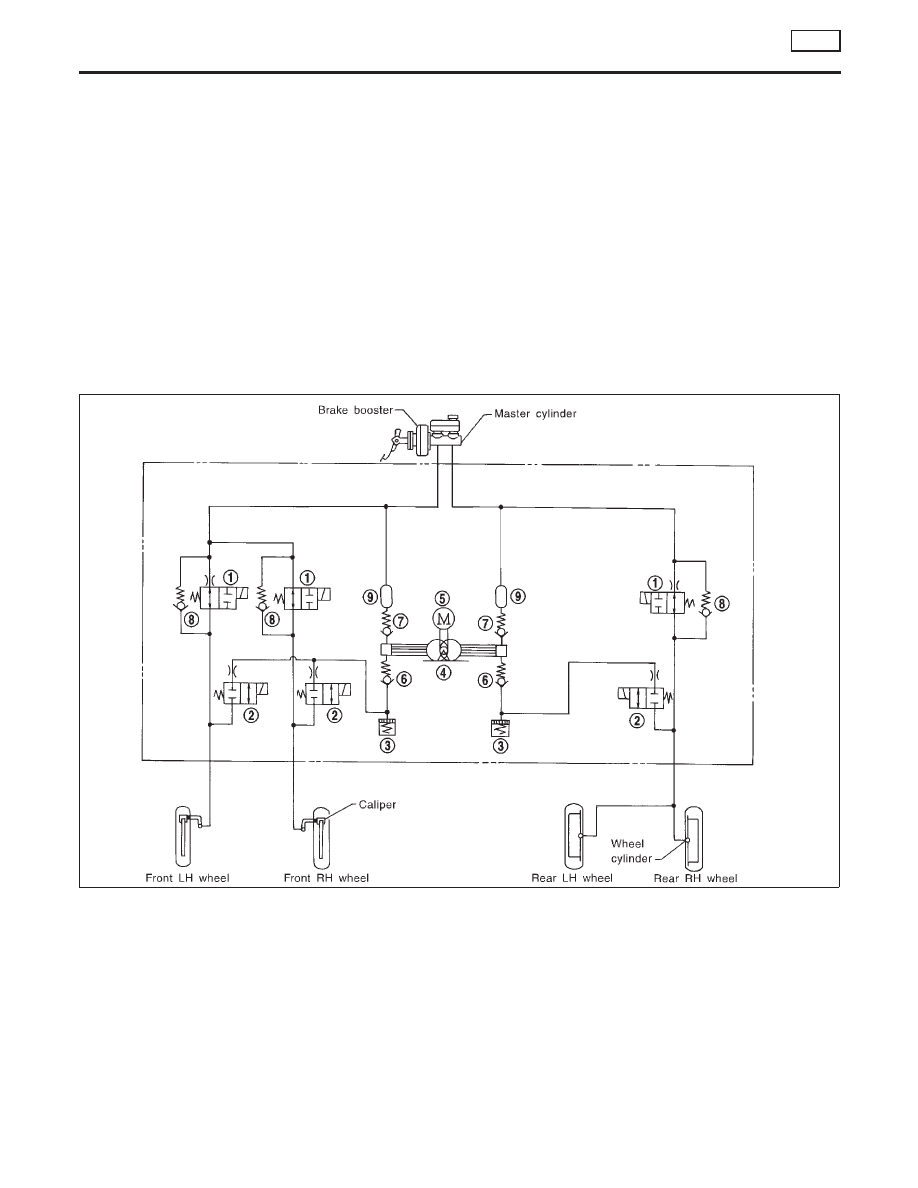

ABS Hydraulic Circuit

NBBR0089

SBR859D

1.

Inlet solenoid valve

2.

Outlet solenoid valve

3.

Reservoir

4.

Pump

5.

Motor

6.

Inlet valve

7.

Outlet valve

8.

Bypass check valve

9.

Damper

DESCRIPTION

ABS

Purpose

BR-32
