Infiniti QX4 (R50). Manual - part 100





SBR379DC

1.

Tighten all flare nuts and mounting bolts.

Flare nut:

: 15 - 17 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

2.

Refill until new brake fluid comes out of each air bleeder valve.

3.

Bleed air. Refer to “Bleeding Brake System”, BR-8.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

ST

RS

BT

HA

SC

EL

IDX

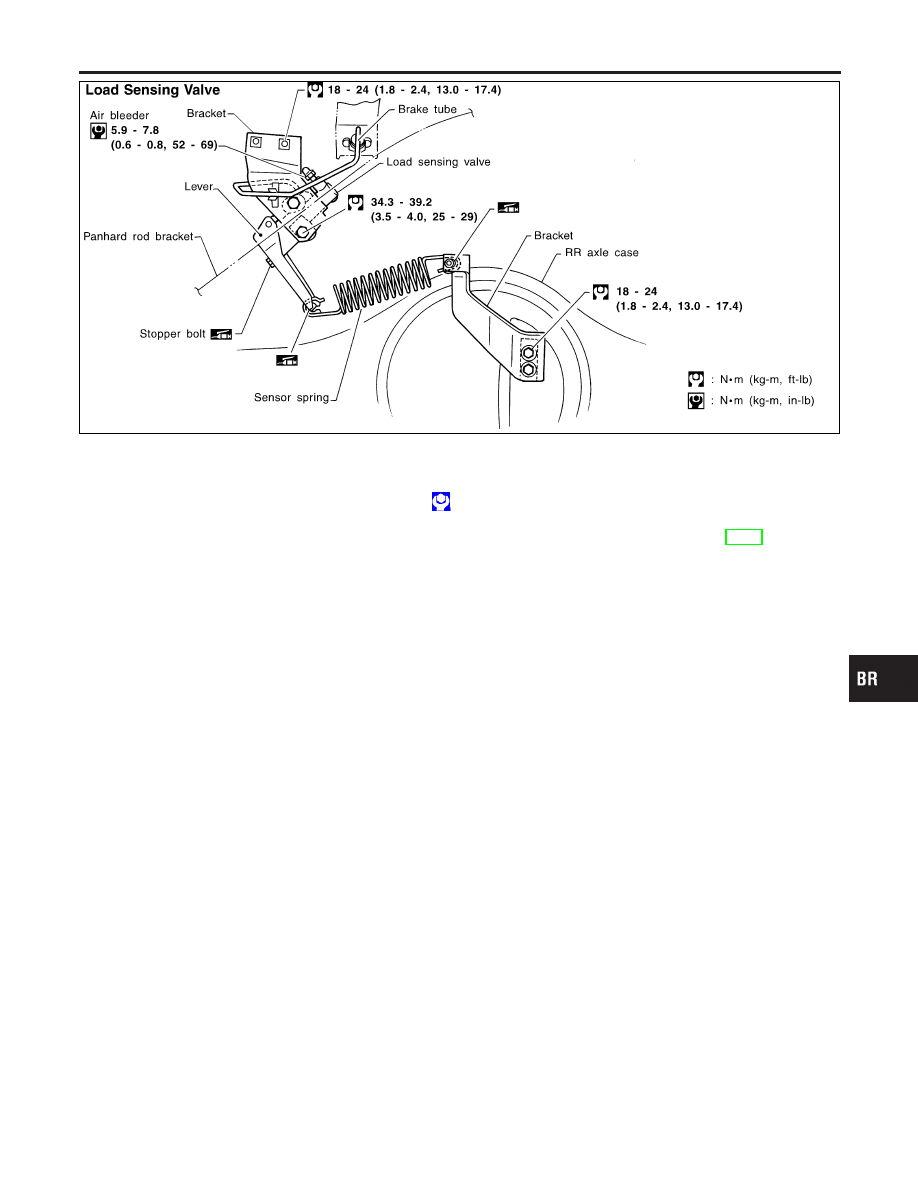

LOAD SENSING VALVE (4WD)

Removal and Installation (Cont’d)

BR-13

Removal and Installation

NBBR0016

SBR520E

Inspection

NBBR0017

Check brake pedal for following items.

I

Brake pedal bend

I

Clevis pin deformation

I

Crack of any welded portion

I

Crack or deformation of clevis pin stopper

SBR463CC

Adjustment

NBBR0018

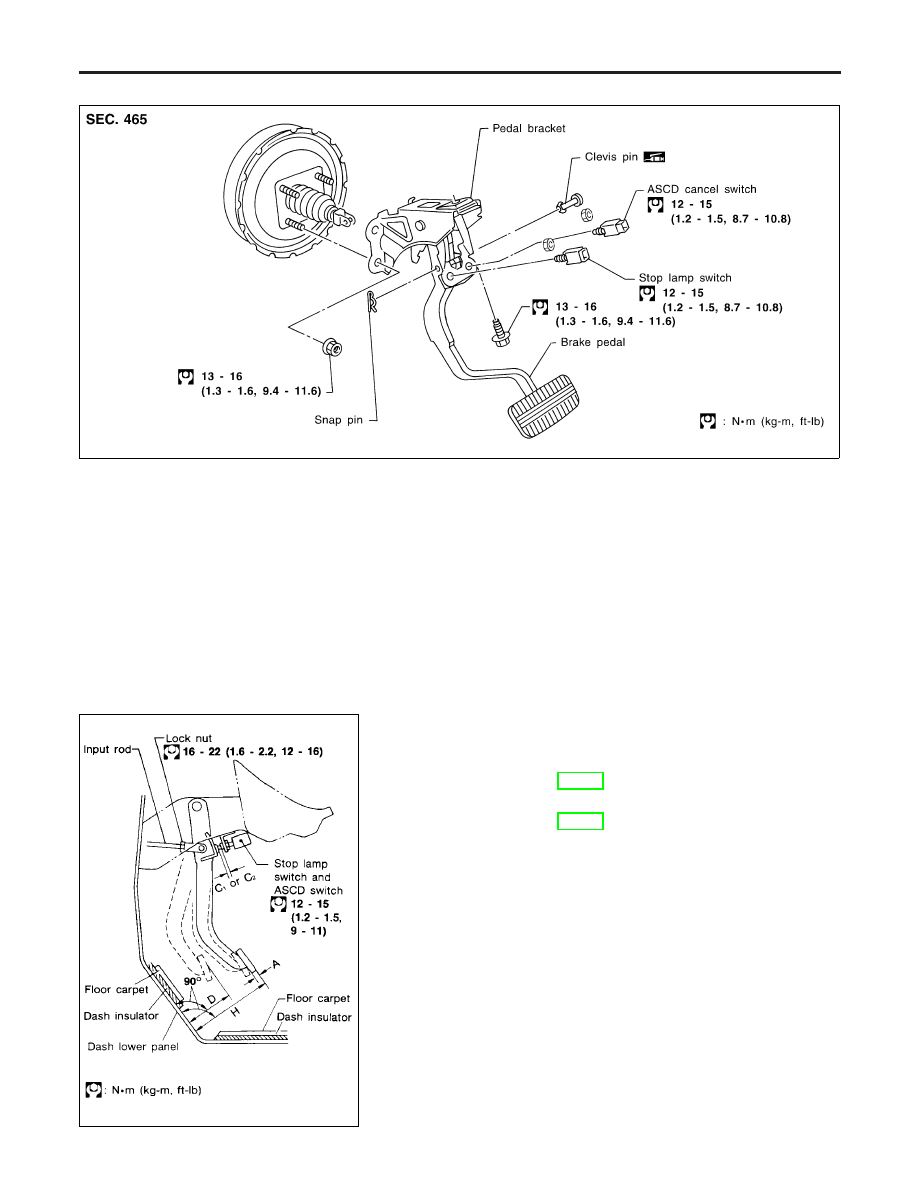

Check brake pedal free height from metal panel.

H:

Free height

Refer to SDS (BR-83).

D:

Depressed height

Refer to SDS (BR-83).
Under force of 490 N (50 kg, 110 lb) with engine run-
ning

C

1

,

C

2

:

Clearance

between

pedal

stopper

and

threaded end of stop lamp switch and ASCD switch

0.3 - 1.0 mm (0.012 - 0.039 in)

A:

Pedal free play

1 - 3 mm (0.04 - 0.12 in)

If necessary, adjust brake pedal free height.

BRAKE PEDAL AND BRACKET

Removal and Installation

BR-14

SBR824B

1.

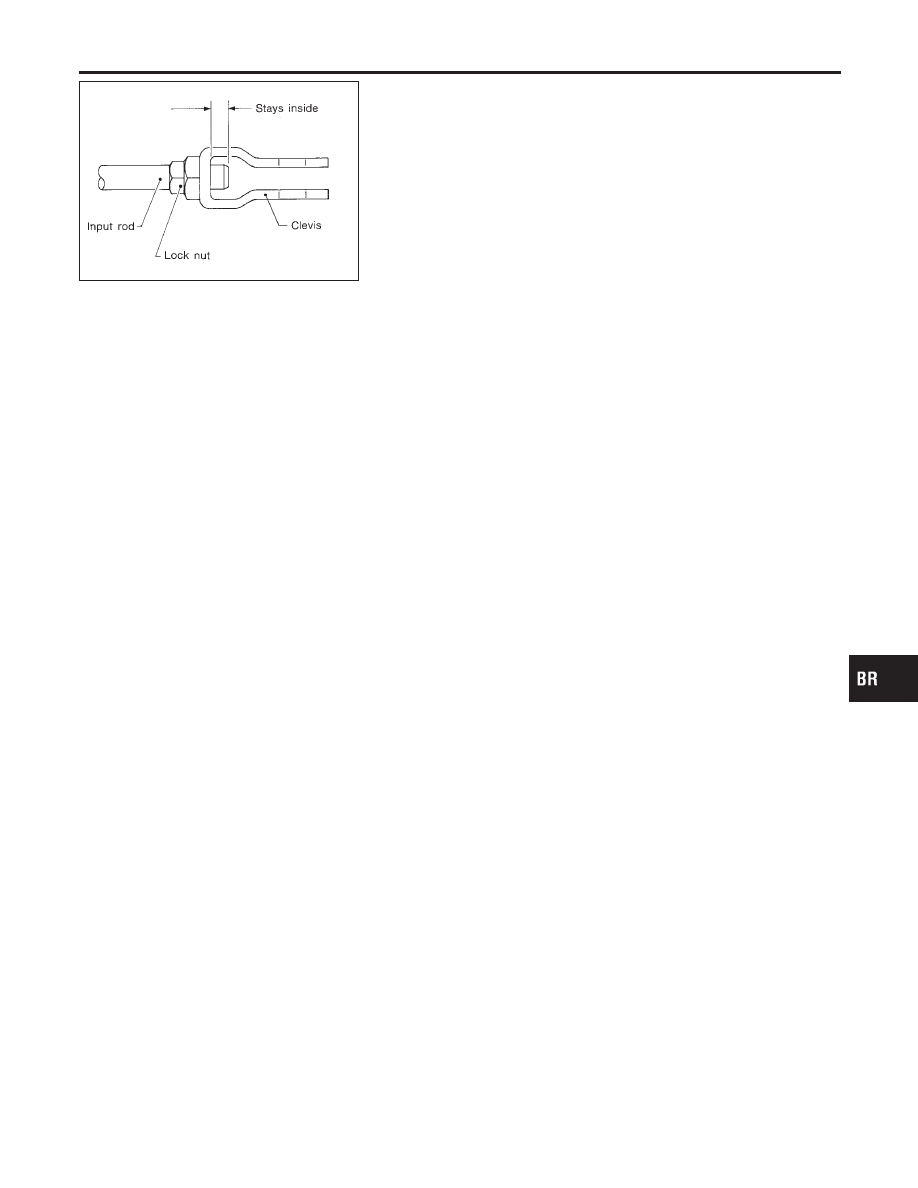

Loosen lock nut and adjust pedal free height by turning brake
booster input rod. Then tighten lock nut.

Make sure that tip of input rod stays inside.
2.

Adjust clearance “C

1

” and “C

2

” with stop lamp switch and

ASCD switch respectively. Then tighten lock nuts.

3.

Check pedal free play.

Make sure that stop lamp is off when pedal is released.
4.

Check brake pedal’s depressed height while engine is running.
If depressed height is below specified value, check brake sys-
tem for leaks, accumulation of air or any damage to compo-
nents (master cylinder, wheel cylinder, etc.). Then make nec-
essary repairs.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

ST

RS

BT

HA

SC

EL

IDX

BRAKE PEDAL AND BRACKET

Adjustment (Cont’d)

BR-15

Removal

NBBR0019

CAUTION:

I

Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.

I

In the case of brake fluid leakage from the master cylinder,
disassemble the cylinder. Then check piston cups for
deformation or scratches and replace necessary parts.

1.

Connect a vinyl tube to air bleeder valve.

2.

Drain brake fluid from each air bleeder valve, depressing brake
pedal to empty fluid from master cylinder.

3.

Remove brake pipe flare nuts.

4.

Remove master cylinder mounting nuts.

SBR879D

SBR938A

Disassembly

NBBR0020

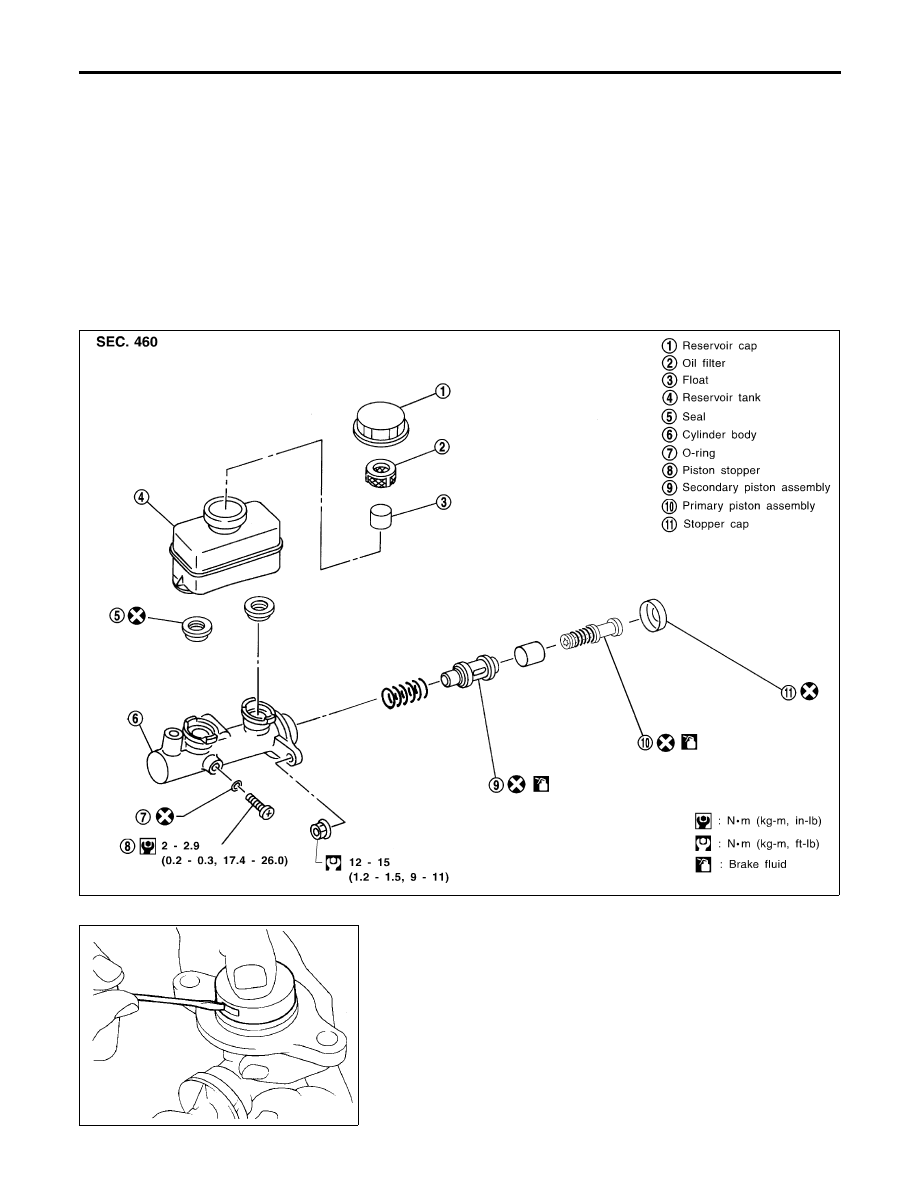

1.

Bend claws of stopper cap outward.

MASTER CYLINDER

Removal

BR-16
