Infiniti QX4 (R50). Manual - part 95





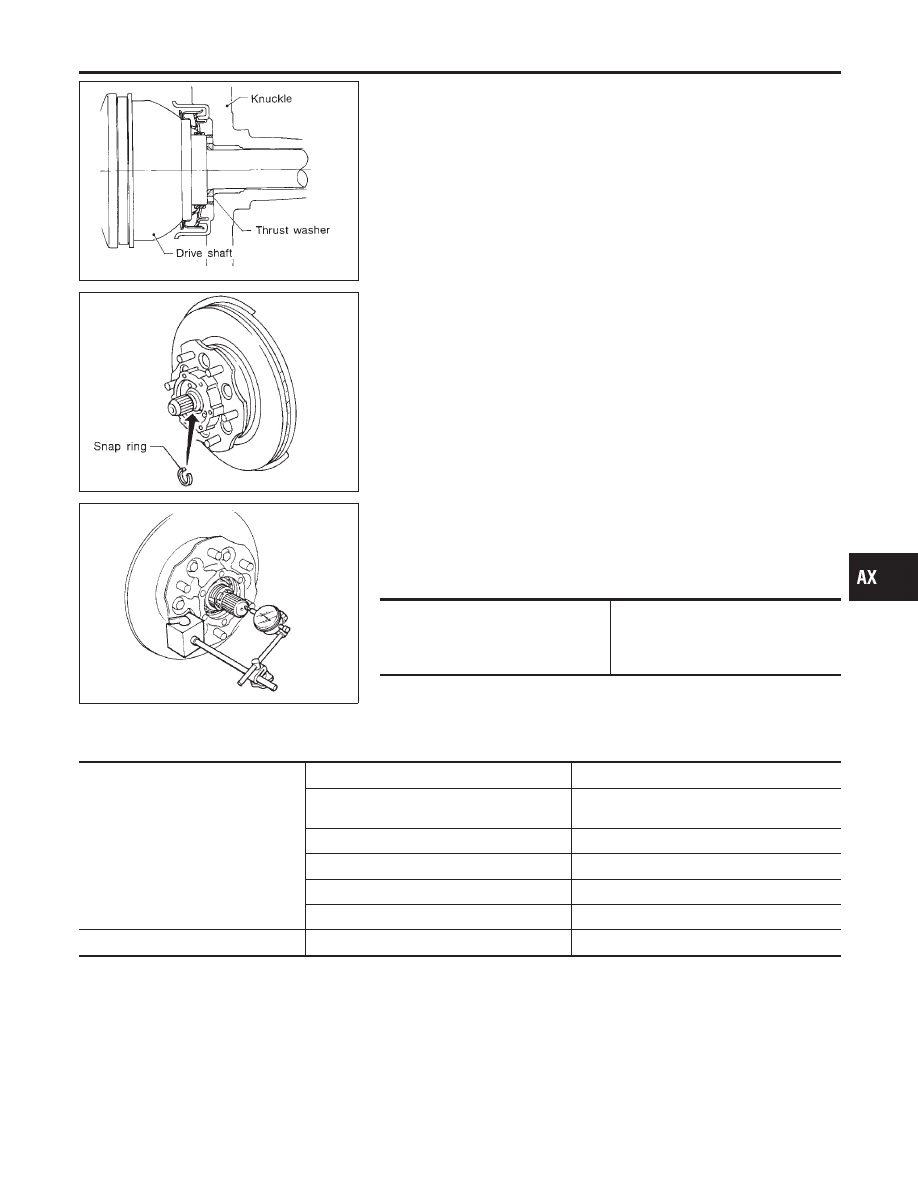

SFA846-A

2.

Install thrust washer onto drive shaft.
Make sure that thrust washer is facing in proper direction,
apply multi-purpose grease.

SFA762B

3.

When installing drive shaft, adjust drive shaft axial end play by
selecting a suitable snap ring.

a.

Temporarily install new snap ring on drive shaft in the same
thickness as it was installed before removal.

SFA847

b.

Set dial gauge on drive shaft end.

c.

Measure axial end play of drive shaft.

Axial end play: 0.45 mm (0.0177 in) or less

d.

If axial end play is not within the specified limit, select another
snap ring.

1.1 mm (0.043 in)
1.3 mm (0.051 in)
1.5 mm (0.059 in)
1.7 mm (0.067 in)

1.9 mm (0.075 in)
2.1 mm (0.083 in)
2.3 mm (0.091 in)

Service Data and Specifications (SDS)

WHEEL BEARING (FRONT)

NBAX0022

Wheel bearing lock nut

Tightening torque

78 - 98 N·m (8 - 10 kg-m, 58 - 72 ft-lb)

Retightening torque after loosening wheel bearing
lock nut

0.5 - 1.5 N·m (0.05 - 0.15 kg-m, 4.3 - 13.0 in-lb)

Axial end play

0 mm (0 in)

Starting force at wheel hub bolt N (kg, lb)

A

Turning angle

15° - 30°

Starting force at wheel hub bolt N (kg, lb)

B

Wheel bearing preload at wheel hub bolt

B − A

7.06 - 20.99 N (0.72 - 2.14 kg, 1.59 - 4.72 lb)

GI

MA

EM

LC

EC

FE

AT

TF

PD

SU

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT AXLE

Drive Shaft (Cont’d)

AX-15

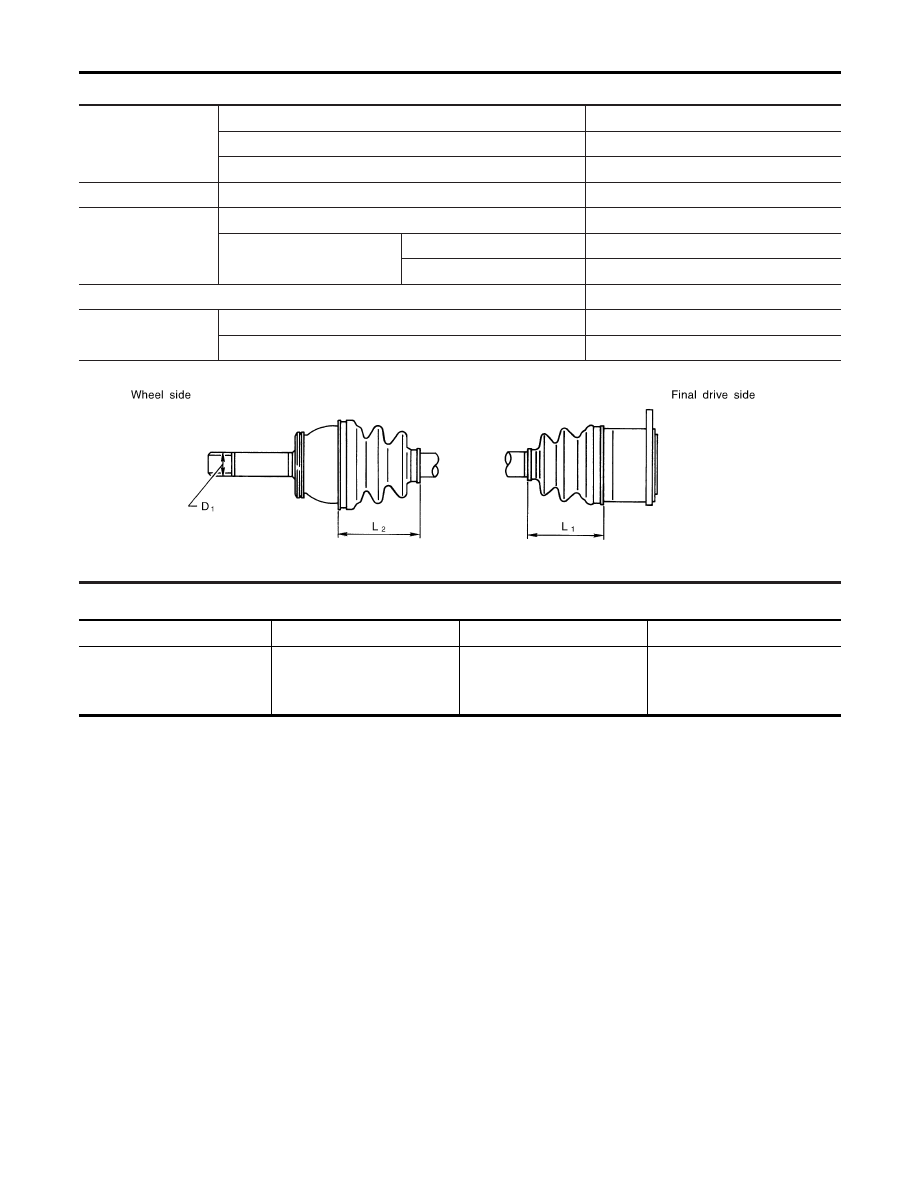

DRIVE SHAFT

=NBAX0033

Drive shaft joint type

Final drive side

TS82F

Wheel side

ZF100

Fixed joint axial end play limit

1 mm (0.04 in)

Diameter

Wheel side (D

1

)

29.0 mm (1.142 in)

Grease

Quality

Nissan genuine grease or equivalent

Specified amount of grease

Final drive side

95 - 105 g (3.35 - 3.70 oz)

Wheel side

135 - 145 g (4.76 - 5.11 oz)

Drive shaft axial end play

0.45 mm (0.0177 in) or less

Boot length

Final drive side (L

1

)

95 - 97 mm (3.74 - 3.82 in)

Wheel side (L

2

)

96 - 98 mm (3.78 - 3.86 in)

SAX001

Drive Shaft End Snap Ring

NBAX0033S01

Thickness mm (in)

Part No.

Thickness mm (in)

Part No.

1.1 (0.043)
1.3 (0.051)
1.5 (0.059)
1.7 (0.067)

39253-88G10

39253-88G11

39253-88G12
39253-88G13

1.9 (0.075)
2.1 (0.083)
2.3 (0.091)

39253-88G14
39253-88G15
39253-88G16

FRONT AXLE

Service Data and Specifications (SDS) (Cont’d)

AX-16

SBR686C

Precautions

PRECAUTIONS

NBAX0023

I

When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

I

Use flare nut wrench when removing and installing brake
tubes.

I

After installing removed suspension parts, check wheel
alignment and adjust if necessary.

I

Always torque brake lines when installing.

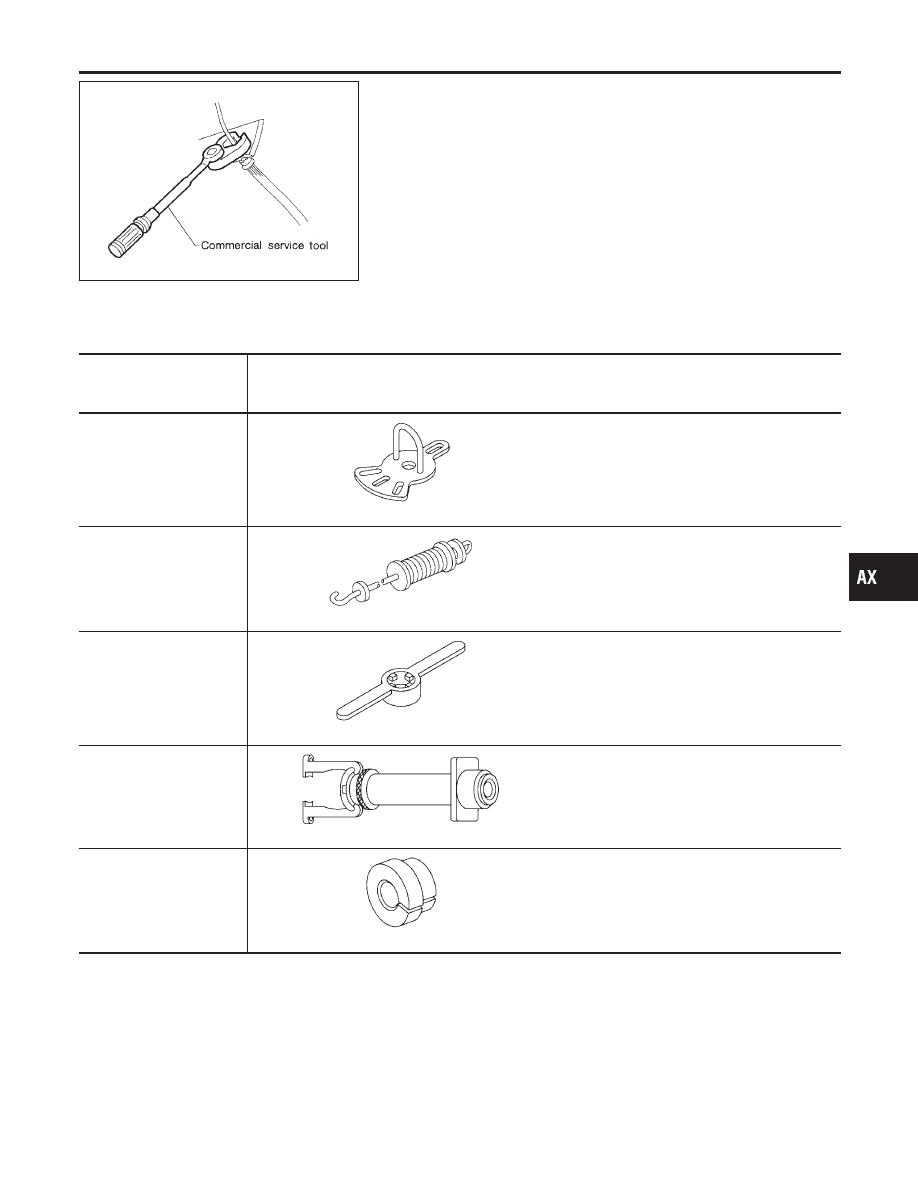

Preparation

SPECIAL SERVICE TOOLS

NBAX0024

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV40101000
(J25604-01)
Axle stand

NT159

Removing rear axle shaft

ST36230000
(J25840-A)
Sliding hammer

NT126

Removing rear axle shaft

ST38020000
(

)

Bearing lock nut wrench

NT160

Removing wheel bearing lock nut

HT72480000 or
HT72210000
(J25852-B)
Rear axle shaft bearing
puller

NT161

Removing wheel bearing

ST37840000
(

)

Rear axle shaft guide

NT162

Installing rear axle shaft

GI

MA

EM

LC

EC

FE

AT

TF

PD

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REAR AXLE

Precautions

AX-17

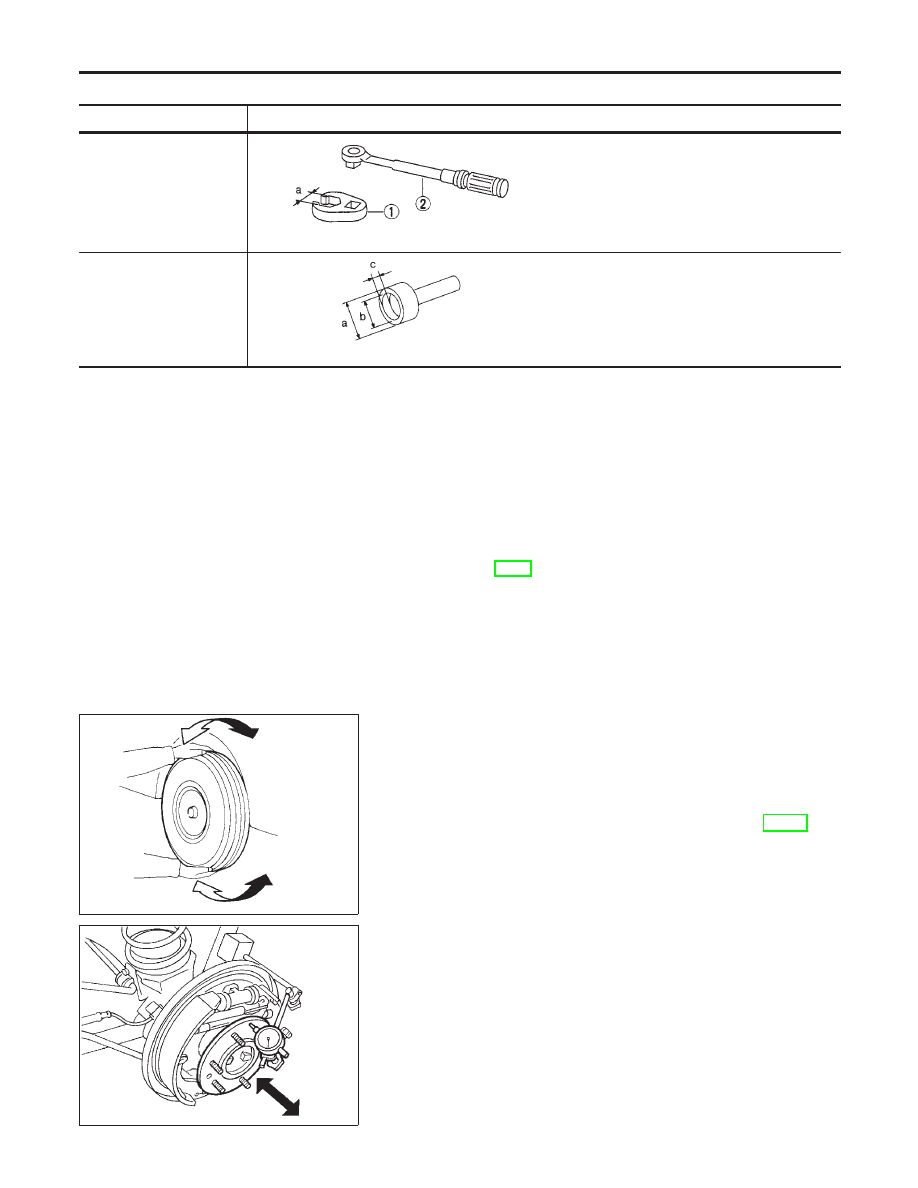

COMMERCIAL SERVICE TOOLS

NBAX0025

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing each brake piping
a: 10 mm (0.39 in)

Rear axle oil seal drift

NT163

Installing oil seal
a: 74 mm (2.91 in) dia.
b: 68 mm (2.68 in) dia.
c: 10 mm (0.39 in)

Noise, Vibration and Harshness (NVH)
Troubleshooting

NBAX0035

Refer to “Noise, Vibration and Harshness (NVH) Troubleshooting”,
“FRONT AXLE”, AX-3.

SMA525A

On-vehicle Service

REAR AXLE PARTS

NBAX0026

Check rear axle parts for excessive play, wear and damage.
1.

Shake each rear wheel to check for excessive play.

2.

Retighten all nuts and bolts to the specified torque.

Tightening torque: Refer to “Components”, AX-19.

SRA755A

REAR WHEEL BEARING

NBAX0027

1.

Check that wheel bearings operate smoothly.

2.

Check axial end play.

Axial end play:

0 mm (0 in)

REAR AXLE

Preparation (Cont’d)

AX-18
