Reverse Clutch Drum End Play

NBAT0170

Reverse clutch drum end play “T

2

0.55 - 0.90 mm (0.0217 - 0.0354 in)

Thickness of oil pump thrust washer

Thickness mm (in)

Part number*

0.9 (0.035)
1.1 (0.043)
1.3 (0.051)
1.5 (0.059)
1.7 (0.067)
1.9 (0.075)

31528-21X01
31528-21X02
31528-21X03
31528-21X04
31528-21X05
31528-21X06

Removal and Installation

NBAT0171

Manual control linkage

Number of returning revolutions for lock nut

2

Lock nut tightening torque

4.4 - 5.9 N·m

(0.45 - 0.60 kg-m, 39.1 - 52.1 in-lb)

Distance between end of converter housing and torque converter

25.0 mm (0.984 in) or more

*: Always check with the Parts Department for the latest parts information.

Shift Solenoid Valves

NBAT0217

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Solenoid Valves

NBAT0218

Solenoid valves

Resistance (Approx.)

Terminal No.

Shift solenoid valve A

20 - 40

3

Shift solenoid valve B

20 - 40

2

Overrun clutch solenoid valve

20 - 40

4

Line pressure solenoid valve

2.5 - 5

6

Torque converter clutch solenoid valve

10 - 20

7

A/T Fluid Temperature Sensor

NBAT0219

Remarks: Specification data are reference values.

Monitor item

Condition

Specification

A/T fluid tem-
perature
sensor

Cold [20°C (68°F)]

"

Hot [80°C (176°F)]

Approximately 1.5V

"

Approximately 0.5V

Approximately 2.5 k

"

Approximately 0.3 k

Turbine Revolution Sensor

NBAT0232

Terminal No.

Resistance

1

2

2.4 - 2.8 k

2

3

No continuity

1

3

No continuity

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Reverse Clutch Drum End Play

AT-361

Revolution Sensor

NBAT0220

Terminal No.

Resistance

1

2

500 - 650

2

3

No continuity

1

3

No continuity

Dropping Resistor

NBAT0221

Resistance

11.2 - 12.8

SERVICE DATA AND SPECIFICATIONS (SDS)

Revolution Sensor

AT-362

FRONT & REAR AXLE

SECTION

AX

CONTENTS

FRONT AXLE ..................................................................2

Precautions ..................................................................2

PRECAUTIONS

.........................................................2

Preparation ..................................................................2

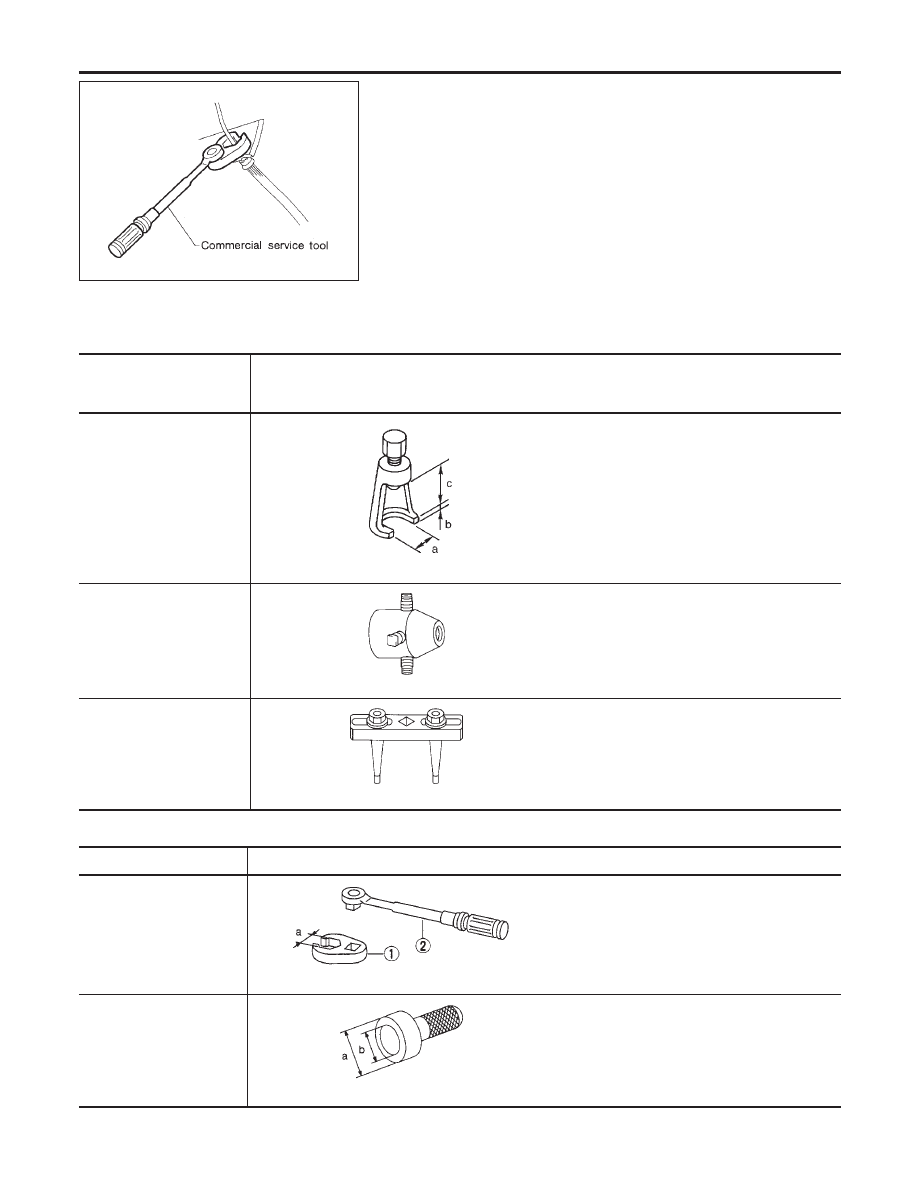

SPECIAL SERVICE TOOLS

........................................2

COMMERCIAL SERVICE TOOLS

................................2

Noise, Vibration and Harshness (NVH)
Troubleshooting
...........................................................3

NVH TROUBLESHOOTING CHART

............................3

On-vehicle Service.......................................................3

FRONT AXLE PARTS

................................................3

FRONT WHEEL BEARING

.........................................4

DRIVE SHAFT

...........................................................5

Wheel Hub and Rotor Disc..........................................6

COMPONENTS

.........................................................6

REMOVAL

.................................................................6

INSTALLATION

..........................................................7

DISASSEMBLY

..........................................................8

INSPECTION

.............................................................8

ASSEMBLY

...............................................................8

Knuckle Spindle ...........................................................9

REMOVAL

.................................................................9

INSPECTION

...........................................................10

INSTALLATION

........................................................10

Drive Shaft .................................................................10

COMPONENTS

.......................................................10

REMOVAL

............................................................... 11

DISASSEMBLY

........................................................ 11

INSPECTION

...........................................................12

ASSEMBLY

.............................................................13

INSTALLATION

........................................................14

Service Data and Specifications (SDS).....................15

WHEEL BEARING (FRONT)

.....................................15

DRIVE SHAFT

.........................................................16

REAR AXLE...................................................................17

Precautions ................................................................17

PRECAUTIONS

.......................................................17

Preparation ................................................................17

SPECIAL SERVICE TOOLS

......................................17

COMMERCIAL SERVICE TOOLS

..............................18

Noise, Vibration and Harshness (NVH)
Troubleshooting
.........................................................18
On-vehicle Service.....................................................18

REAR AXLE PARTS

.................................................18

REAR WHEEL BEARING

.........................................18

Components...............................................................19
Removal.....................................................................19
Inspection...................................................................21

AXLE SHAFT

...........................................................21

BEARING CAGE

......................................................21

REAR AXLE HOUSING

............................................21

Installation..................................................................21
Service Data and Specifications (SDS).....................22

WHEEL BEARING (REAR)

.......................................22

GI

MA

EM

LC

EC

FE

AT

TF

PD

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SBR686C

Precautions

PRECAUTIONS

NBAX0001

I

When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

I

Use flare nut wrench when removing and installing brake
tubes.

I

After installing removed suspension parts, check wheel
alignment and adjust if necessary.

I

Always torque brake lines when installing.

Preparation

SPECIAL SERVICE TOOLS
