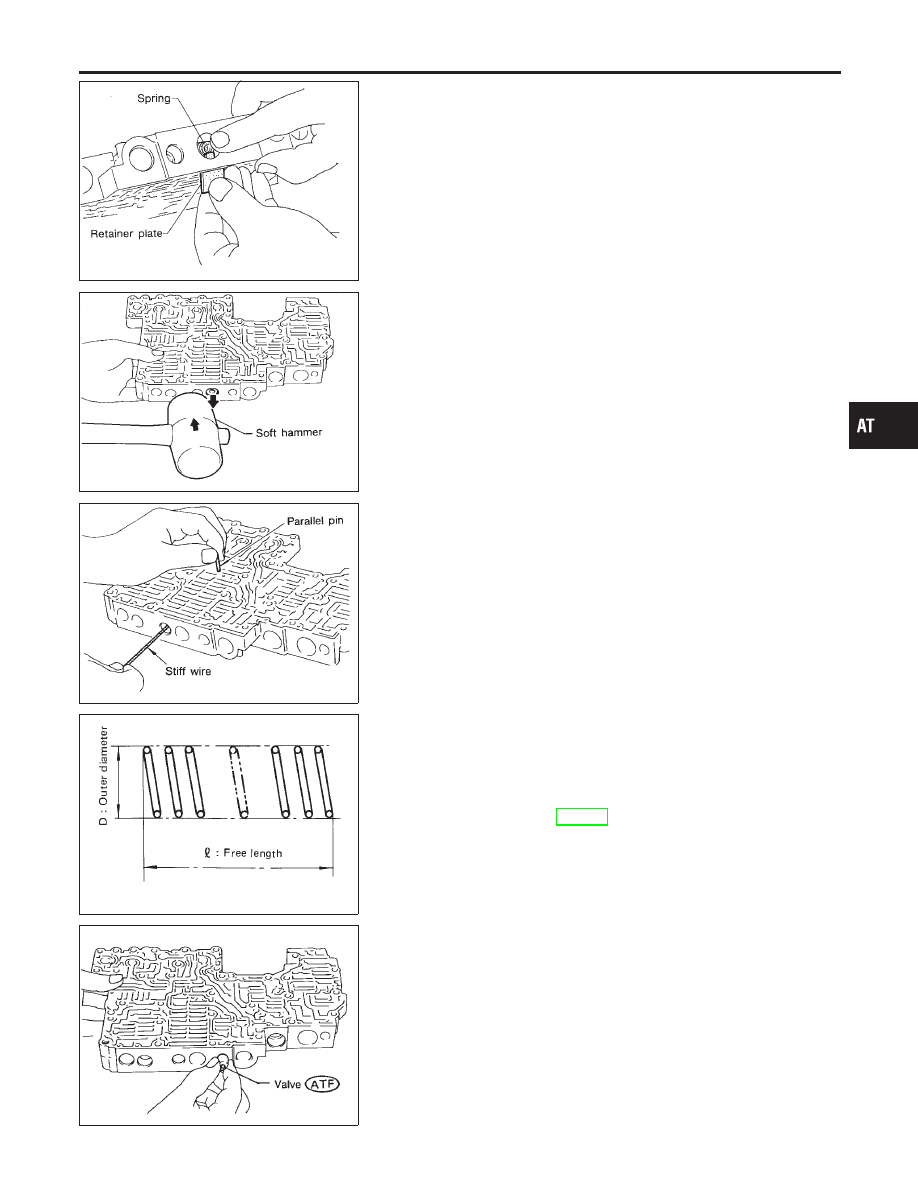

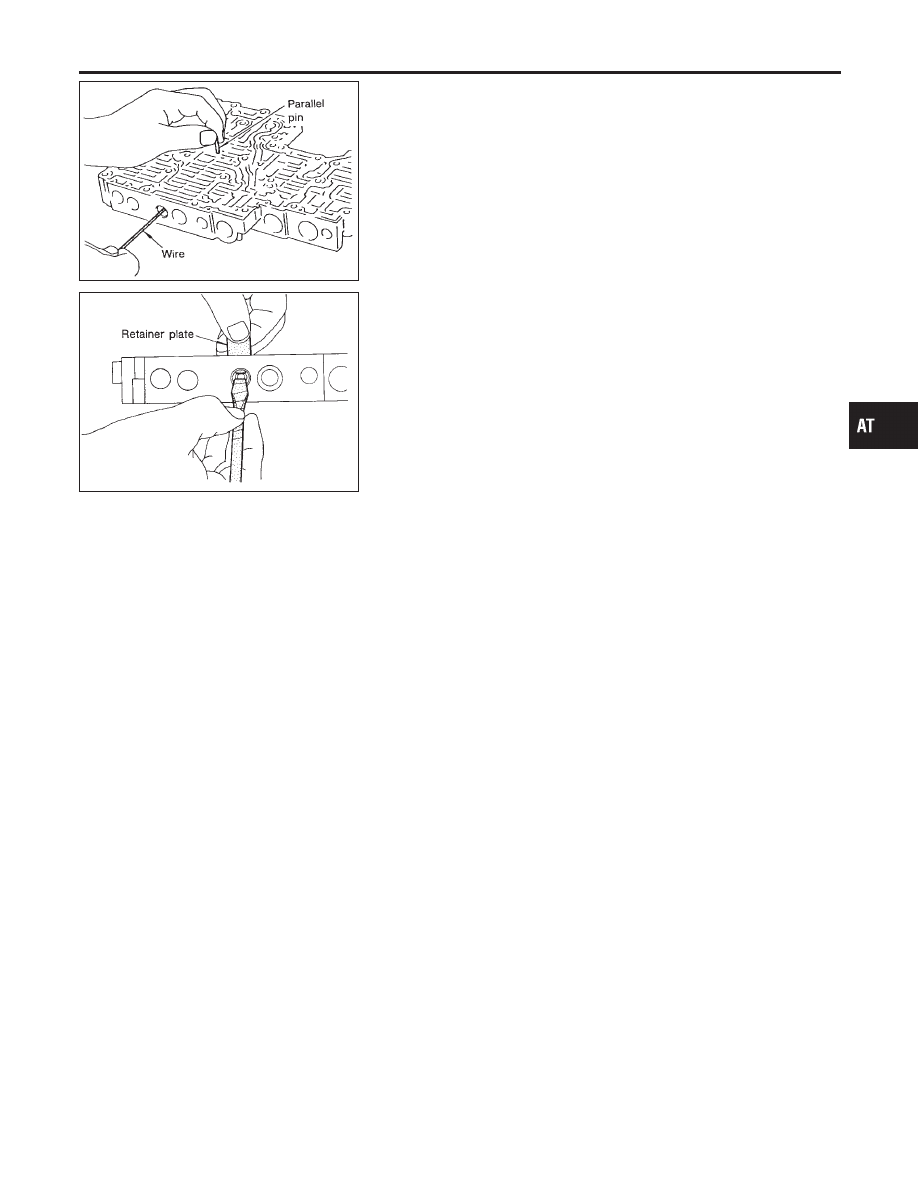

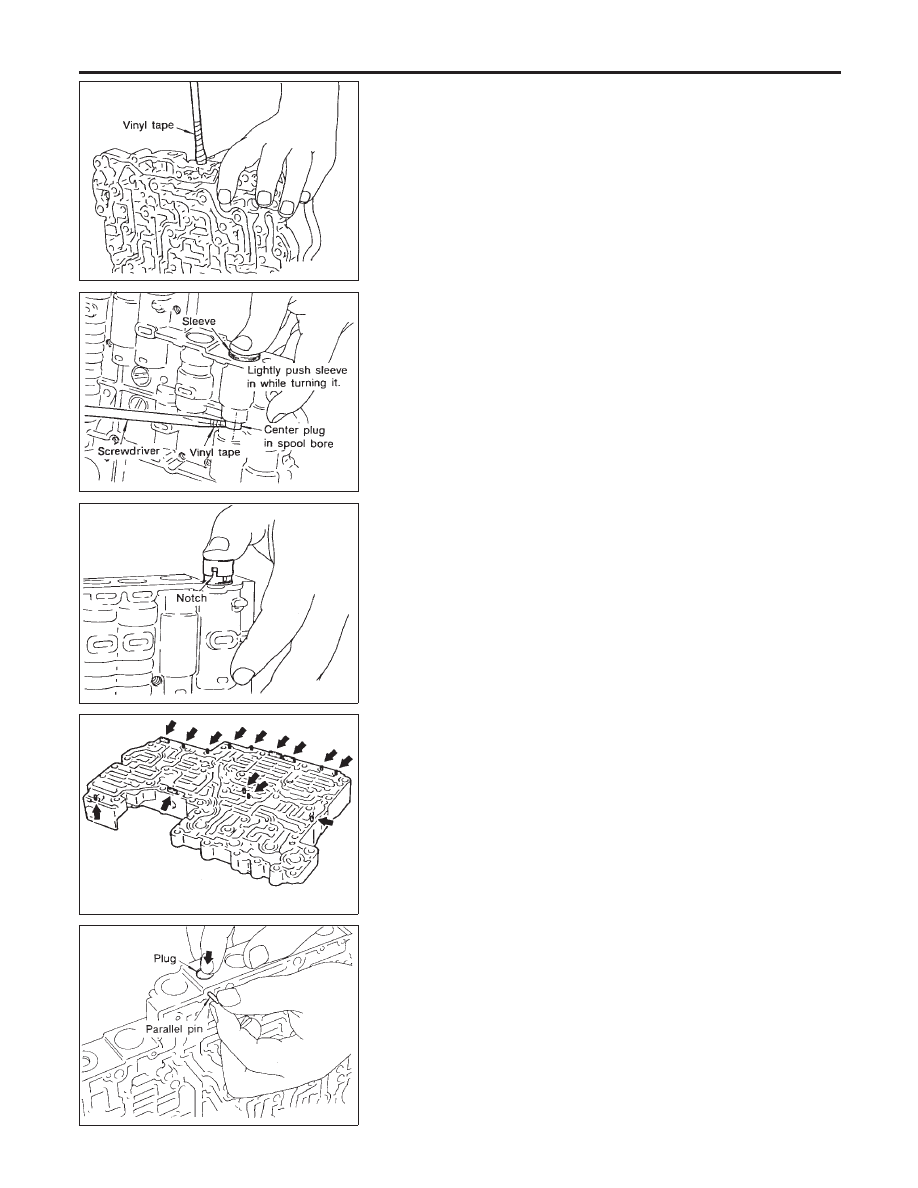

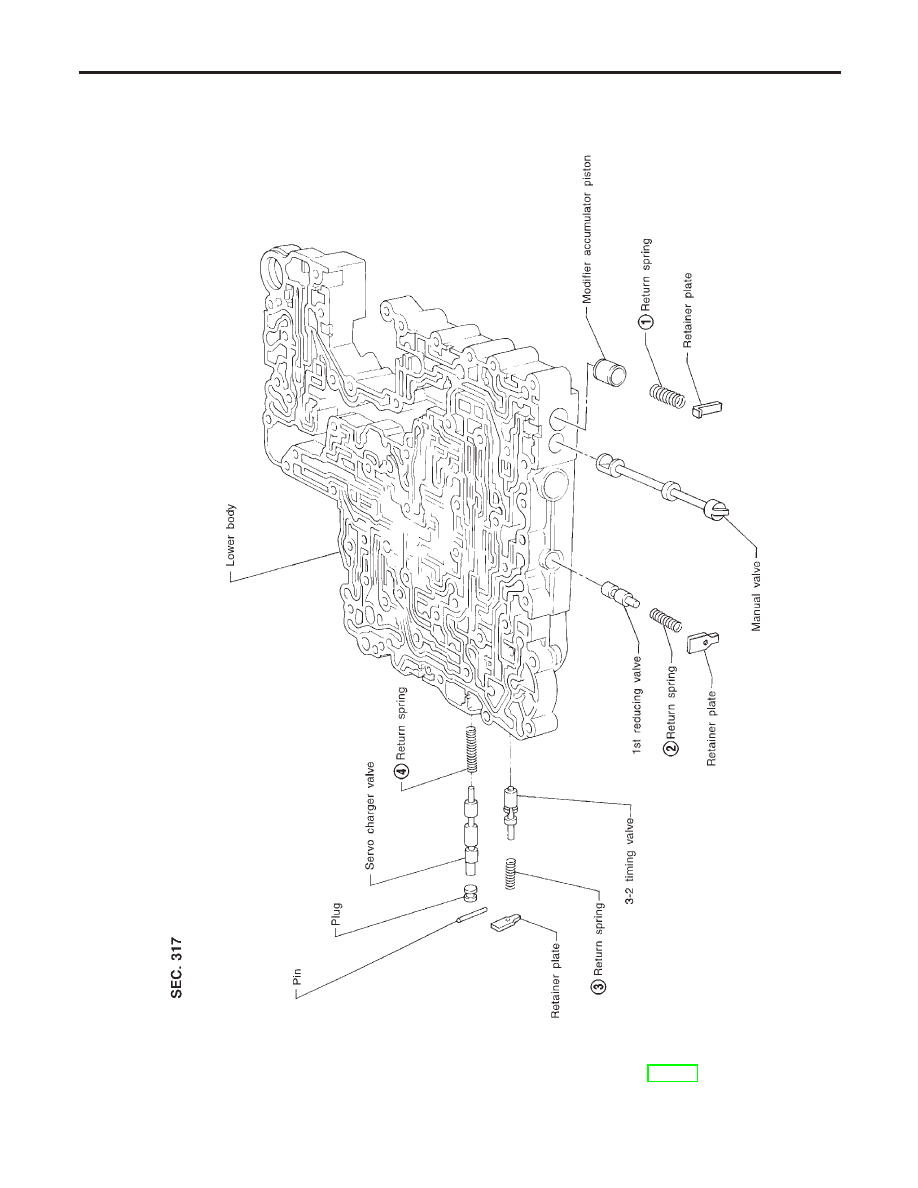

SAT826A b. Remove retainer plates while holding spring. SAT827A c. Place mating surface of valve facedown, and remove internal I If a valve is hard to remove, lightly tap valve body with a I Be careful not to drop or damage valves, sleeves, etc. SAT828A I 4-2 sequence valve and relay valve are located far back in I Be careful not to scratch sliding surface of valve with wire. SAT829A INSPECTION NBAT0122 Valve Springs NBAT0122S01 I Measure free length and outer diameter of each valve spring. Inspection standard: Refer to SDS, AT-357. I Replace valve springs if deformed or fatigued. Control Valves NBAT0122S02 I Check sliding surfaces of valves, sleeves and plugs. SAT830A ASSEMBLY NBAT0123 1. Lubricate the control valve body and all valves with ATF. Install I Be careful not to scratch or damage valve body. GI MA EM LC EC FE TF PD AX SU BR ST RS BT HA SC EL IDX REPAIR FOR COMPONENT PARTS Control Valve Upper Body (Cont’d) AT-309 |
