Infiniti QX4 (R50). Manual - part 71

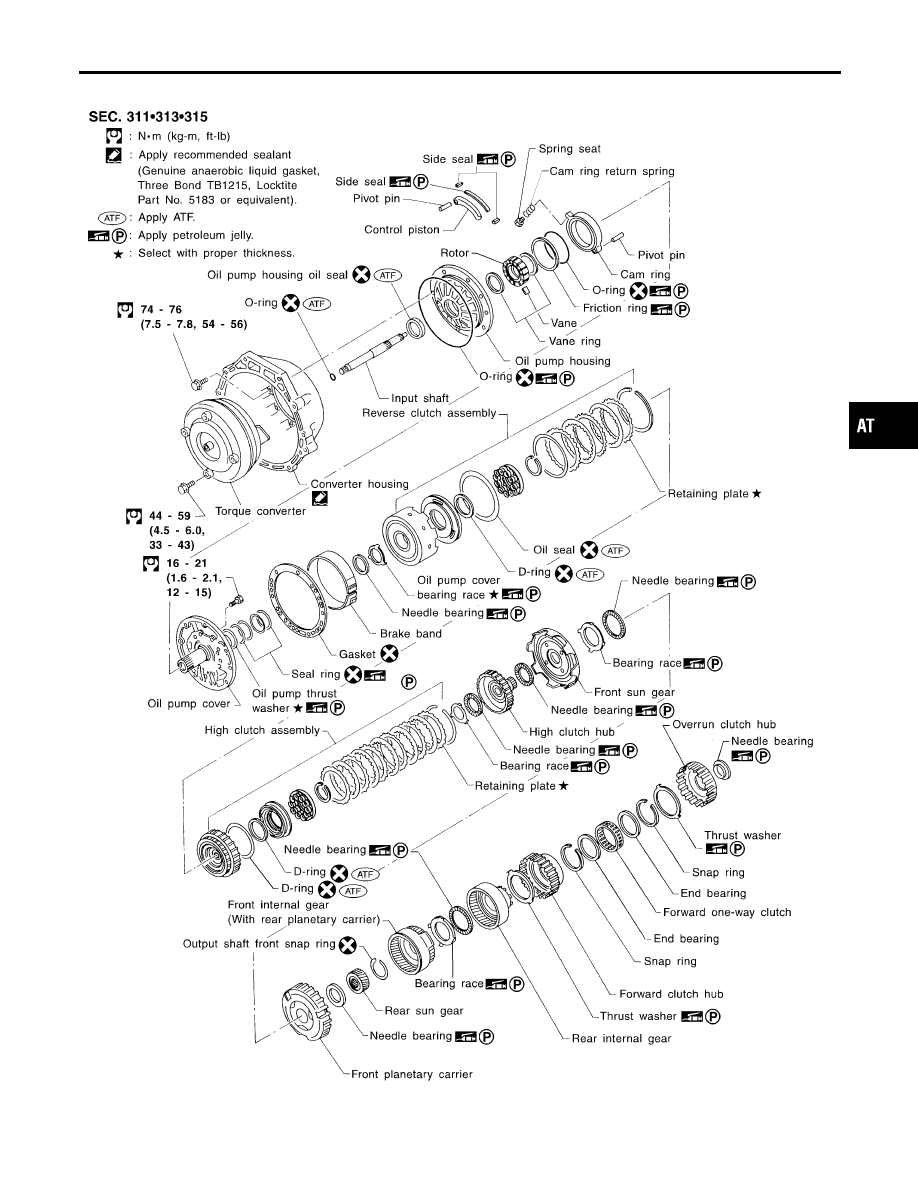

Components

NBAT0108

SAT147JA

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

OVERHAUL

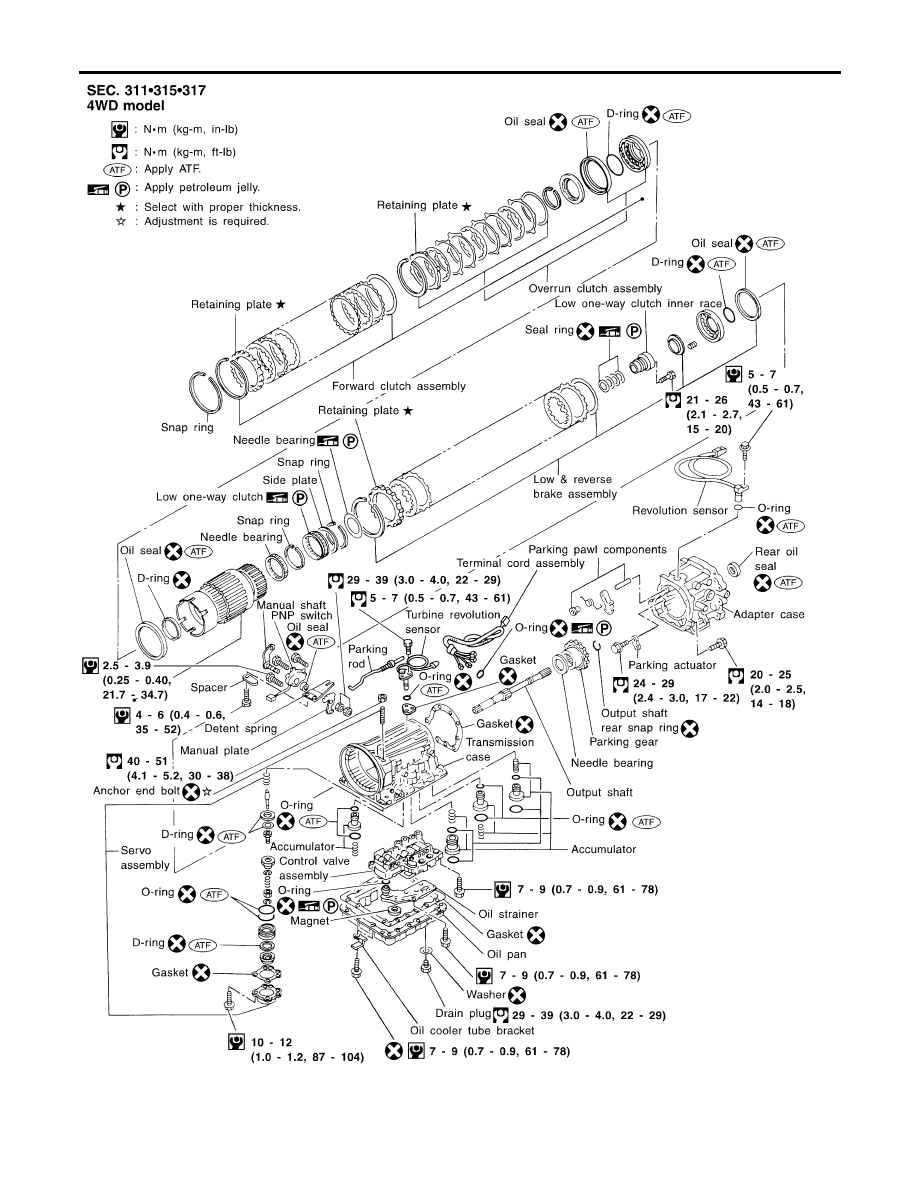

Components

AT-281

SAT154K

OVERHAUL

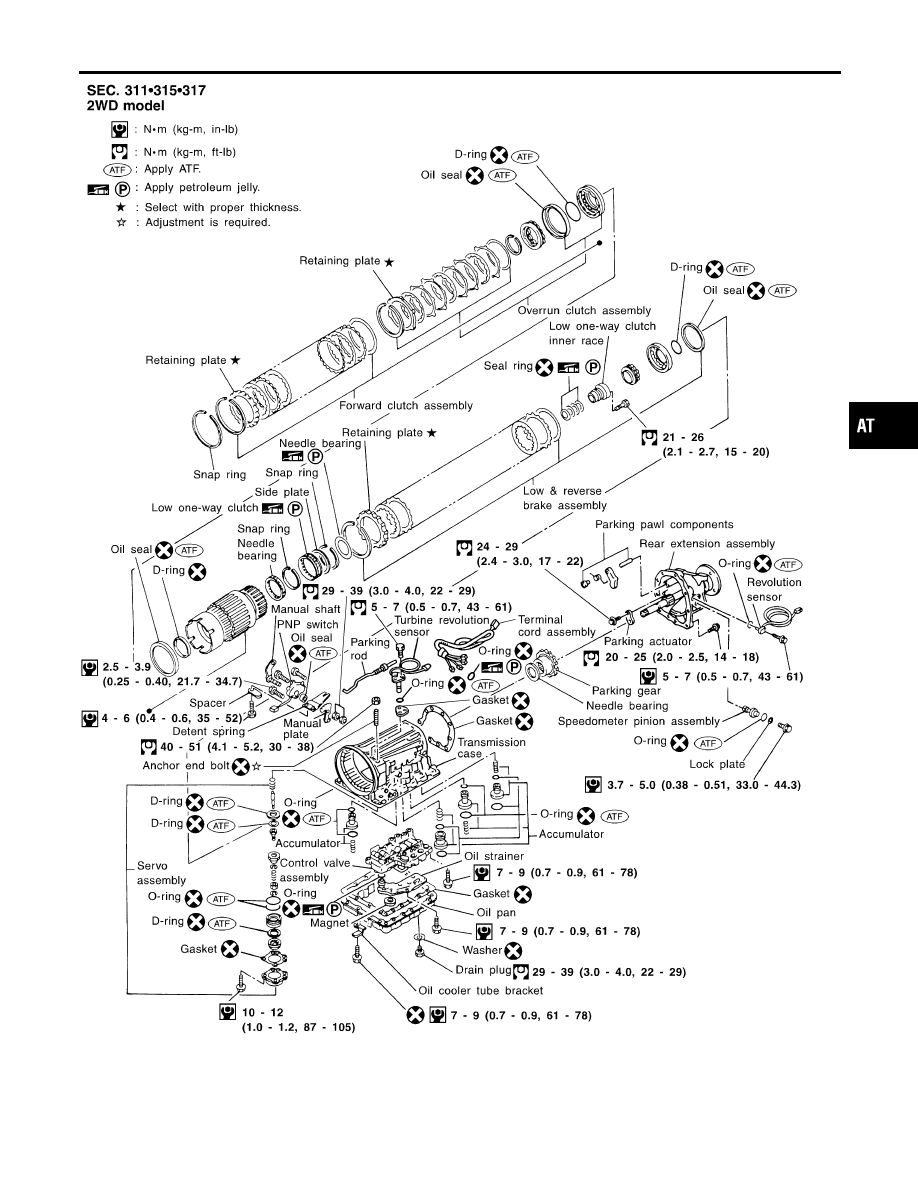

Components (Cont’d)

AT-282

SAT155K

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

OVERHAUL

Components (Cont’d)

AT-283

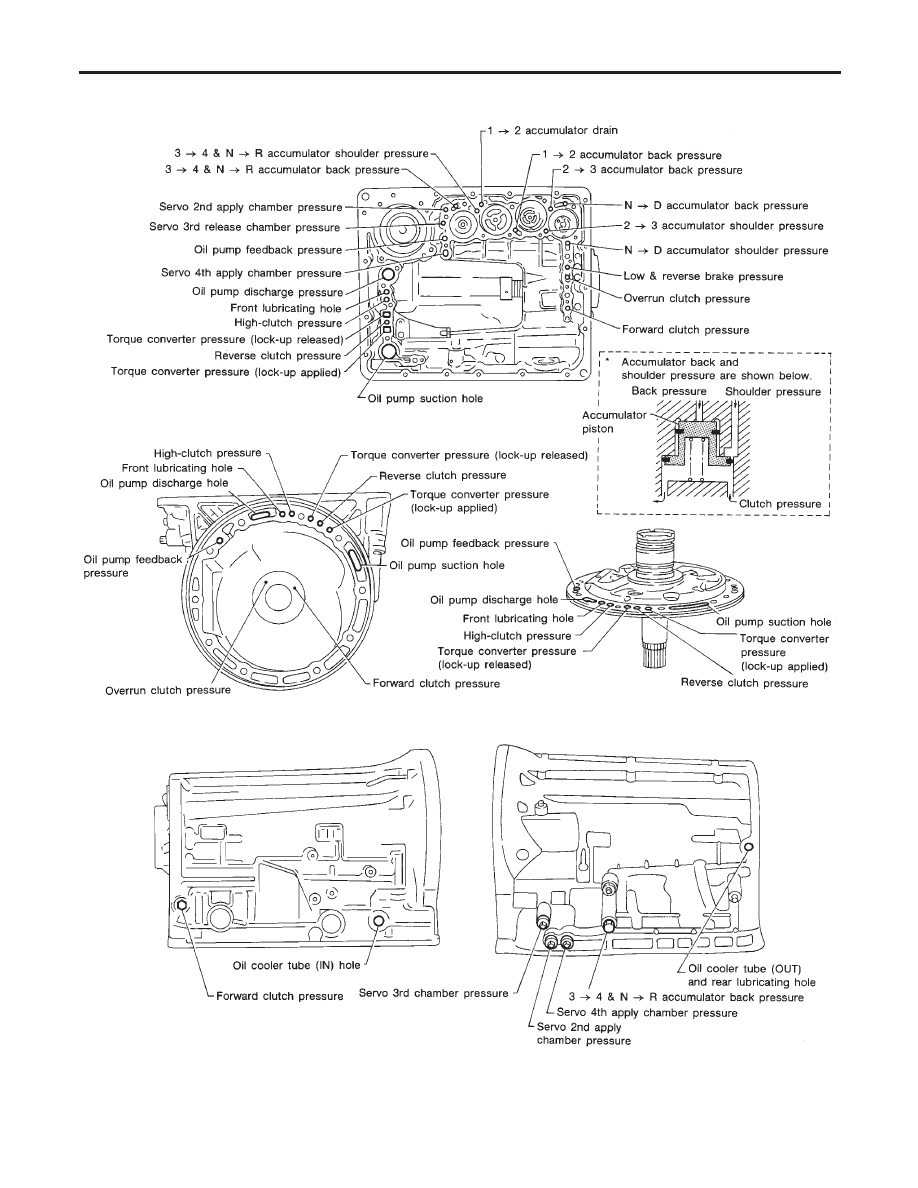

Oil Channel

NBAT0109

SAT185B

OVERHAUL

Oil Channel

AT-284
