Infiniti QX4 (R50). Manual - part 69





SAT359I

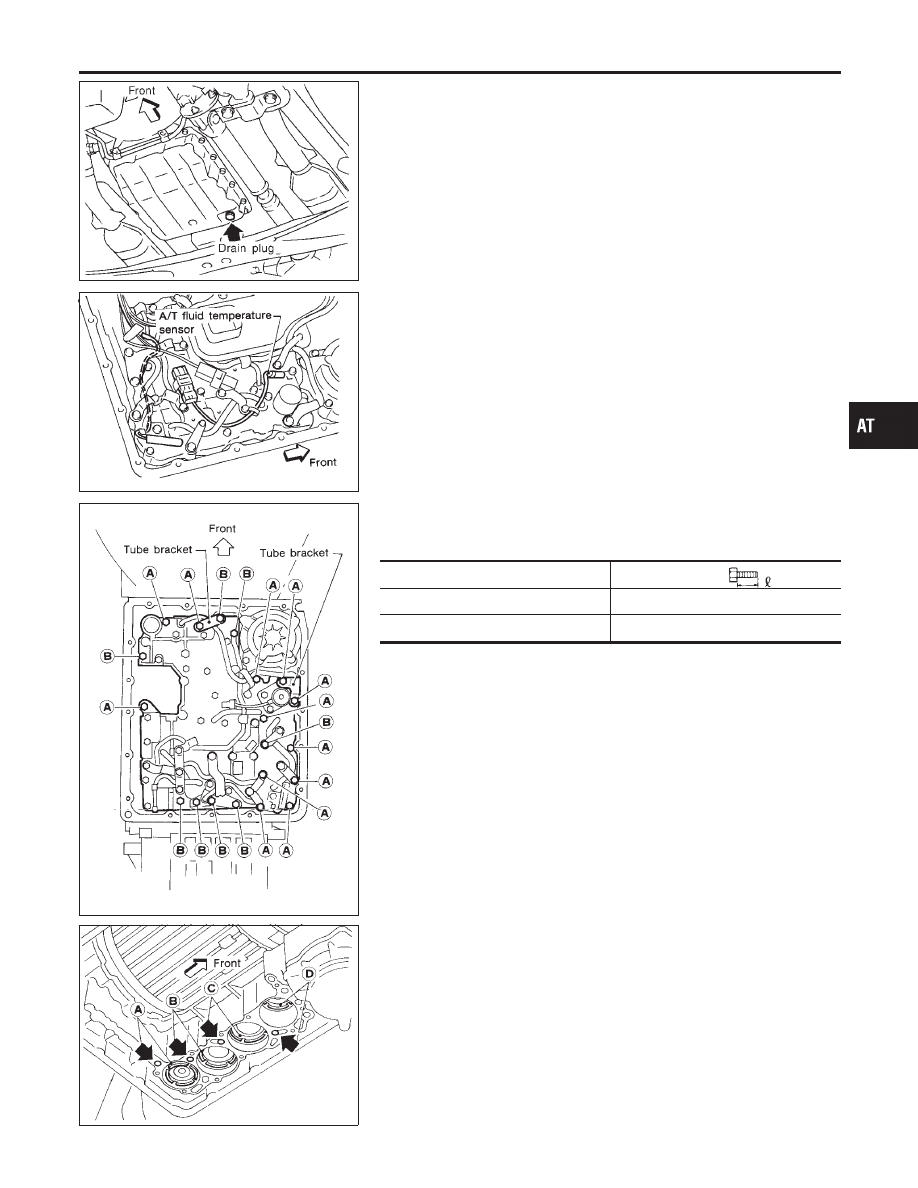

Control Valve Assembly and Accumulators

NBAT0100

REMOVAL

NBAT0100S01

1.

Remove exhaust front tube.

2.

Remove oil pan and gasket and drain ATF.

SAT073BA

3.

Remove A/T fluid temperature sensor if necessary.

4.

Remove oil strainer.

SAT353B

5.

Remove control valve assembly by removing fixing bolts and
disconnecting harness connector.

Bolt length and location

Bolt symbol



mm (in)

A

33 (1.30)

B

45 (1.77)

6.

Remove solenoids and valves from valve body if necessary.

7.

Remove terminal cord assembly if necessary.

SAT074BA

8.

Remove accumulator A, B, C and by applying compressed
air if necessary.

I

Hold each piston with rag.

9.

Reinstall any part removed.

I

Always use new sealing parts.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON-VEHICLE SERVICE

Control Valve Assembly and Accumulators

AT-273

SAT360IA

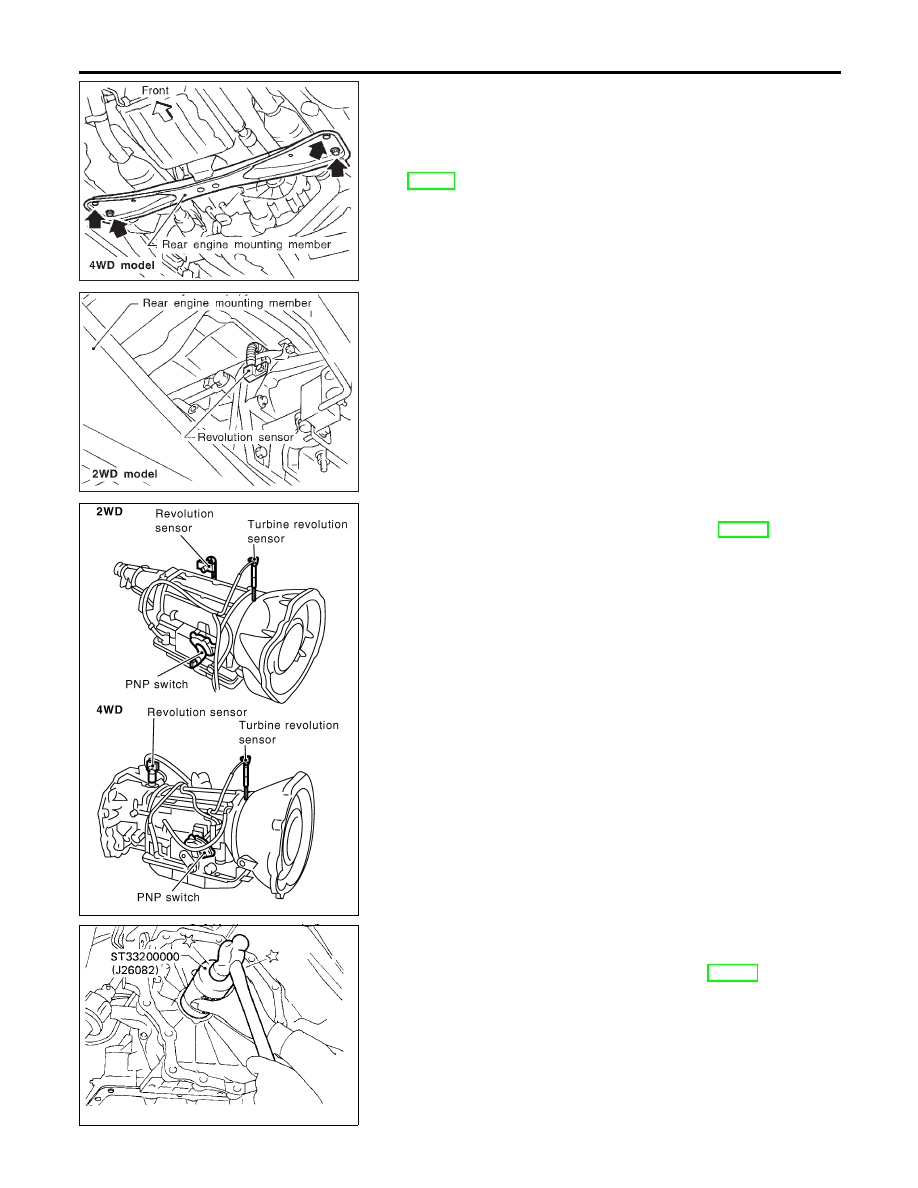

Revolution Sensor Replacement

NBAT0210

— 4WD MODEL —

NBAT0210S01

1.

Remove rear engine mounting member from side member
while supporting A/T with transfer case with jack. Tighten rear
engine mounting member to the specified torque. Refer to
EM-59, “Rear Engine Mounting”.

2.

Lower A/T with transfer case as much as possible.

3.

Remove revolution sensor from A/T.

4.

Reinstall any part removed.

I

Always use new sealing parts.

SAT661I

— 2WD MODEL —

NBAT0210S02

I

Remove revolution sensor from A/T.

I

Always use new sealing parts.

SAT136K

Turbine Revolution Sensor Replacement

NBAT0231

1.

Remove A/T assembly, Refer to “Removal”, AT-277.

2.

Remove turbine revolution sensor from A/T assembly upper
side.

3.

Reinstall any part removed.

I

Always use new sealing parts.

SAT035E

Rear Oil Seal Replacement

NBAT0211

— 4WD MODEL —

NBAT0211S01

1.

Remove transfer case from vehicle. Refer to TF-119, “Removal”.

2.

Remove rear oil seal.

I

Do not remove oil seal unless it is to be replaced.

3.

Install rear oil seal.

I

Apply ATF before installing.

4.

Reinstall any part removed.

ON-VEHICLE SERVICE

Revolution Sensor Replacement

AT-274

SAT544J

SAT546J

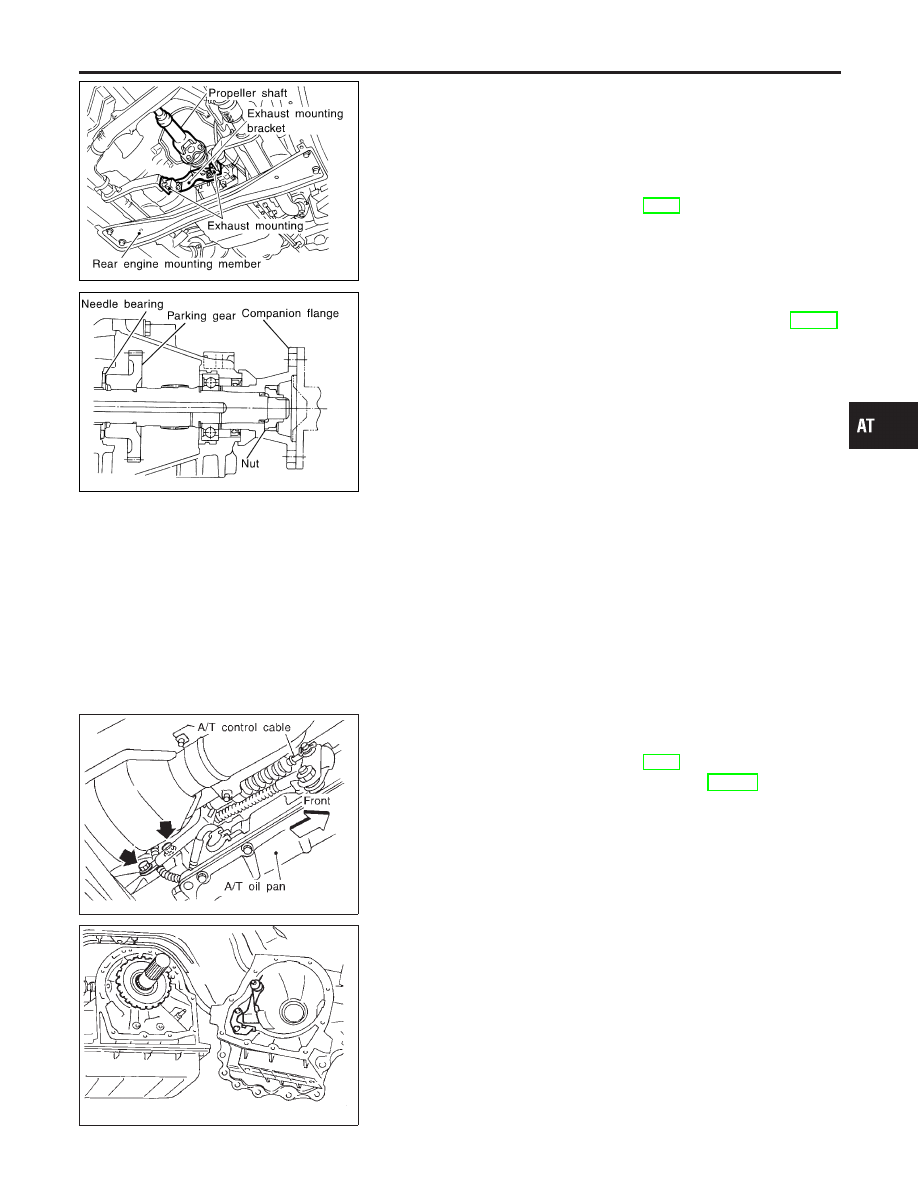

Rear Oil Seal and Companion Flange Oil Seal
Replacement

NBAT0212

— 2WD MODEL —

NBAT0212S01

NOTE:
Replace rear extension assembly as a single unit because it can-
not be disassembled.
1.

Remove propeller shaft. Refer to PD-4, “Components”.

2.

Remove exhaust mounting and mounting bracket.

3.

Disconnect revolution and speedometer sensor harness con-
nector.

4.

Support A/T assembly with a jack.

5.

Remove rear engine mounting member. Tighten rear engine
mounting member to the specified torque. Refer to EM-59,
“Rear Engine Mounting”.

6.

Remove rear extension assembly.

a.

Remove parking gear and needle bearing.

CAUTION:

Insert your hand between rear extension and transmission
case. Detach rear extension assembly while holding parking
gear and needle bearing by hand.
7.

Reinstall any part removed.

I

Always use new sealing parts.

SAT083J

Parking Components Inspection

NBAT0213

— 4WD MODEL —

NBAT0213S01

1.

Remove propeller shaft. Refer to PD-4, “Components”.

2.

Remove transfer case from vehicle. Refer to TF-119, “Removal”.

3.

Remove A/T control cable bracket from transmission case.

SAT078B

4.

Support A/T assembly with a jack.

5.

Remove adapter case from transmission case.

6.

Replace parking components if necessary.

7.

Reinstall any part removed.

I

Always use new sealing parts.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON-VEHICLE SERVICE

Rear Oil Seal and Companion Flange Oil Seal Replacement

AT-275

SAT551J

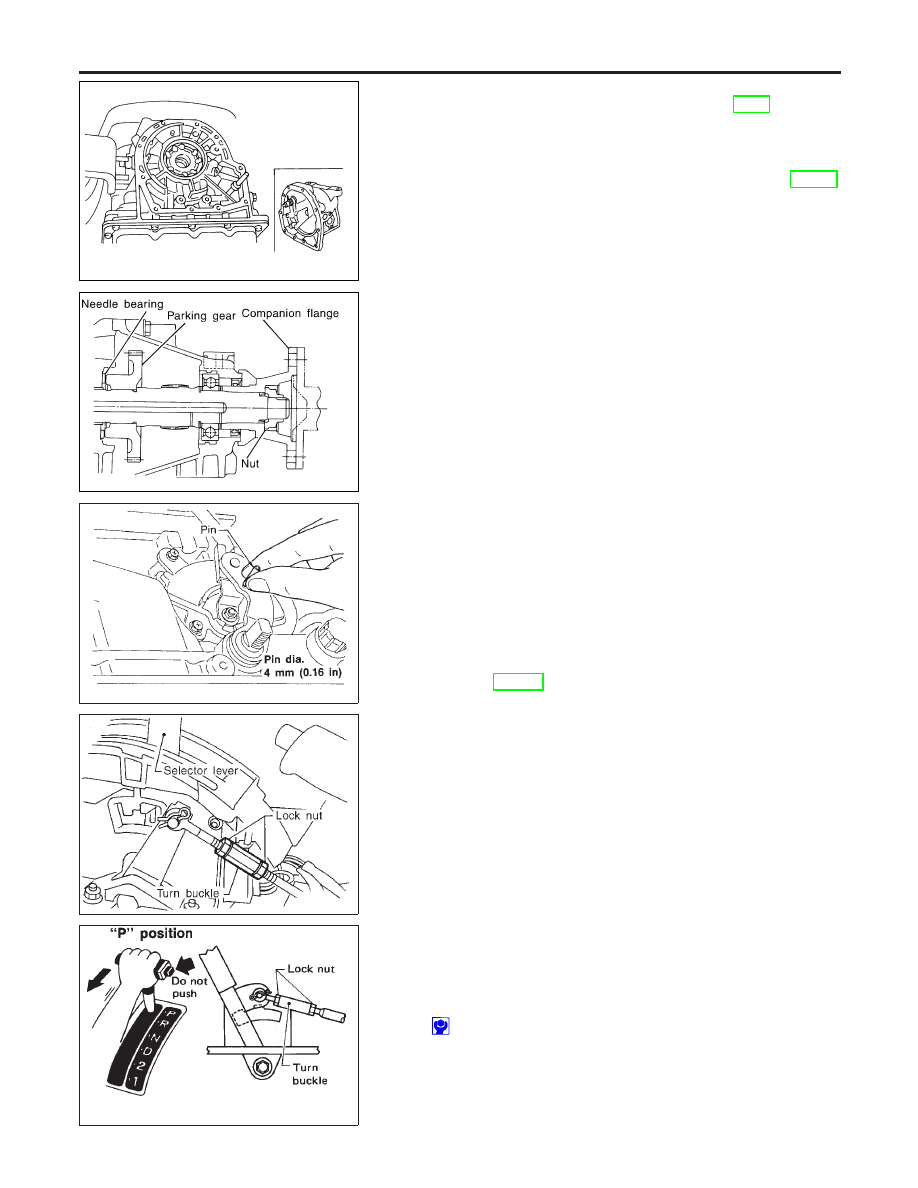

— 2WD MODEL —

NBAT0213S02

1.

Remove propeller shaft from vehicle. Refer to PD-4, “Compo-
nents”.

2.

Support A/T assembly with a jack.

3.

Remove rear engine mounting member. Tighten rear engine
mounting member to the specified torque. Refer to EM-59,
“Rear Engine Mounting”.

SAT546J

4.

Remove rear extension assembly.

a.

Remove parking gear and needle bearing.

CAUTION:

Insert your hand between rear extension and transmission
case. Detach rear extension assembly while holding parking
gear and needle bearing by hand.
5.

Replace parking components if necessary.

6.

Reinstall any part removed.

I

Always use new sealing parts.

SAT081B

Park/Neutral Position Switch Adjustment

NBAT0104

1.

Remove manual control linkage from manual shaft of A/T
assembly.

2.

Set manual shaft of A/T assembly in “N” position.

3.

Loosen PNP switch fixing bolts.

4.

Insert pin into adjustment holes in both PNP switch and
manual shaft of A/T assembly as near vertical as possible.

5.

Reinstall any part removed.

6.

Check continuity of PNP switch. Refer to “Components
Inspection”, AT-103.

SAT361I

Manual Control Linkage Adjustment

NBAT0105

Move selector lever from “P” position to “1” position. You should be
able to feel the detents in each position.
If the detents cannot be felt or the pointer indicating the position is
improperly aligned, the linkage needs adjustment.
1.

Place selector lever in “P” position.

2.

Loosen lock nuts.

SAT032G

3.

Tighten turn buckle until aligns with inner cable, pulling selec-
tor lever toward “R” position side without pushing button.

4.

Back off turn buckle 1 turn and tighten lock nuts to the speci-
fied torque.

Lock nut:

: 4.4 - 5.9 N·m (0.45 - 0.60 kg-m, 39.1 - 52.1 in-lb)

5.

Move selector lever from “P” position to “1” position. Make sure
that selector lever can move smoothly.

ON-VEHICLE SERVICE

Parking Components Inspection (Cont’d)

AT-276
