Description

NBAT0071

The vehicle speed sensor·MTR is built into the speedometer
assembly. The sensor functions as an auxiliary device to the revo-
lution sensor when it is malfunctioning. The TCM will then use a
signal sent from the vehicle speed sensor·MTR.

TCM TERMINALS AND REFERENCE VALUE

NBAT0071S02

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

40

W/L

Vehicle speed
sensor

When moving vehicle at 2 to 3 km/h (1 to 2
MPH) for 1 m (3 ft) or more.

Voltage varies
between less
than 1V and
more than
4.5V

ON BOARD DIAGNOSIS LOGIC

NBAT0071S03

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: VHCL SPEED SEN·MTR

TCM does not receive the proper voltage
signal from the sensor.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Vehicle speed sensor

: 2nd judgement flicker

SAT014K

SAT971J

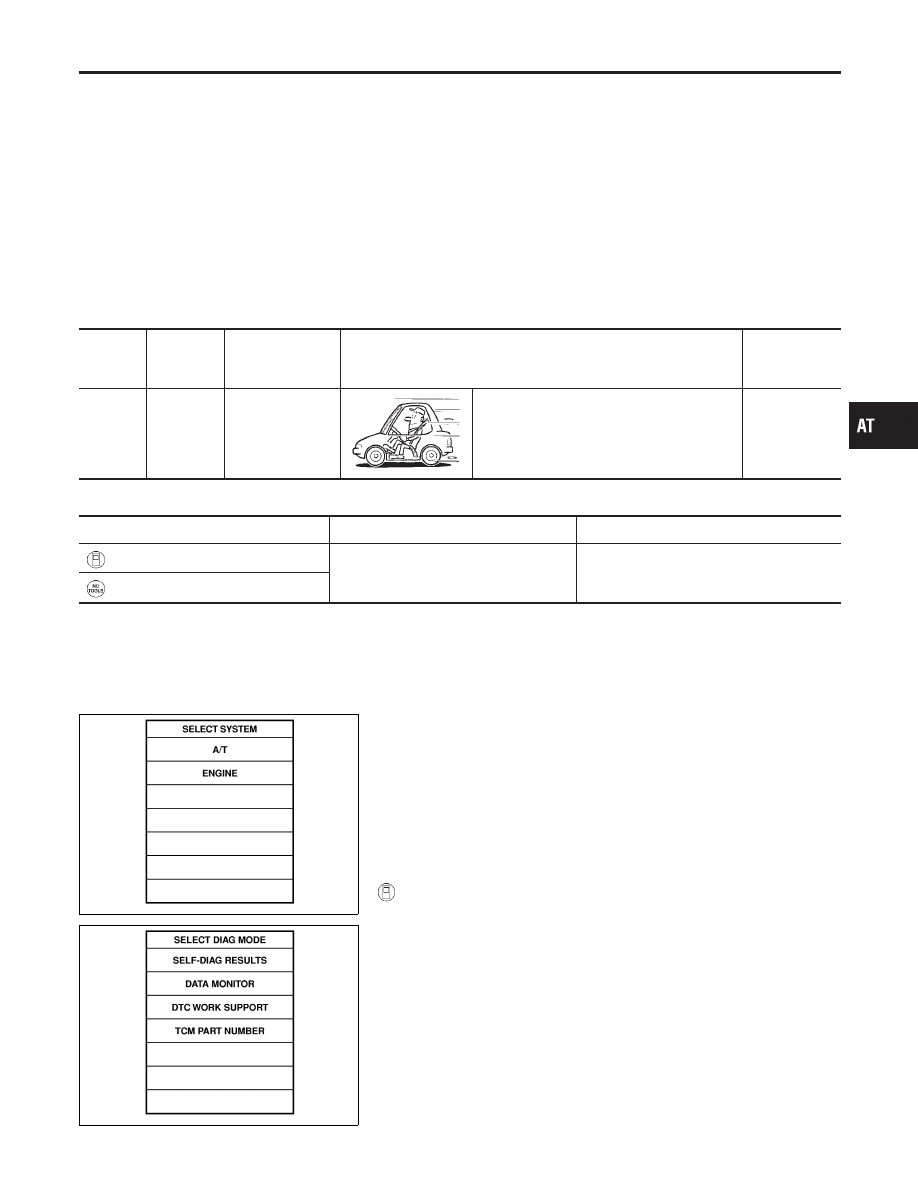

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NBAT0071S01

CAUTION:

I

Always drive vehicle at a safe speed.

I

If conducting this “DTC CONFIRMATION PROCEDURE”
again, always turn ignition switch “OFF” and wait at least
5 seconds before continuing.

After the repair, perform the following procedure to confirm the
malfunction is eliminated.

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
for “A/T” with CONSULT-II.

2)

Start engine and accelerate vehicle from 0 to 25 km/h (0 to 6
MPH).

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC VEHICLE SPEED SENSOR·MTR

Description

AT-197

SAT668I

No Tools

1)

Start engine.

2)

Drive vehicle under the following conditions:
Selector lever in “D” position and vehicle speed higher than 25
km/h (16 MPH).

3)

Perform self-diagnosis.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools),
AT-46.

DTC VEHICLE SPEED SENSOR·MTR

Description (Cont’d)

AT-198

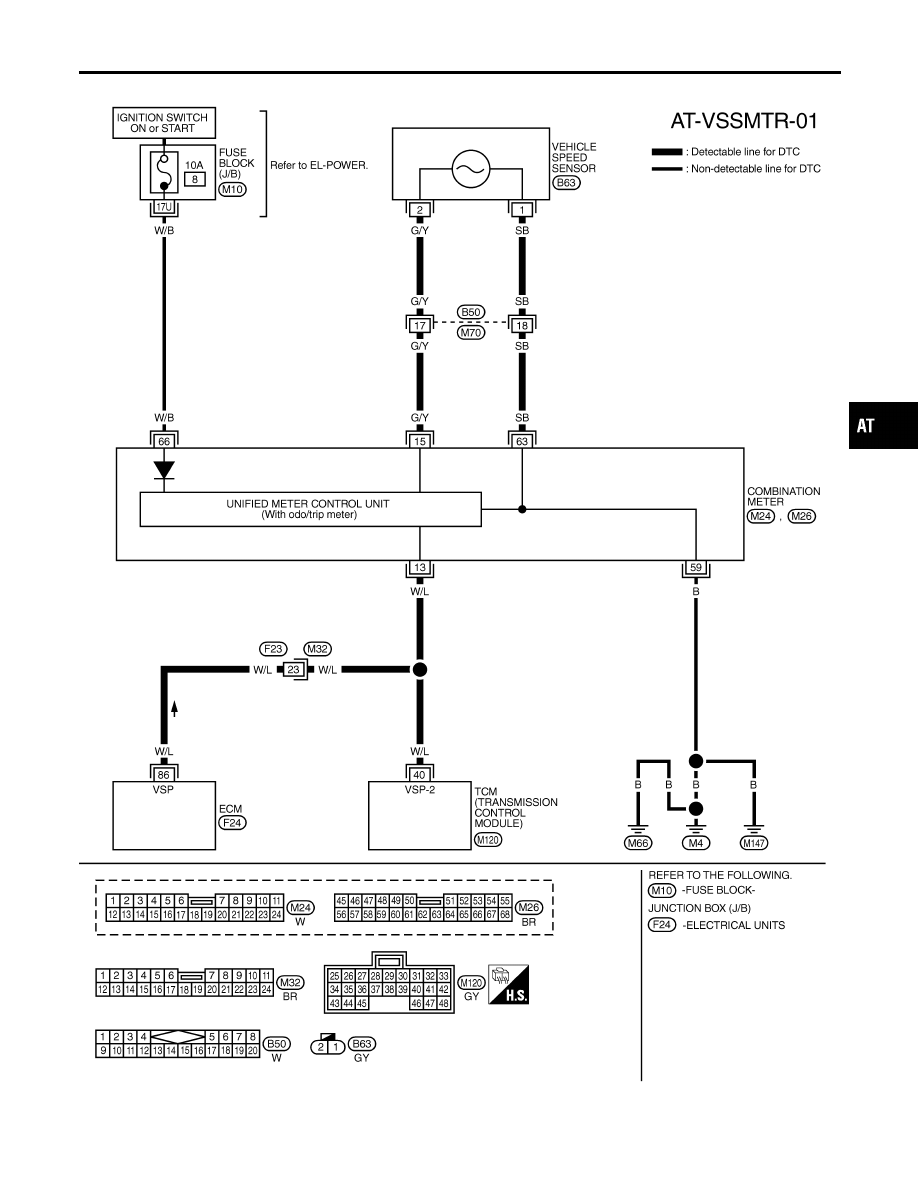

Wiring Diagram — AT — VSSMTR

NBAT0202

MAT917A

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC VEHICLE SPEED SENSOR·MTR

Wiring Diagram — AT — VSSMTR

AT-199

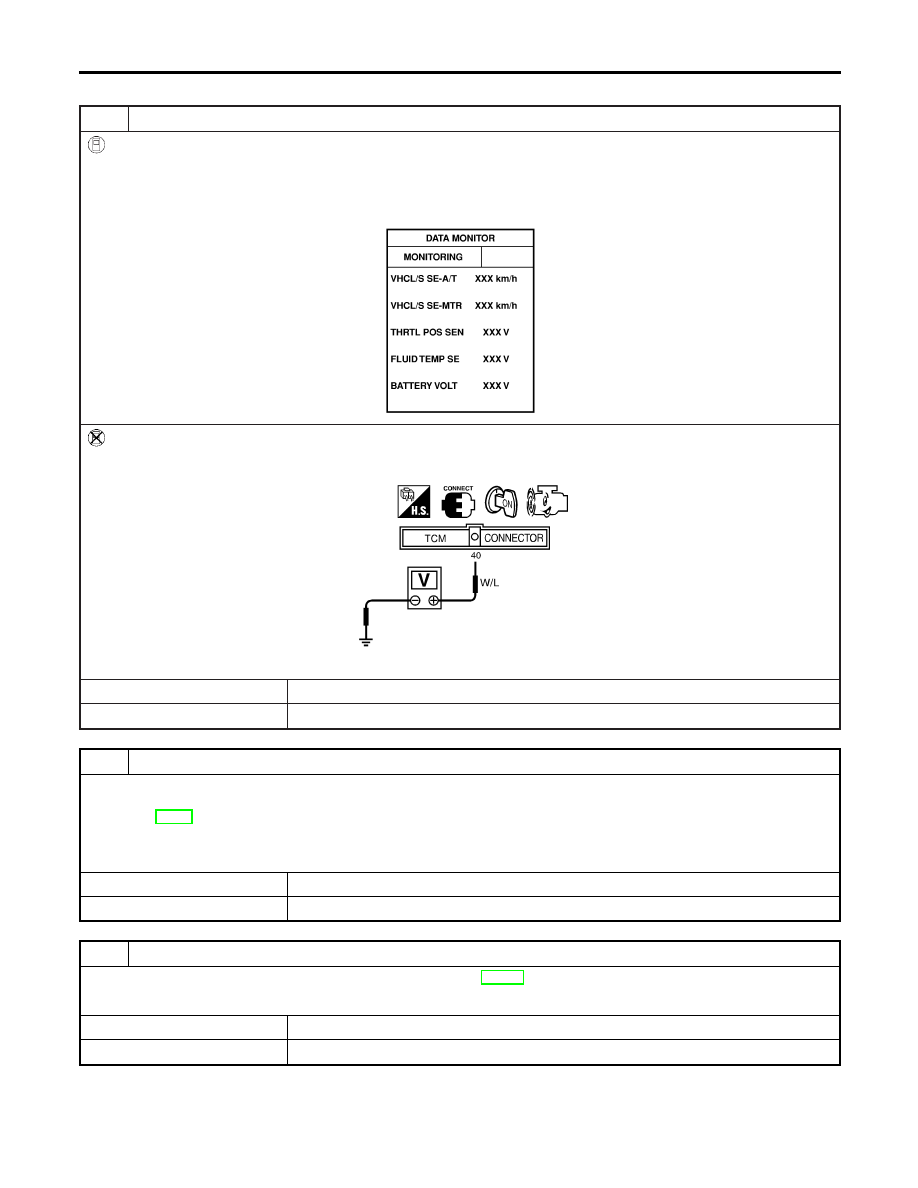

Diagnostic Procedure

NBAT0072

1

CHECK INPUT SIGNAL.

With CONSULT-II

1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.

Check the value changes according to driving speed.

SAT614J

Without CONSULT-II

1. Start engine.
2. Check voltage between TCM terminal 40 and ground while driving at 2 to 3 km/h (1 to 2 MPH) for 1 m (3 ft) or more.

SAT528J

Does battery voltage vary between less than 1V and more than 4.5V?

Yes

©

GO TO 3.

No

©

GO TO 2.

2

DETECT MALFUNCTIONING ITEM

Check the following items:

I

Vehicle speed sensor and ground circuit for vehicle speed sensor
Refer to EL-94, “Component Parts and Harness Connector Location”.

I

Harness for short or open between TCM and vehicle speed sensor (Main harness)

OK or NG

OK

©

GO TO 3.

NG

©

Repair or replace damaged parts.

3

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-197.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 4.

DTC VEHICLE SPEED SENSOR·MTR

Diagnostic Procedure
