CHECK TCM INSPECTION

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

©

INSPECTION END

NG

©

Repair or replace damaged parts.

SAT139K

Component Inspection

NBAT0070

OVERRUN CLUTCH SOLENOID VALVE

NBAT0070S01

I

For removal, refer to AT-273.

Resistance Check

NBAT0070S0101

I

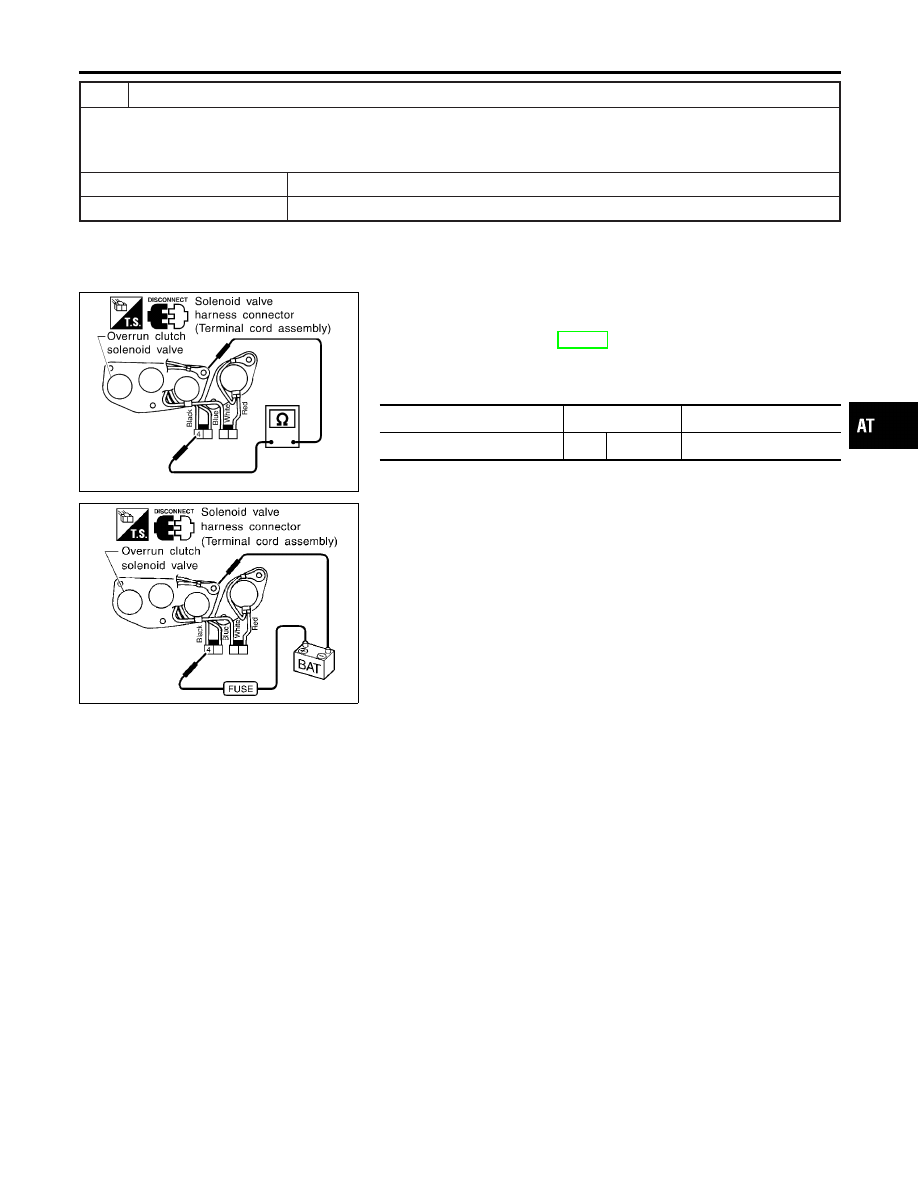

Check resistance between terminal 4 and ground.

Solenoid valve

Terminal No.

Resistance (Approx.)

Overrun clutch solenoid valve

4

Ground

20 - 40

SAT688I

Operation Check

NBAT0070S0102

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal 4 and ground.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE

Diagnostic Procedure (Cont’d)

AT-189

SAT342HA

Description

NBAT0172

The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.

SAT021J

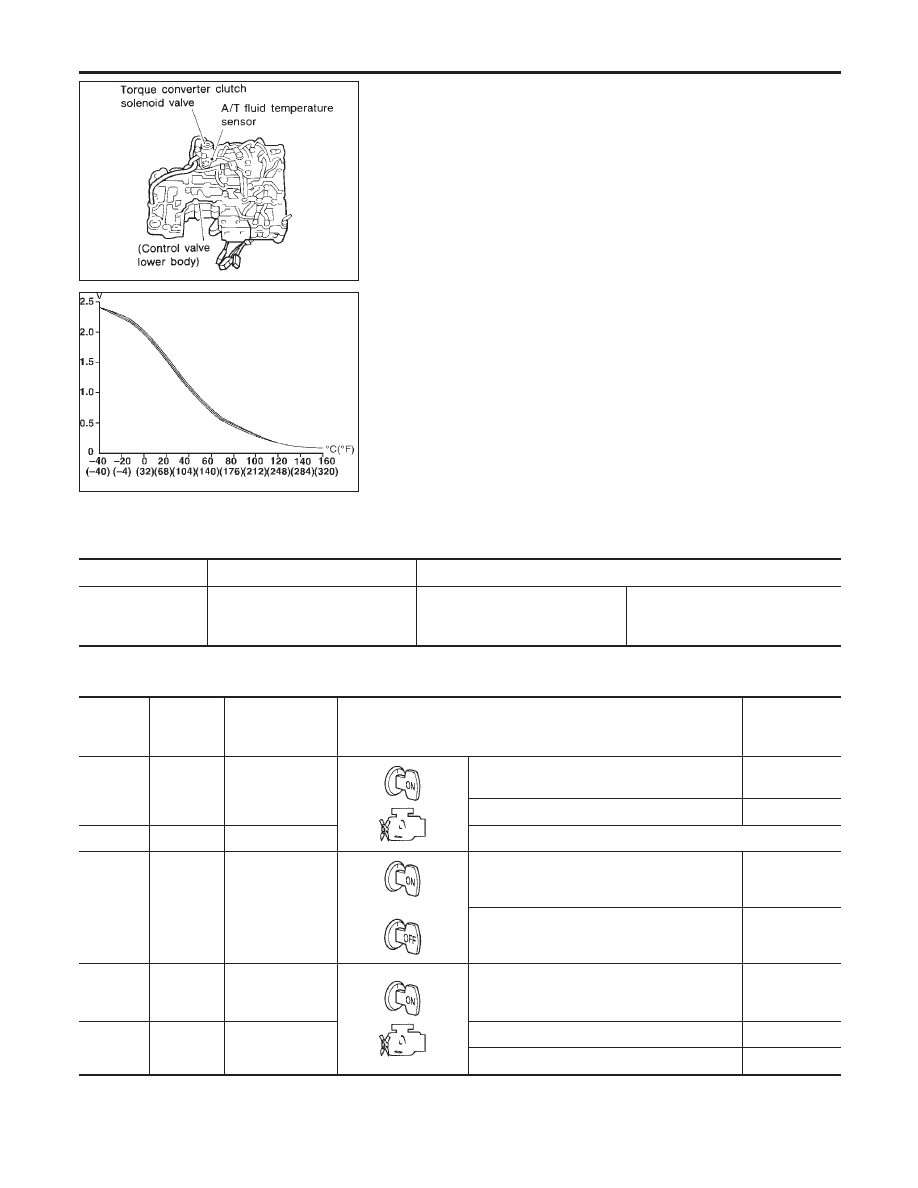

CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE

NBAT0172S02

Remarks: Specification data are reference values.

Monitor item

Condition

Specification

A/T fluid tempera-
ture
sensor

Cold [20°C (68°F)]

"

Hot [80°C (176°F)]

Approximately 1.5V

"

Approximately 0.5V

Approximately 2.5 k

"

Approximately 0.3 k

TCM TERMINALS AND REFERENCE VALUE

NBAT0172S03

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

10

W/R

Power source

When turning ignition switch to “ON”.

Battery volt-
age

When turning ignition switch to “OFF”.

0V

19

W/R

Power source

Same as No. 10

28

R/Y

Power source
(Memory back-up)

or

When turning ignition switch to “OFF”.

Battery volt-
age

When turning ignition switch to “ON”.

Battery volt-
age

42

B

Throttle position
sensor
(Ground)

0V

47

R

A/T fluid tempera-
ture sensor

When ATF temperature is 20°C (68°F).

1.5V

When ATF temperature is 80°C (176°F).

0.5V

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM

POWER SOURCE)

Description

AT-190

ON BOARD DIAGNOSIS LOGIC

NBAT0172S04

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: BATT/FLUID TEMP SEN

TCM receives an excessively low or high
voltage from the sensor.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

A/T fluid temperature sensor

: 8th judgement flicker

SAT014K

SAT971J

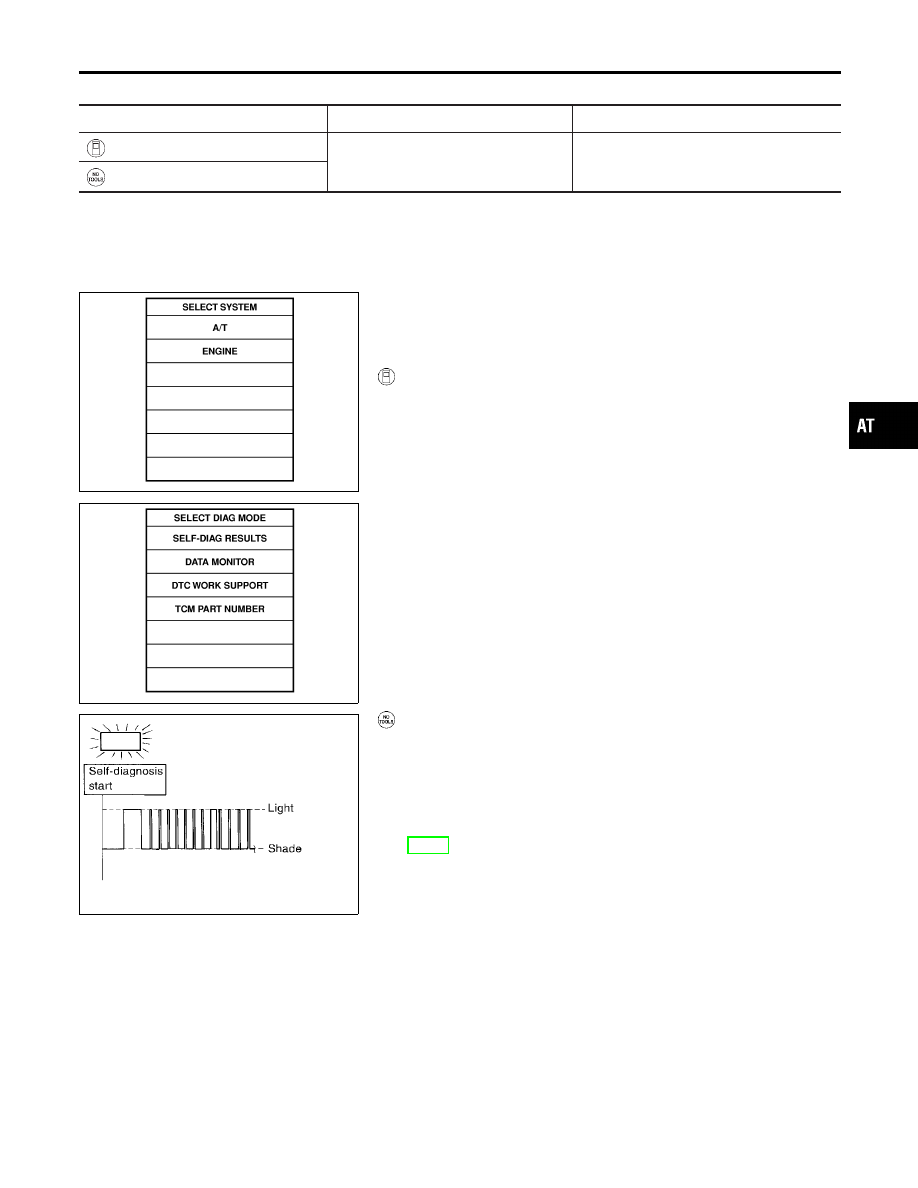

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NBAT0172S01

After the repair, perform the following procedure to confirm the
malfunction is eliminated.

With CONSULT-II

1)

Start engine.

2)

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3)

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 20
km/h (12 MPH).

SAT674I

No Tools

1)

Start engine.

2)

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 20
km/h (12 MPH).

3)

Perform self-diagnosis.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools),
AT-46.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM

POWER SOURCE)

Description (Cont’d)

AT-191

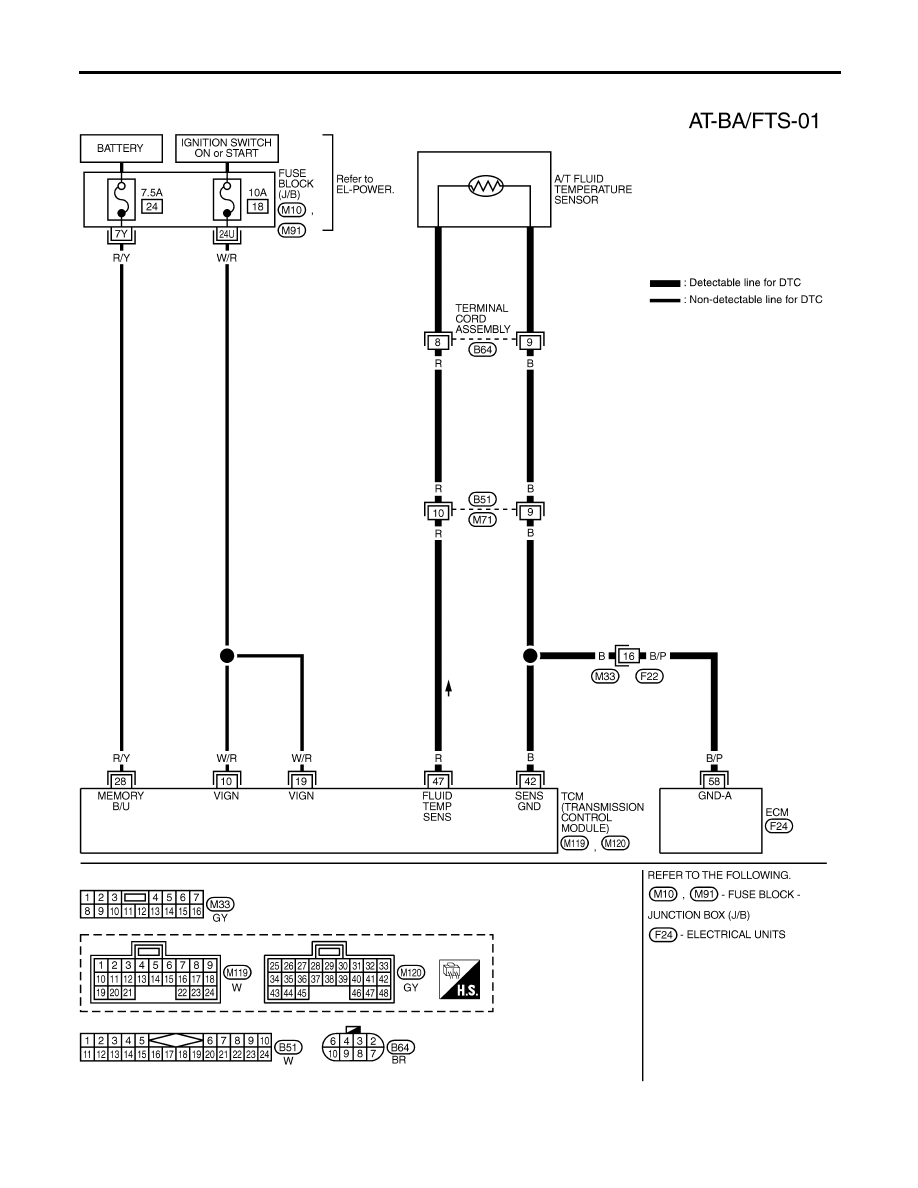

Wiring Diagram — AT — BA/FTS

NBAT0201

MAT916A

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM

POWER SOURCE)

Wiring Diagram — AT — BA/FTS

AT-192
