DTC P0750 SHIFT SOLENOID VALVE A

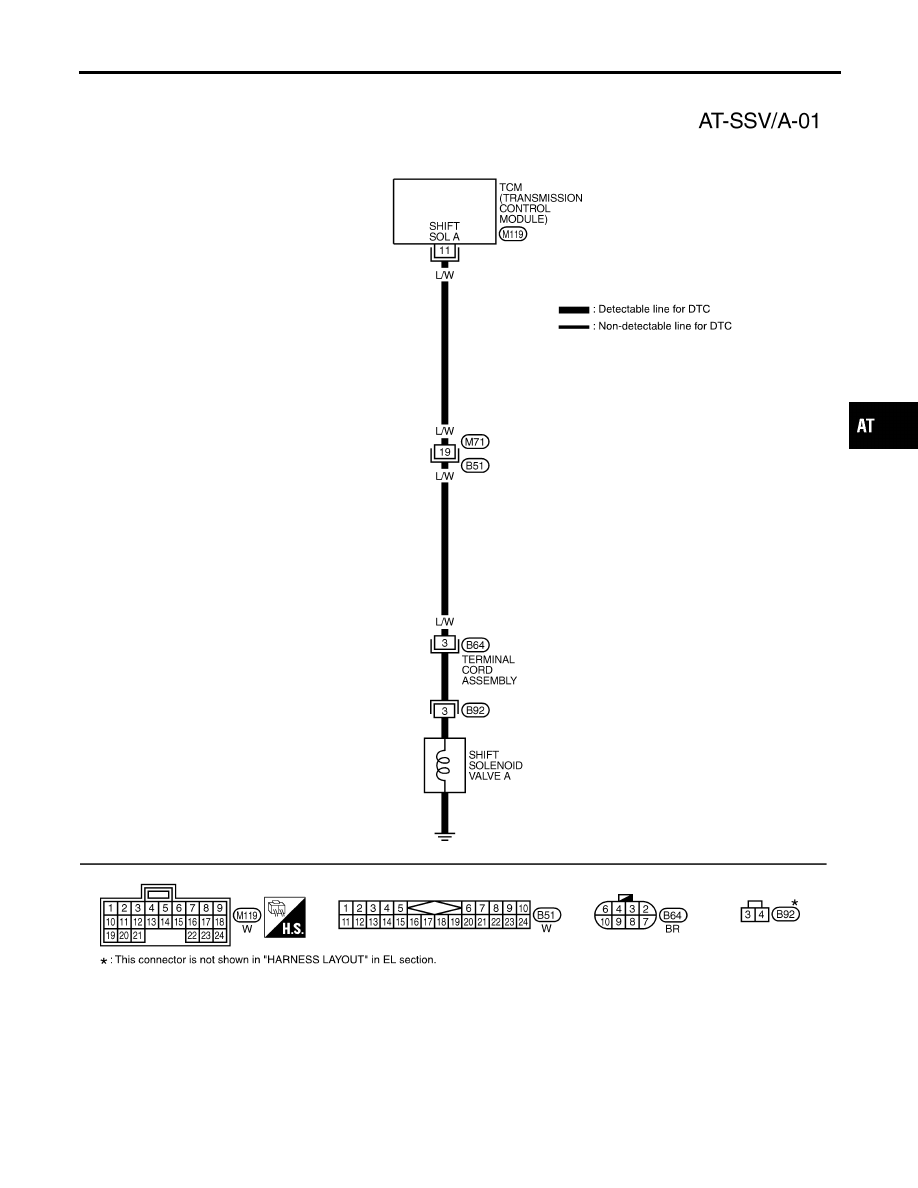

Wiring Diagram — AT — SSV/A

AT-169

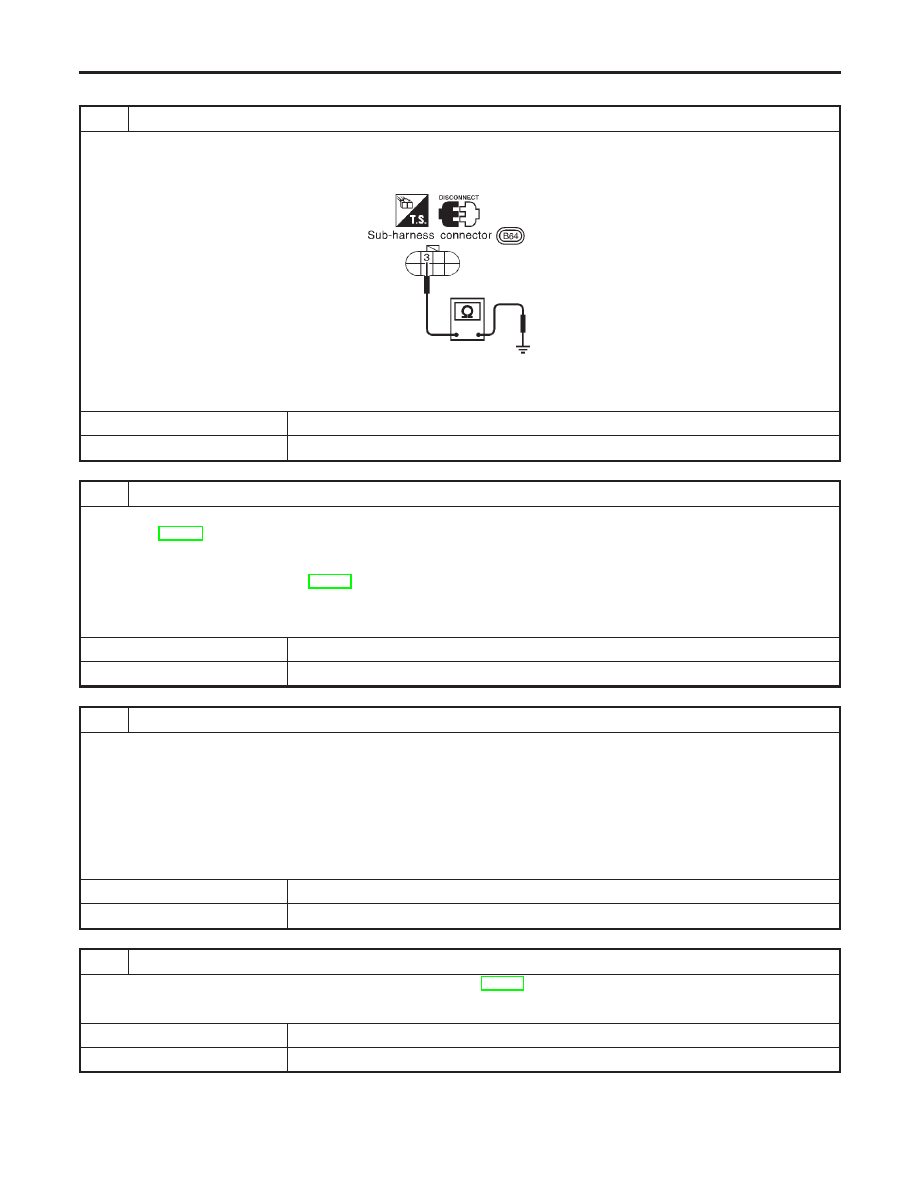

Diagnostic Procedure

NBAT0061

1

CHECK VALVE RESISTANCE

1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector on the right side of transfer assembly.
3. Check resistance between terminal 3 and ground.

SAT164J

Is resistance approx. 20 - 40

?

Yes

©

GO TO 3.

No

©

GO TO 2.

2

CHECK VALVE OPERATION

1. Remove control valve assembly.

Refer to AT-273.

2. Check the following items:

I

Shift solenoid valve A
Refer to “Component Inspection”, AT-171.

I

Harness of terminal cord assembly for short or open

OK or NG

OK

©

GO TO 3.

NG

©

Repair or replace damaged parts.

3

CHECK POWER SOURCE CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal 3 and TCM harness connector terminal 11. Refer to wiring diagram — AT —

SSV/A.

Continuity should exist.

If OK, check harness for short to ground and short to power.

4. Reinstall any part removed.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-168.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 5.

DTC P0750 SHIFT SOLENOID VALVE A

Diagnostic Procedure

AT-170

5

CHECK TCM INSPECTION

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

©

INSPECTION END

NG

©

Repair or replace damaged parts.

SAT654I

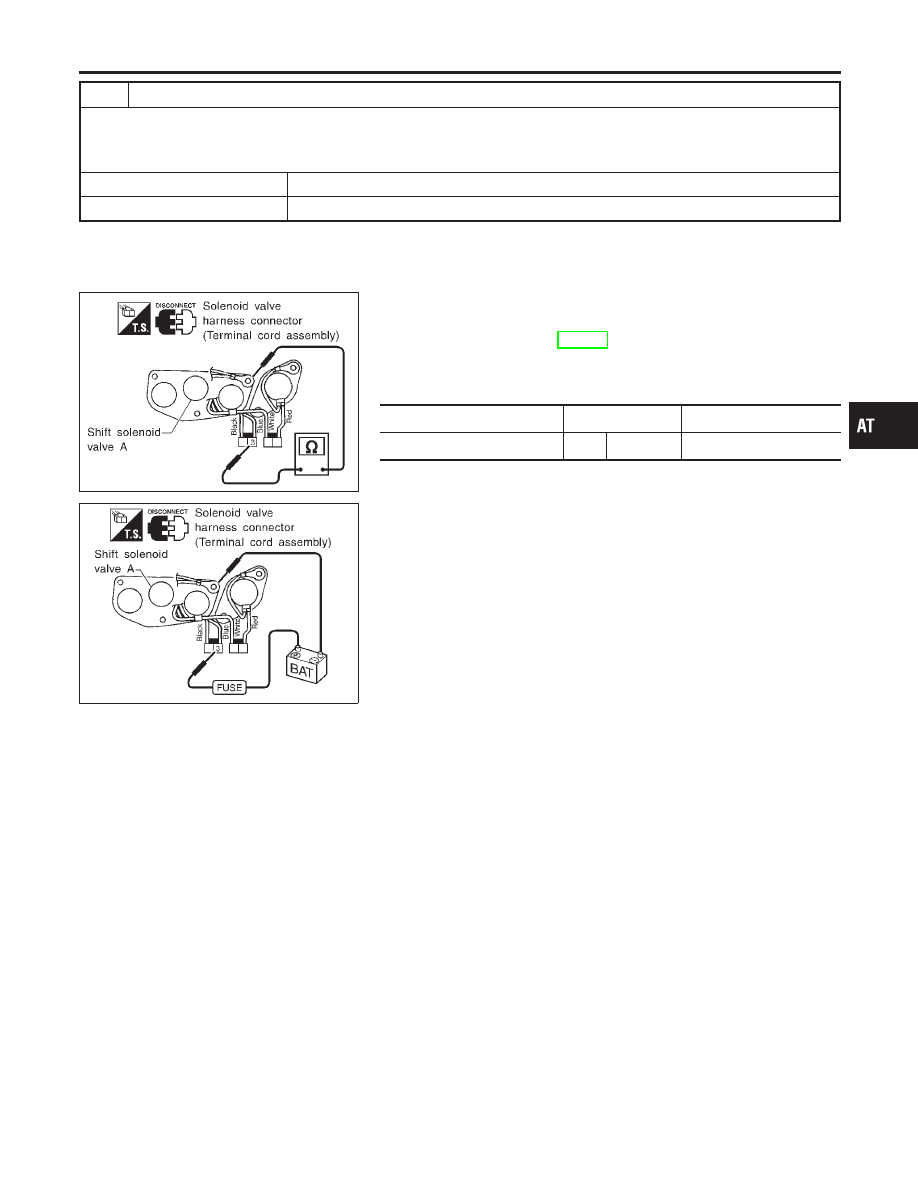

Component Inspection

NBAT0062

SHIFT SOLENOID VALVE A

NBAT0062S01

I

For removal, refer to AT-273.

Resistance Check

NBAT0062S0101

I

Check resistance between terminal 3 and ground.

Solenoid valve

Terminal No.

Resistance (Approx.)

Shift solenoid valve A

3

Ground

20 - 40

SAT653I

Operation Check

NBAT0062S0102

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal 3 and ground.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0750 SHIFT SOLENOID VALVE A

Diagnostic Procedure (Cont’d)

AT-171

SAT341H

Description

NBAT0063

Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

TCM TERMINALS AND REFERENCE VALUE

NBAT0063S02

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

12

L/R

Shift solenoid
valve B

When shift solenoid valve B operates.
(When driving in “D

1

” or “D

2

”.)

Battery volt-
age

When shift solenoid valve B does not operate.
(When driving in “D

3

” or “D

4

”.)

0V

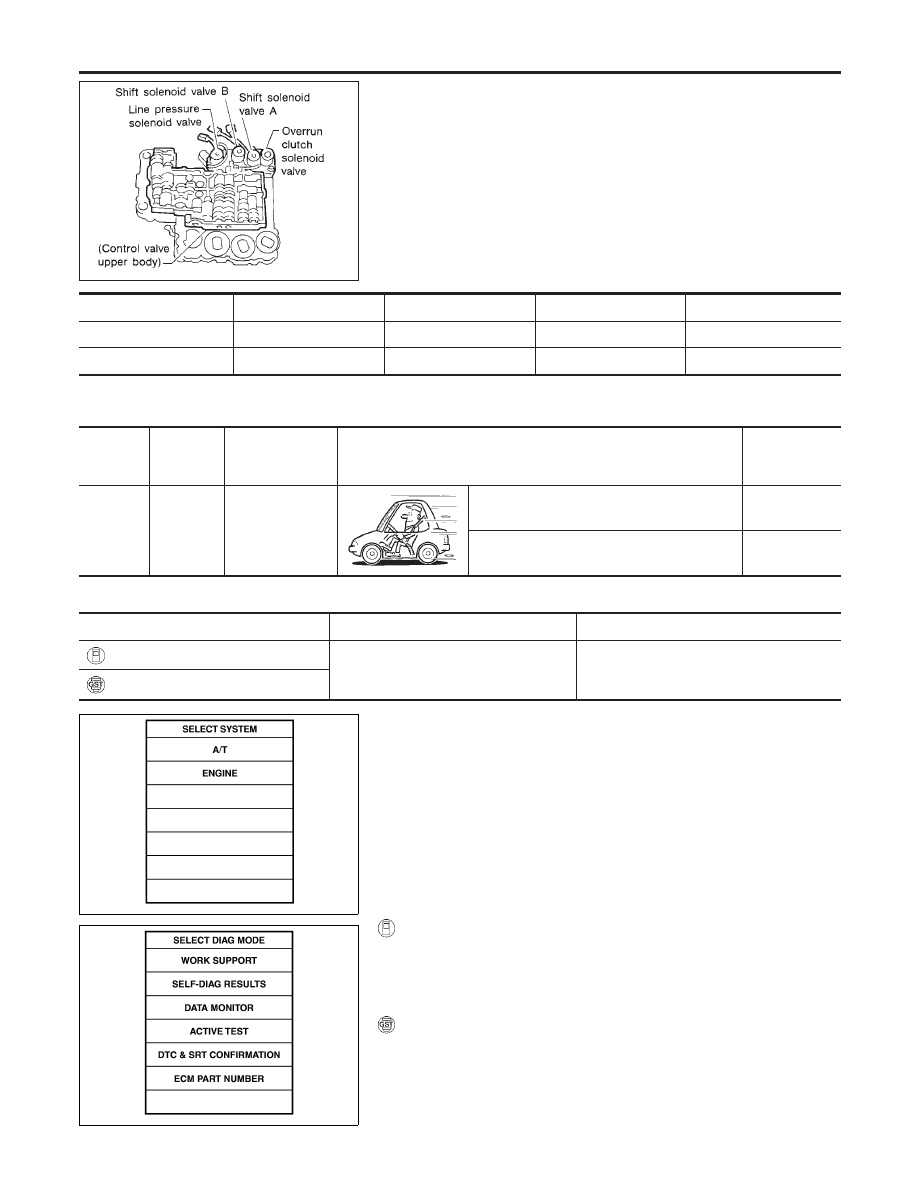

ON BOARD DIAGNOSIS LOGIC

NBAT0063S03

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: SFT SOL B/CIRC

TCM detects an improper voltage drop
when it tires to operate the solenoid
valve.

I

Harness or connectors
(The solenoid circuit is open or shorted.)

I

Shift solenoid valve B

: P0755

SAT014K

SAT020K

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NBAT0063S01

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
for “ENGINE” with CONSULT-II.

2)

Drive vehicle in “D” position and allow the transmission to shift
1

,

2

,

3 (“GEAR”).

With GST

Follow the procedure “With CONSULT-II”.

DTC P0755 SHIFT SOLENOID VALVE B

Description

AT-172
