DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NBAT0039S01
CAUTION:
I
Always drive vehicle at a safe speed.
I
Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
TESTING CONDITIONS:
Always drive vehicle on a level road to improve the accuracy of
test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1)

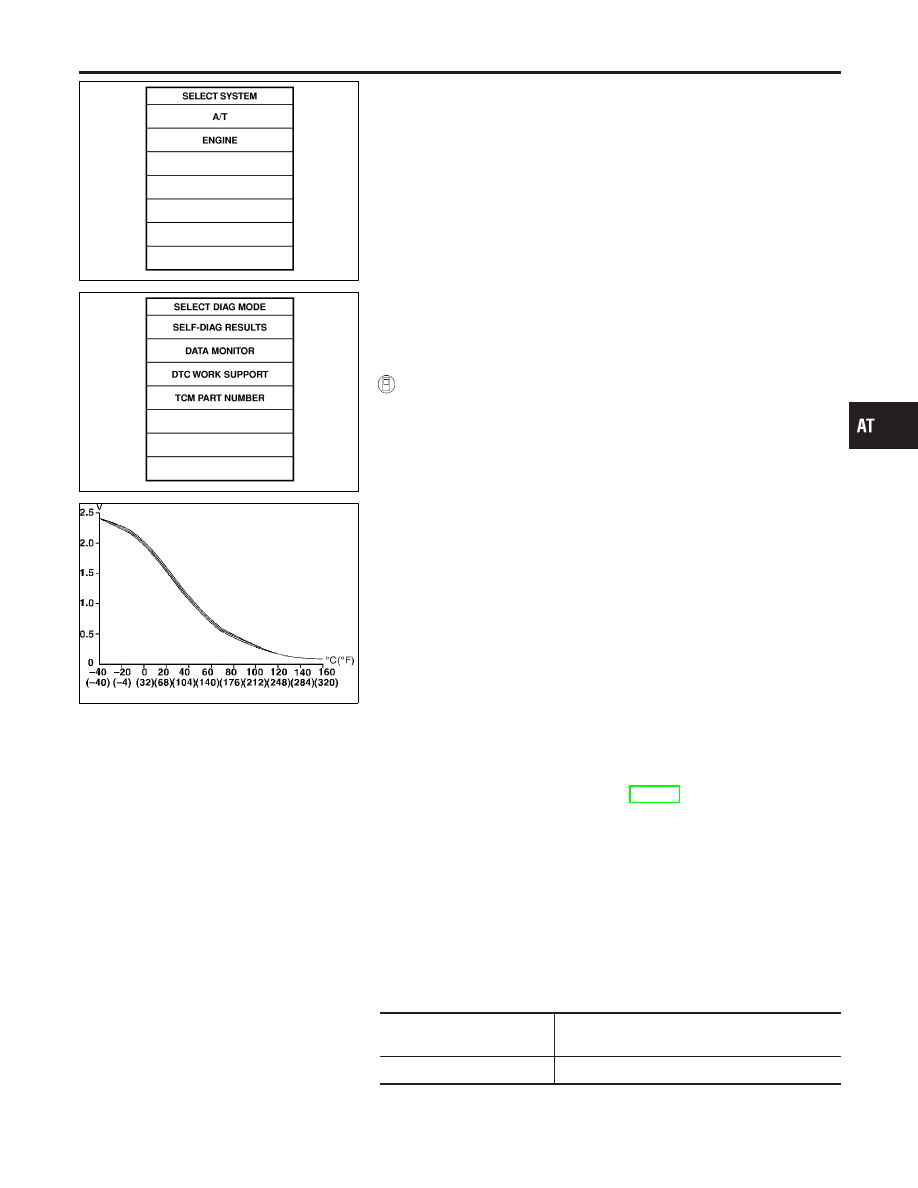

Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2)
Make sure that output voltage of A/T fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).
3)
Select “1ST GR FNCTN P0731” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4)
Accelerate vehicle to 10 to 20 km/h (6 to 12 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 1.0/8 (at all times during step
4)
Selector lever: D position (OD “ON”)
I
Check that “GEAR” shows “2” after releasing pedal.
5)
Depress accelerator pedal to WOT (more than 7.0/8 of
“THROTTLE POSI”) quickly from a speed of 10 to 20 km/h (6
to 12 MPH) until “TESTING” changes to “STOP VEHICLE” or
“COMPLETED”. (It will take approximately 3 seconds.)

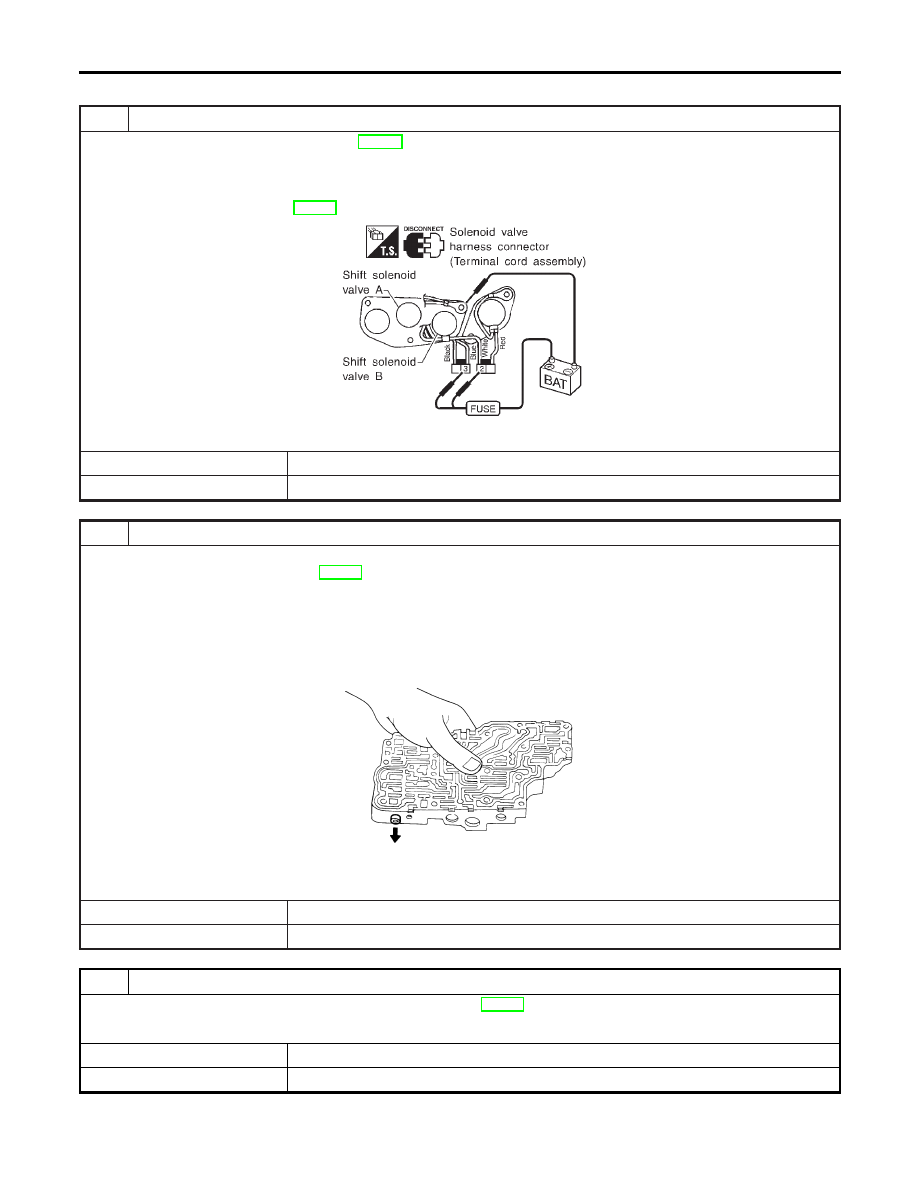

If the check result NG appears on CONSULT-II screen, go to
“DIAGNOSTIC PROCEDURE”, AT-124.
If “STOP VEHICLE” appears on CONSULT-II screen, go to the
following step.
I
Check that “GEAR” shows “1” when depressing accelera-
tor pedal to WOT.
I
If “TESTING” does not appear on CONSULT-II for a long
time, select “SELF-DIAG RESULTS” for “ENGINE”. In case
a 1st trip DTC other than P0731 is shown, refer to appli-
cable “TROUBLE DIAGNOSIS FOR DTC”.
6)
Stop vehicle.
7)
Follow the instruction displayed. (Check for normal shifting
referring to the table below.)
Vehicle condition
Gear on actual transmission shift pattern when
screen is changed to 1
,
2
,
3
,
4
No malfunction exists
1
,
2
,
3
,
4
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX

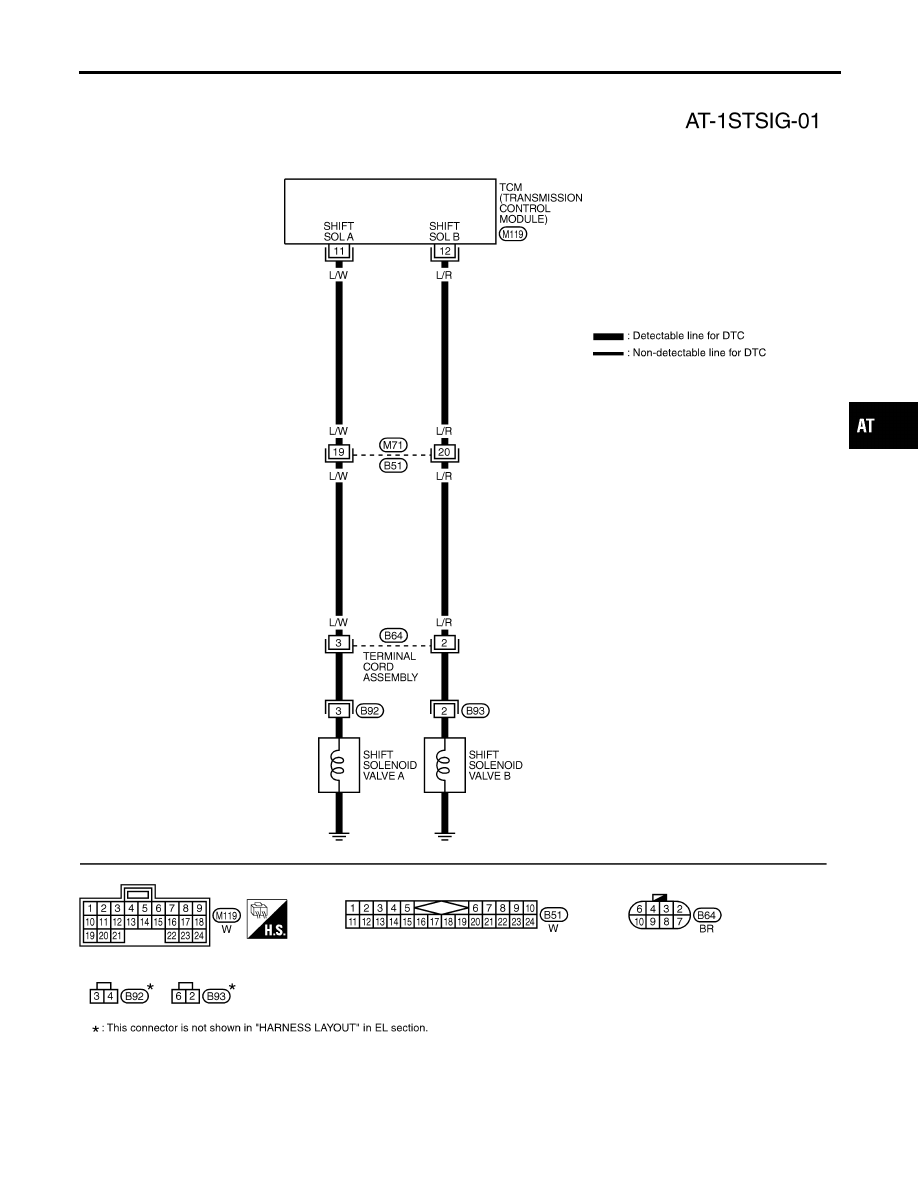

DTC P0731 IMPROPER SHIFTING TO 1ST GEAR POSITION
