TCM TERMINALS AND REFERENCE VALUE

NBAT0185S01

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

10

W/R

Power source

When turning ignition switch to “ON”.

Battery volt-
age

When turning ignition switch to “OFF”.

0V

19

W/R

Power source

Same as No. 10

25

B

Ground

0V

28

R/Y

Power source
(Memory back-up)

or

When turning ignition switch to “OFF”.

Battery volt-
age

When turning ignition switch to “ON”.

Battery volt-
age

48

B

Ground

0V

Diagnostic Procedure

NBAT0223

1

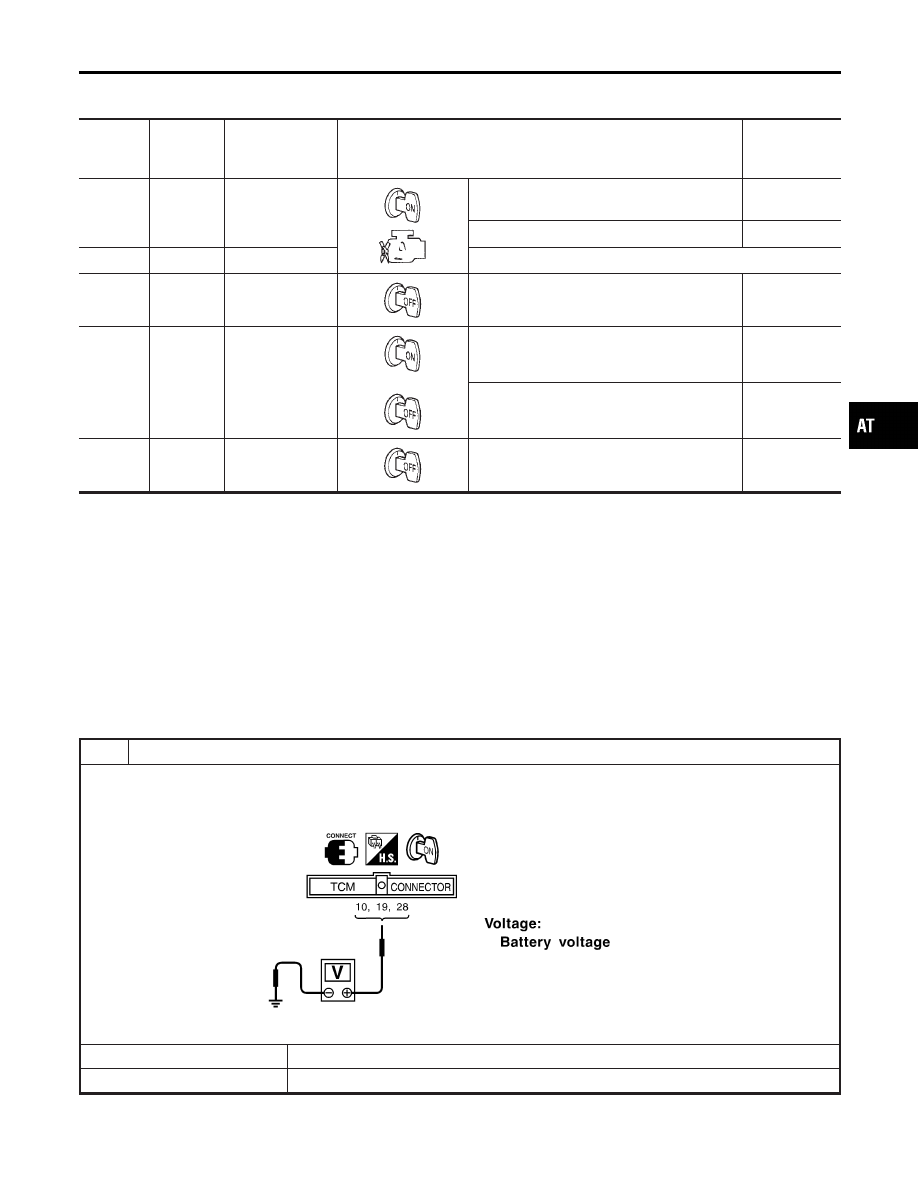

CHECK TCM POWER SOURCE STEP 1

1. Turn ignition switch to ON position.

(Do not start engine.)

2. Check voltage between TCM terminals 10, 19, 28 and ground.

SAT611J

OK or NG

OK

©

GO TO 2.

NG

©

GO TO 3.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS FOR POWER SUPPLY

Wiring Diagram — AT — MAIN (Cont’d)

AT-97

2

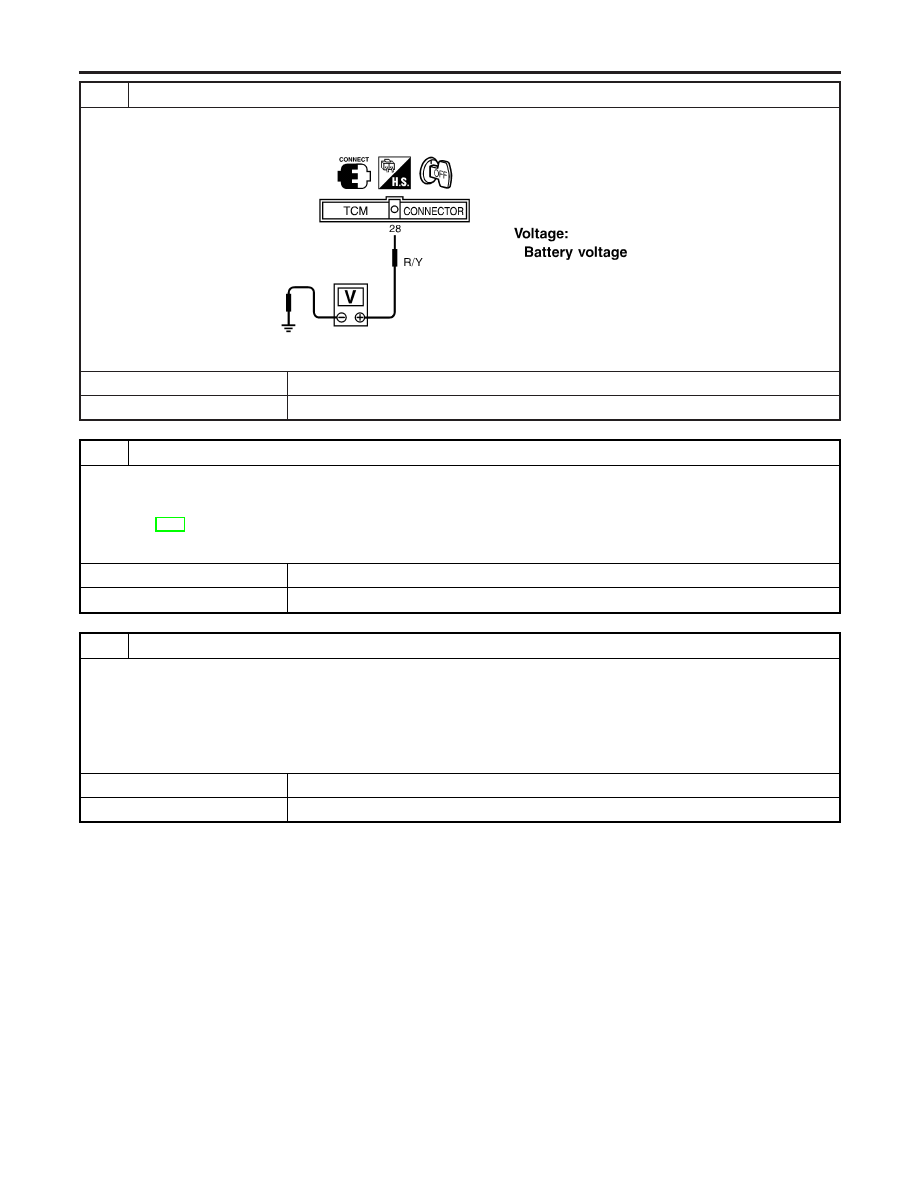

CHECK TCM POWER SOURCE STEP 2

1. Turn ignition switch to OFF position.
2. Check voltage between TCM terminal 28 and ground.

SAT612JC

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

3

DETECT MALFUNCTIONING ITEM

Check the following items:

I

Harness for short or open between ignition switch and TCM terminals 10, 19 and 28 (Main harness)

I

Ignition switch and 10A or 7.5A fuse [No. 18 or 24, located in the fuse block (J/B)]
Refer to EL-9, “Schematic”.

OK or NG

OK

©

GO TO 4.

NG

©

Repair or replace damaged parts.

4

CHECK TCM GROUND CIRCUIT

1. Turn ignition switch to OFF position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground. Refer to wiring diagram — AT — MAIN.

Continuity should exist.

If OK, check harness for short to ground and short to power.

OK or NG

OK

©

INSPECTION END

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

TROUBLE DIAGNOSIS FOR POWER SUPPLY

Diagnostic Procedure (Cont’d)

AT-98

SAT136K

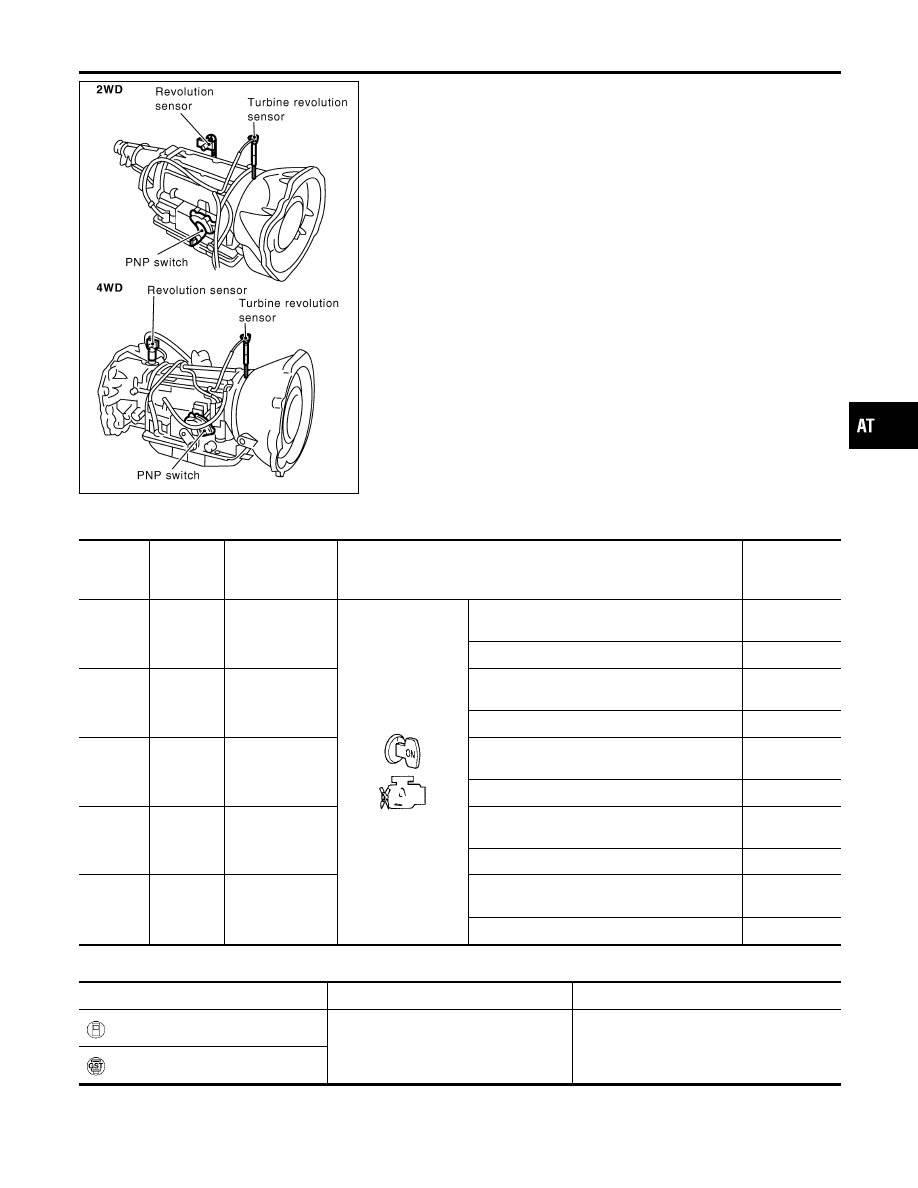

Description

NBAT0028

I

The PNP switch assemble includes a transmission range
switch.

I

The transmission range switch detects the selector position
and sends a signal to the TCM.

TCM TERMINALS AND REFERENCE VALUE

NBAT0028S02

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

26

G

PNP switch “1”
position

When setting selector lever to “1” position.

Battery volt-
age

When setting selector lever to other positions.

0V

27

G/W

PNP switch “2”
position

When setting selector lever to “2” position.

Battery volt-
age

When setting selector lever to other positions.

0V

34

L

PNP switch “D”
position

When setting selector lever to “D” position.

Battery volt-
age

When setting selector lever to other positions.

0V

35

Y

PNP switch “R”
position

When setting selector lever to “R” position.

Battery volt-
age

When setting selector lever to other positions.

0V

36

P

PNP switch “N” or
“P” position

When setting selector lever to “N” or “P” posi-
tion.

Battery volt-
age

When setting selector lever to other positions.

0V

ON BOARD DIAGNOSIS LOGIC

NBAT0028S03

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: PNP SW/CIRC

TCM does not receive the correct volt-
age signal from the switch based on the
gear position.

I

Harness or connectors
(The PNP switch circuit is open or
shorted.)

I

PNP switch

: P0705

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0705 PARK/NEUTRAL POSITION SWITCH

Description

AT-99

SAT014K

SAT020K

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NBAT0028S01

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

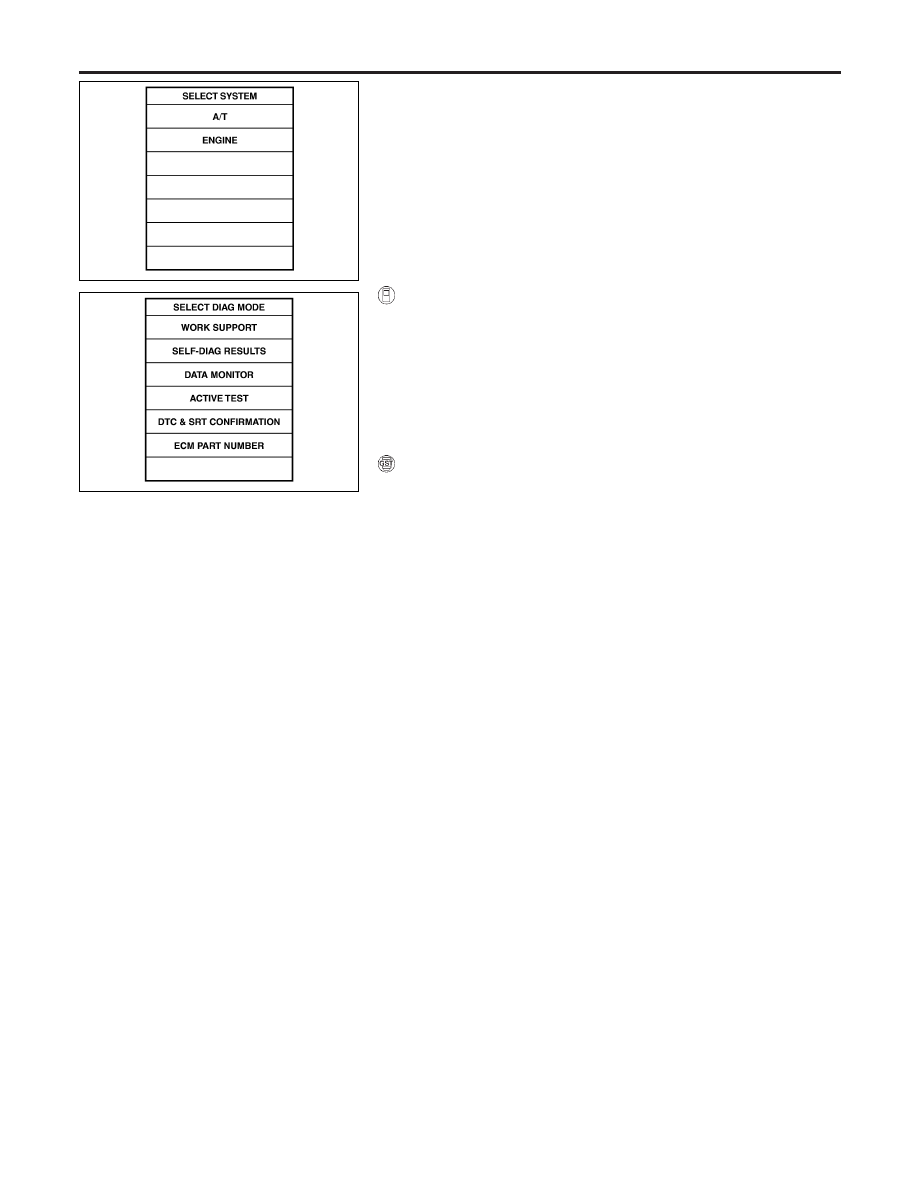

Select “DATA MONITOR” mode for “ENGINE” with CONSULT-
II.

3)

Start engine and maintain the following conditions for at least
5 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD “ON” or “OFF”)

With GST

Follow the procedure “With CONSULT-II”.

DTC P0705 PARK/NEUTRAL POSITION SWITCH
