Infiniti QX4 (R50). Manual - part 19





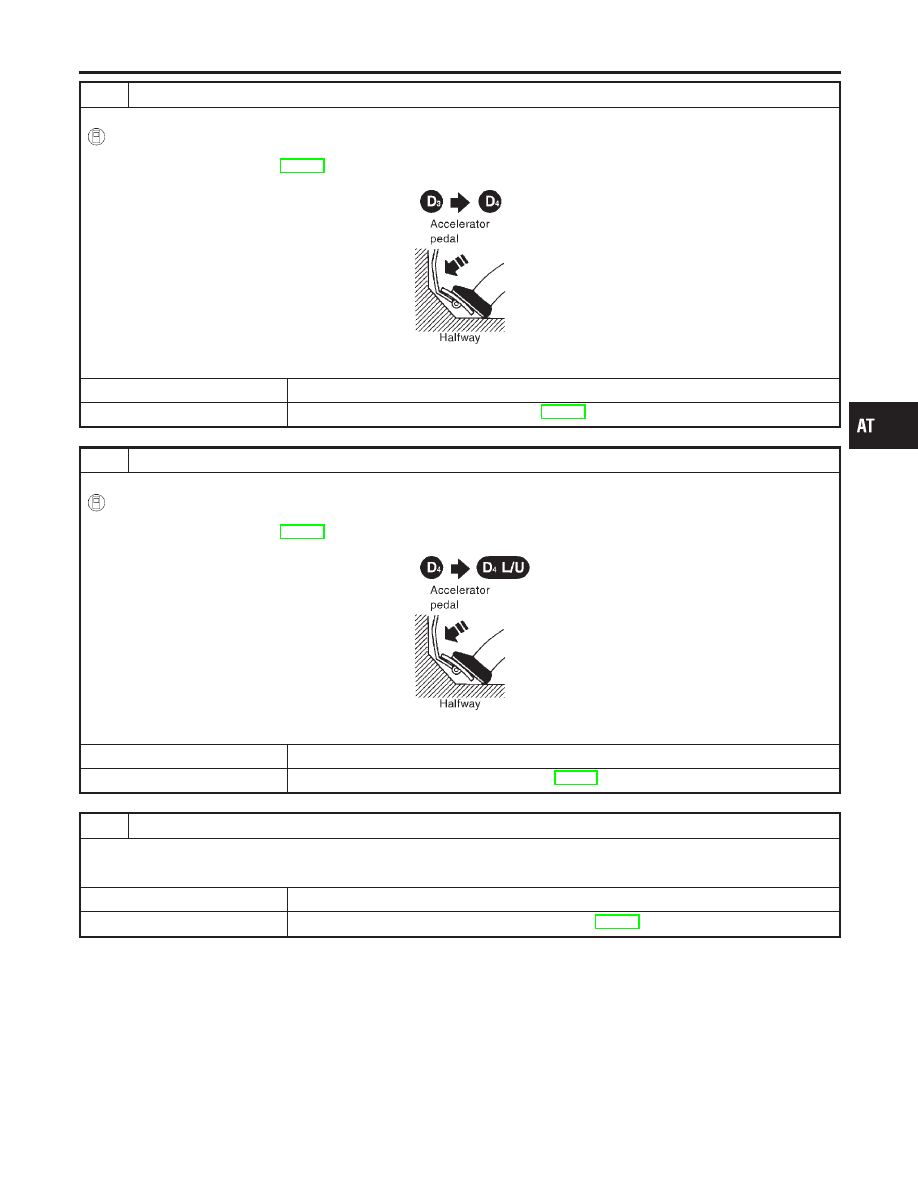

4

CHECK SHIFT UP (D

3

TO D

4

)

Does A/T shift from D

3

to D

4

at the specified speed?

Read gear position, throttle opening and vehicle speed.

Specified speed when shifting from D

3

to D

4

:

Refer to Shift schedule, AT-356.

SAT956I

Yes or No

Yes

©

GO TO 5.

No

©

Go to “11. A/T Does Not Shift: D

3

,

D

4

”, AT-242.

5

CHECK LOCK-UP (D

4

TO D

4

L/U)

Does A/T perform lock-up at the specified speed?

Read vehicle speed, throttle position when lock-up duty becomes 94%.

Specified speed when lock-up occurs:

Refer to Shift schedule, AT-356.

SAT957I

Yes or No

Yes

©

GO TO 6.

No

©

Go to “12. A/T Does Not Perform Lock-up”, AT-245.

6

CHECK HOLD LOCK-UP

Does A/T hold lock-up condition for more than 30 seconds?

Yes or No

Yes

©

GO TO 7.

No

©

Go to “13. A/T Does Not Hold Lock-up Condition”, AT-247.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-73

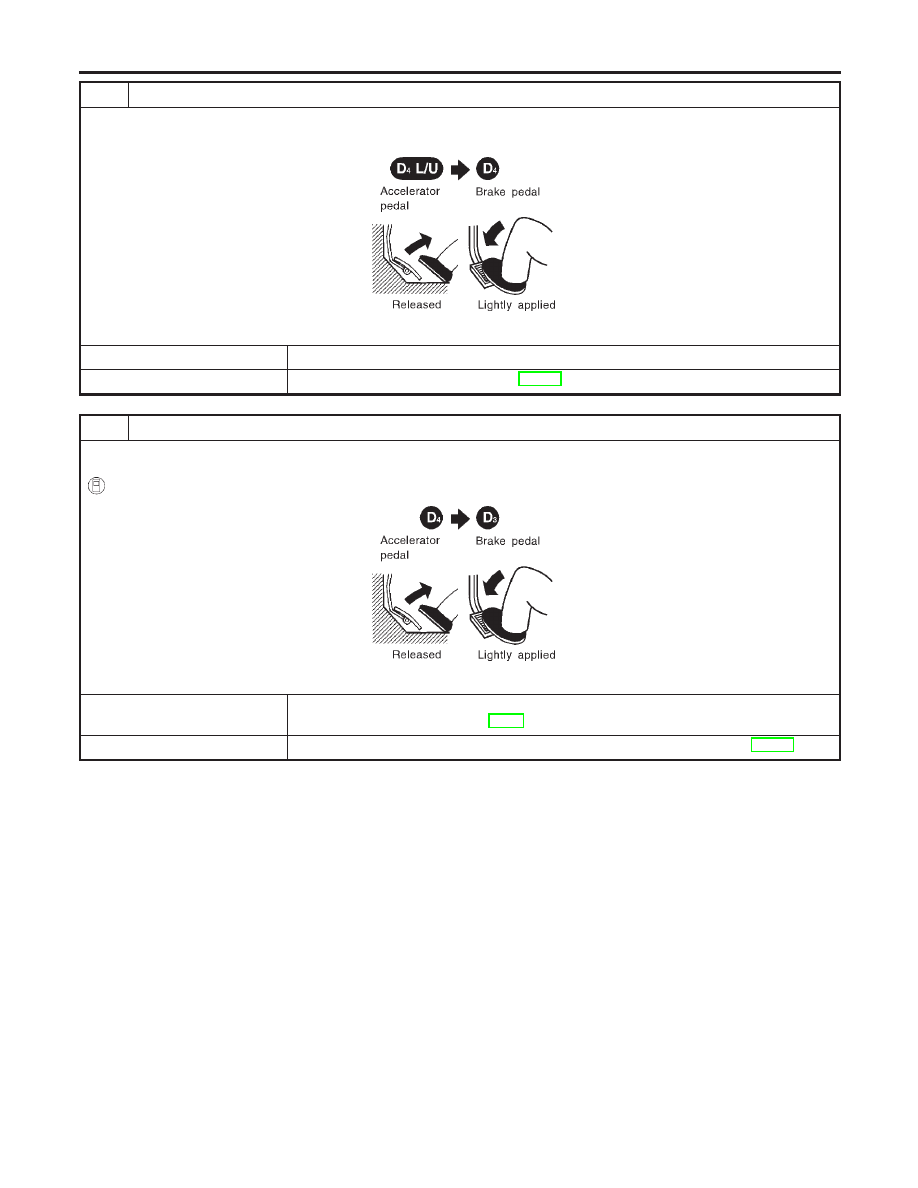

7

CHECK LOCK-UP OFF (D

4

L/U TO D

4

)

1. Release accelerator pedal.
2. Is lock-up released when accelerator pedal is released?

SAT958I

Yes or No

Yes

©

GO TO 8.

No

©

Go to “14. Lock-up Is Not Released”, AT-249.

8

CHECK SHIFT DOWN (D

4

TO D

3

)

1. Decelerate vehicle by applying foot brake lightly.
2. Does engine speed return to idle smoothly when A/T is shifted from D

4

to D

3

?

Read gear position and engine speed.

SAT959I

Yes or No

Yes

©

1. Stop vehicle.
2. Go to “Cruise test — Part 2”, AT-75.

No

©

Go to “15. Engine Speed Does Not Return To Idle (Light Braking D

4

,

D

3

)”, AT-250.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-74

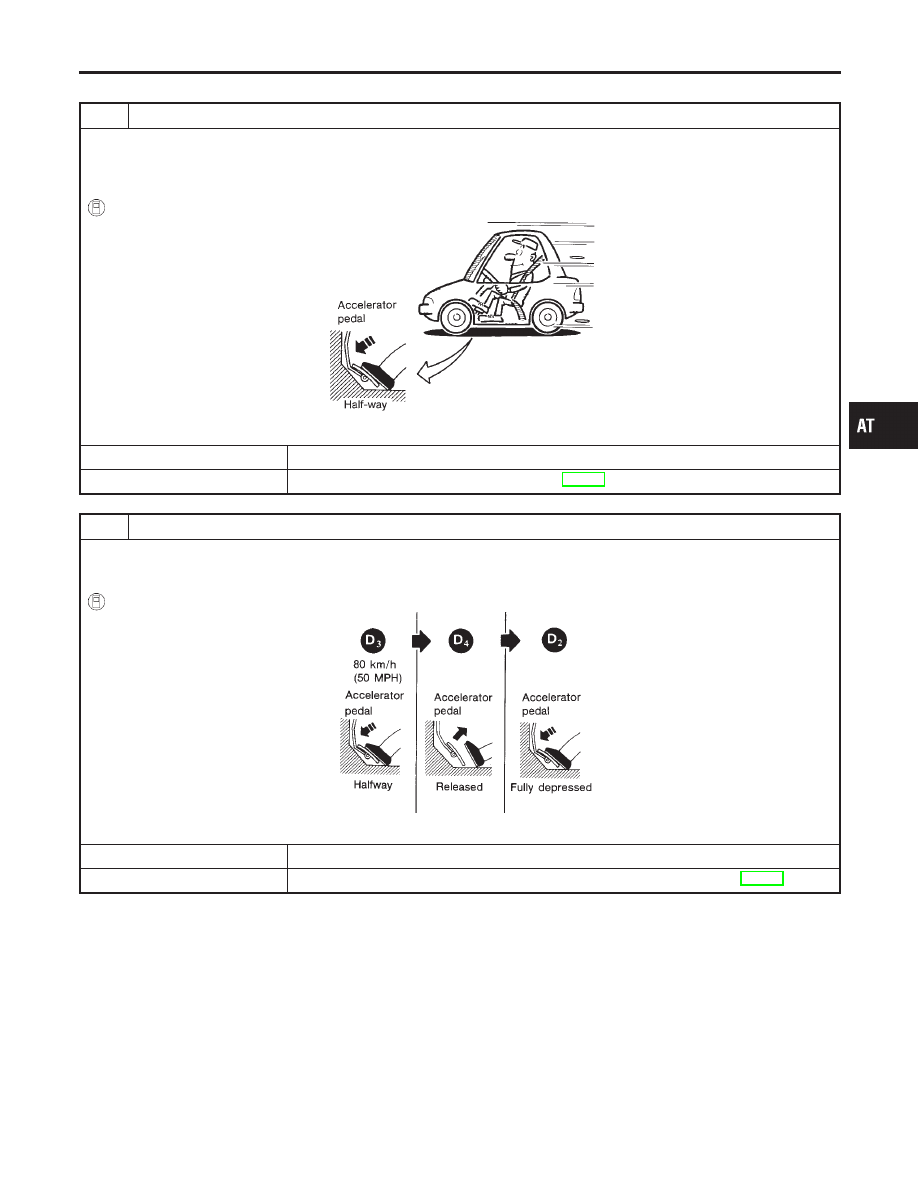

Cruise Test — Part 2

=NBAT0024S0405

1

CHECK STARTING GEAR (D

1

) POSITION

1. Confirm overdrive control switch is in “ON” position.
2. Confirm selector lever is in “D” position.
3. Accelerate vehicle by half throttle again.
4. Does vehicle start from D

1

?

Read gear position.

SAT495G

Yes or No

Yes

©

GO TO 2.

No

©

Go to “16. Vehicle Does Not Start From D

1

”, AT-252.

2

CHECK SHIFT UP AND SHIFT DOWN (D

3

TO D

4

TO D

2

)

1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D

4

to D

2

as soon as accelerator pedal is depressed fully?

Read gear position and throttle position.

SAT404H

Yes or No

Yes

©

GO TO 3.

No

©

Go to “9. A/T Does Not Shift: D

3

,

D

4

Or Does Not Kickdown: D

4

,

D

2

”, AT-236.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-75

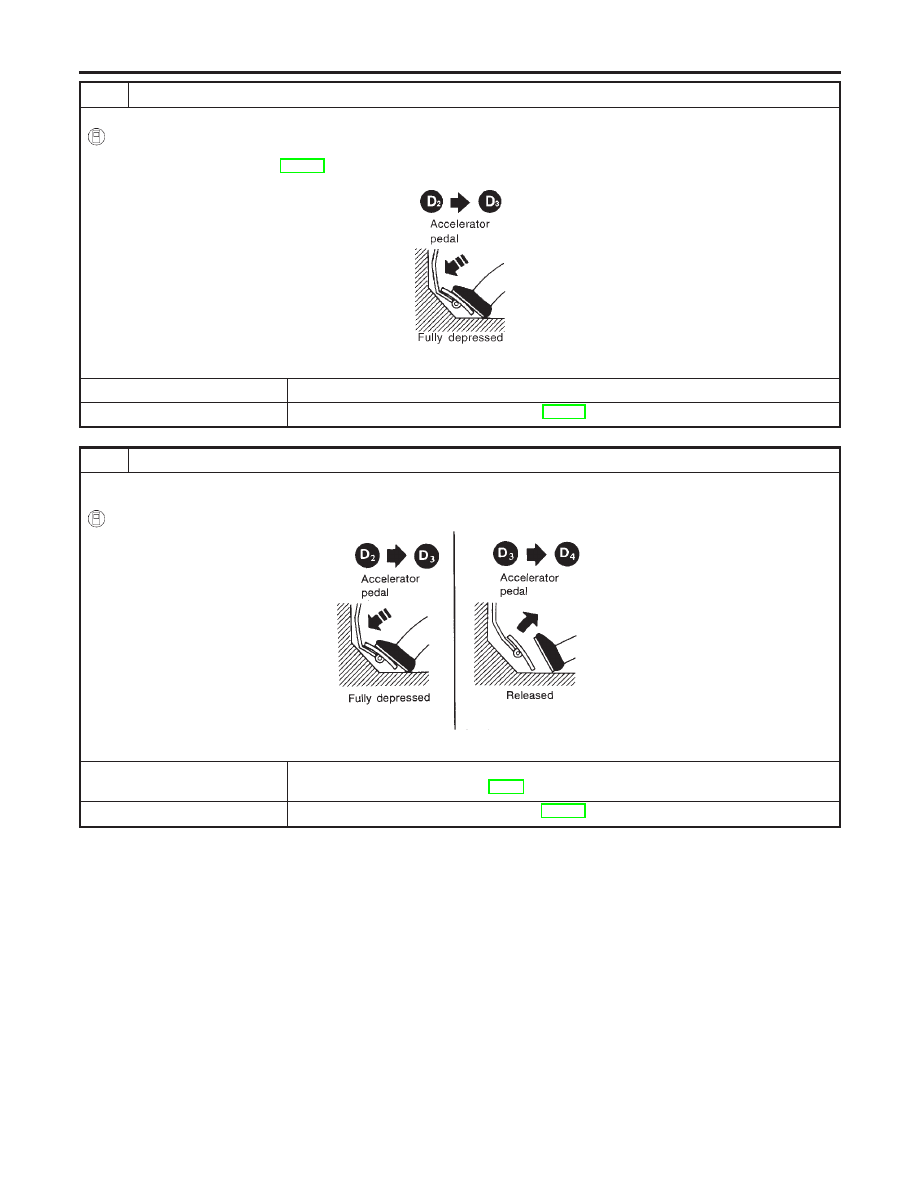

3

CHECK SHIFT UP (D

2

TO D

3

)

Does A/T shift from D

2

to D

3

at the specified speed?

Read gear position, throttle position and vehicle speed.

Specified speed when shifting from D

2

to D

3

:

Refer to Shift schedule, AT-356.

SAT960I

Yes or No

Yes

©

GO TO 4.

No

©

Go to “10. A/T Does Not Shift: D

2

,

D

3

”, AT-239.

4

CHECK SHIFT UP (D

3

TO D

4

) AND ENGINE BRAKE

Release accelerator pedal after shifting from D

2

to D

3

.

Does A/T shift from D

3

to D

4

and does vehicle decelerate by engine brake?

Read gear position, throttle position and vehicle speed.

SAT405H

Yes or No

Yes

©

1. Stop vehicle.
2. Go to “Cruise test — Part 3”, AT-77.

No

©

Go to “11. A/T Does Not Shift: D

3

,

D

4

”, AT-242.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-76
