13. CONSULT-II procedure ended.

If “NG” appears on the screen, a malfunction may exist. Go to
“DIAGNOSTIC PROCEDURE”.

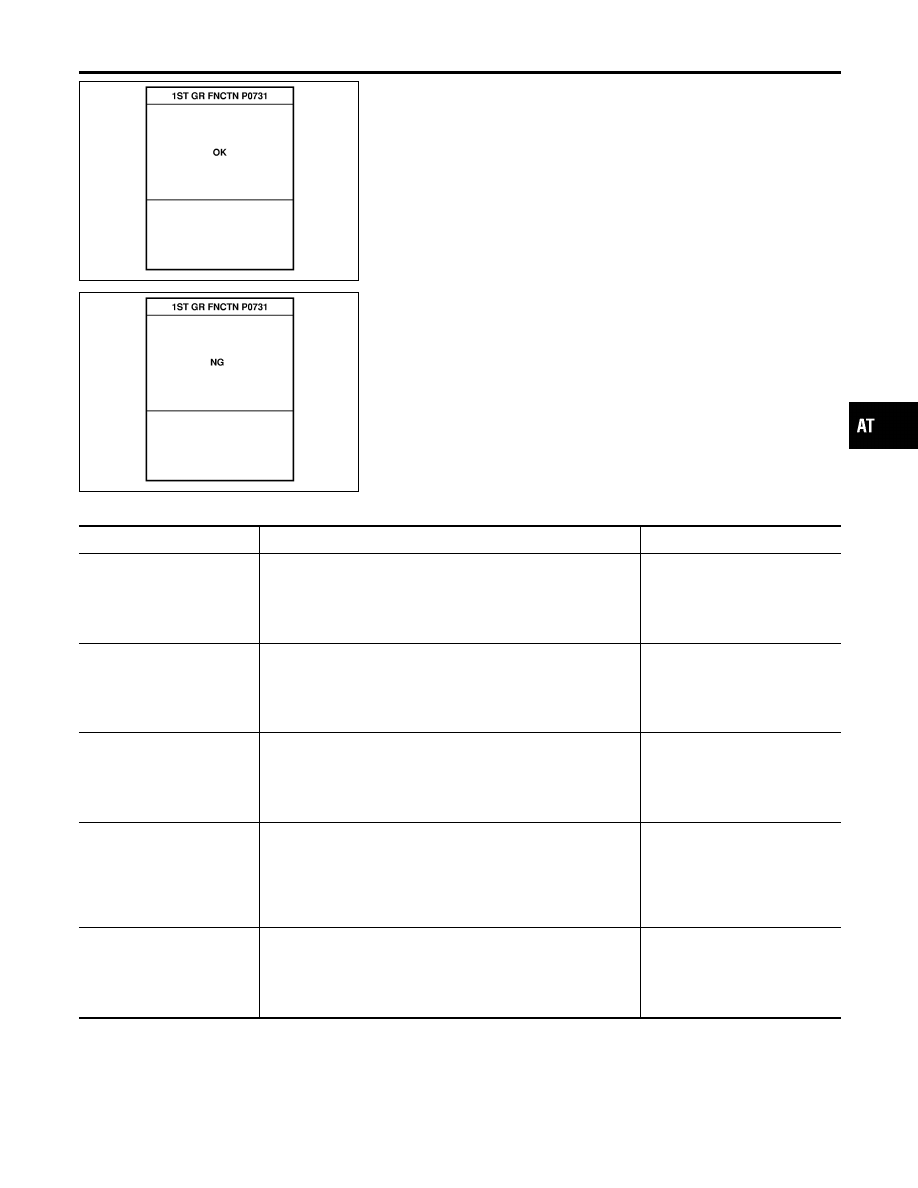

DTC WORK SUPPORT MODE

NBAT0184S05

DTC work support item

Description

Check item

1ST GR FNCTN P0731

Following items for “A/T 1st gear function (P0731)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve A

I

Shift solenoid valve B

I

Each clutch

I

Hydraulic control circuit

2ND GR FNCTN P0732

Following items for “A/T 2nd gear function (P0732)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve B

I

Each clutch

I

Hydraulic control circuit

3RD GR FNCTN P0733

Following items for “A/T 3rd gear function (P0733)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve A

I

Each clutch

I

Hydraulic control circuit

4TH GR FNCTN P0734

Following items for “A/T 4th gear function (P0734)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve A

I

Shift solenoid valve B

I

Overrun clutch solenoid valve

I

Line pressure solenoid valve

I

Each clutch

I

Hydraulic control circuit

TCC S/V FNCTN P0744

Following items for “A/T TCC S/V function (lock-up) (P0744)” can
be confirmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Torque converter clutch sole-
noid valve

I

Each clutch

I

Hydraulic control circuit

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-45

Diagnostic Procedure Without CONSULT-II

NBAT0206

OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)

NBAT0206S01

Refer to EC-95, “DESCRIPTION”.

OBD-II SELF-DIAGNOSTIC PROCEDURE (NO

TOOLS)

NBAT0206S02

Refer to EC-74, “DESCRIPTION”.

SAT491J

SAT132K

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)

NBAT0206S03

Preparation

NBAT0206S0301

1.

Turn ignition switch to “OFF” position.

2.

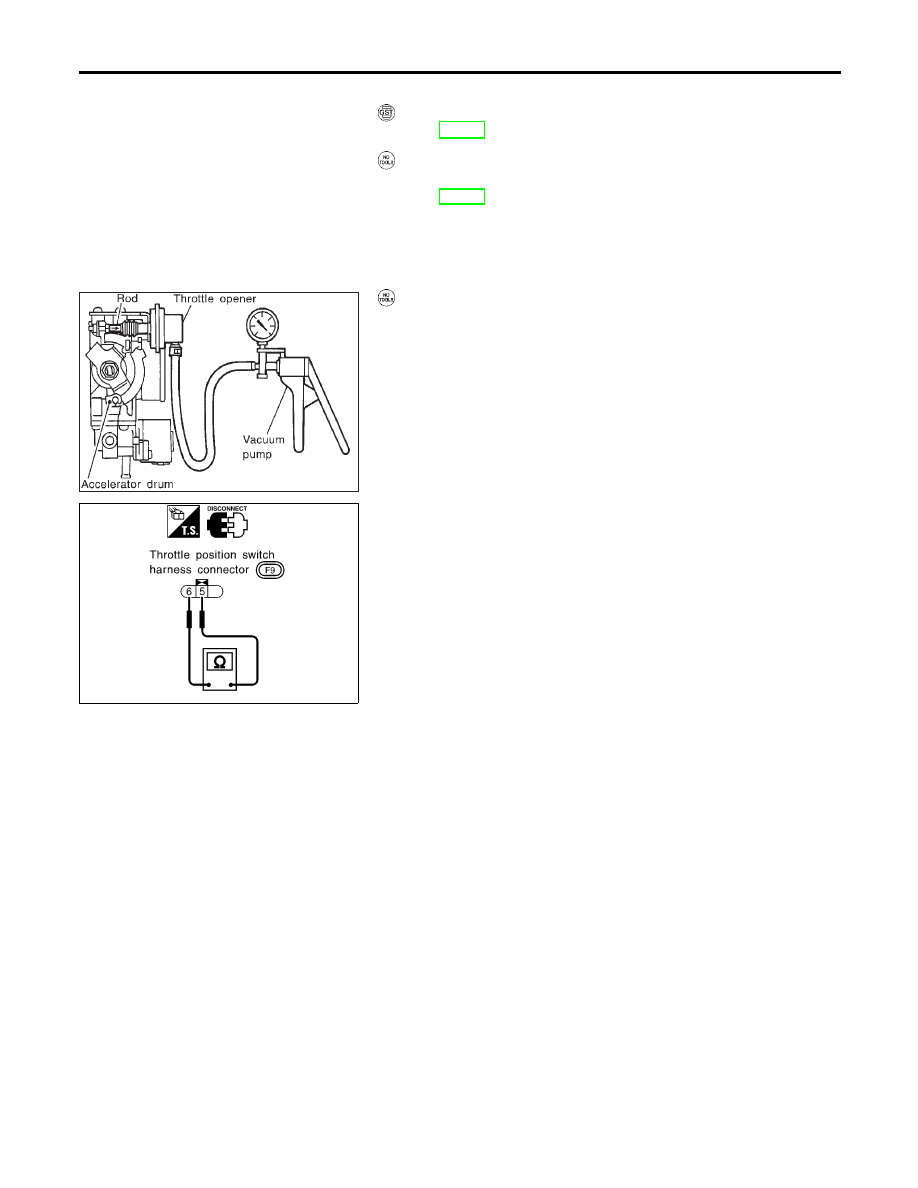

Connect the handy type vacuum pump to the throttle opener
and apply vacuum −25.3 kPa (−190 mmHg, −7.48 inHg).

3.

Disconnect the throttle position switch harness connector.

4.

Turn ignition switch to “ON” position.

5.

Check continuity of the closed throttle position switch.
Continuity should exist.
(If continuity does not exist, check throttle opener and
closed throttle position switch. Then increase vacuum
until closed throttle position switch shows continuity.)

6.

Go to “DIAGOSIS START” on next page.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-II

AT-46

1

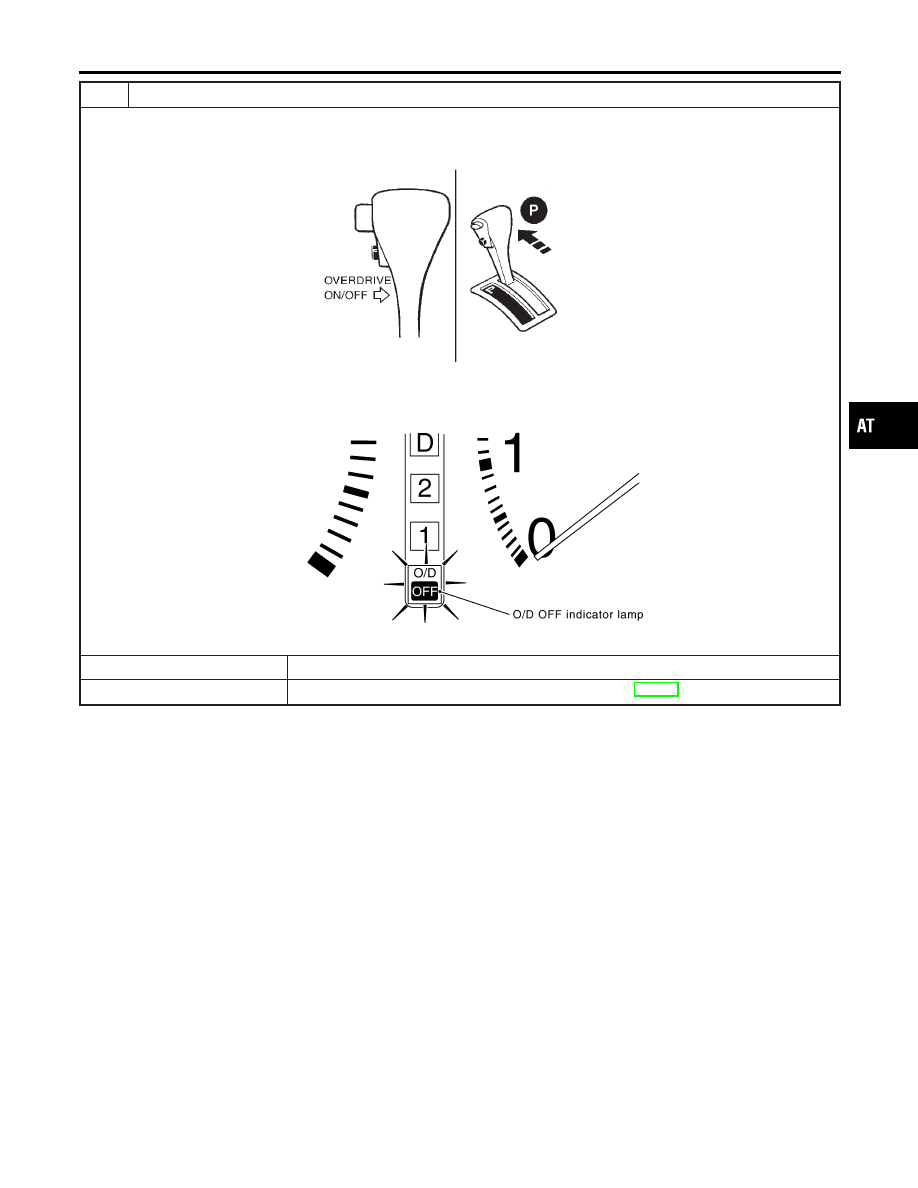

CHECK O/D OFF INDICATOR LAMP

1. Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.
2. Turn ignition switch to “OFF” position.
3. Wait 5 seconds.

SAT967I

4. Turn ignition switch to “ON” position.

(Do not start engine.)

5. Does O/D OFF indicator lamp come on for about 2 seconds?

SAT133K

Yes or No

Yes

©

GO TO 2.

No

©

Go to “1. O/D OFF Indicator Lamp Does Not Come On”, AT-218.

GI

MA

EM

LC

EC

FE

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-47

2

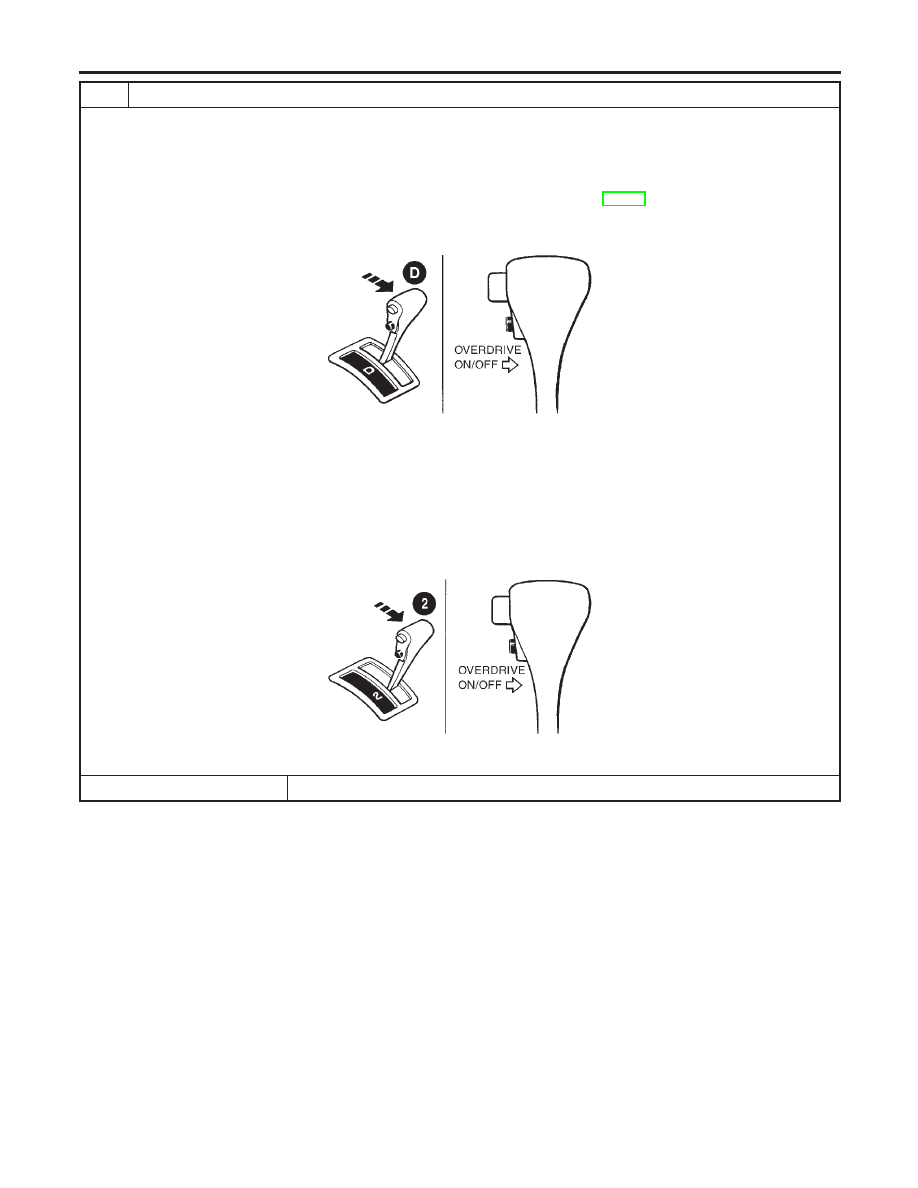

JUDGEMENT PROCEDURE STEP 1

1. Turn ignition switch to “OFF” position.
2. Push shift lock release button.
3. Move selector lever from “P” to “D” position.
4. Turn ignition switch to “ON” position. (Do not start engine.)
5. Depress and hold overdrive control switch in “OFF” position (the O/D OFF indicator lamp will be “ON”) until directed to

release the switch. (If O/D OFF indicator lamp does not come on, go to step 5 on AT-257.)

6. Turn ignition switch to “OFF” position.

SAT968I

7. Turn ignition switch to “ON” position (Do not start engine.).
8. Release the overdrive control switch (the O/D OFF indicator lamp will be “OFF”).
9. Wait 2 seconds.
10. Move selector lever to “2” position.
11. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be “ON”).
12. Depress and hold the overdrive control switch (the O/D OFF indicator lamp will be “OFF”) until directed to release the

switch.

SAT969I

©

GO TO 3.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-48
