CIGARETTE LIGHTER

PFP:35330

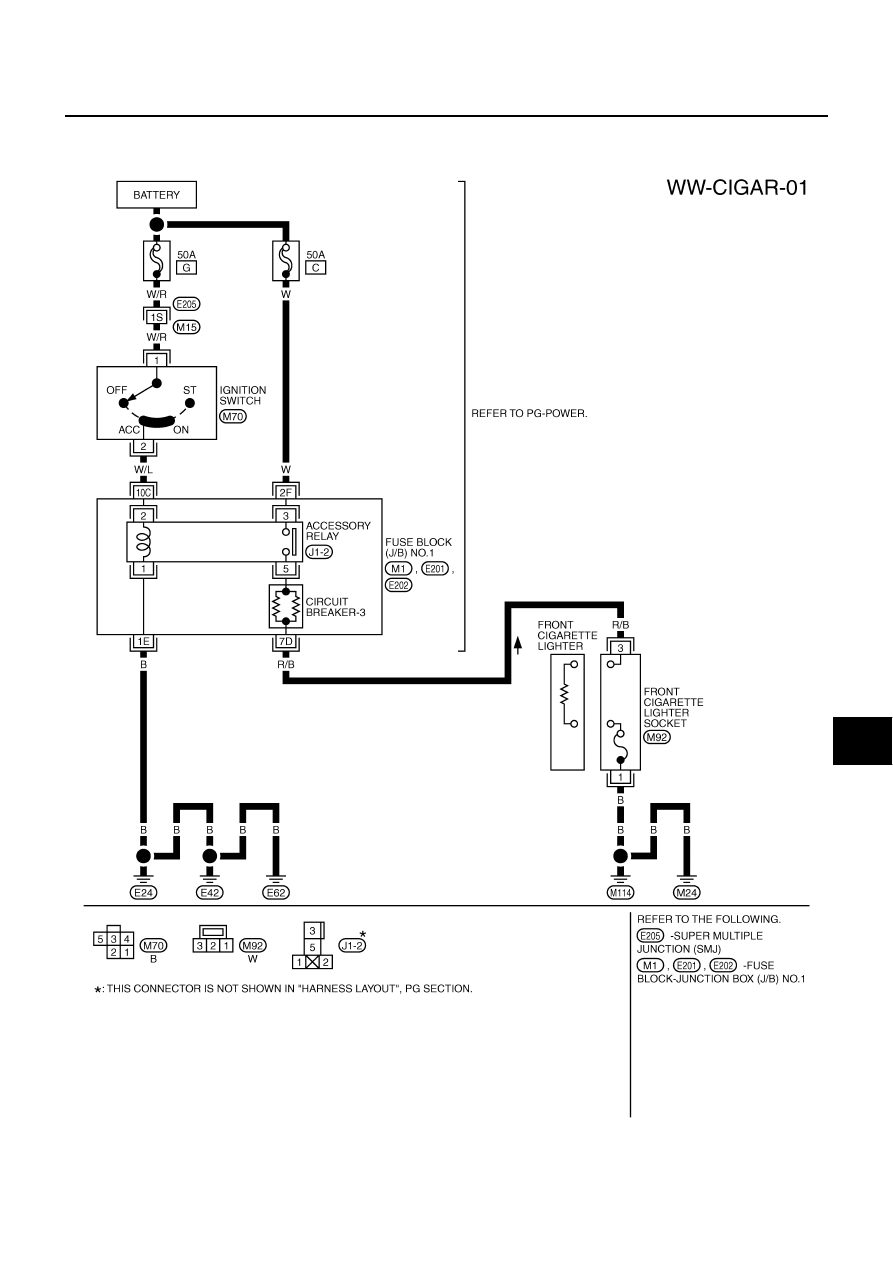

Wiring Diagram — CIGAR —

NKS001FY

TKWM1441E

WW-38

CIGARETTE LIGHTER

Removal and Installation

NKS001FZ

REMOVAL

1.

Remove A/T console finisher. Refer to

IP-11, "WORK STEPS"

 .

2.

Pull out cigarette lighter.

3.

Remove socket.

4.

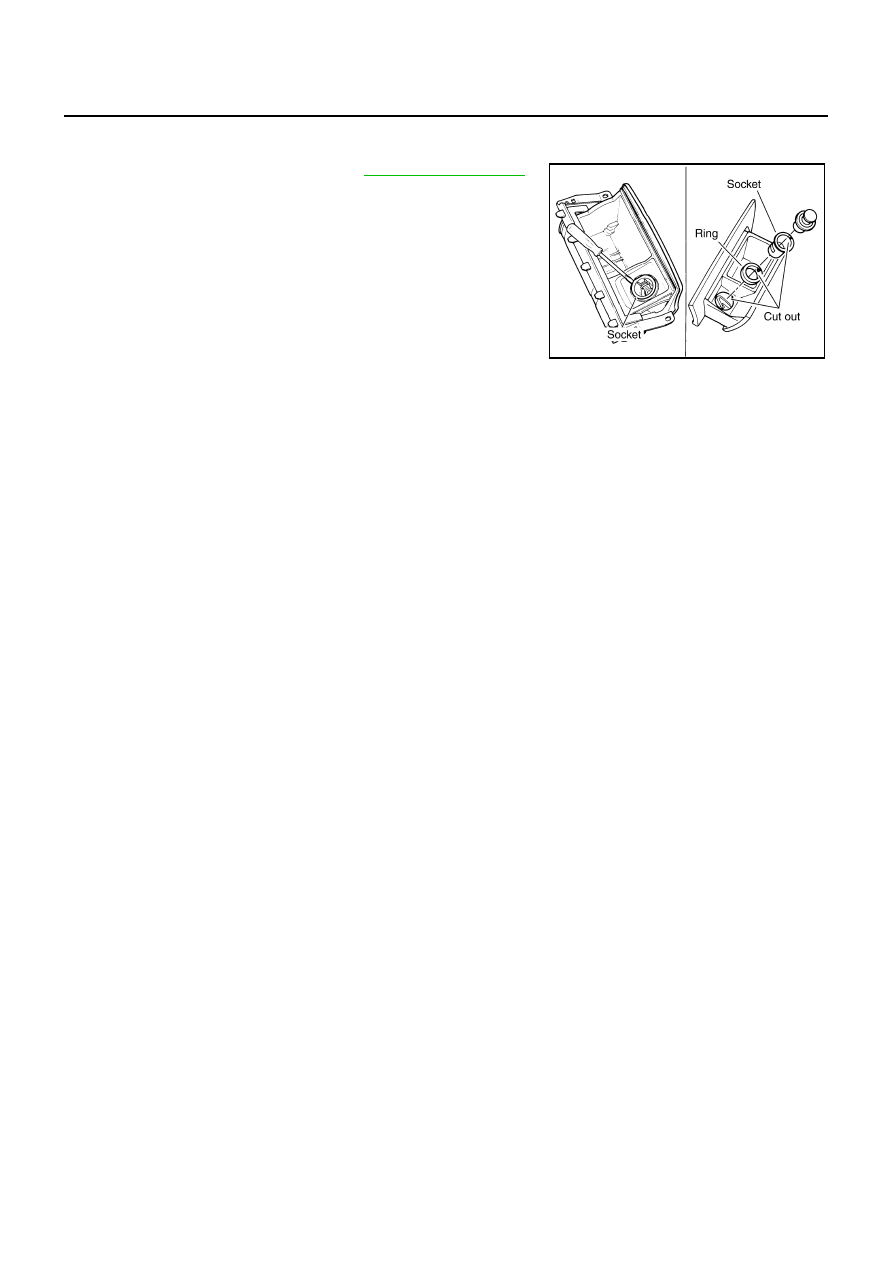

Press out ring from the back of ashtray.

INSTALLATION

Installation is the reverse order of removal.

PKIA0330E

POWER SOCKET

WW-39

C

D

E

F

G

H

I

J

L

M

A

B

WW

POWER SOCKET

PFP:253A2

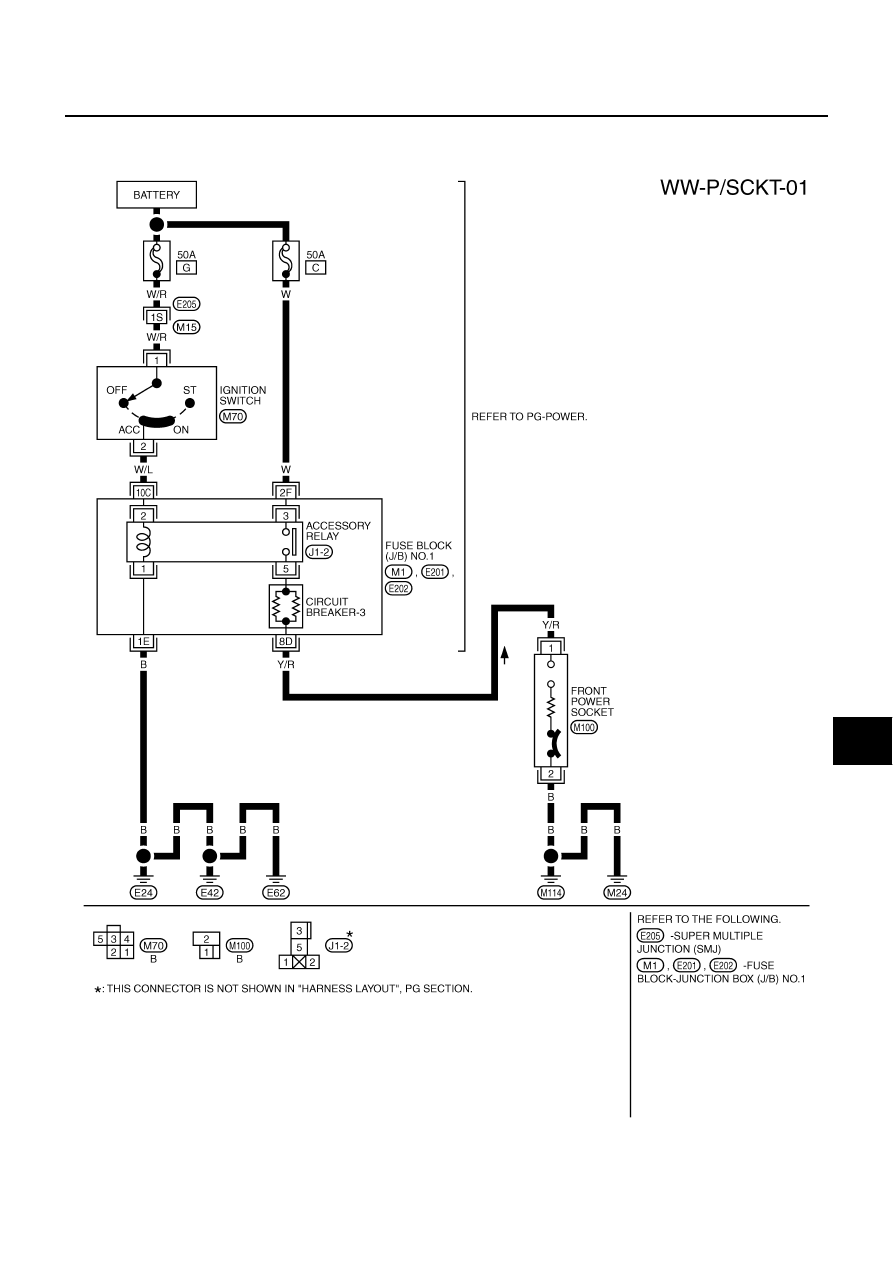

Wiring Diagram — CIGAR —

NKS001G0

TKWM1592E

WW-40

POWER SOCKET

Removal and Installation

NKS001G1

REMOVAL

1.

Remove console box assembly. Refer to

IP-11, "WORK STEPS"

.

2.

Disconnect power socket connector.

3.

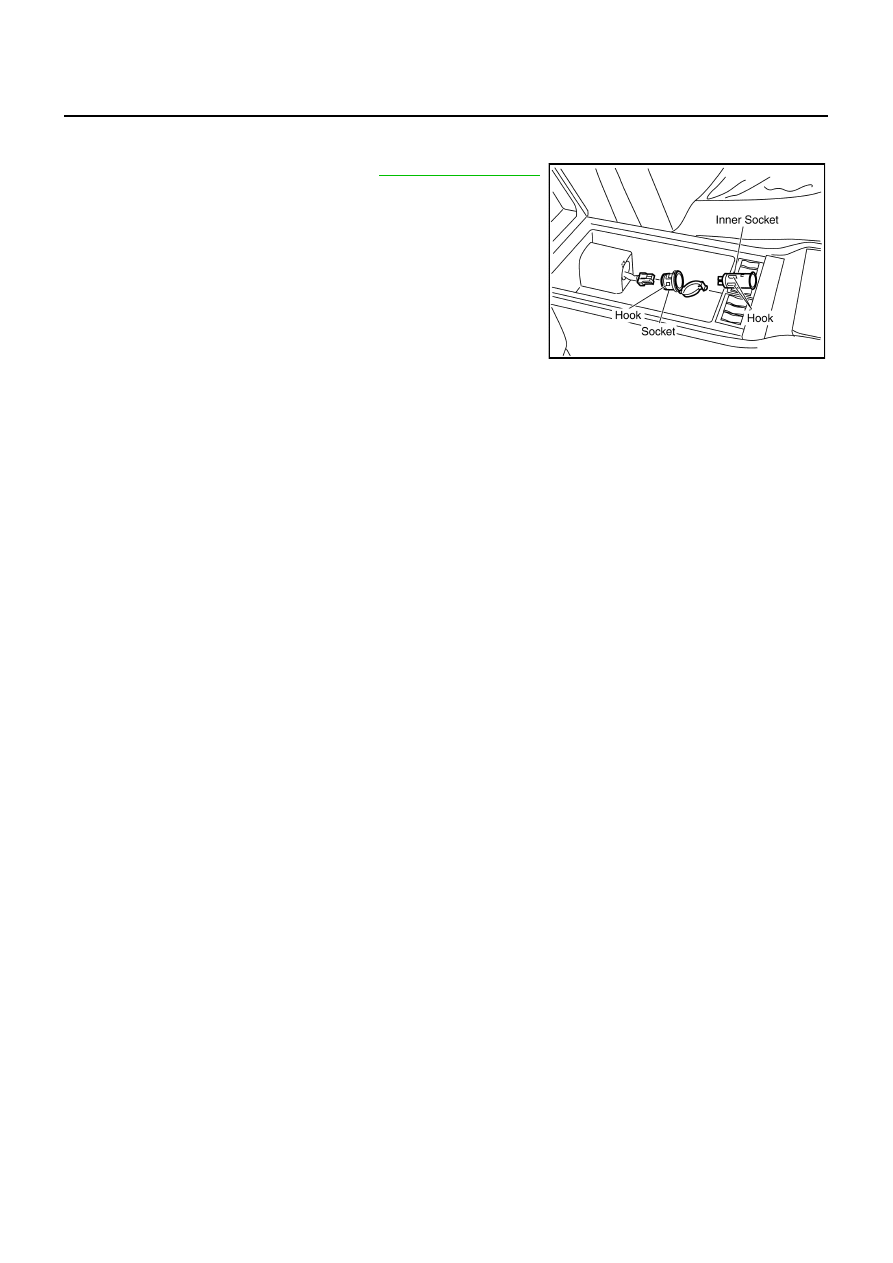

Remove inner socket and socket from console finisher while
pressing hook on inner socket.

4.

Remove socket from inner socket while pressing hook.

INSTALLATION

Installation is the reverse order of removal.
