FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

WW-33

C

D

E

F

G

H

I

J

L

M

A

B

WW

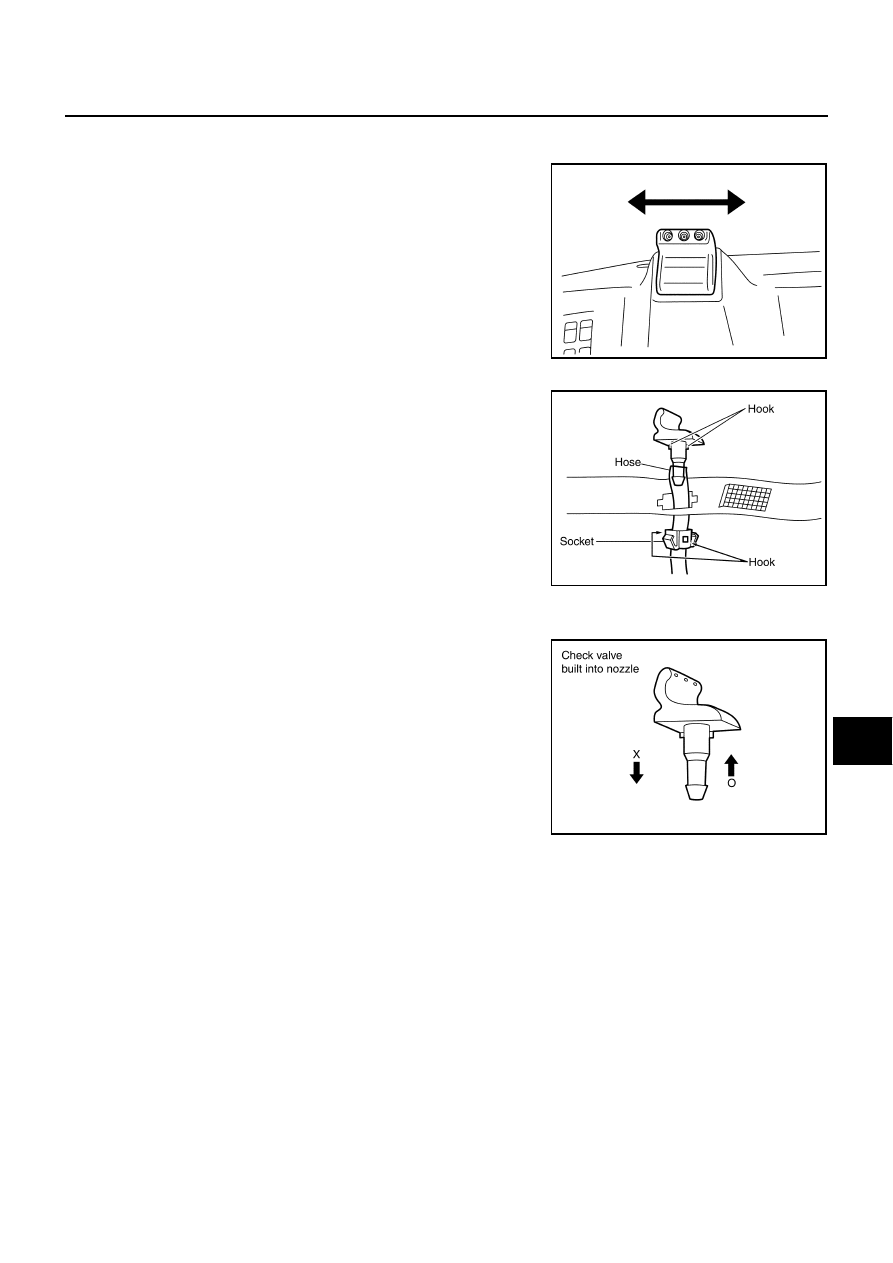

Removal and Installation of Washer Nozzle

NKS001FR

REMOVAL

1.

Push washer nozzle firmly toward either left or right to pull out.

2.

Remove washer hose from washer nozzle.

INSTALLATION

1.

After connecting washer hose, press nozzle from cowl top cover
surface.

2.

Assemble nozzle and socket.

3.

Adjust nozzle injection position.

Washer Nozzle Inspection

NKS001FS

CHECK VALVE

Blow air in the injection direction, and check that air flows only one
way. Make sure that the reverse direction (inhale) is not possible.

SKIA0108J

PKIA0324E

PKIA0323E

WW-34

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

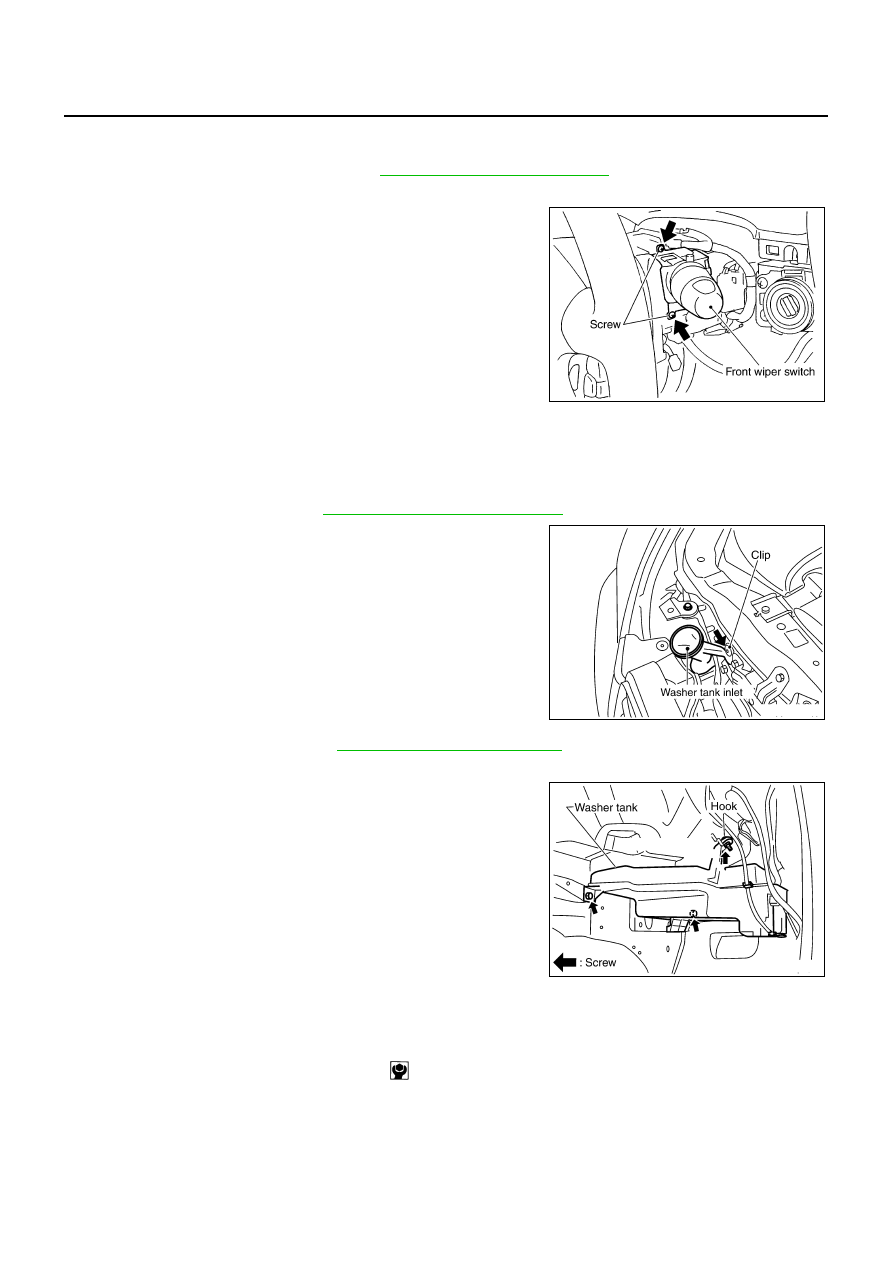

Removal and Installation of Front Wiper Switch

NKS001FT

REMOVAL

1.

Remove steering column cover. Refer to

IP-10, "Removal and Installation"

 .

2.

Disconnect front wiper switch connector.

3.

Remove screws (2) and then remove front wiper switch from the
base.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Washer Tank

NKS001FU

REMOVAL

1.

Remove front air guide. Refer to

EM-13, "ENGINE ROOM COVER"

 .

2.

Remove clip. Shown by the arrow in the figure.

3.

Pull out washer tank inlet.

4.

Remove fender protector. Refer to

EI-24, "FENDER PROTECTOR"

 .

5.

Disconnect front washer pump connector and washer level switch connector.

6.

Remove washer tank mounting screws (3) and pawl.

7.

Remove washer hose, and remove washer tank from the vehi-
cle.

INSTALLATION

Installation is the reverse order of removal.

Tighten washer tank mounting screw to specified torque.

CAUTION:

After installation, add water up to the upper level of washer tank inlet, and check for water leaks.

PKIA9811E

PKIB0917E

PKIB0918E

Washer tank mounting screw

: 4.5 N·m (0.46 kg-m, 40 in-lb)

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

WW-35

C

D

E

F

G

H

I

J

L

M

A

B

WW

Removal and Installation of Front Washer Pump

NKS001FV

REMOVAL

1.

Remove fender protector. Refer to

EI-24, "FENDER PROTECTOR"

 .

2.

Disconnect front washer pump connector and remove washer hose.

3.

Pull out washer pump in the direction of the arrow in the figure,
and remove front washer pump from washer tank.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

When installing front washer pump, there should be no packing twists, etc.

Removal and Installation of Rain Sensor

NKS001FW

REMOVAL

1.

Pull rain sensor connector cover in the direction of the arrow in
the figure, and then remove it.

2.

Disconnect rain sensor connector.

3.

Pull rain sensor cover in the direction of the arrow in the figure,
and then remove the pawl.

4.

Remove fitting on the connector side, and then remove rain sen-
sor cover.

PKIC9175E

PKIA9808E

PKIB0270E

WW-36

FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR)

5.

Insert a screwdriver under the pawls (4) of rain sensor substrate,
and then remove the substrate from prism of rain sensor.

CAUTION:

Be careful not to bend metal parts of the pawls (4) when
removing substrate.

Be careful not to touch prism attached to windshield.

INSTALLATION

1.

Install substrate to prism attached to windshield.

CAUTION:

Make sure that pawls (4) are securely installed when installation.

2.

Connect rain sensor connector.

3.

Perform calibration according to calibration procedure. Refer to

WW-36, "Calibration Procedure of Rain

Sensor"

 .

4.

Disconnect rain sensor connector.

5.

Install rain sensor cover.

CAUTION:

Fit the connector side to substrate first, and then fit the opposite side to it.

6.

Connect rain sensor connector.

7.

Install rain sensor connector cover.

Calibration Procedure of Rain Sensor

NKS001FX

It is necessary to perform calibration when either windshield or rain sensor is replaced due to damage of
windshield or malfunction of rain sensor.

If wiper is operated in unnecessary situation caused by remarkable deterioration of light transmittance of
windshield, operation improves by performing this initialization again.

1.

Fully clean around the position equipped with rain sensor of windshield using Genuine NISSAN Cleaner.

2.

Turn ignition switch OFF.

3.

Remove rain sensor cover, and then turn ignition switch OFF

 ON while pressing calibration button on

substrate.

4.

Calibration starts when calibration button is turned to OFF.

5.

When calibration is completed successfully, red LED blinks at
cycle of 4 times a second (256 msec.) and green LED blinks at
cycle of 16 times a second (64 msec.).
When calibration was not completed successfully, both green
LED and red LED blink at the cycle of 10 times a second.

CAUTION:

If calibration is not completed successfully even when it is
performed again or windshield was cleaned thoroughly,
replace rain sensor and then perform calibration. After
doing so, if calibration is yet to complete successfully,
replace windshield.

6.

Turn ignition switch OFF.

7.

Disconnect rain sensor connector.

8.

Install rain sensor cover and connect rain sensor connector.

CAUTION:

This procedure is performed when the temperature of windshield and rain sensor is 10 to 40

°

C (50 to

104

°

F) with wiper retracted.

PKIA9812E

PKIA9807E
