Infiniti Q45. Manual - part 912
WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
WW
A
B
PRECAUTION ............................................................ 3
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TEN-SIONER” .................................................................. 3
FRONT WIPER AND WASHER SYSTEM (WITH RAIN SENSOR) .......................................................... 4

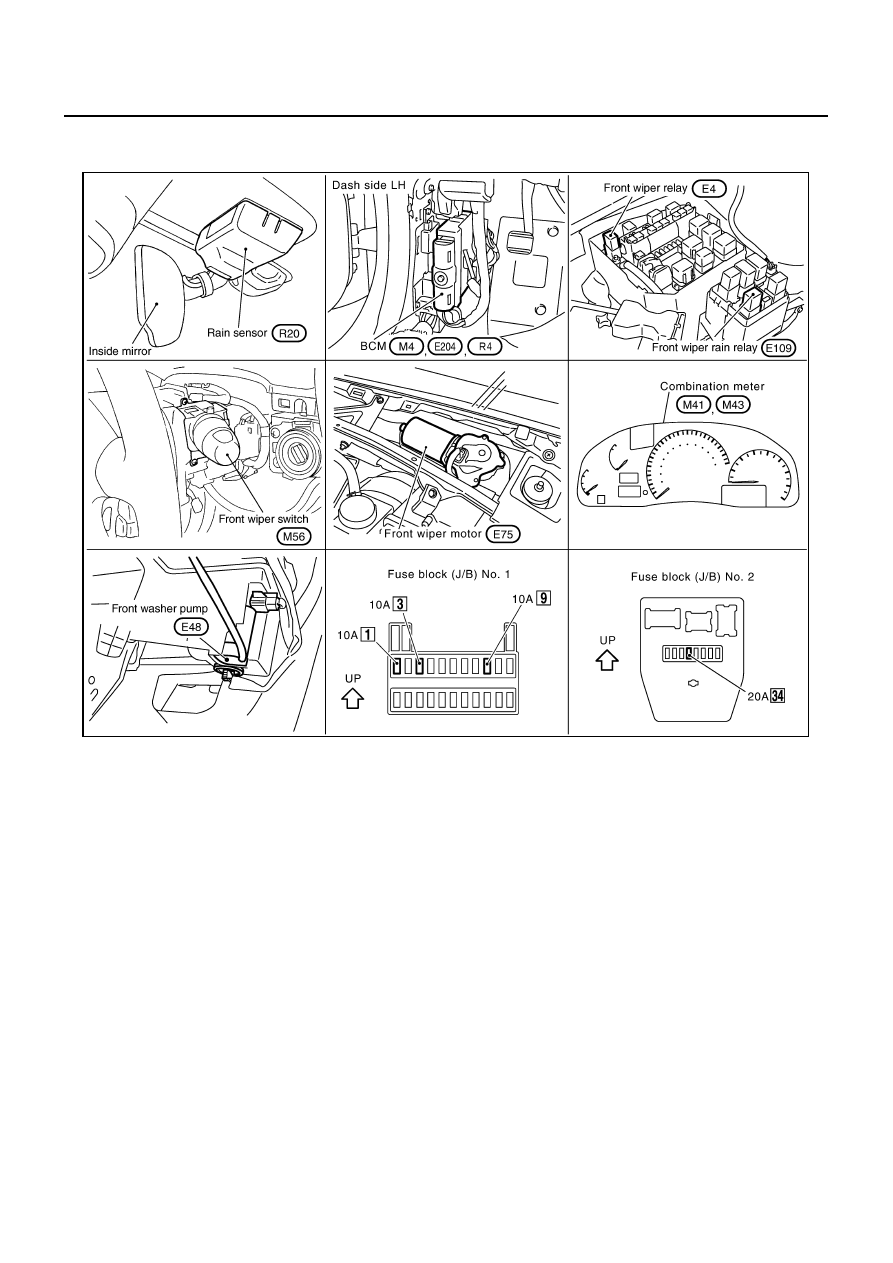

Component Parts and Harness Connector Location
..... 4
System Description .................................................. 4
WIPER OPERATION ............................................ 5WASHER OPERATION ......................................... 7
Schematic ................................................................ 8Wiring Diagram — WIPER — .................................. 9Terminals and Reference Values for BCM ............. 13Work Flow .............................................................. 14Preliminary Check .................................................. 14
CHECK POWER SUPPLY AND GROUND CIR-CUIT .................................................................... 14
CONSULT-II Function (IVMS) ................................ 15
CONSULT-II BASIC OPERATION ....................... 15DATA MONITOR ................................................. 16ACTIVE TEST ..................................................... 16
On Board Diagnosis ............................................... 17
DIAGNOSIS ITEM ............................................... 17SWITCH MONITOR ............................................ 17
Front Wiper Operates by Itself in Fine Weather ..... 19Front Wiper Does Not Operate in Rain .................. 21When Ignition Switch Is Turned ON with Front Wiper Switch Turned to INT Position, Front Wiper Oper-ates though There Are No Water Drops ................. 21When Ignition Switch Is Turned ON with Front Wiper Switch Turned to INT Position, Front Wiper Does Not Operate though There Are Remarkable Water Drops ...................................................................... 21Sensitivity of Rain Sensor Cannot be Controlled ... 22Intermittent Wiper Does Not Operate When Rain Sensor is Canceled ................................................ 23Intermittent Time of Front Wiper Cannot be Con-trolled When Rain Sensor is Canceled .................. 26Front Wiper and Washer Activate Individually but Not in Combination ................................................. 27
Intermittent Wiper Operates, but There Is No Change in Intermittent Time between When Vehicle Is Stopped and Running ......................................... 27Front Wiper and Washer Activate Individually but Intermittent Wiper and Washer Combination Does Not Operate ............................................................ 29Front Wiper Switch Inspection ................................ 30
FRONT WIPER SWITCH CIRCUIT ..................... 30
Removal and Installation of Front Wiper Arms, Adjustment of Front Wiper Arms Stop Location ...... 30Removal and Installation of Front Wiper Drive Assembly ................................................................ 31
REMOVAL ........................................................... 31INSTALLATION ................................................... 31
Washer Nozzle Adjustment .................................... 32Washer Tube Layout .............................................. 32Removal and Installation of Washer Nozzle ........... 33
REMOVAL ........................................................... 33INSTALLATION ................................................... 33
Washer Nozzle Inspection ...................................... 33
CHECK VALVE .................................................... 33
Removal and Installation of Front Wiper Switch ..... 34
REMOVAL ........................................................... 34INSTALLATION ................................................... 34
Removal and Installation of Washer Tank .............. 34
Removal and Installation of Front Washer Pump ... 35
REMOVAL ........................................................... 35INSTALLATION ................................................... 35
Removal and Installation of Rain Sensor ............... 35
REMOVAL ........................................................... 35INSTALLATION ................................................... 36
Calibration Procedure of Rain Sensor .................... 36
CIGARETTE LIGHTER ............................................. 37
Wiring Diagram — CIGAR — ................................. 37Removal and Installation ........................................ 38
REMOVAL ........................................................... 38INSTALLATION ................................................... 38
POWER SOCKET ..................................................... 39
