HEATED SEAT

SE-127

C

D

E

F

G

H

J

K

L

M

A

B

SE

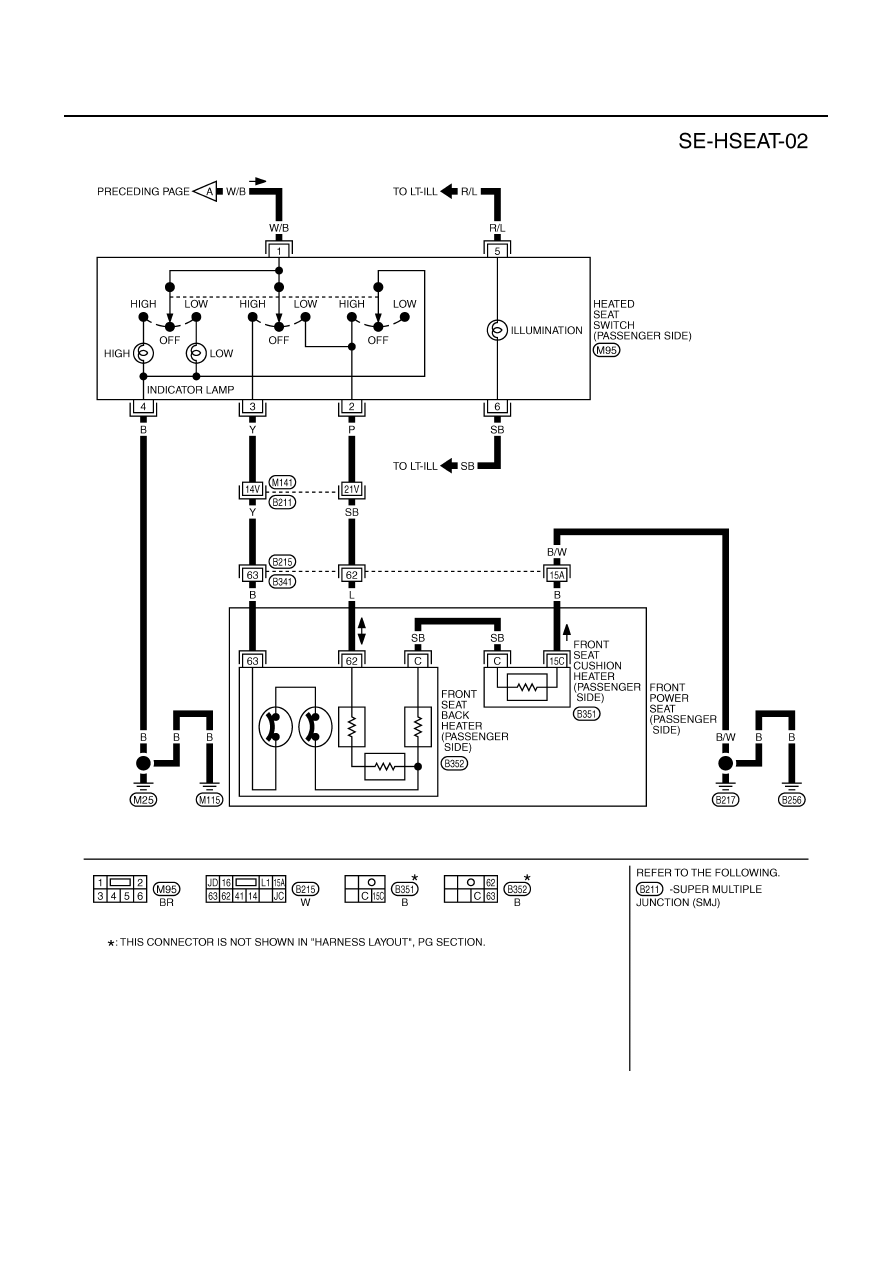

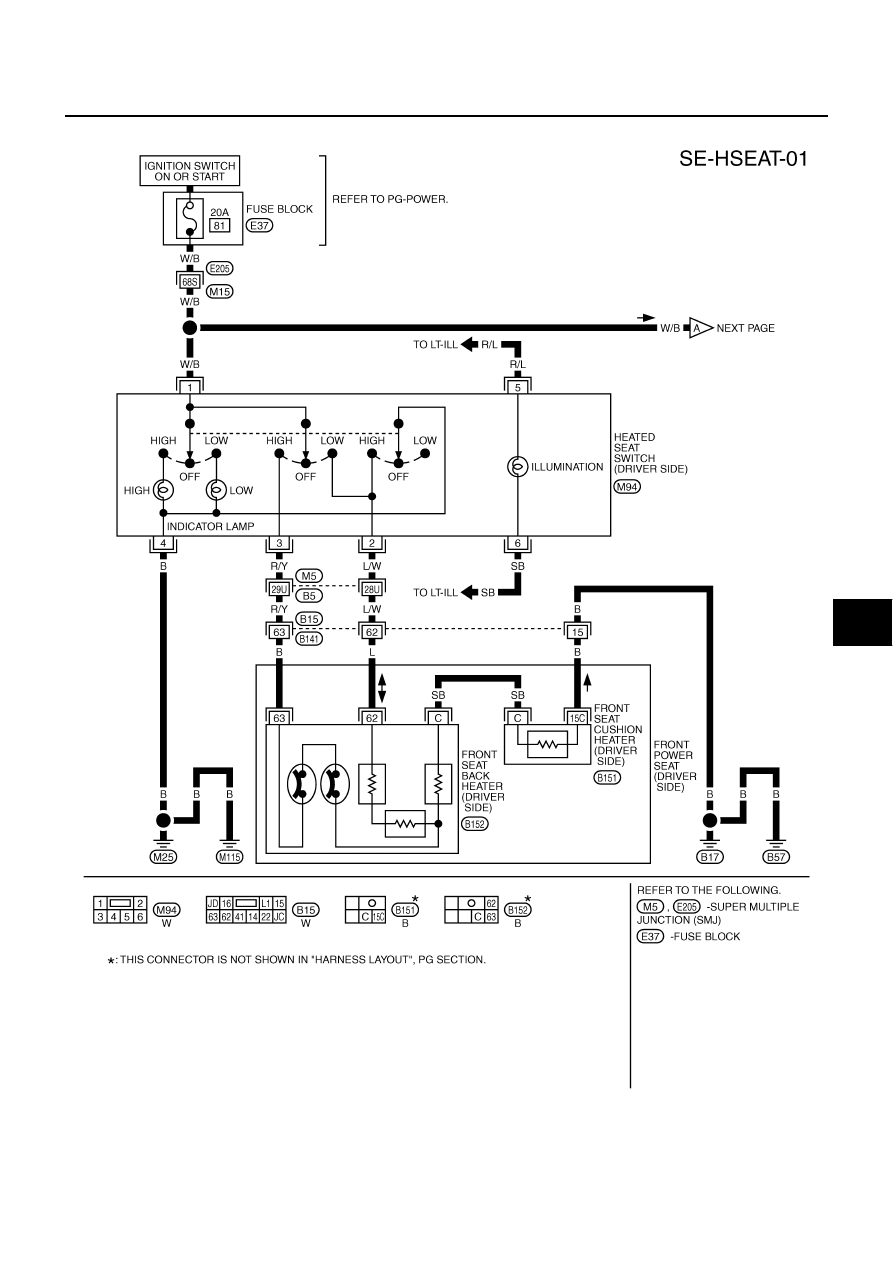

Wiring Diagram — HSEAT —/Front Heated Seat

NIS0014A

TIWM0740E

SE-128

HEATED SEAT

TIWM1584E

HEATED SEAT

SE-129

C

D

E

F

G

H

J

K

L

M

A

B

SE

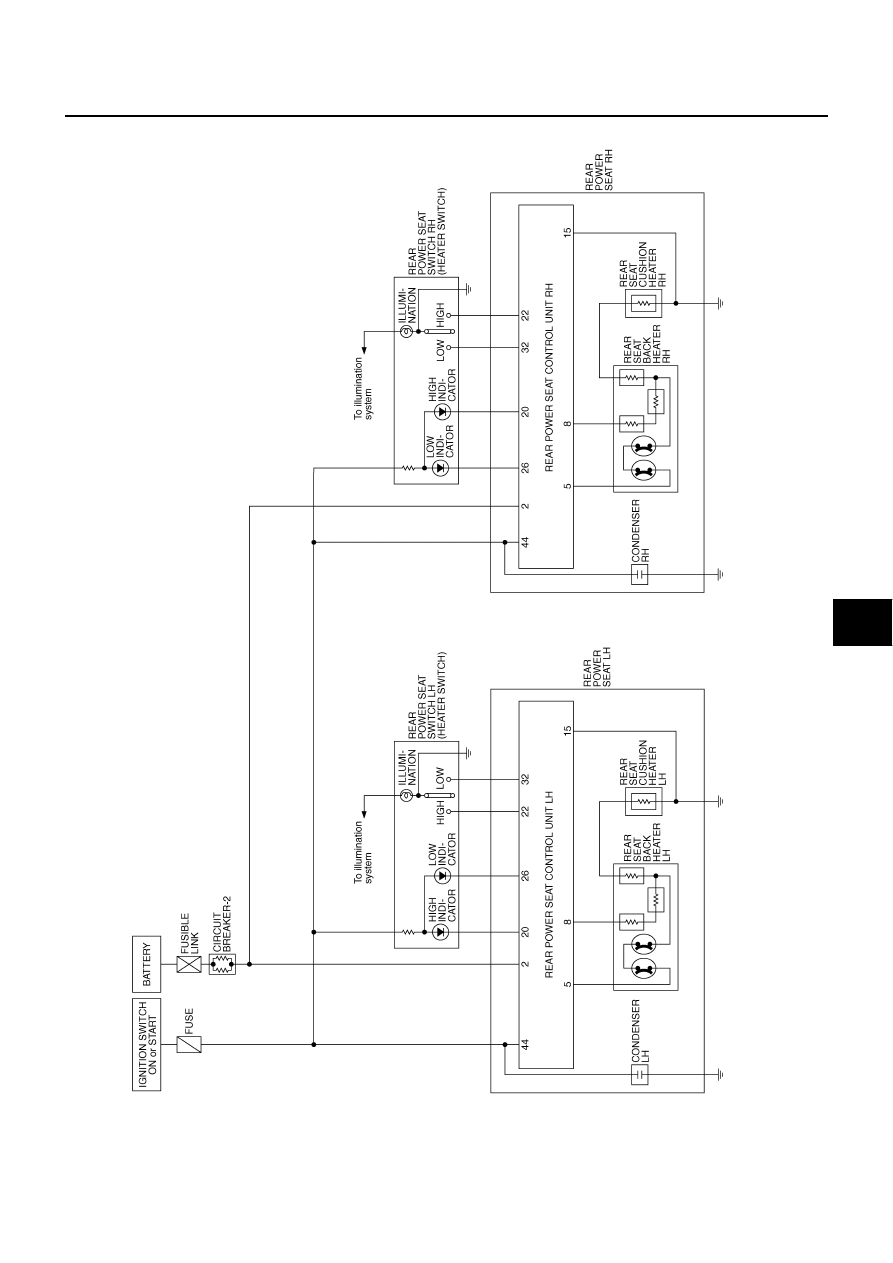

Schematic/Rear Heated Seat

NIS0014B

TIWM0130E

SE-130

HEATED SEAT

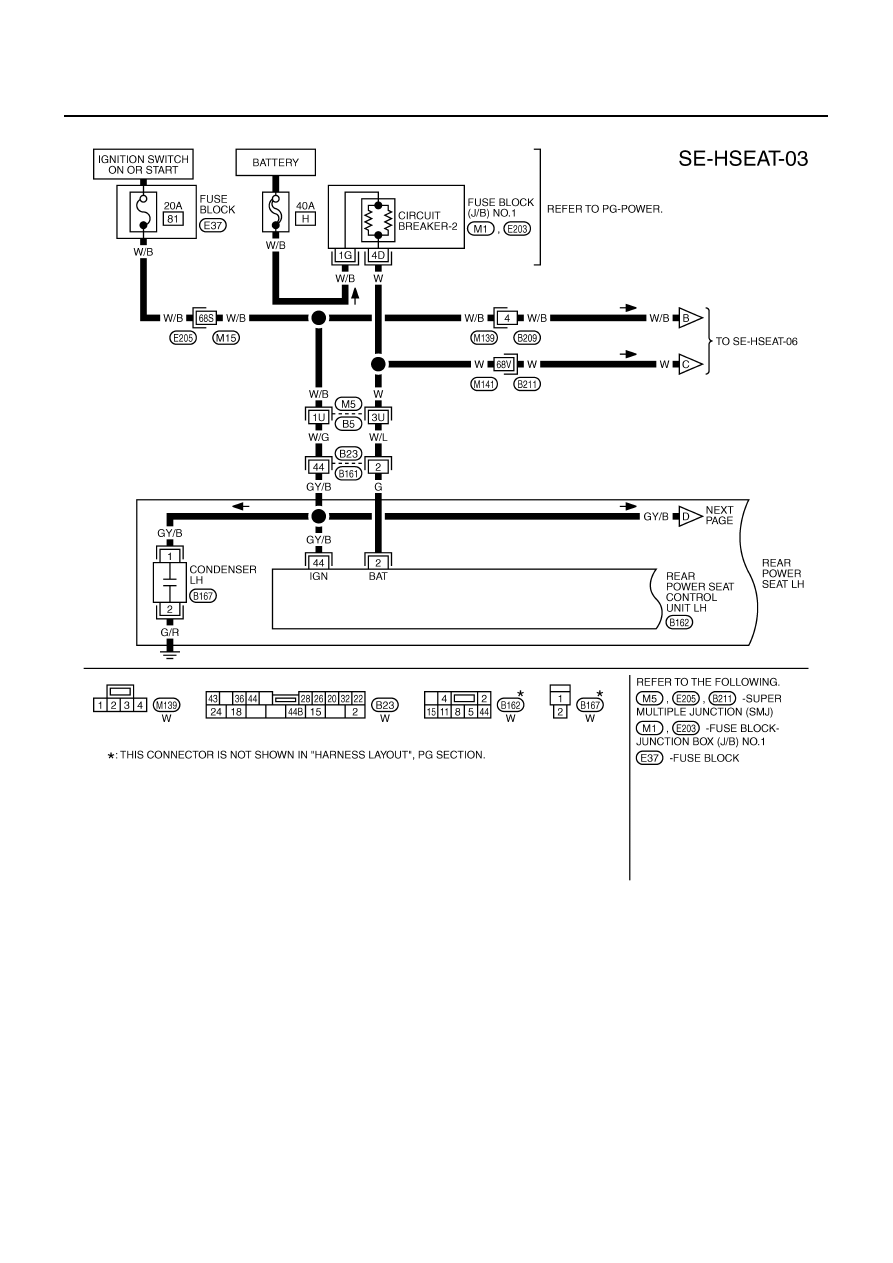

Wiring Diagram — HSEAT —/Rear Heated Seat

NIS0014C

TIWM1585E
