AUTOMATIC DRIVE POSITIONER

SE-15

C

D

E

F

G

H

J

K

L

M

A

B

SE

MEMORY SWITCH OPERATION

NOTE:
1.

Do not setting change as it will not operate. refer to

SE-35, "SETTING CHANGE FUNCTION"

2.

Automatic turnout function will be performed.

3.

The driver's seat position and steering adjustment (see the following Table) operate simultaneously in the
order of priority.

*: In conjunction with sliding the seat, the door mirrors are positioned.
The mirror moves when the ignition switch is in ACC.

TURNOUT OPERATION

At exit, the seat and steering wheel are automatically moved to the turnout position.

●

Seat: moves backward.

●

Steering wheel: tilted upward and extended fully.

NOTE:
The seat sliding, steering wheel tilt, and telescoping are moved to the turnout position simultaneously.

PIIA4467E

Priority

Function

Priority

Function

1

Seat sliding, (door mirror–LH/RH)*

4

Seat reclining

2

Steering wheel telescopic

5

Seat lifter–FR

3

Steering wheel tilt

6

Seat lifter–RR

PIIA4469E

SE-16

AUTOMATIC DRIVE POSITIONER

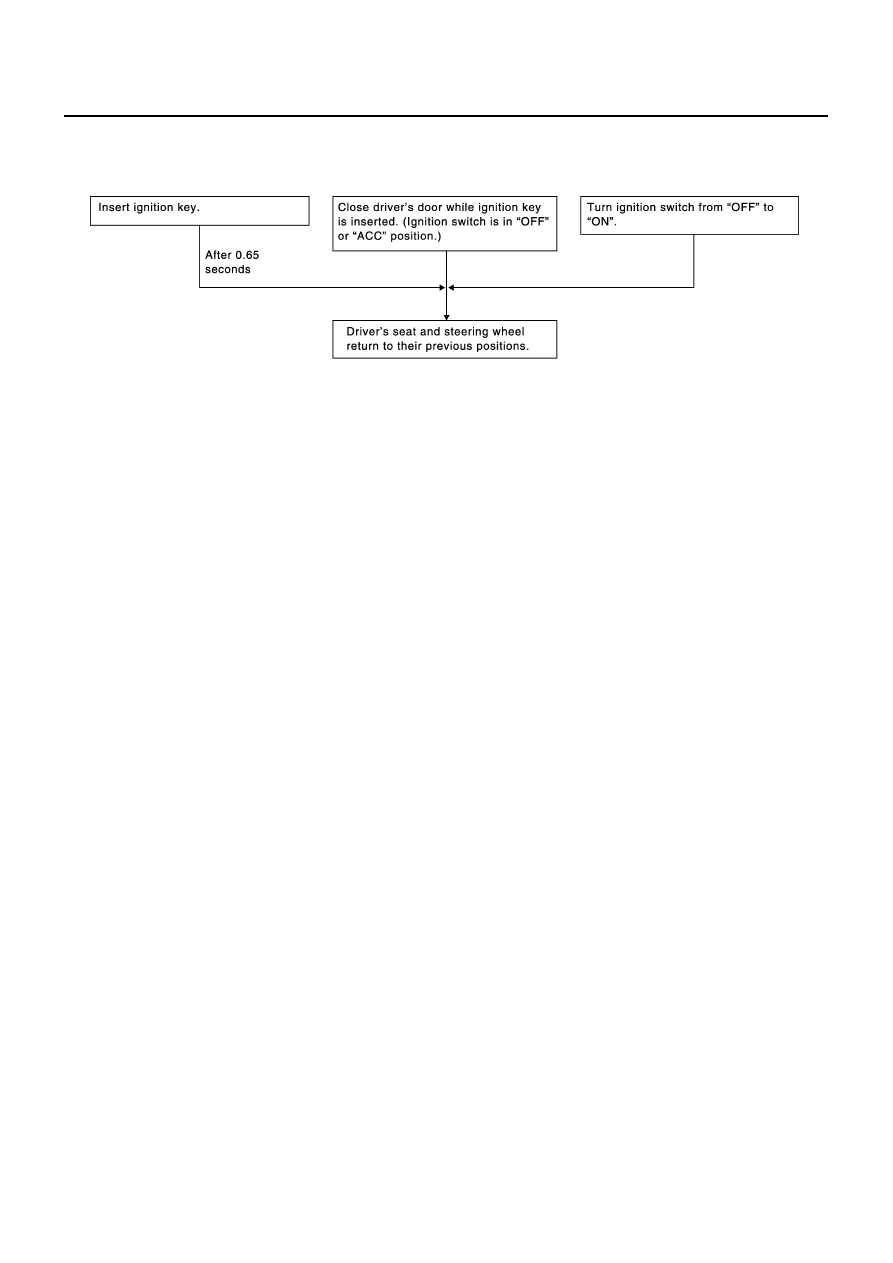

RETURN OPERATION

When the seat and steering wheel are on the exiting positions, the following operation moves the seat and
steering wheel to the previous position before the turnout operation.

NOTE:
The seat sliding, steering wheel tilt, and telescoping return to the original positions simultaneously.

REAR POWER SEAT TURNOUT OPERATION

Rear power seat moves back ward with driver' s seat at the same time in case turnout operation.

PIIA4468E

AUTOMATIC DRIVE POSITIONER

SE-17

C

D

E

F

G

H

J

K

L

M

A

B

SE

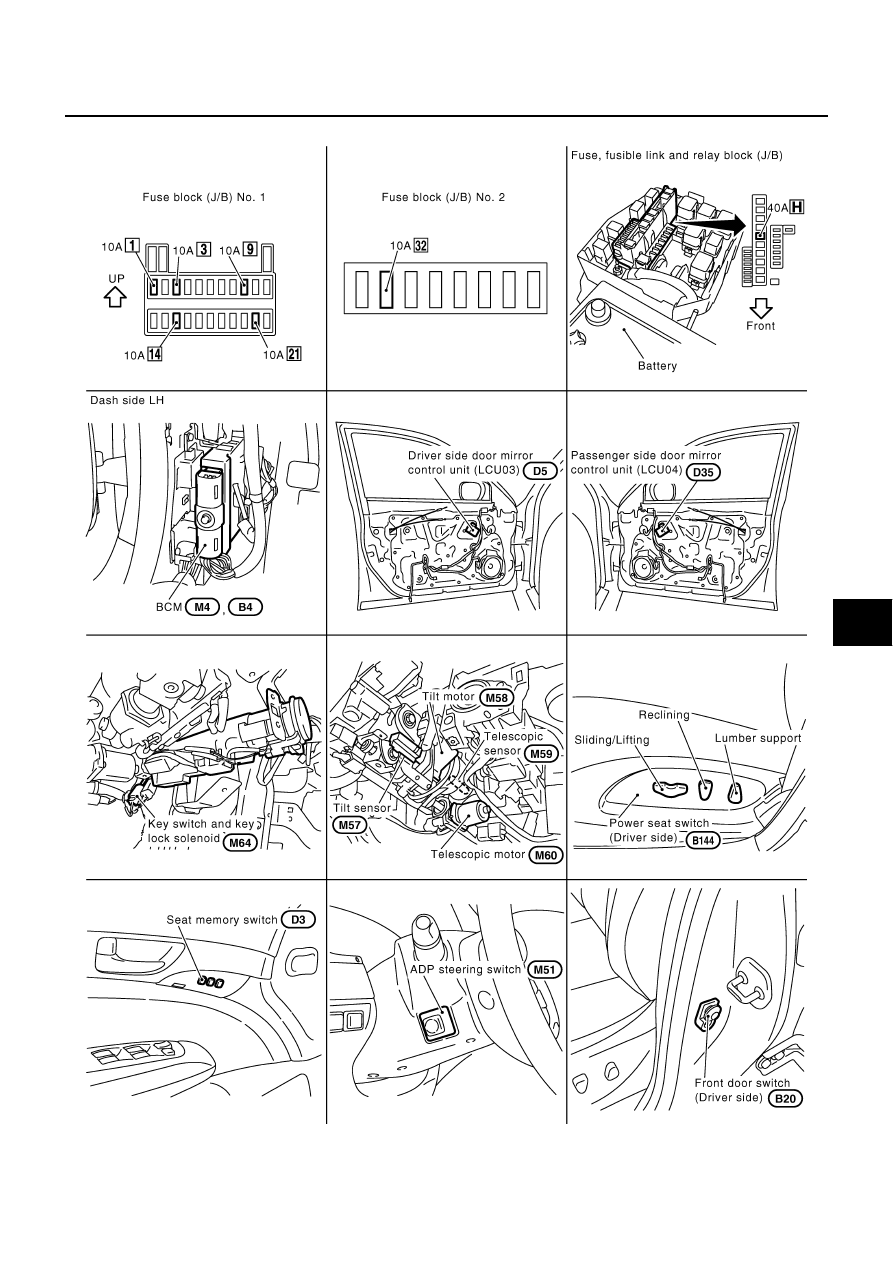

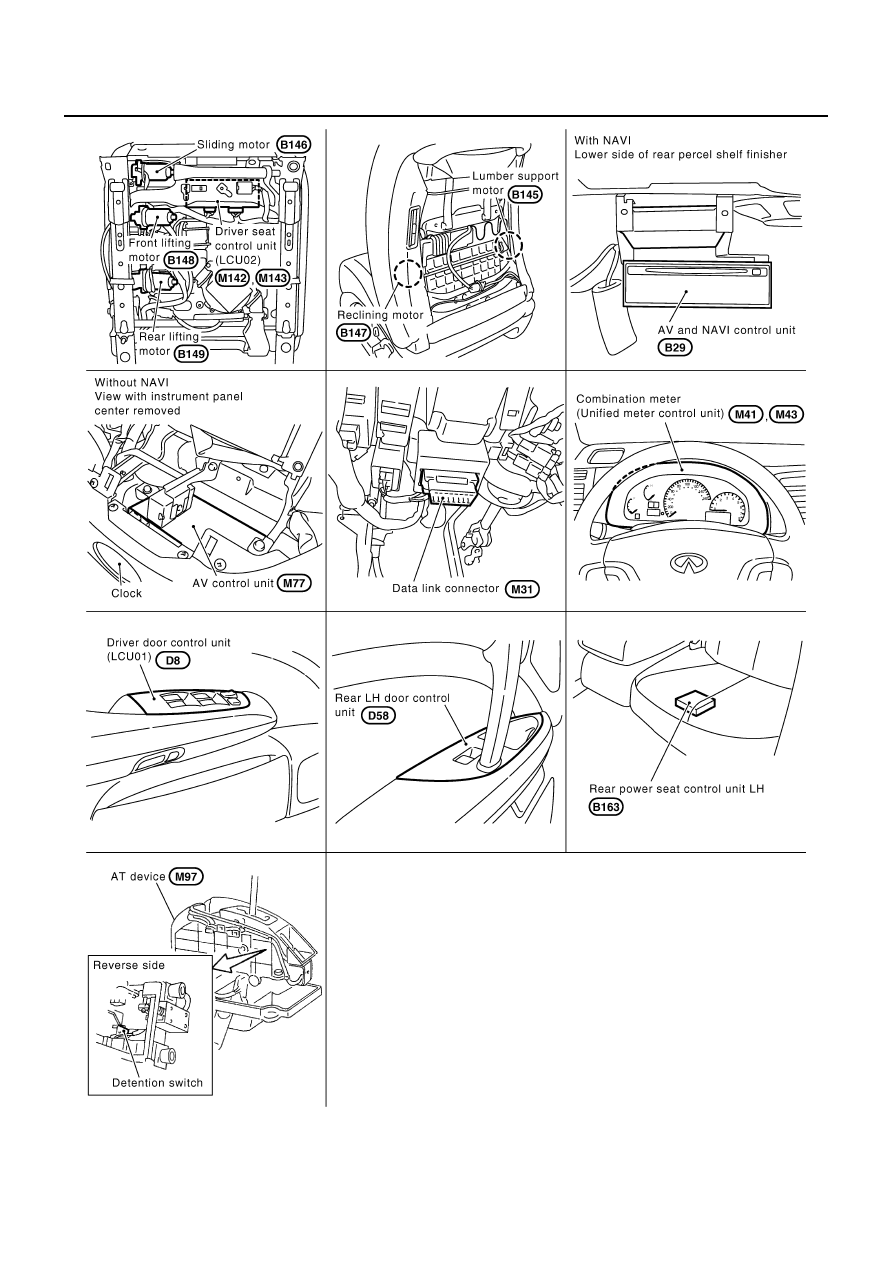

Component Parts and Harness Connector Location

NIS0012G

PIIB2130E

SE-18

AUTOMATIC DRIVE POSITIONER

PIIB7725E
