Infiniti Q45. Manual - part 800

TROUBLE DIAGNOSIS

SCS-17

C

D

F

G

H

I

J

K

L

M

A

B

SCS

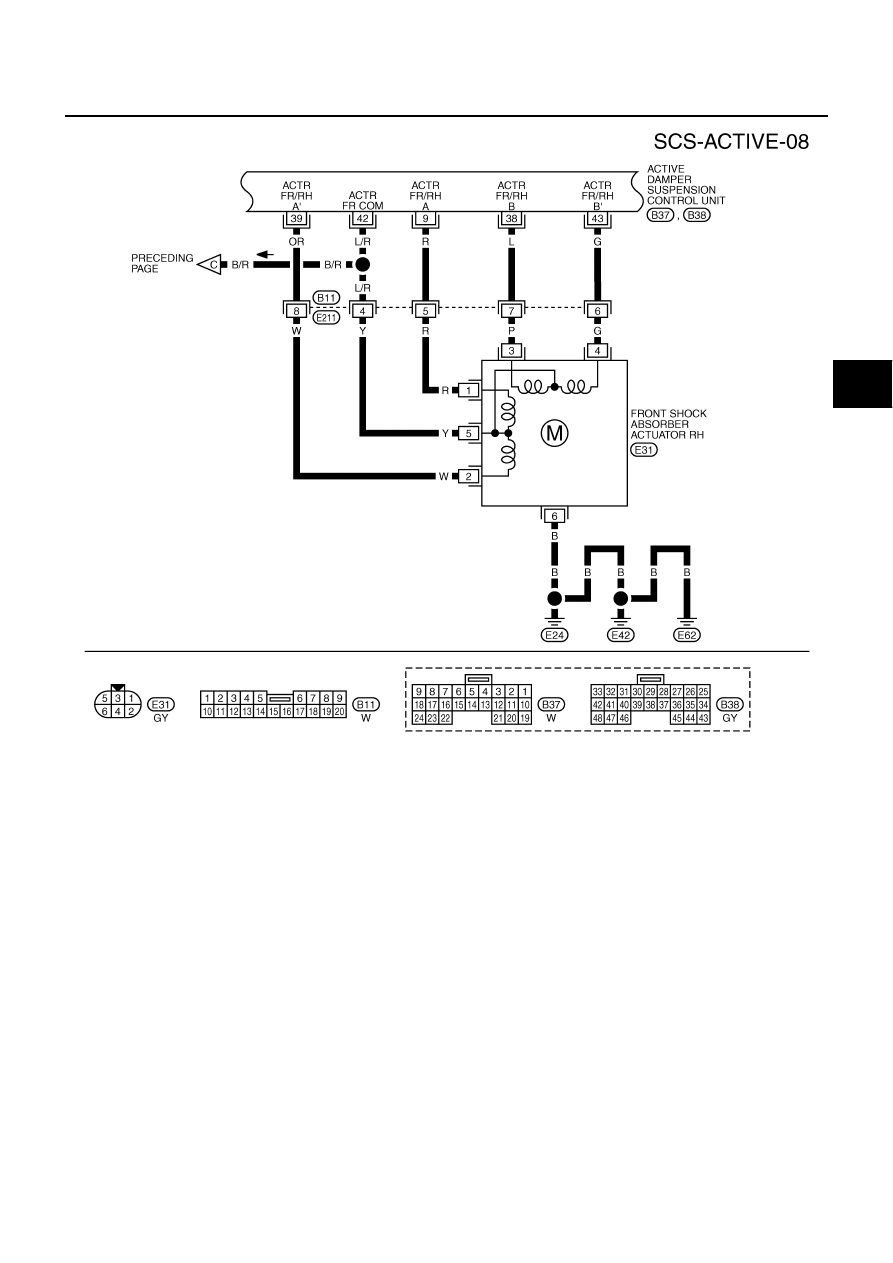

TEWM0129E

SCS-18

TROUBLE DIAGNOSIS

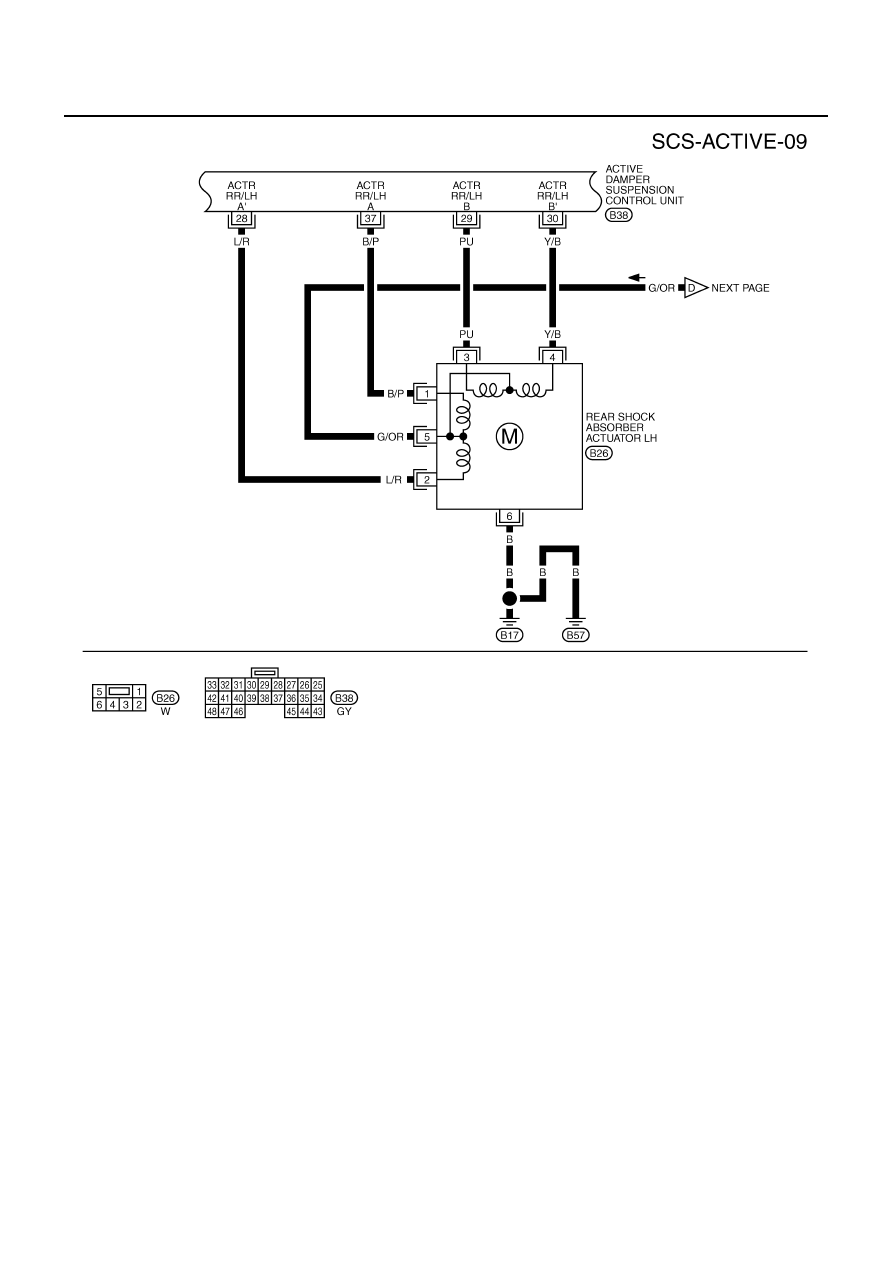

TEWM0138E

TROUBLE DIAGNOSIS

SCS-19

C

D

F

G

H

I

J

K

L

M

A

B

SCS

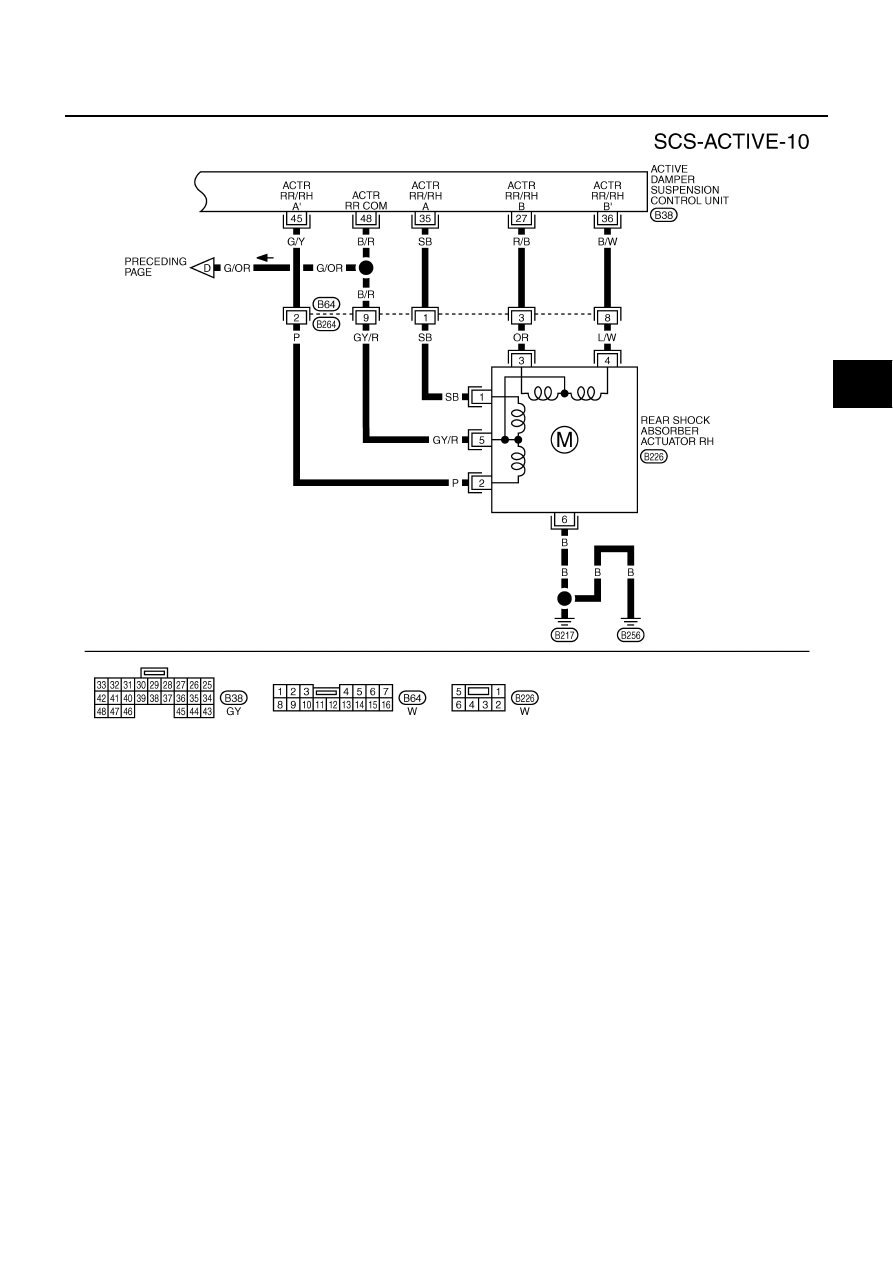

TEWM0139E

SCS-20

TROUBLE DIAGNOSIS

Active Damper Suspension Control Unit Input/Output Signal Reference Values

NES000AQ

ACTIVE DAMPER SUSPENSION CONTROL UNIT INSPECTION TABLE
Specifications with CONSULT-II

Monitor item [Unit]

Content

Condition

Display value

VHCL SPEED SE [km/h]
or [mph]

Vehicle speed

Vehicle stopped

0 km/h (0 MPH)

Vehicle running

CAUTION:

Check air pressure of tire under standard condition.

Approximately
equal to the indica-
tion on speedome-
ter (Inside of

±

10%)

VERTI G SE FL [G]

Upper/lower acceleration
condition of vehicle
(front)

Vehicle stopped

Approx. 0.00G

Vehicle running

D1.67 - U1.67G

VERTI G SE RR [G]

Upper/lower acceleration
condition of vehicle
(rear)

Vehicle stopped

Approx. 0.00G

Vehicle running

D1.67 - U1.67G

STEERING ANG [

°

]

Steering angle detected
by steering angle sensor

Steering wheel right turned

0

°

 - R128

°

Straight-ahead

Approx. 0

°

Steering wheel left turned

0

°

 - L128

°

SELECT SWITCH [AUTO/
SPORT]

Input condition from
active damper suspen-
sion select switch

Active damper suspen-
sion select switch
(Engine running)

AUTO

AUTO

SPORT

SPORT

STOP LAMP SW [ON/
OFF]

Condition of brake pedal
operation

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

NEUTRAL SIG [ON/OFF]

Neutral condition of
steering wheel

Straight-ahead

ON

Steering wheel turned

OFF

DAMP MTR FR [step]

Condition of front shock
absorber actuator RH

Vehicle stopped

0 step

Vehicle running

-60 - 80 step

DAMP MTR FL [step]

Condition of front shock
absorber actuator LH

Vehicle stopped

0 step

Vehicle running

-60 - 80 step

DAMP MTR RR [step]

Condition of rear shock
absorber actuator RH

Vehicle stopped

0 step

Vehicle running

-60 - 80 step

DAMP MTR RL [step]

Condition of rear shock
absorber actuator LH

Vehicle stopped

0 step

Vehicle running

-60 - 80 step

INDICATOR [ON/OFF]

SPORT indicator lamp
condition

SPORT indicator lamp: ON

ON

SPORT indicator lamp: OFF

OFF

ENGINE SPEED [rpm]

Engine speed

Engine stopped

0 rpm

Engine running
(Engine speed: 400 rpm or more)

Approximately
equal to the indica-
tion on tachometer
