STARTING SYSTEM

PFP:00011

System Description

NKS0016N

Power is supplied at all times

●

through 50A fusible link (letter G , located in the fuse, fusible link and relay block)

●

to ignition switch terminal 1.

With the ignition switch in the START position, power is supplied

●

from ignition switch terminal 4

●

to park/neutral position relay terminal 7.

Ground is supplied with the selector lever in the P or N position

●

to A/T assembly terminal 9

●

through park/neutral position relay terminals 1 and 2

●

from grounds E24, E42 and E62.

Then park/neutral position switch is energized and power is supplied

●

from park/neutral position relay terminal 6

●

to starter motor harness connector terminal 1.

The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.

SC-10

STARTING SYSTEM

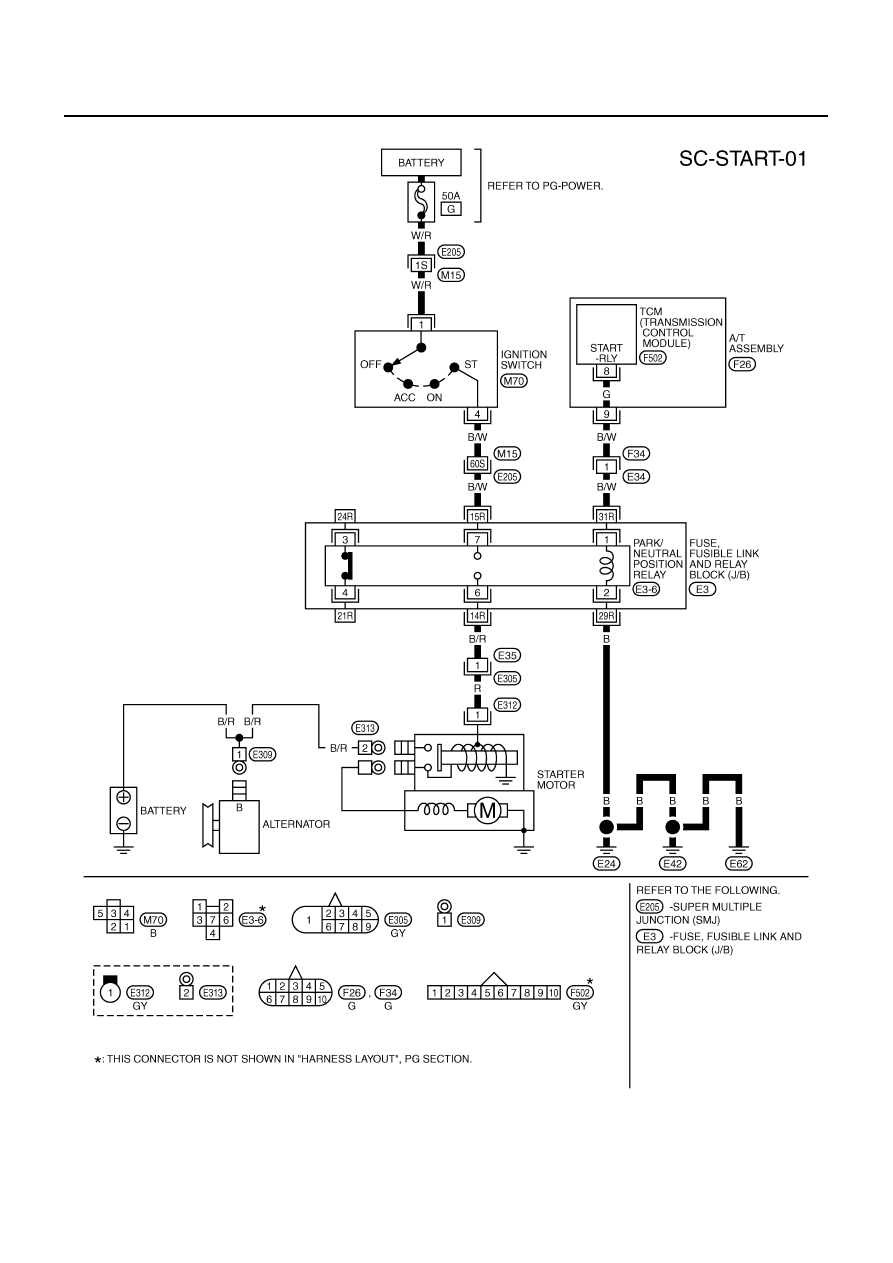

Wiring Diagram — START —

NKS0016O

TKWM1455E

STARTING SYSTEM

SC-11

C

D

E

F

G

H

I

J

L

M

A

B

SC

Trouble Diagnosis with Battery/Starting/Charging System Tester

NKS0016P

NOTE:
To ensure a complete and thorough diagnosis, the battery, starter and alternator test segments must be done
as a set from start to finish.

1.

Turn off all loads on the vehicle electrical system.

2.

Perform battery test with Battery/Starting/Charging system
tester. Refer to

SC-6, "Trouble Diagnosis with Battery/Starting/

Charging System Tester"

 .

3.

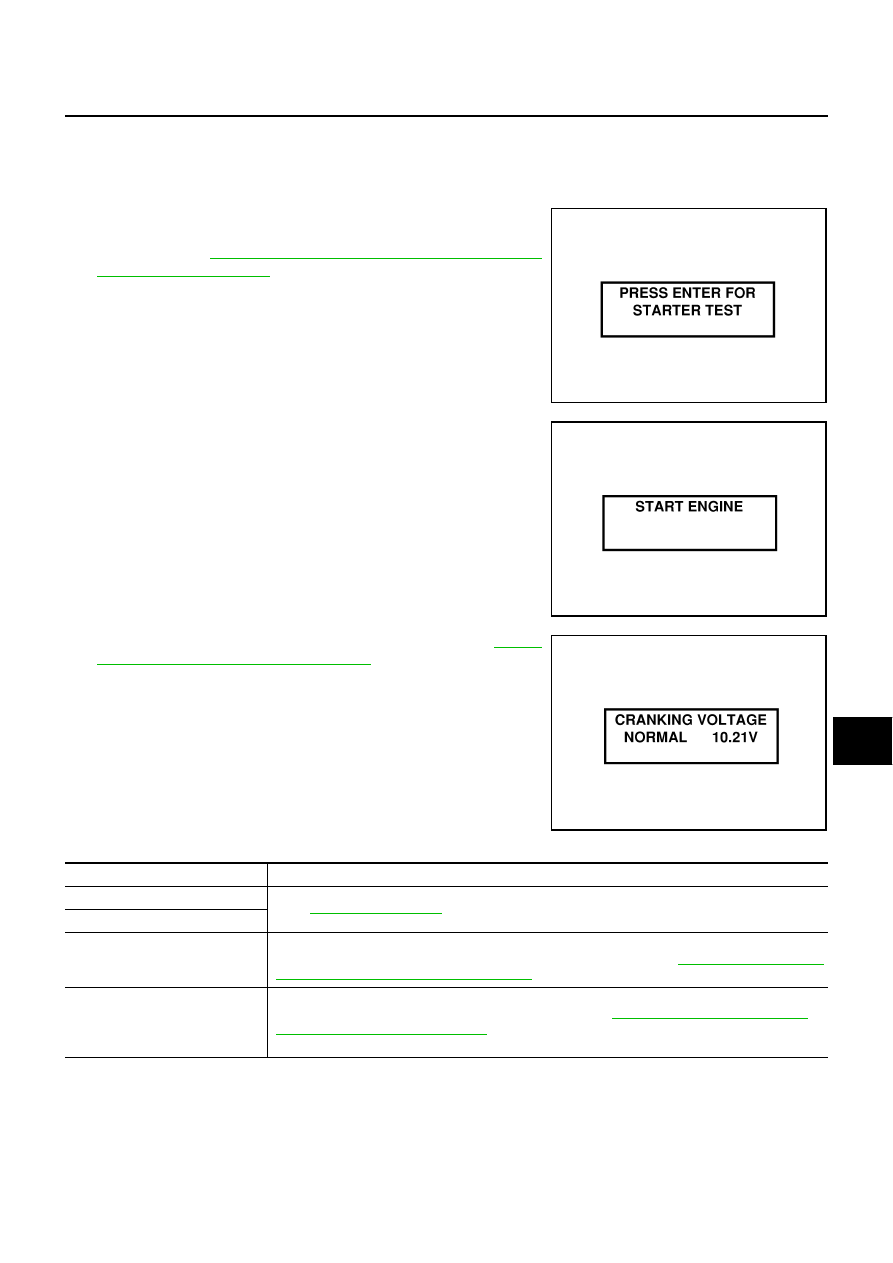

Press “ENTER” to begin the starting system test.

4.

Start the engine.

5.

Diagnostic result is displayed on the tester. Refer to

SC-11,

"DIAGNOSTIC RESULT ITEM CHART"

 .

NOTE:

●

If the starter performs normally but the engine does not start,
perform engine diagnosis.

●

For intermittent “NO CRANK” or “NO STARTER OPERA-
TION” incidents, go to DIAGNOSTIC PROCEDURE 2.

DIAGNOSTIC RESULT ITEM CHART

SEL408X

SEL409X

SEL410X

Diagnostic item

Service procedure

CRANKING VOLTAGE NORMAL

Go to

SC-12, "WORK FLOW"

 .

CRANKING VOLTAGE LOW

CHARGE BATTERY

Perform the slow battery charging procedure. (Initial rate of charge is 10A for 12 hours.) Perform
battery test again with Battery/Starting/Charging system tester. Refer to

SC-6, "Trouble Diagnosis

with Battery/Starting/Charging System Tester"

 .

REPLACE BATTERY

Before replacing battery, clean the battery cable clamps and battery posts. Perform battery test
again with Battery/Starting/Charging system tester. Refer to

SC-6, "Trouble Diagnosis with Bat-

tery/Starting/Charging System Tester"

 . If second test result is “REPLACE BATTERY”, then do so.

Perform battery test again to confirm repair.

SC-12

STARTING SYSTEM

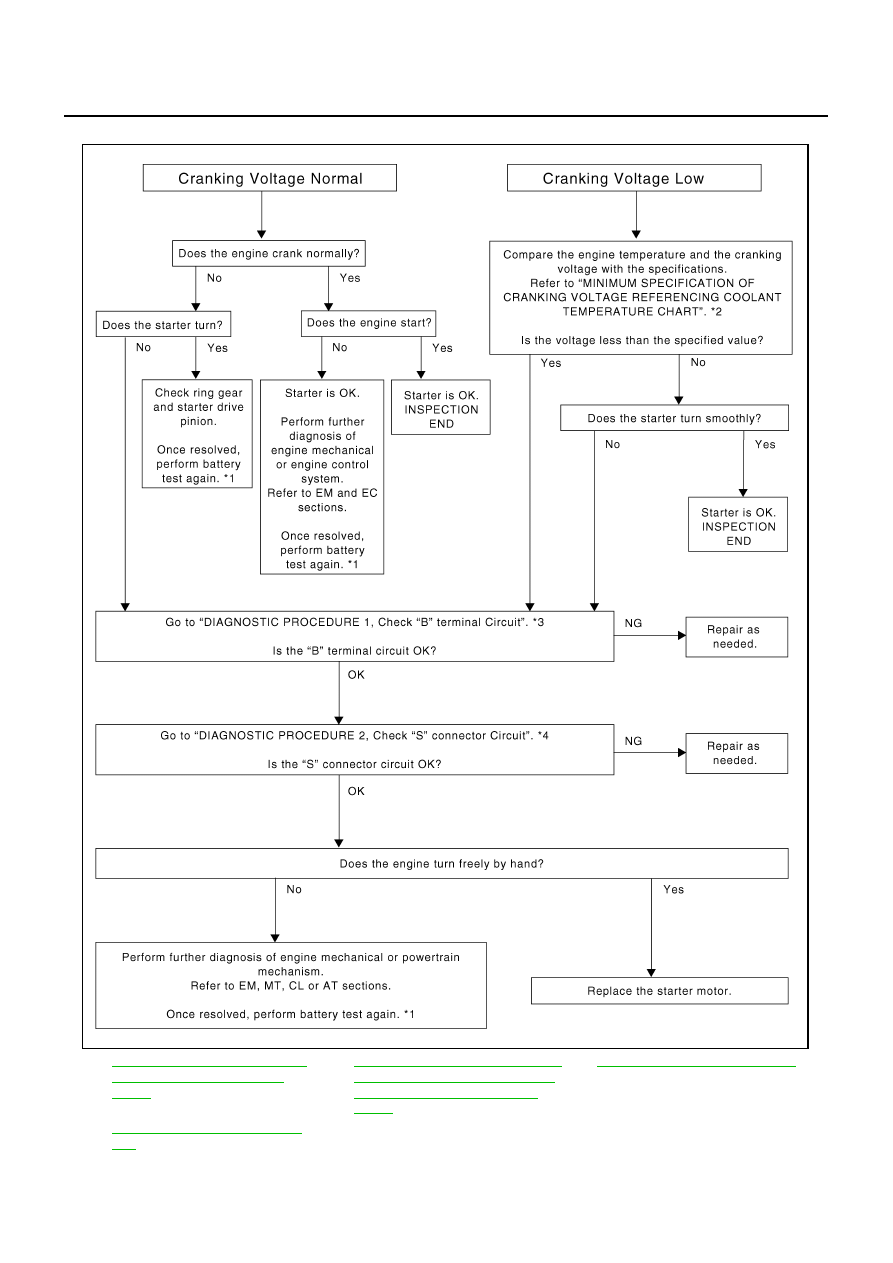

WORK FLOW

*1

SC-6, "Trouble Diagnosis with Bat-
tery/Starting/Charging System
Tester"

*2

SC-14, "MINIMUM SPECIFICATION
OF CRANKING VOLTAGE REFER-
ENCING COOLANT TEMPERA-
TURE"

*3

SC-13, "Check “B” Terminal Circuit"

*4

SC-14, "Check “S” Connector Cir-
cuit"

SKIB1369E
