PRE-CRASH SEAT BELT

SB-19

C

D

E

F

G

I

J

K

L

M

A

B

SB

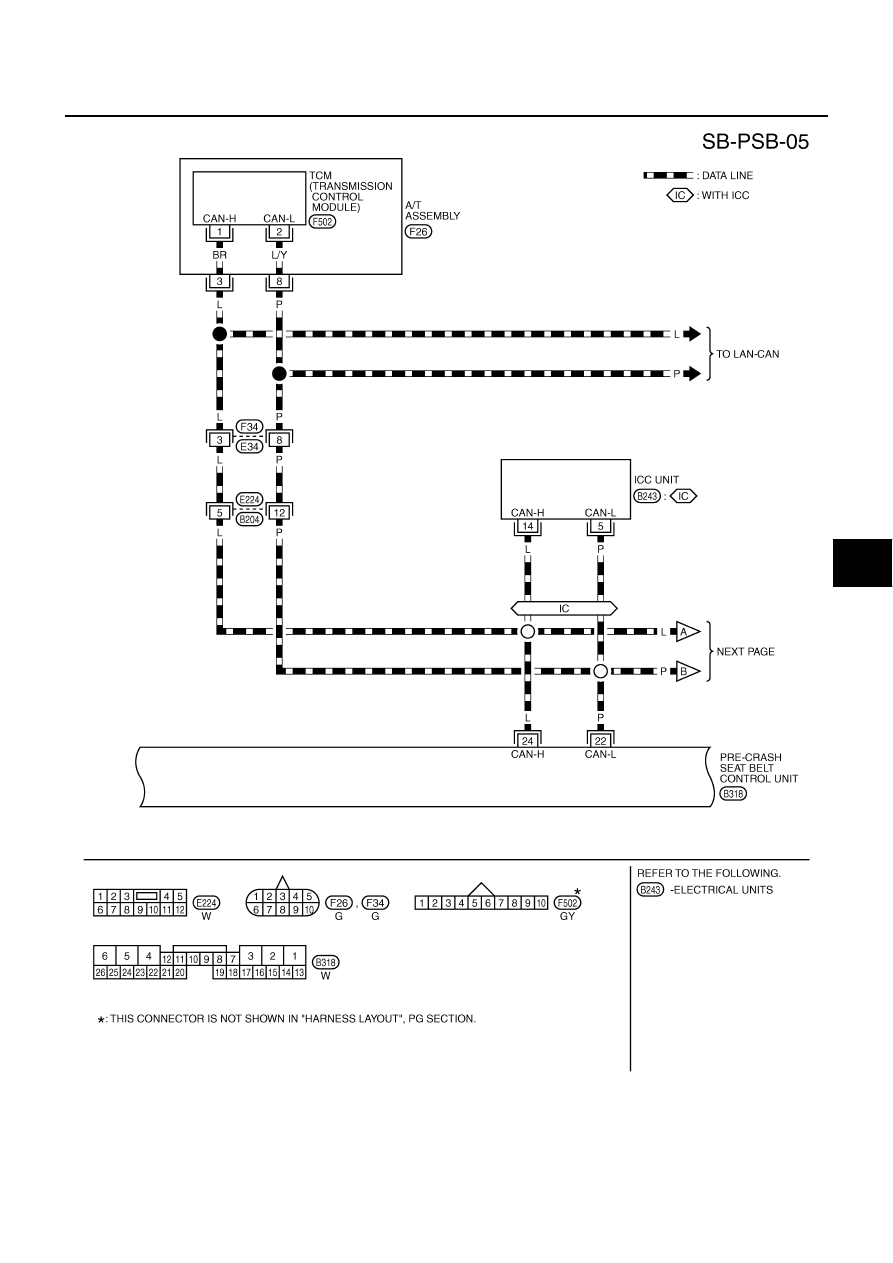

THWM0068E

SB-20

PRE-CRASH SEAT BELT

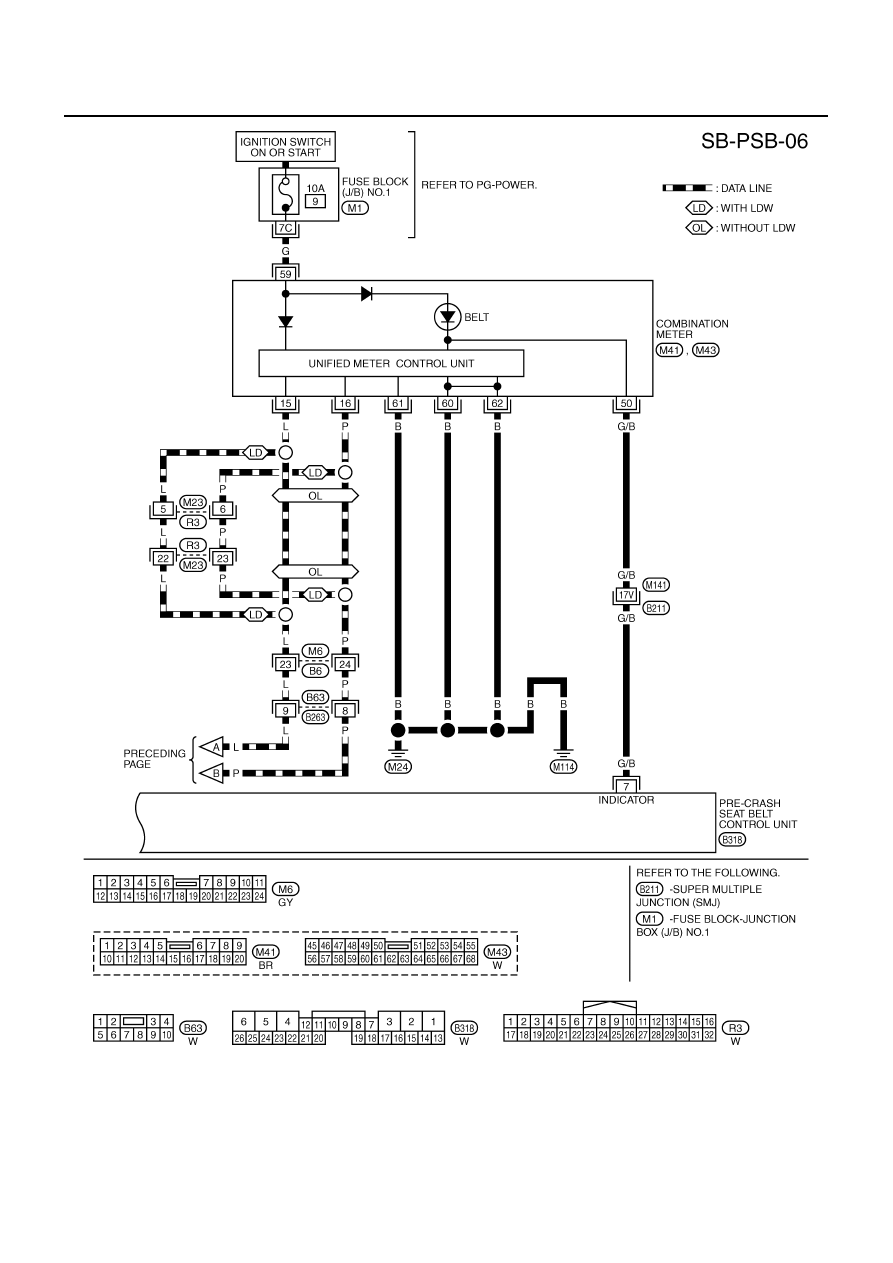

THWM0194E

PRE-CRASH SEAT BELT

SB-21

C

D

E

F

G

I

J

K

L

M

A

B

SB

Terminals and reference value for Pre-Crash Seat Belt Control Unit

NHS0003R

Termi-

nal

Wire

Color

Item

Signal

input/output

Condition

Voltage [V]

(Approx.)

1

GY/W

Seat belt motor RH release direction
signal

Output

Seat belt motor RH operation

Battery voltage

Other than above

0

2

G/R

Power source (Driver circuit)

Input

—

Battery voltage

3

L/Y

Seat belt motor RH fastened direction
signal

Output

Seat belt motor RH operation

Battery voltage

Other than above

0

4

GY/W

Seat belt motor LH fastened direction
signal

Output

Seat belt motor LH operation

Battery voltage

Other than above

0

5

B

Ground (Driver circuit)

—

—

0

6

L/Y

Seat belt motor LH release direction
signal

Output

Seat belt motor LH operation

Battery voltage

Other than above

0

7

G/B

Belt indicator signal

Output

When driver side seat belt is fastened

Battery voltage

When driver side seat belt is
un-fastened

0

When driver side seat belt is fastened
and system malfunction

Battery volt-

age

⇔

0

8

SB

Seat belt buckle switch (RH) signal

Input

When seat belt is fastened

5

When seat belt is un-fastened

0

10

G/W

Seat belt buckle switch (LH) signal

Input

When seat belt is fastened

5

When seat belt is un-fastened

0

13

W/B

Power source (Control circuit)

Input

—

Battery voltage

16

W

Brake pedal stroke sensor 1 output
signal

Input

Brake pedal is fully released
operation

1

Brake pedal is slightly depressed
operation

4

18

R

Power source
(Brake pedal stroke sensor)

Output

—

5

20

G

Brake pedal stroke sensor 2 output
signal

Input

Brake pedal is fully released operation

4

Brake pedal is slightly depressed
operation

1

21

B

Ground (Brake pedal stroke sensor)

—

—

0

22

P

CAN-L

Input/Output

—

—

24

L

CAN-H

Input/Output

—

—

25

–

Ground (Shield wire)

—

—

0

26

B

Ground (Control circuit)

—

—

0

SB-22

PRE-CRASH SEAT BELT

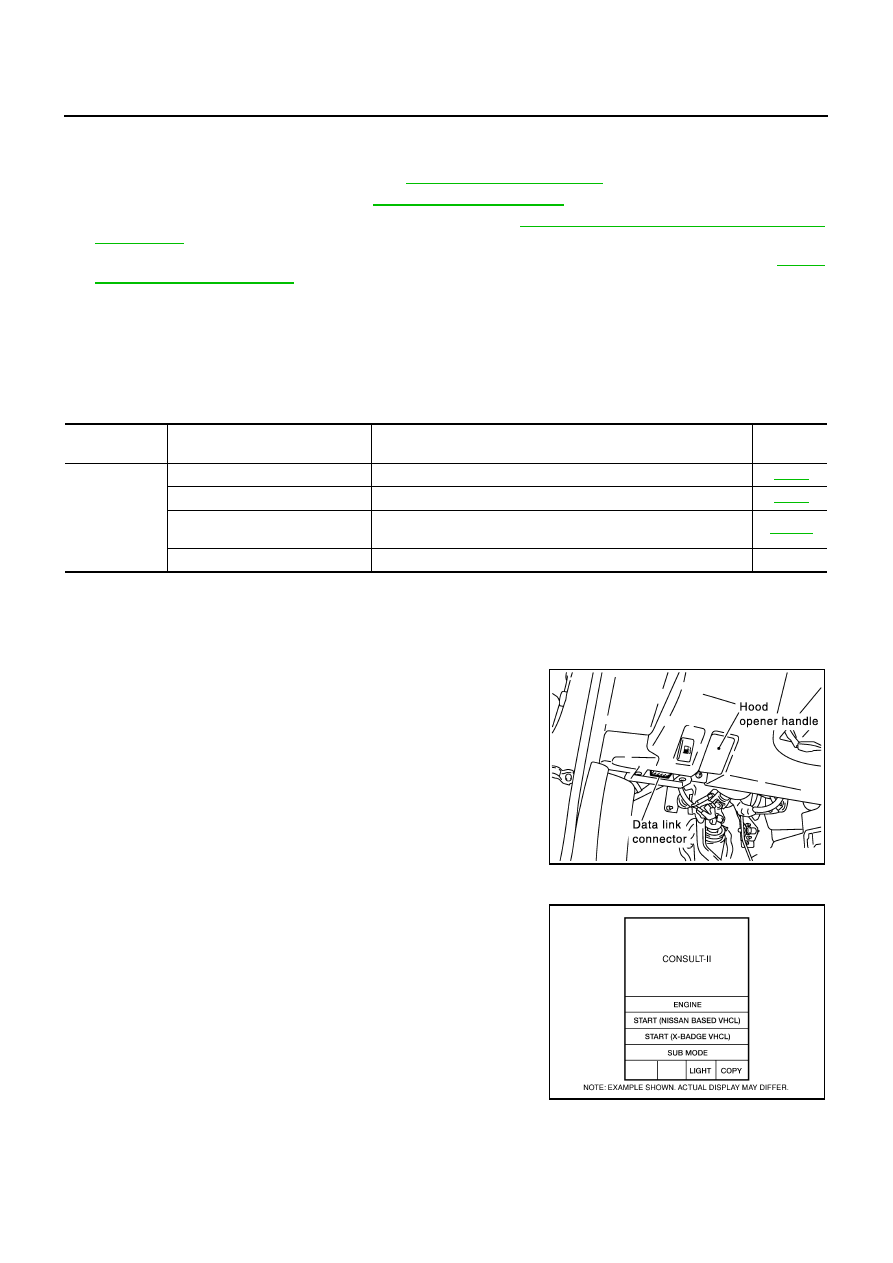

Work Flow

NHS0003S

1.

Check the symptom and customer's requests.

2.

Understand the system description. Refer to

SB-11, "System Description"

 .

3.

Perform the preliminary check. Refer to

SB-24, "Preliminary Check"

 .

4.

Check the self-diagnosis, results using CONSULT-II. Refer to

SB-22, "CONSULT-II Function (PRECRASH

SEATBELT)"

 .

5.

Based on the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

SB-24,

"Diagnoses Symptom Chart"

 .

6.

Does pre-crash seat belt system operate normally?
OK: GO TO 7.
NG: GO TO 4.

7.

INSPECTION END

CONSULT-II Function (PRECRASH SEATBELT)

NHS0003T

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II INSPECTION PROCEDURE

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” and “CONSULT-II CONVERTER” to the
data link connector.

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

CONSULT-II

diagnosis items

Inspection item

 self-diagnosis mode

Content

Reference

page

PRECRASH
SEATBELT

SELF–DIG RESULTS

Carries out the self-diagnosis.

SB-23

DATA MONITOR

Displays pre-crash seat belt control unit input data in real time.

SB-23

CAN DIAG SUPPORT MONITOR

The results of transmit / receive diagnosis of CAN communication
can be read.

LAN-29

ECU NUMBER

Displays pre-crash seat belt control unit part No.

–

PBIB1069E

BCIA0029E
