SEAT BELTS

SB-7

C

D

E

F

G

I

J

K

L

M

A

B

SB

SEAT BELT RETRACTOR ON-VEHICLE CHECK
Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are of the Emergency Locking Retractors (ELR) type. In an emergency (sudden stop)
the retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver's seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors using the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If
NG, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. DO NOT perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event the
retractor does not lock.
1.

Fasten driver's seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event the retractor does not
lock, apply brakes firmly and make a very hard stop.

During stop, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, per-
form the retractor off-vehicle check.

SB-8

SEAT BELTS

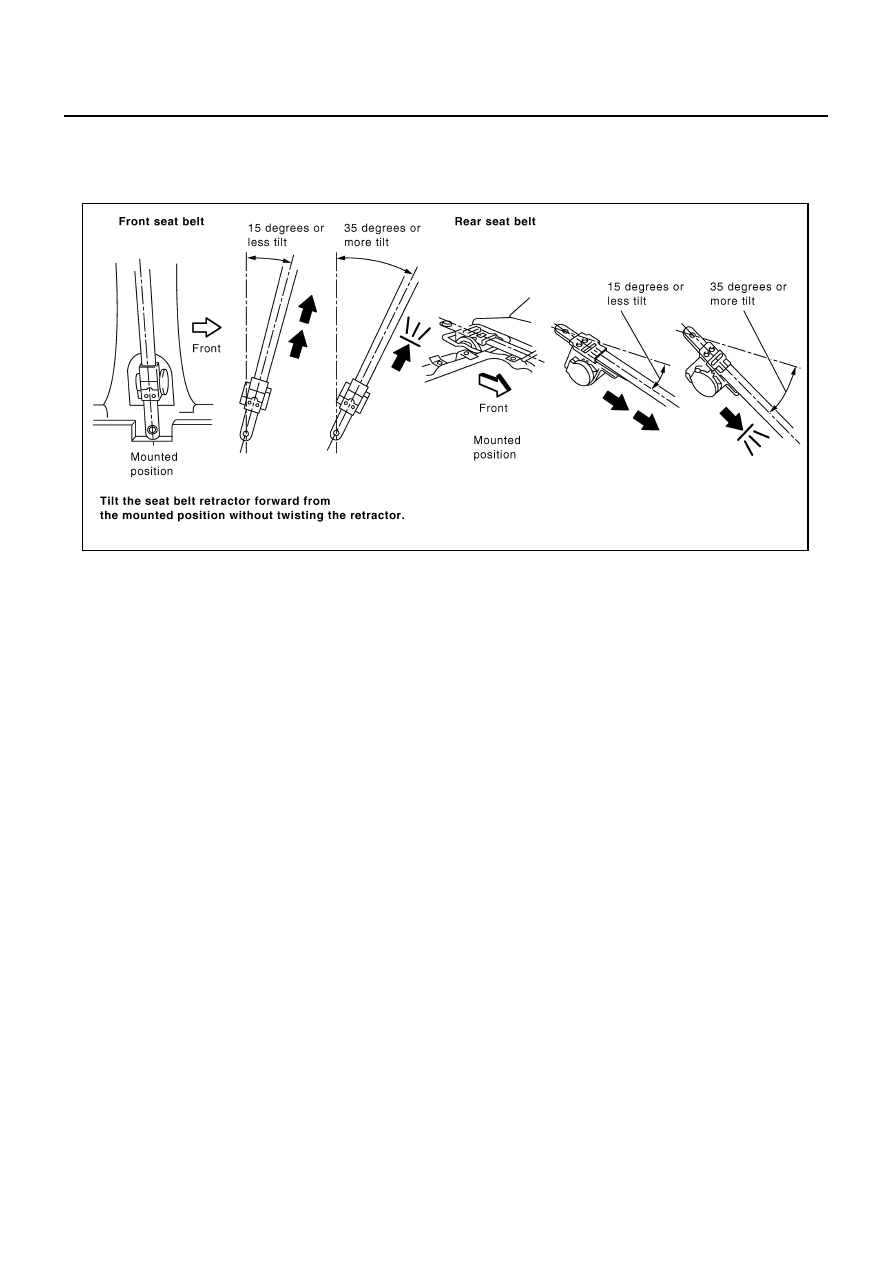

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the seat belt retractor assembly.

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the illustration.

If NG, replace the retractor assembly.

15 degrees or less tilt

: Webbing can be pulled out.

35 degrees or more tilt

: Webbing locks and cannot be pulled out.

PHIA0730E

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

SB-9

C

D

E

F

G

I

J

K

L

M

A

B

SB

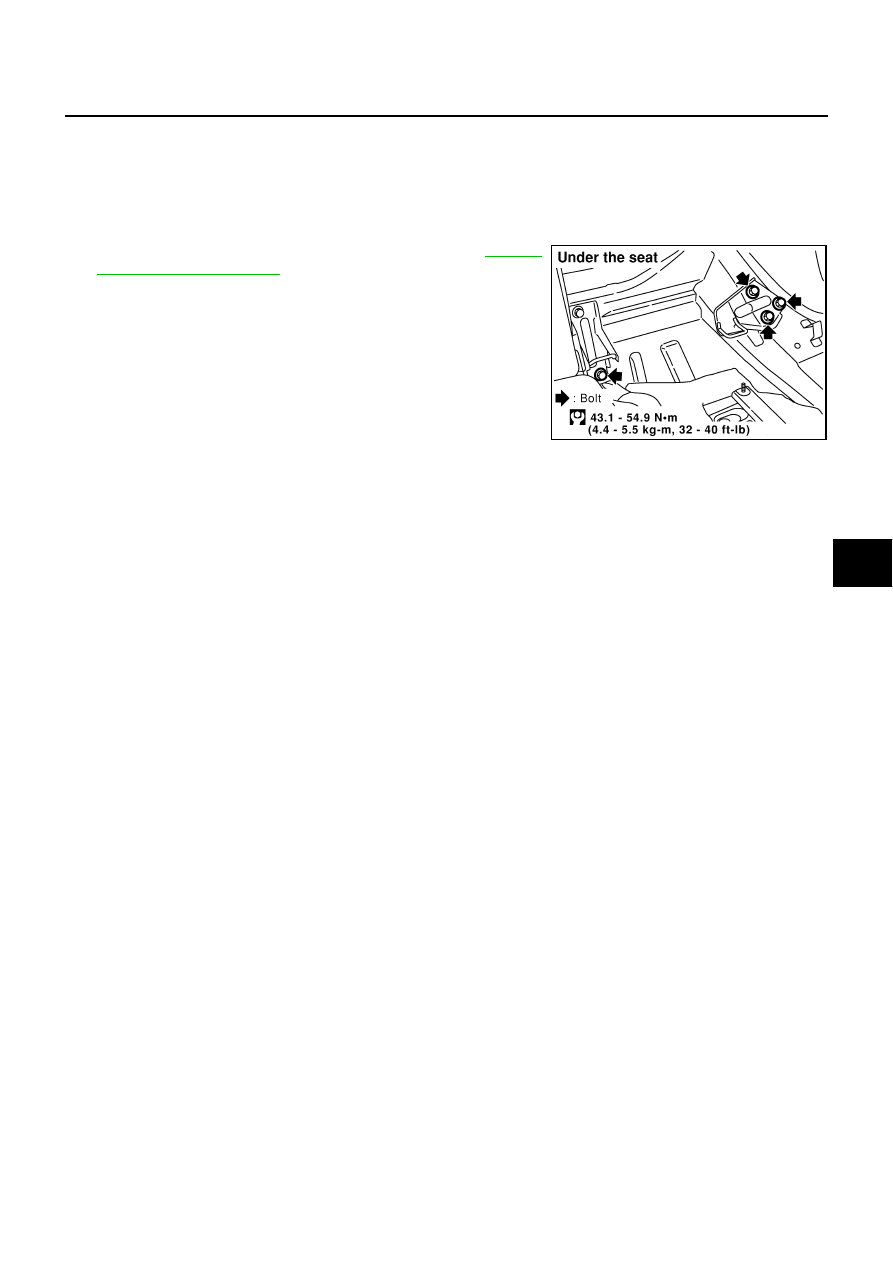

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

PFP:75466

Removal and Installation

NHS0003J

CAUTION:

Replace anchor bolts if they are deformed or worn out.

REMOVAL

1.

Remove the rear seat cushion and seatback. Refer to

SE-191,

"Removal and Installation"

 .

2.

Remove rear seat frame (Models with rear power seat).

3.

Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION

Install in the reverse order of removal.

SHIA0163E

SB-10

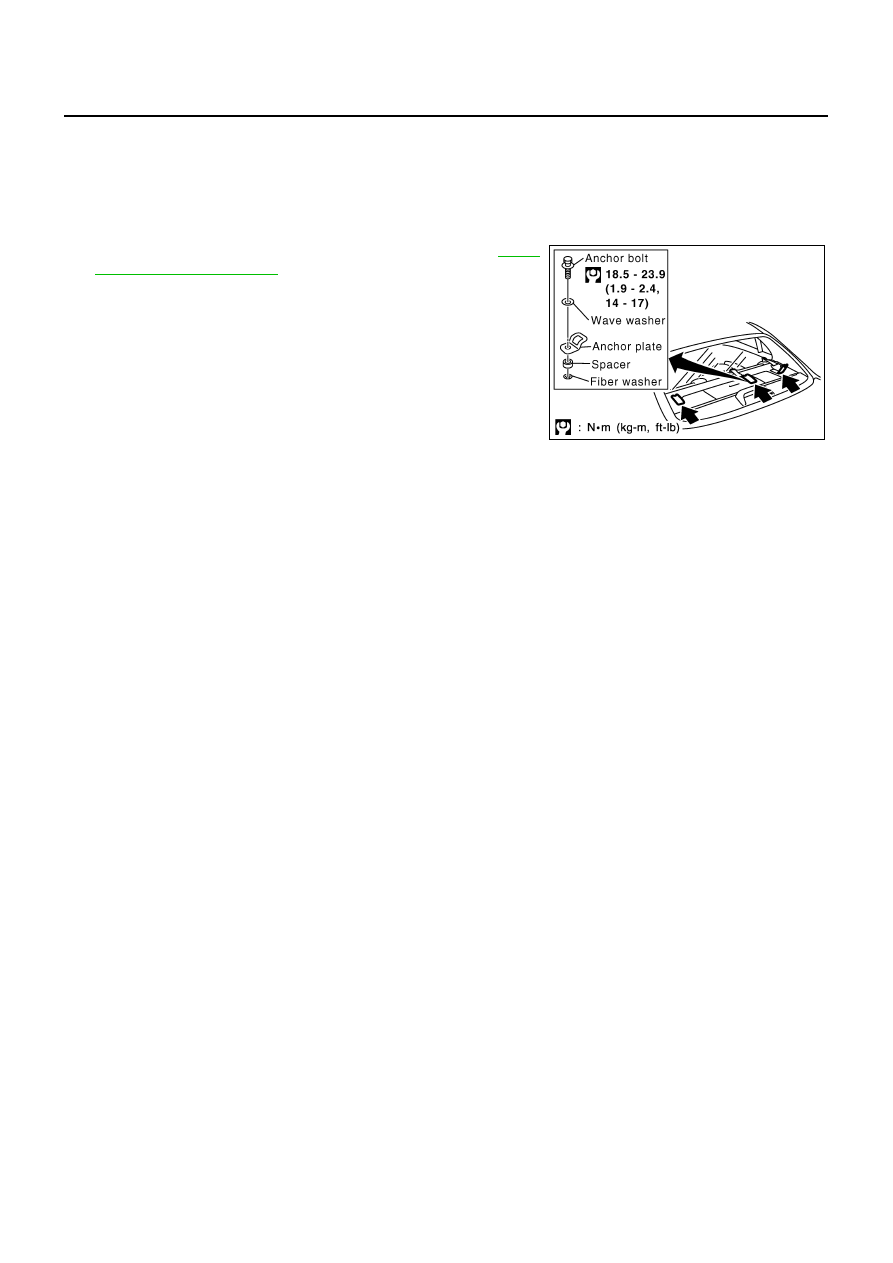

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

PFP:88000

Removal and Installation

NHS0003K

CAUTION:

Replace anchor bolts if they are deformed or worn out.

REMOVAL

1.

Remove the top tether strap child restraint cover. Refer to

EI-48,

"Removal and Installation"

 .

2.

Remove the top tether strap child restraint.

INSTALLATION

Install in the reverse order of removal.

SHIA0164E
