REAR FINAL DRIVE ASSEMBLY

RFD-25

C

E

F

G

H

I

J

K

L

M

A

B

RFD

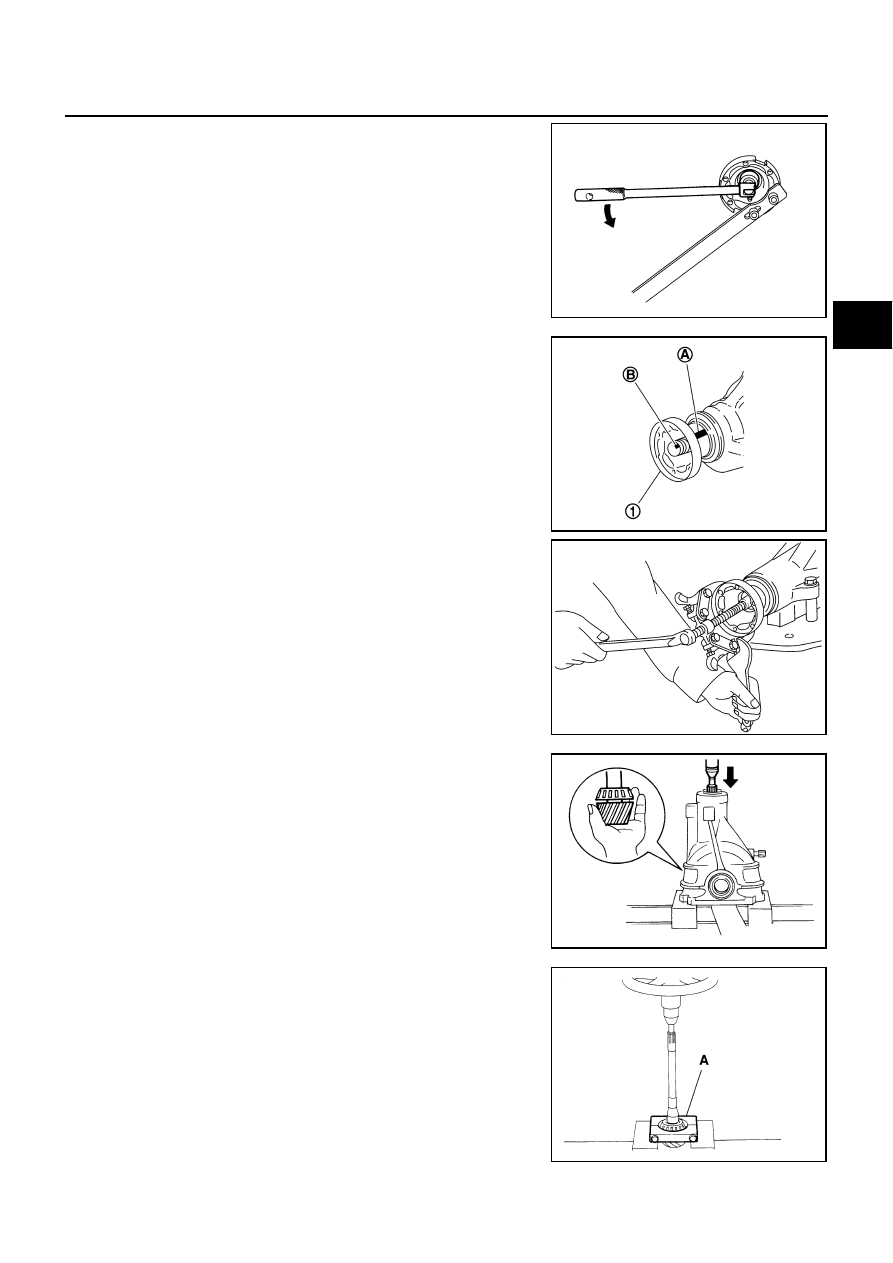

2.

Remove drive pinion lock nut with the flange wrench.

3.

Put matching mark (B) on the end of drive pinion. The matching
mark should be in line with the matching mark (A) on companion
flange (1).

CAUTION:

For matching mark, use paint. Do not damage companion
flange and drive pinion.

NOTE:
The matching mark (A) on the final drive companion flange (1)
indicates the maximum vertical runout position.
When replacing companion flange, matching mark is not neces-
sary.

4.

Remove companion flange using the suitable puller.

5.

Press drive pinion assembly out of gear carrier.

CAUTION:

Do not drop drive pinion assembly.

6.

Remove front oil seal.

7.

Remove side oil seal.

8.

Remove pinion front bearing inner race.

9.

Remove collapsible spacer.

10. Remove pinion rear bearing inner race and pinion height adjust-

ing washer with the replacer.

PDIA0837J

PDIA0750J

SDIA1129E

PDIA0760J

Tool number

A: ST30031000 (J-22912-01)

PDIA0801J

RFD-26

REAR FINAL DRIVE ASSEMBLY

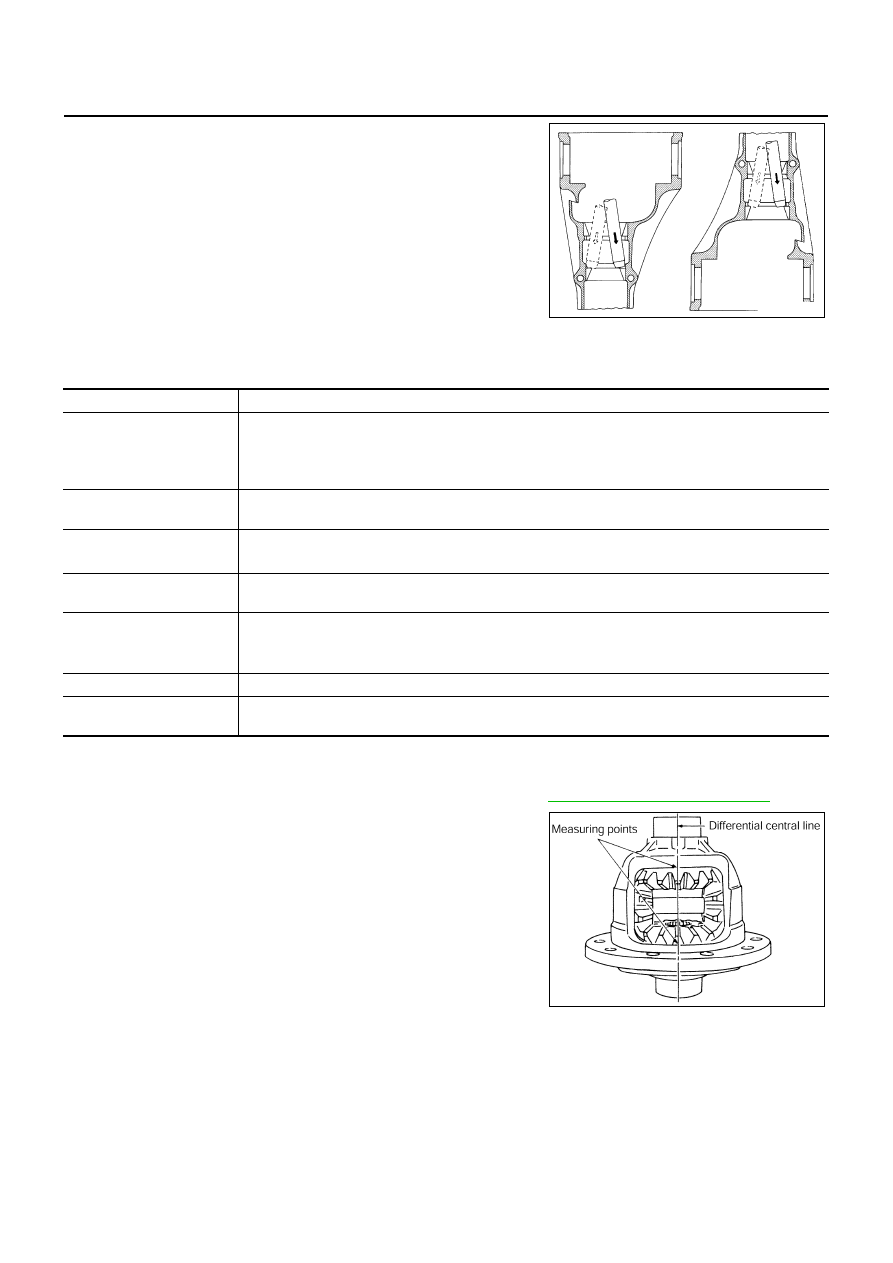

11. Tap pinion front/rear bearing outer races uniformly a brass rod or

equivalent to removed.

CAUTION:

Be careful not to damage gear carrier.

INSPECTION AFTER DISASSEMBLY

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.

ADJUSTMENT AND SELECTION OF ADJUSTING WASHERS
Differential Side Gear Clearance

Assemble the differential parts if they are disassembled. Refer to

RFD-33, "Differential Assembly"

  .

1.

Place differential case straight up so that side gear to be mea-
sured comes upward.

SDIA0817E

Content

Conditions and Measures

Hypoid gear

If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-
essary.

If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new
drive gear and drive pinion as a set.

Bearing

If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing
is observed, replace as a bearing assembly (as a new set).

Side gear and Pinion mate
gear

If any cracks or damage on the surface of the tooth is found, replace.

If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

Side gear thrust washer and
pinion mate thrust washer

If it is chipped (by friction), damaged, or unusually worn, replace.

Oil seal

Whenever disassembled, replace.

If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace
them.

Differential case

If any wear or crack on the contact sides of the differential case is found, replace.

Companion flange

If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the
companion flange is found, replace.

PDIA0460E

REAR FINAL DRIVE ASSEMBLY

RFD-27

C

E

F

G

H

I

J

K

L

M

A

B

RFD

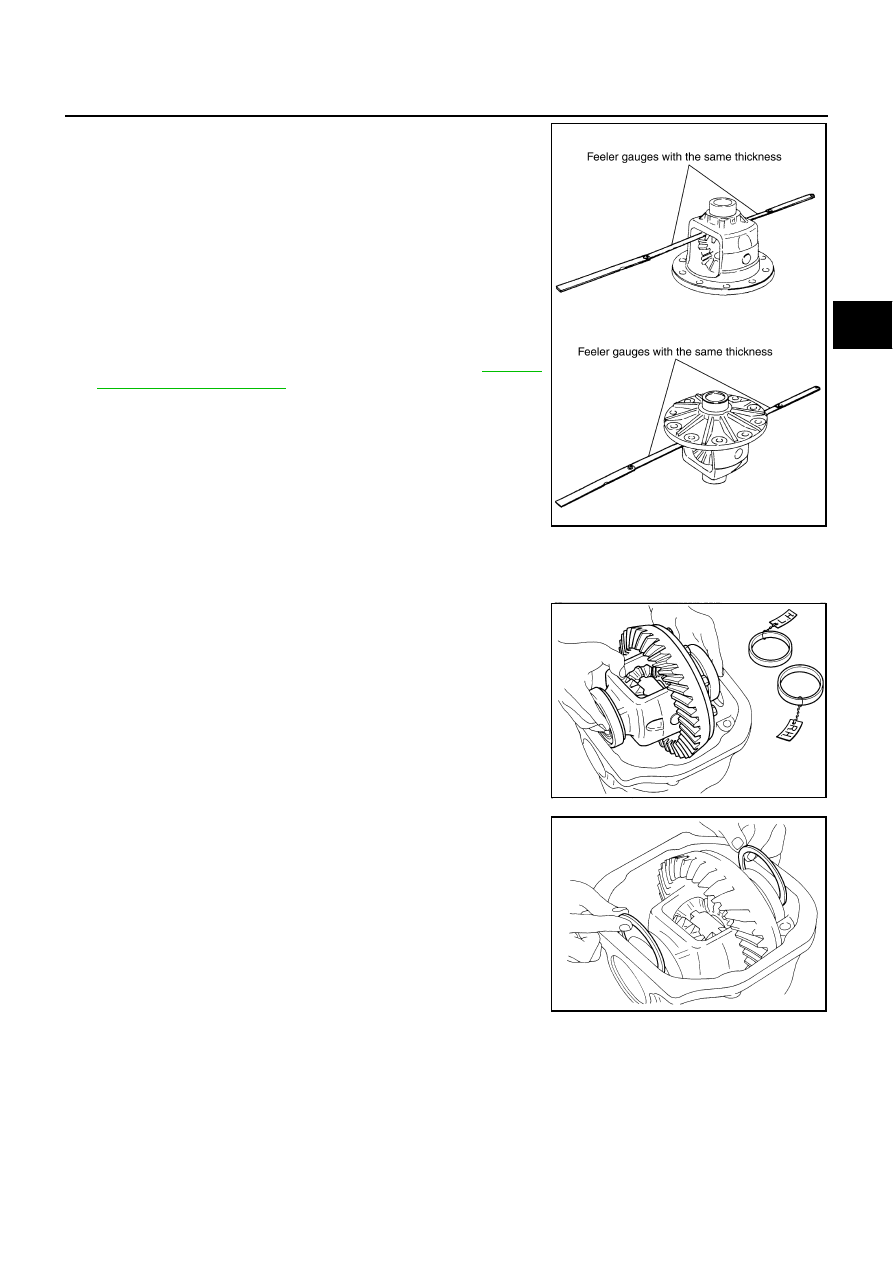

2.

Using feeler gauge, measure the clearance between side gear
back and differential case at 3 different points, while rotating
side gear. Average the 3 readings, and then measure the clear-
ance of the other side as well.

CAUTION:

To prevent side gear from tilting, insert feeler gauges with
the same thickness from both sides.

3.

If the back clearance is outside the specification, use a thicker/
thinner side gear thrust washer to adjust. Refer to

RFD-37,

"Side Gear Thrust Washer"

  .

CAUTION:

Select a side gear thrust washer for right and left individu-
ally.

Side Bearing Preload

Selecting carrier side bearing adjusting washers is required for successful completion of this procedure.

1.

Make sure all parts are clean. Also, make sure the bearings are
well lubricated with gear oil.

2.

Place the differential case, with side bearings and bearing races
installed, into gear carrier.

3.

Insert left and right original side bearing adjusting washers in
place between side bearings and gear carrier.

Side gear back clearance specification:

0.2 mm (0.008 in) or less.
(Each gear should rotate smoothly without excessive
resistance during differential motion.)

When the back clearance is large:

Use a thicker thrust washer.

When the back clearance is small:

Use a thinner thrust washer.

PDIA0576E

SPD527

SPD558

RFD-28

REAR FINAL DRIVE ASSEMBLY

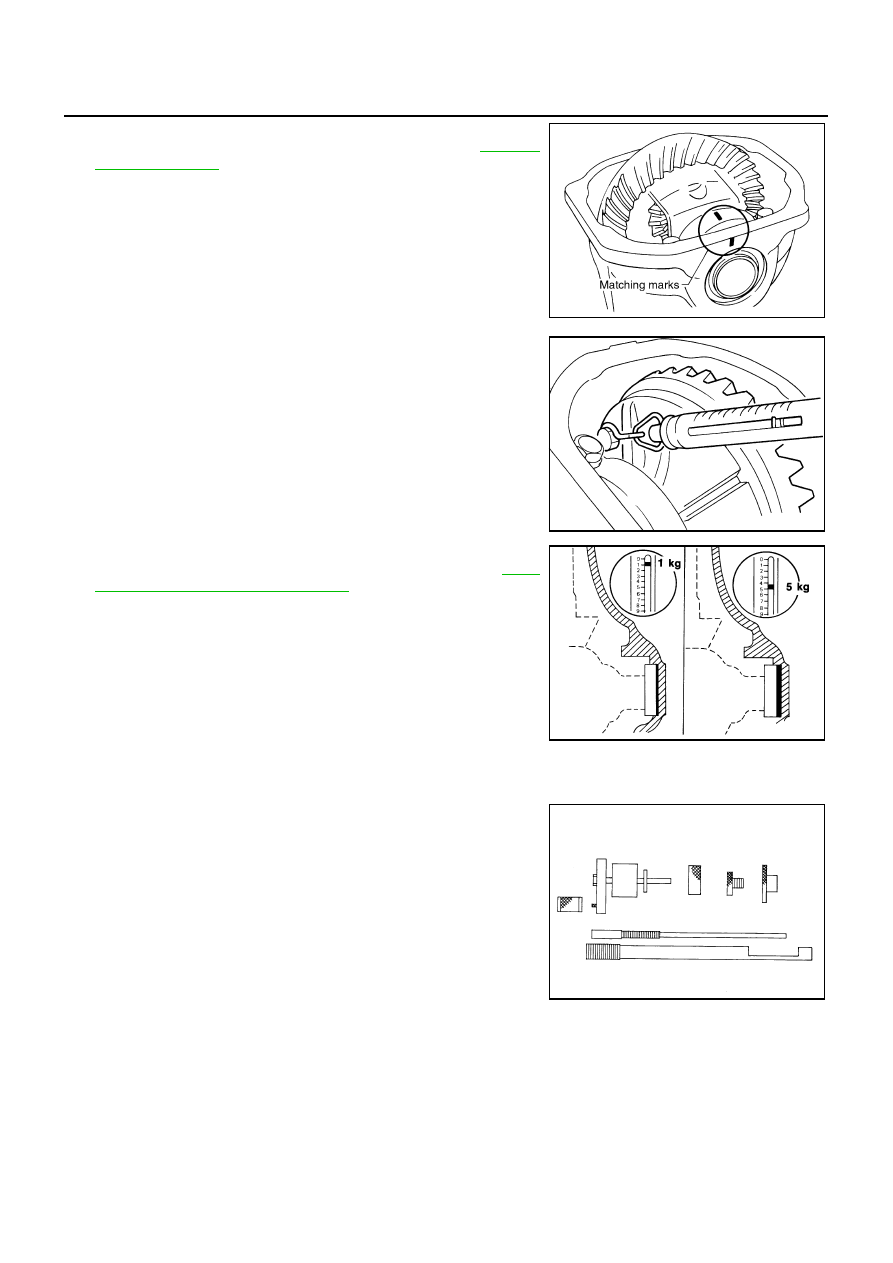

4.

Install bearing caps in their correct locations and tighten bearing
cap mounting bolts to the specified torque. Refer to

RFD-18,

"COMPONENTS"

  .

5.

Turn the carrier several times to seat the bearings.

6.

Measure the turning torque of the carrier at the drive gear
mounting bolts with a spring gauge.

7.

If the turning torque is outside the specification, use a thicker/
thinner side bearing adjusting washer to adjust. Refer to

RFD-

38, "Side Bearing Adjusting Washer"

  .

CAUTION:

Select a side bearing adjusting washer for right and left
individually.

8.

Record the total amount of washer thickness required for the correct carrier side bearing preload.

Pinion Gear Height

1.

Make sure all parts are clean and that the bearings are well
lubricated.

2.

Assemble the pinion gear bearings into the differential shim
selector tool.

SDIA1795E

Tool number

 (J-8129)

Specification:

34.2 - 39.2 N (3.5 - 4.0 kg, 7.7 - 8.8 lb) of pulling force at
the drive gear bolt

SPD194A

If the turning torque is less than the specified range:

Use a thicker thrust washer.

If the turning torque is greater than the specification:

Use a thinner thrust washer.

SPD772

Tool number

 (J-34309)

SPD769
