2.

Bring sunroof unit into passenger compartment and then place
the rear end of the rail onto the rear sunroof brackets.

3.

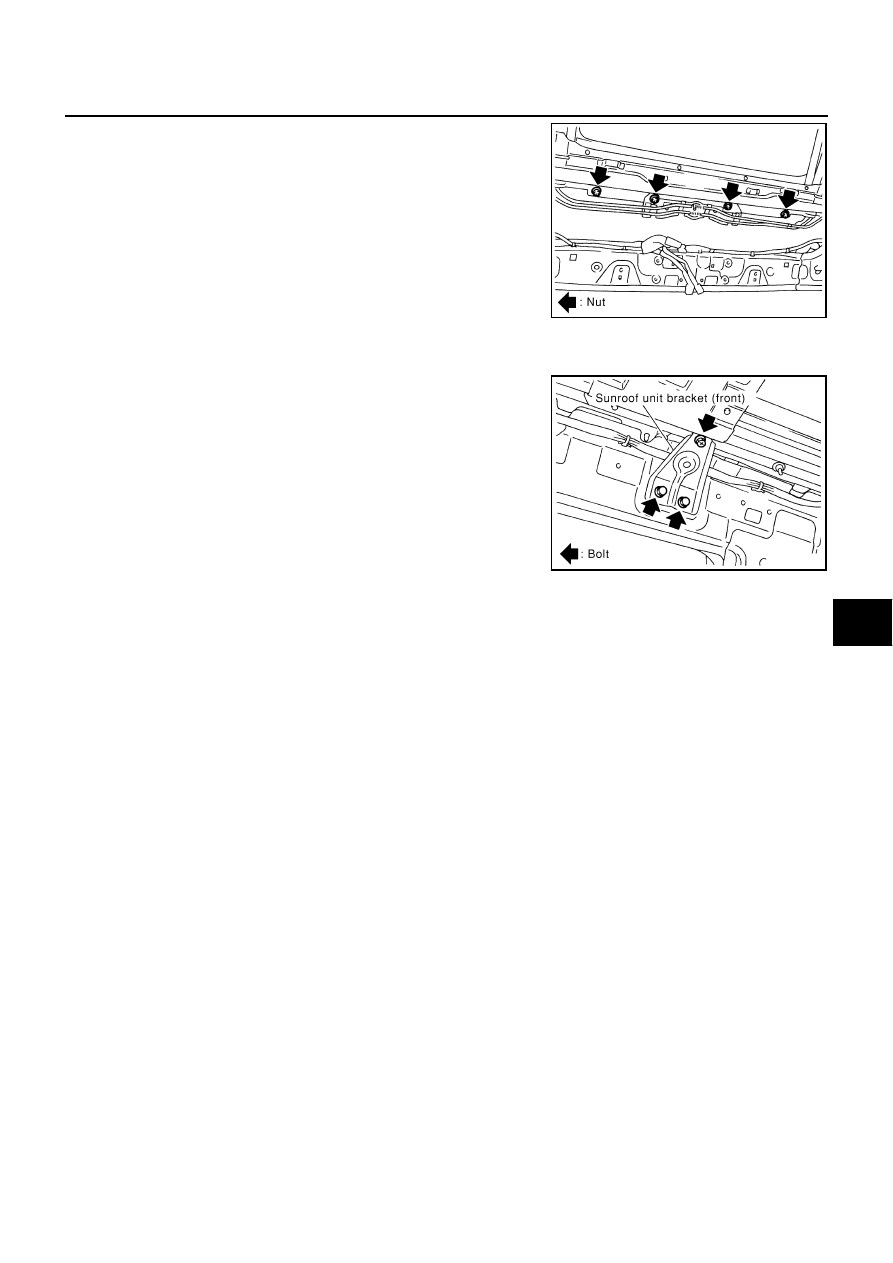

Temporarily tighten the mounting nuts to the front end of sunroof
unit.

4.

Tighten the installation points diagonally excluding the installation point of the sunroof bracket around the
roof opening.

5.

Tighten the front sunroof bracket bolts of the vehicle side, and
then tighten the bolt of the rail side.

6.

Tighten the rear sunroof bracket bolts of the vehicle side, and
then tighten the bolt of the rail side.

SIIA0269E

SIIA0272E

RF-26

SUNROOF

GLASS LID

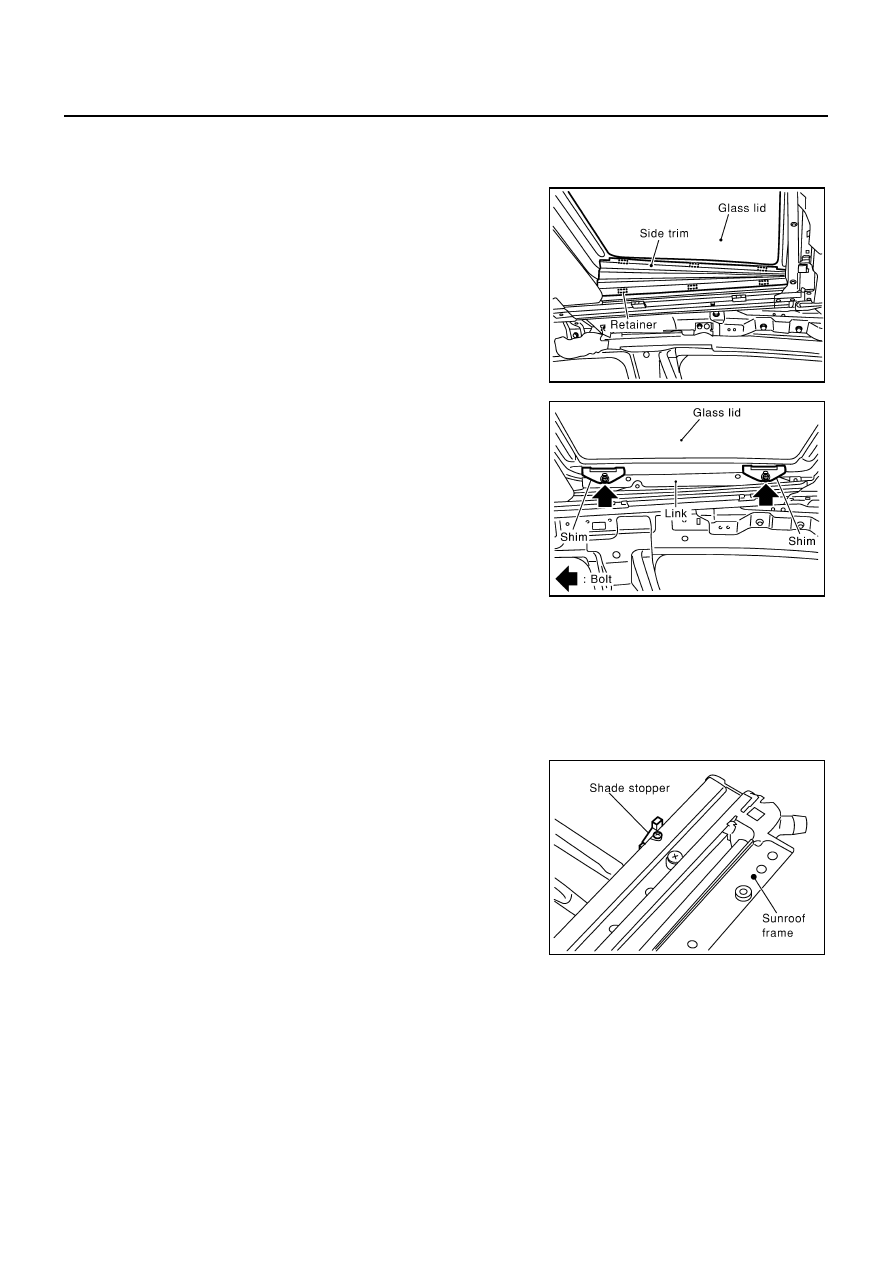

Removal

1.

Tilt up glass lid.

2.

Pull the side trim inside of the retainer and then remove side
trim.

3.

Check the number of shims between glass lid and link. Remove
mounting bolt and then remove glass lid.

Installation

1.

Tighten bolts diagonally on the glass lid.

2.

After installation, carry out fitting adjustment.

SUNSHADE
Removal

CAUTION:

Before removing or installing the sunshade, be sure to remove the sunroof unit from the vehicle.

1.

Remove sunshade stopper mounting screws from the rear end
of the sunroof frame and then remove sunshade stopper.

2.

Remove sunshade from the rear end of the sunroof frame.

Installation

Install in the reverse order of removal.

SIIA0267E

SIIA0281E

SIIA0282E

SUNROOF

RF-27

C

D

E

F

G

H

J

K

L

M

A

B

RF

WIND DEFLECTOR
Removal

1.

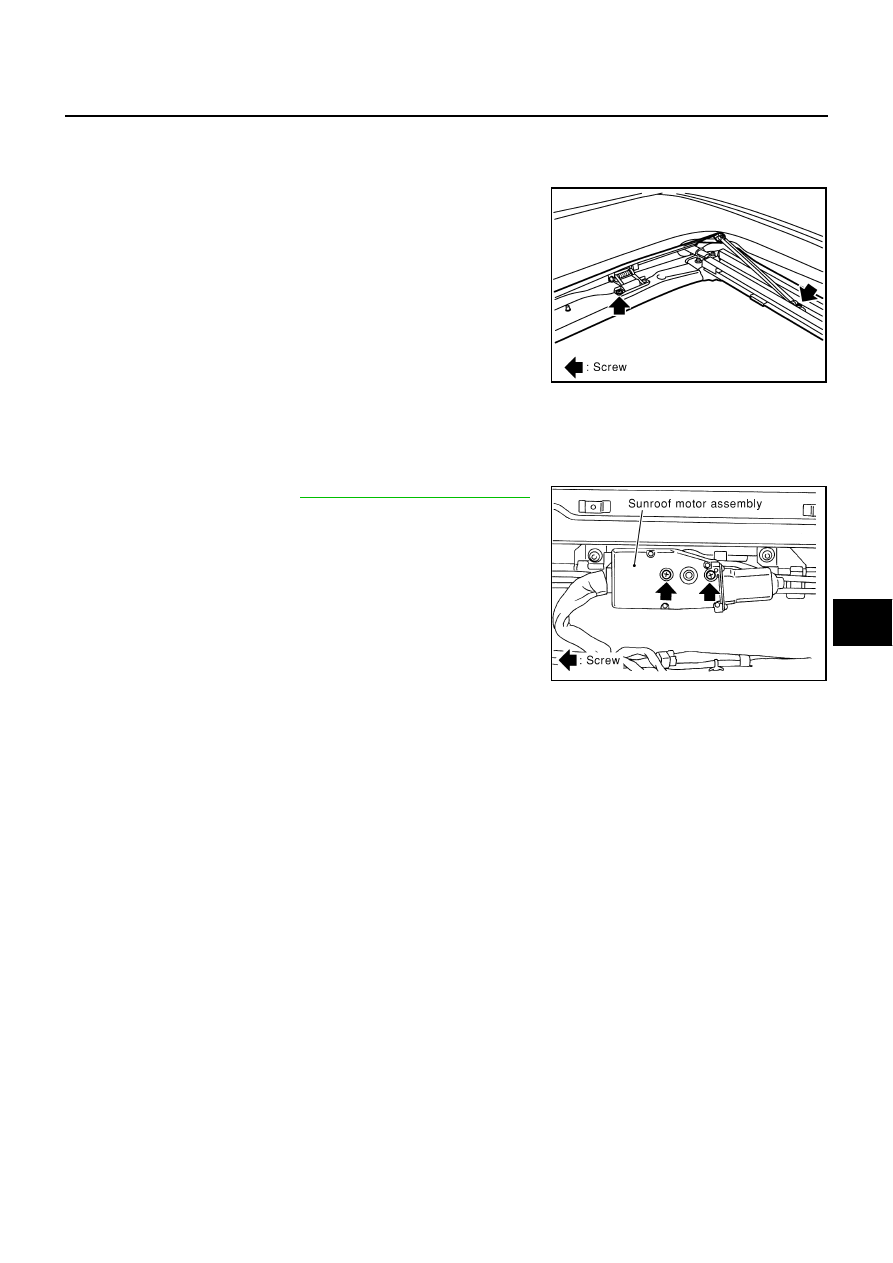

Remove deflector arm mounting screws.

2.

Remove spring hinge screws and then remove hinge from the
sunroof frame.

Installation

Install in the reverse order of removal.

SUNROOF MOTOR
Removal

1.

Remove headlining. Refer to

EI-58, "Removal and Installation"

 .

2.

Remove sunroof motor mounting screws.

3.

Disconnect harness connector from sunroof motor and then
remove sunroof motor.

CAUTION:

●

When removing the sunroof motor, be sure that the sun-
roof is in the fully open position.

●

Do not run the removed sunroof motor as a single unit.

Installation

Move the sunroof motor laterally little by little so that the gear is completely engaged into the wire on the sun-
roof unit and the mounting surface becomes parallel. Then secure the sunroof motor with screws.

CAUTION:

Before installing the sunroof motor, be sure to place the link and wire assembly in the symmetrical
and fully closed position.

SIIA0283E

SIIA0274E
