FUSE BLOCK - JUNCTION BOX (J/B) NO. 2

PG-71

C

D

E

F

G

H

I

J

L

M

A

B

PG

FUSE BLOCK - JUNCTION BOX (J/B) NO. 2

PFP:24350

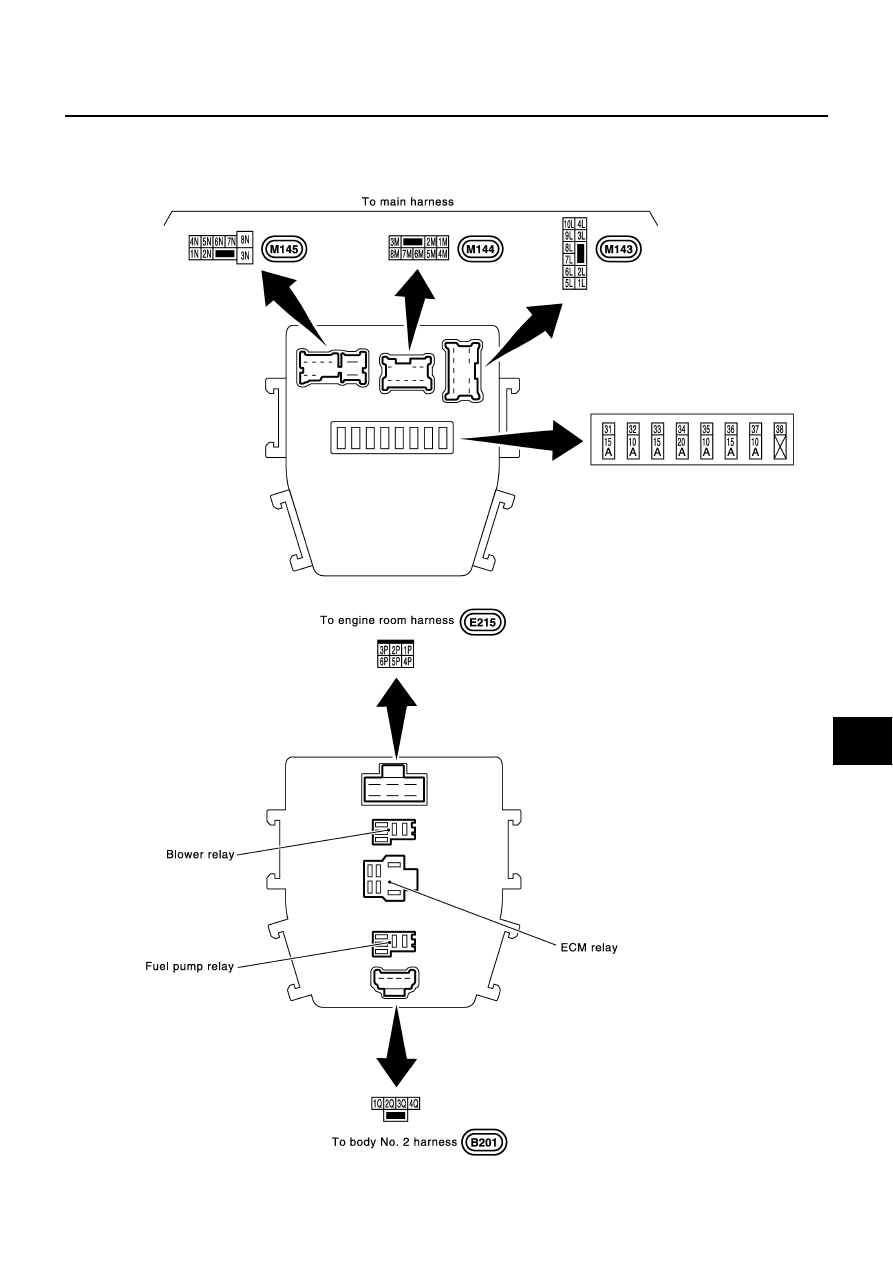

Terminal Arrangement

NKS001LX

CKIM0065E

PG-72

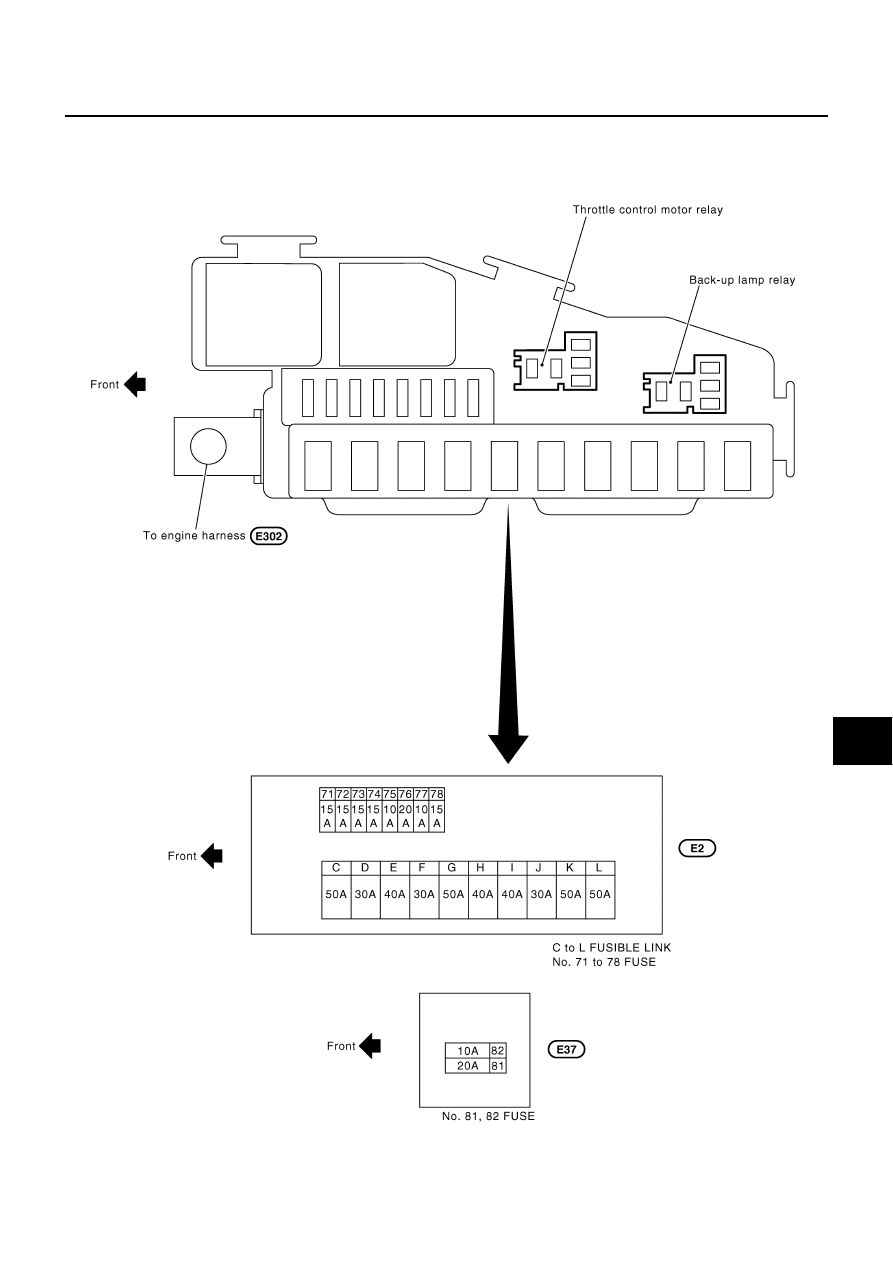

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B)

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B)

PFP:24382

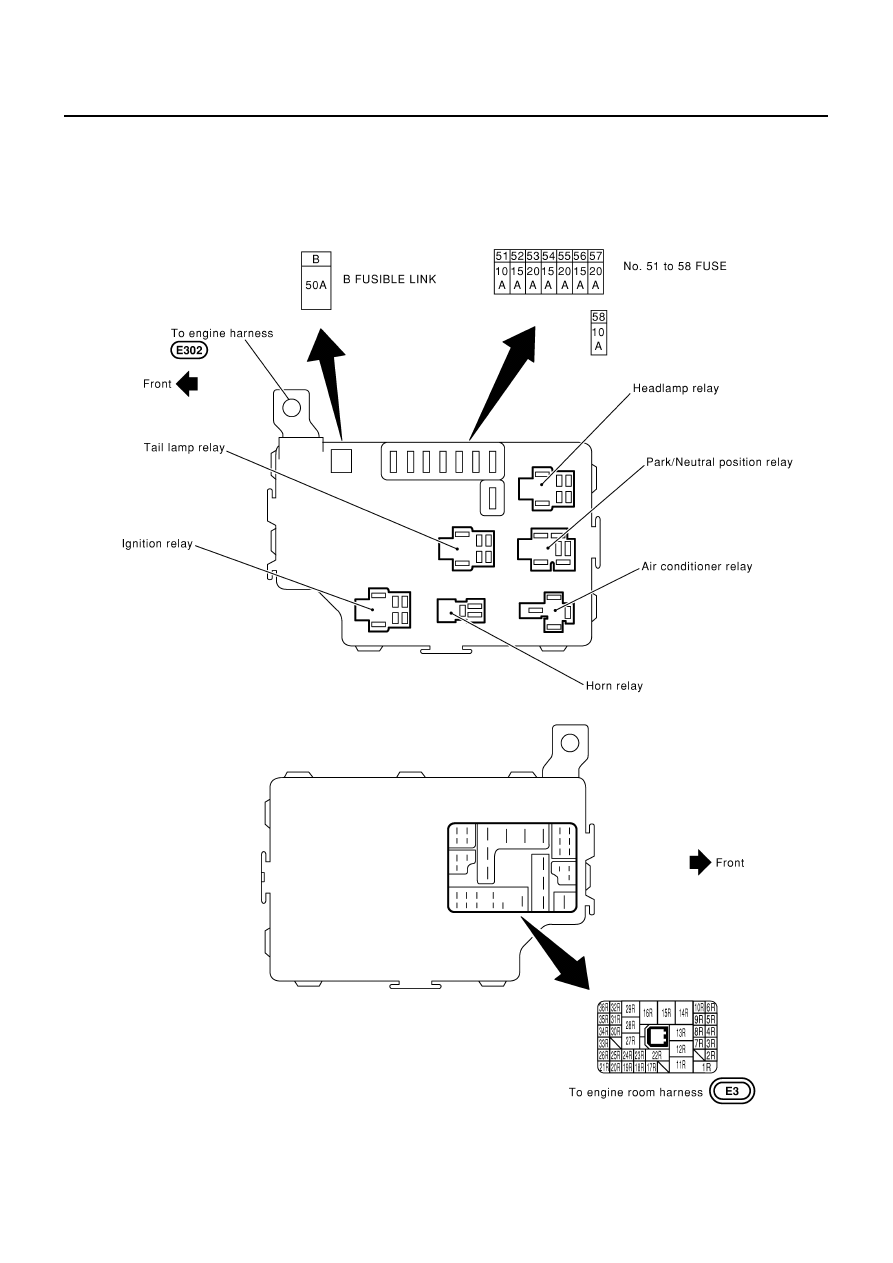

Terminal Arrangement

NKS001LY

CKIM0066E

FUSE, FUSIBLE LINK AND RELAY BOX

PG-73

C

D

E

F

G

H

I

J

L

M

A

B

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PFP:24382

Terminal Arrangement

NKS001LZ

CKIM0629E

PG-74

FUSE, FUSIBLE LINK AND RELAY BOX
