PG-68

STANDARDIZED RELAY

STANDARDIZED RELAY

PFP:00011

Description

NKS001LV

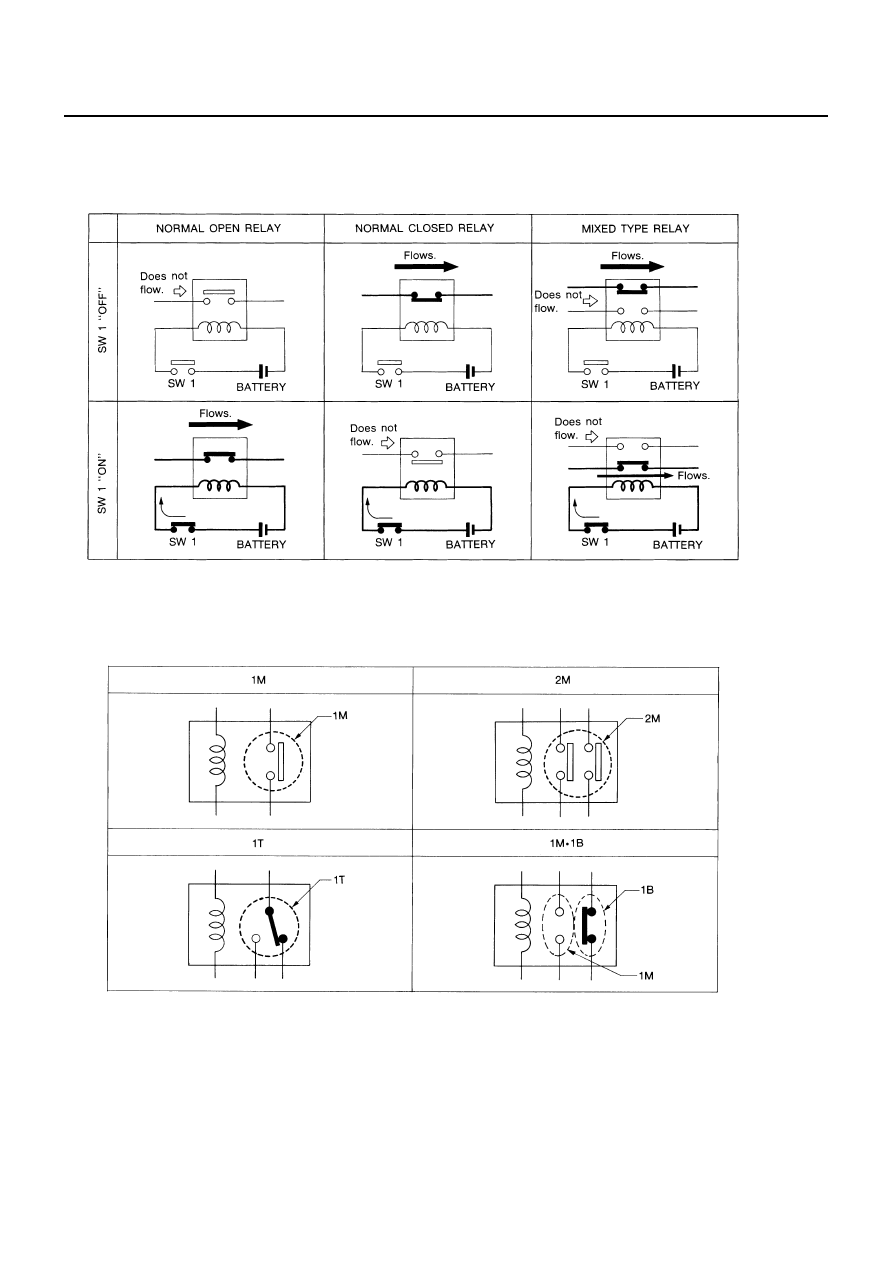

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

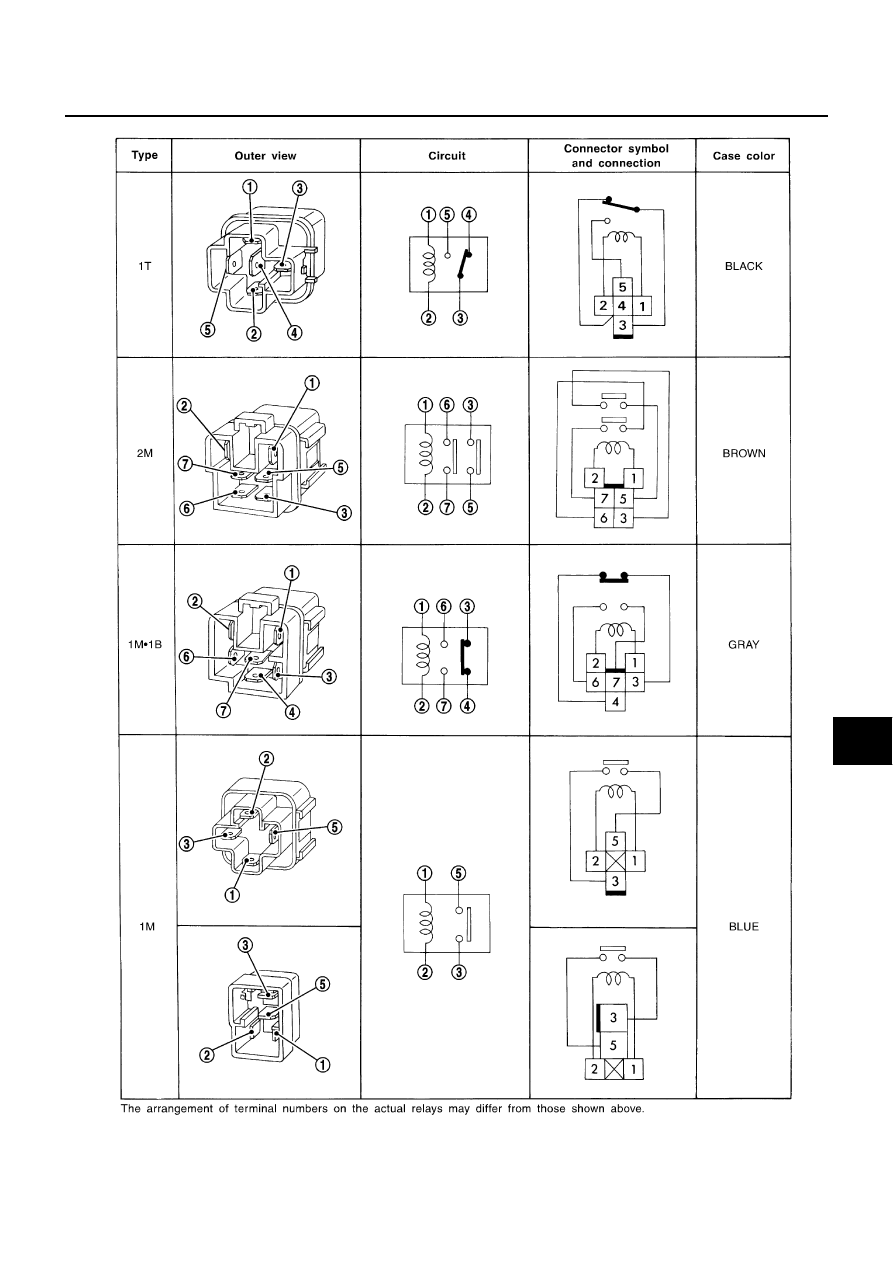

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H

STANDARDIZED RELAY

PG-69

C

D

E

F

G

H

I

J

L

M

A

B

PG

SEL188W

PG-70

FUSE BLOCK - JUNCTION BOX (J/B) NO. 1

FUSE BLOCK - JUNCTION BOX (J/B) NO. 1

PFP:24350

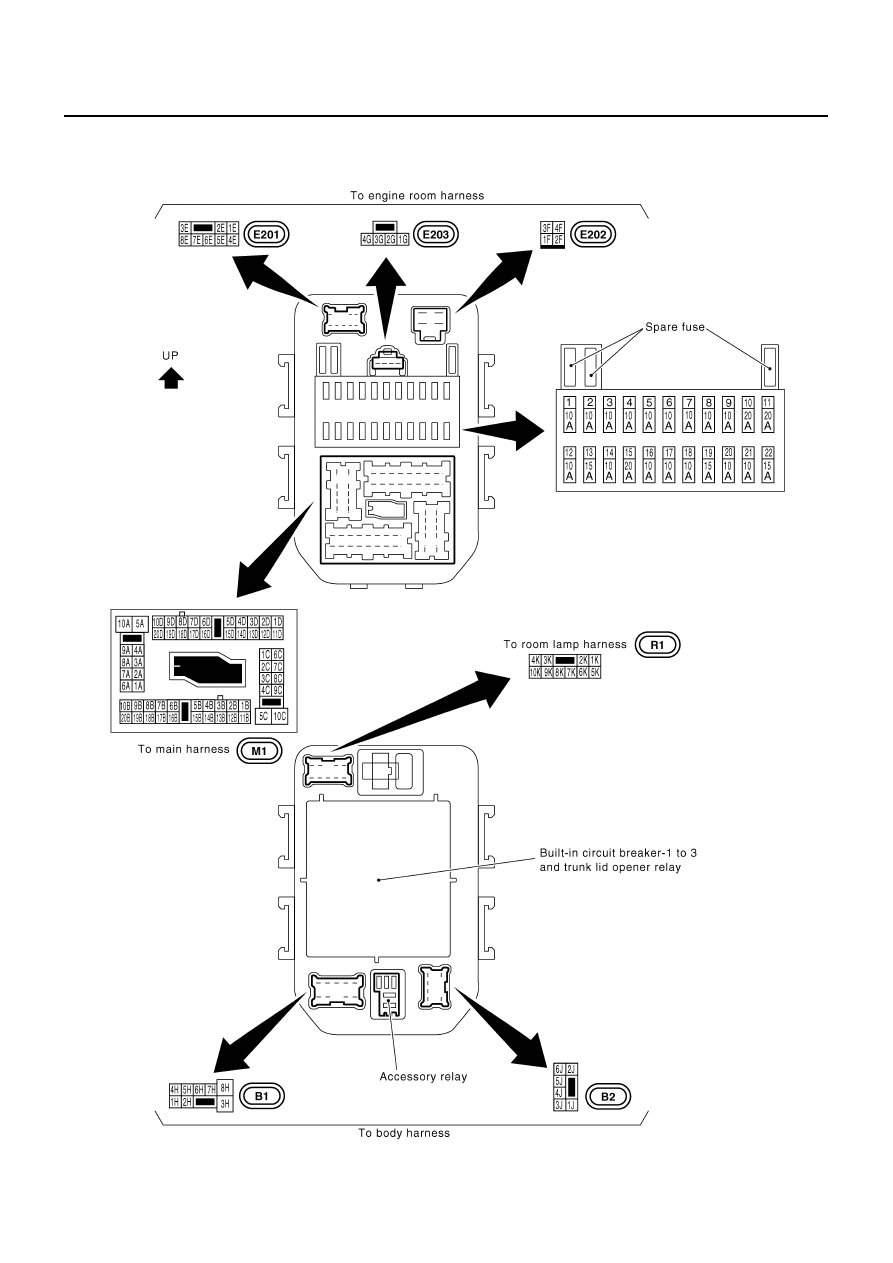

Terminal Arrangement

NKS001LW

CKIM0343E
