ELECTRICAL UNITS

PG-63

C

D

E

F

G

H

I

J

L

M

A

B

PG

ELECTRICAL UNITS

PFP:23710

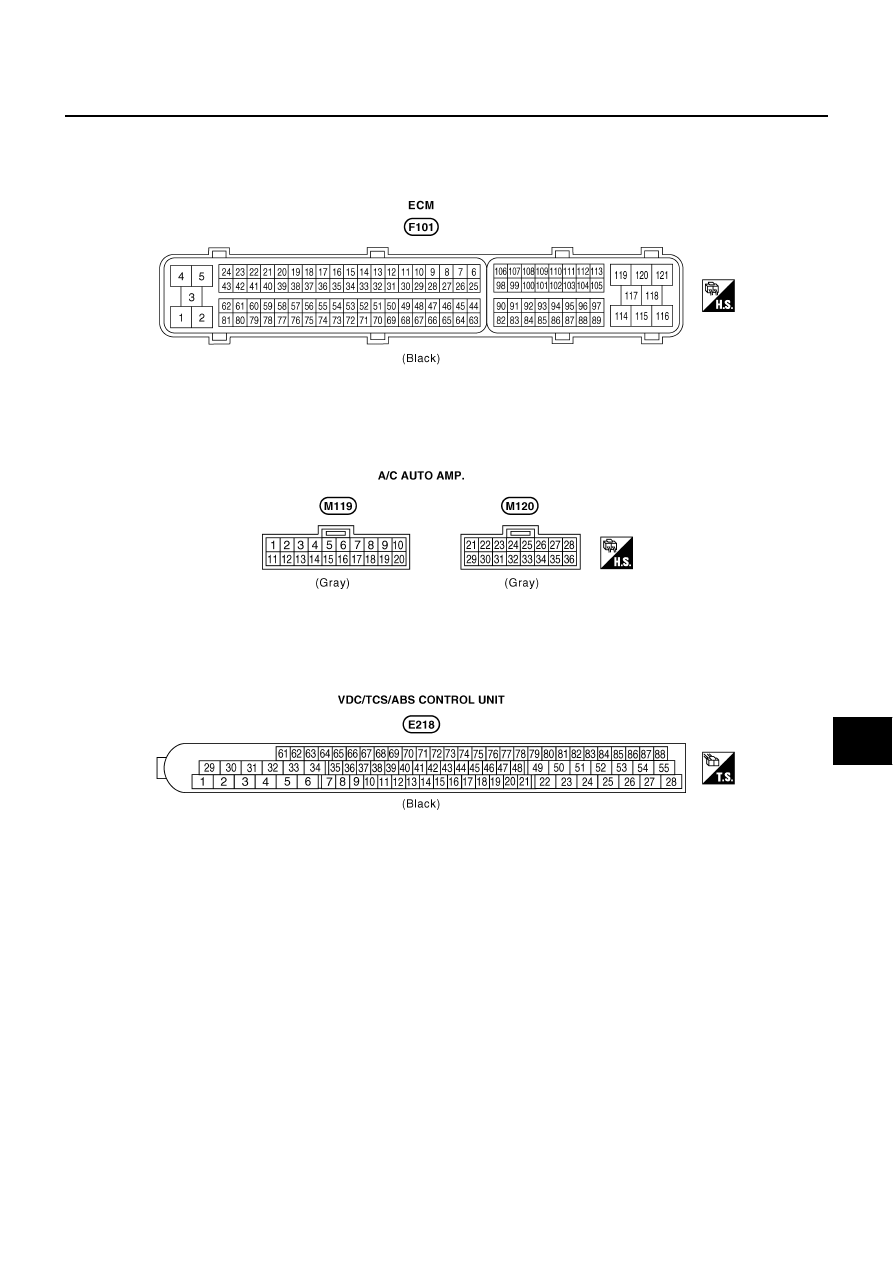

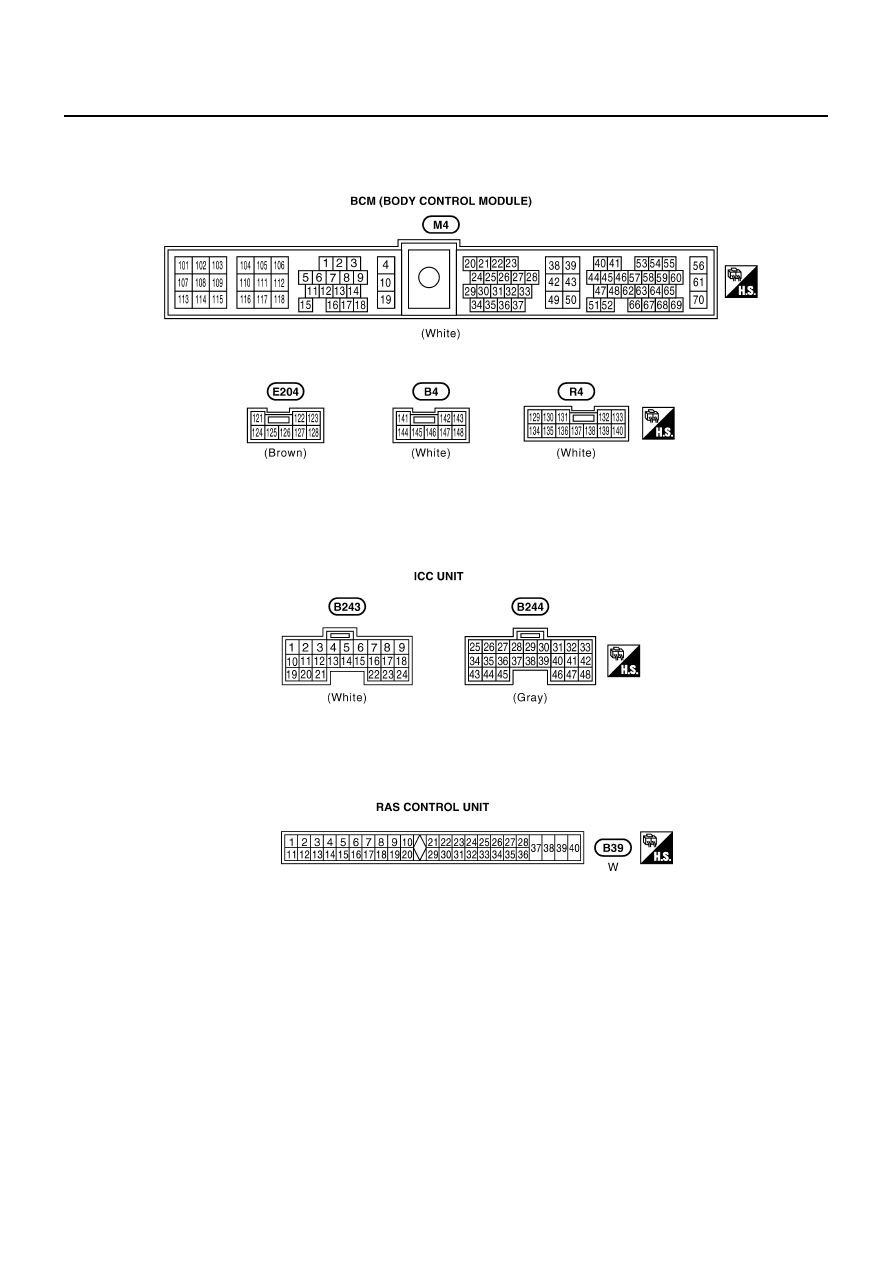

Terminal Arrangement

NKS001LT

CKIM0341E

PG-64

ELECTRICAL UNITS

CKIM0628E

SMJ (SUPER MULTIPLE JUNCTION)

PG-65

C

D

E

F

G

H

I

J

L

M

A

B

PG

SMJ (SUPER MULTIPLE JUNCTION)

PFP:B4341

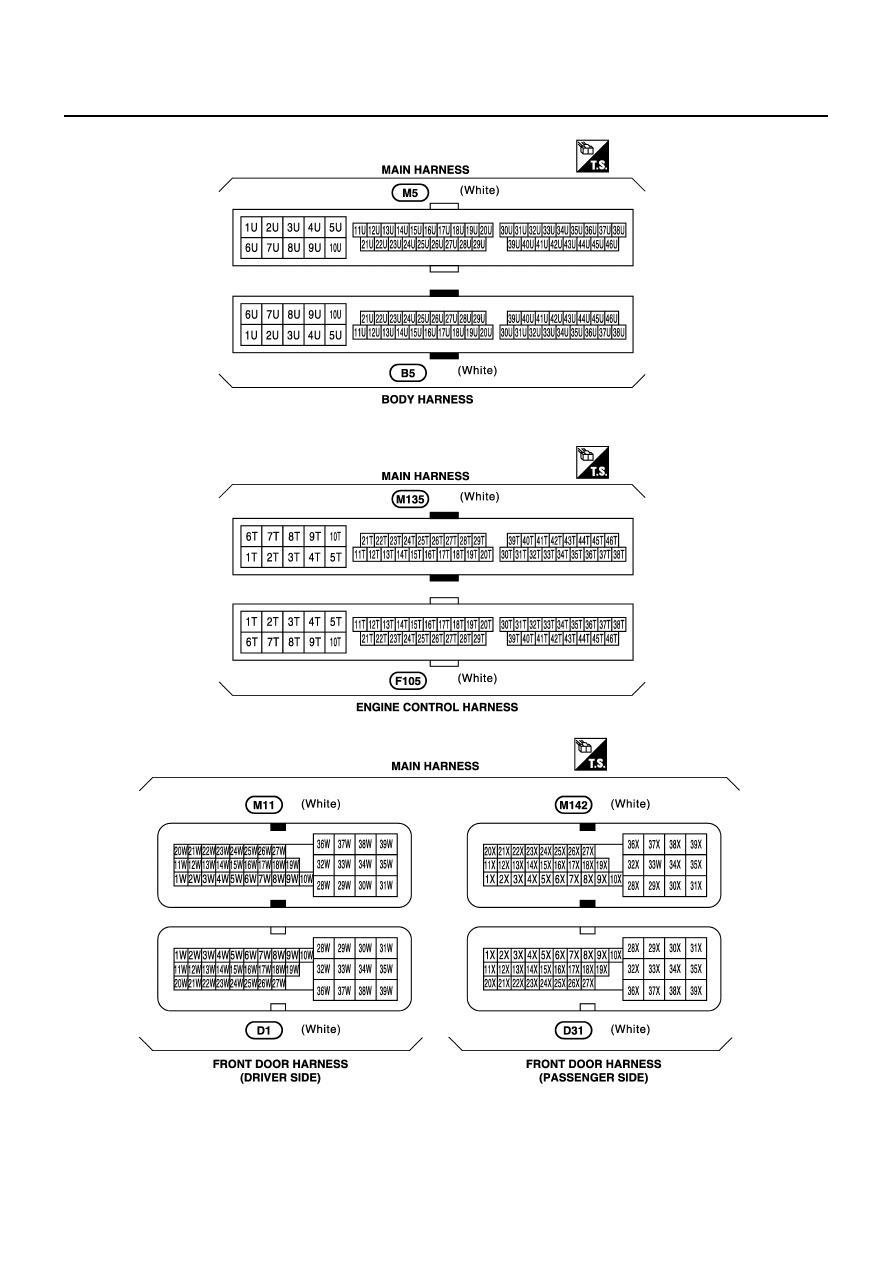

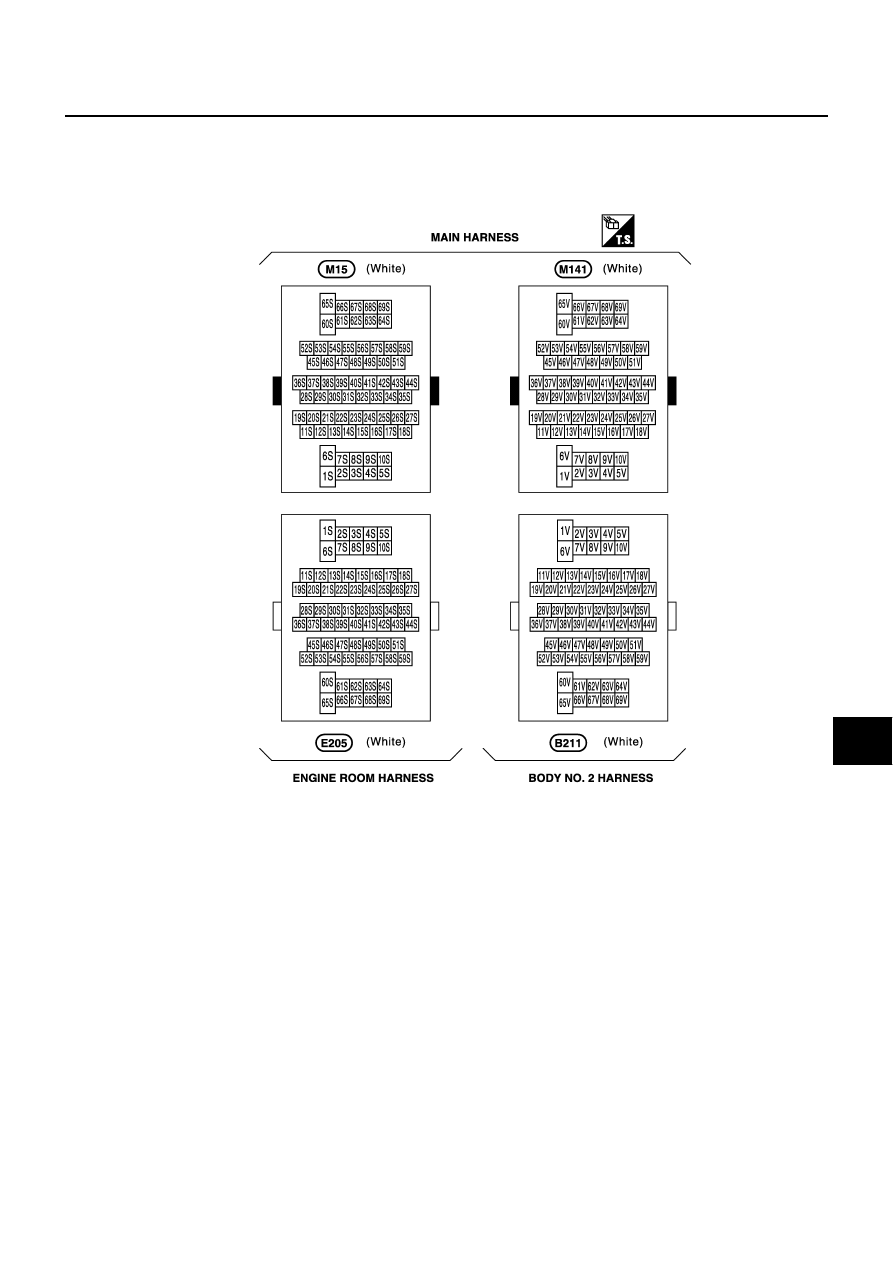

Terminal Arrangement

NKS001LU

CKIM0061E

PG-66

SMJ (SUPER MULTIPLE JUNCTION)

CKIM0062E
