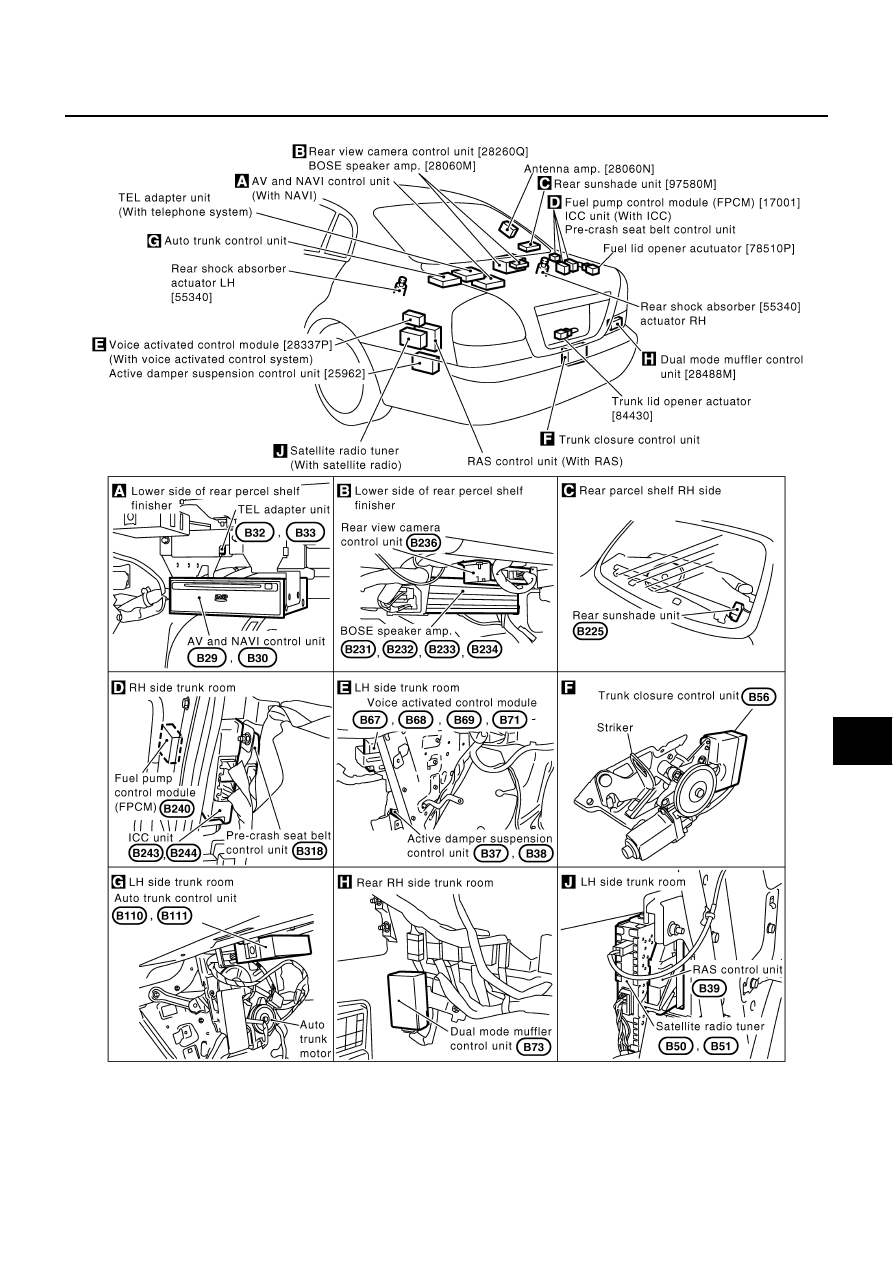

ELECTRICAL UNITS LOCATION

PG-59

C

D

E

F

G

H

I

J

L

M

A

B

PG

LUGGAGE COMPARTMENT

CKIM0626E

PG-60

HARNESS CONNECTOR

HARNESS CONNECTOR

PFP:00011

Description

NKS001LS

HARNESS CONNECTOR (TAB-LOCKING TYPE)

●

The tab-locking type connectors help prevent accidental looseness or disconnection.

●

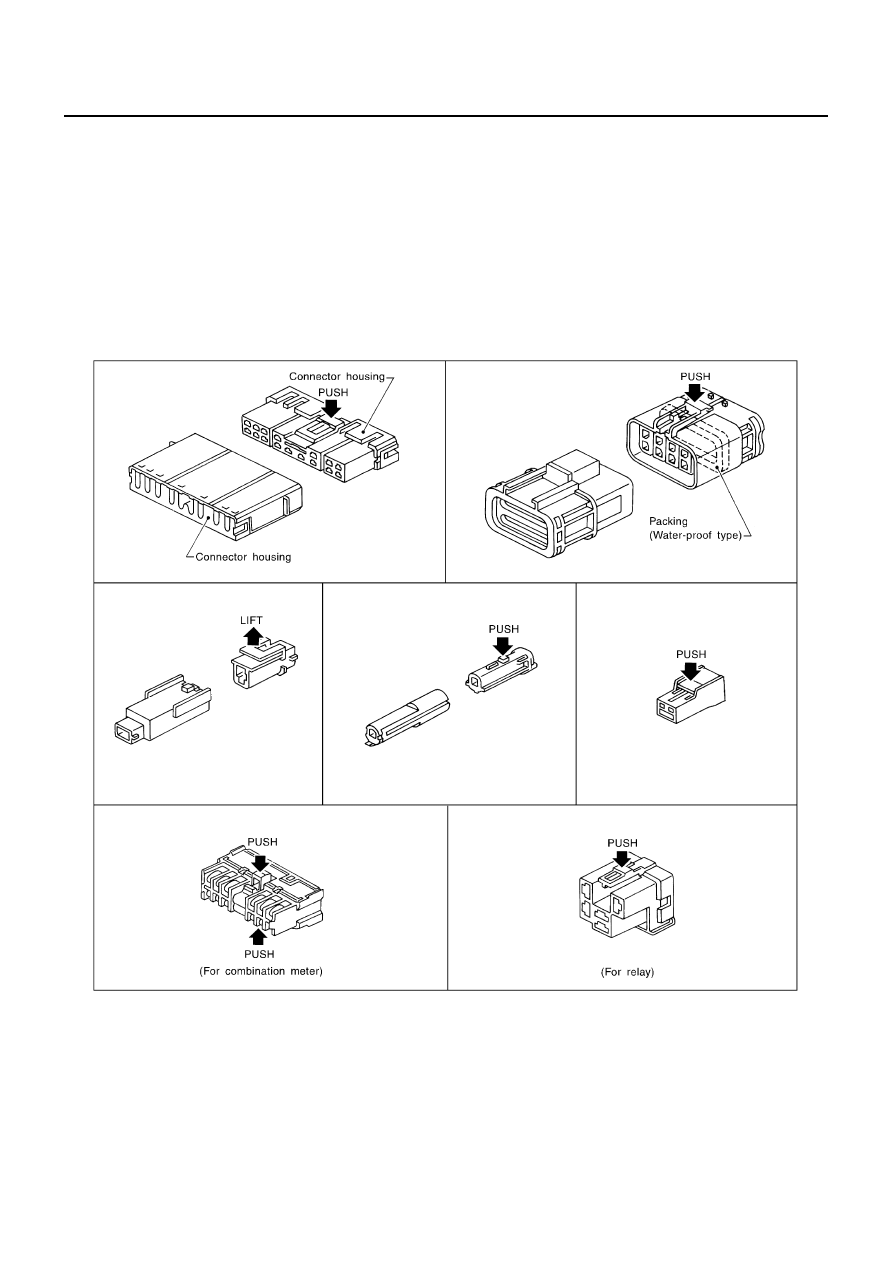

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the fig-
ure below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Never pull the harness or wires when disconnecting the connector.

[Example]

SEL769DA

HARNESS CONNECTOR

PG-61

C

D

E

F

G

H

I

J

L

M

A

B

PG

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

●

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

●

The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.

●

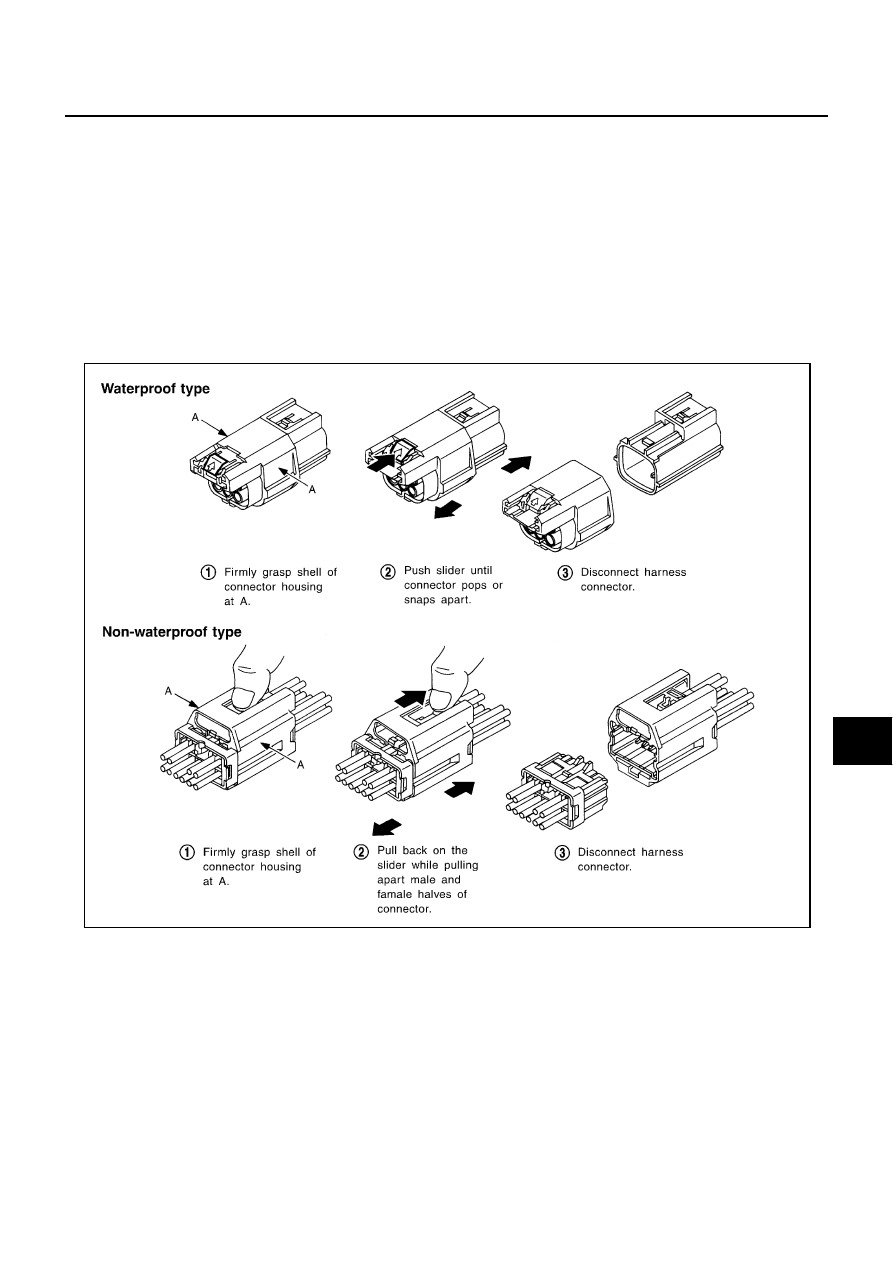

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure
below.

CAUTION:

●

Never pull the harness or wires when disconnecting the connector.

●

Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

SEL769V

PG-62

HARNESS CONNECTOR

HARNESS CONNECTOR (LEVER LOCKING TYPE)

●

Lever locking type harness connectors are used on certain control units and control modules such as
ECM, ABS actuator and electric unit (control unit), etc.

●

Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.

●

Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full con-
nection.

CAUTION:

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.

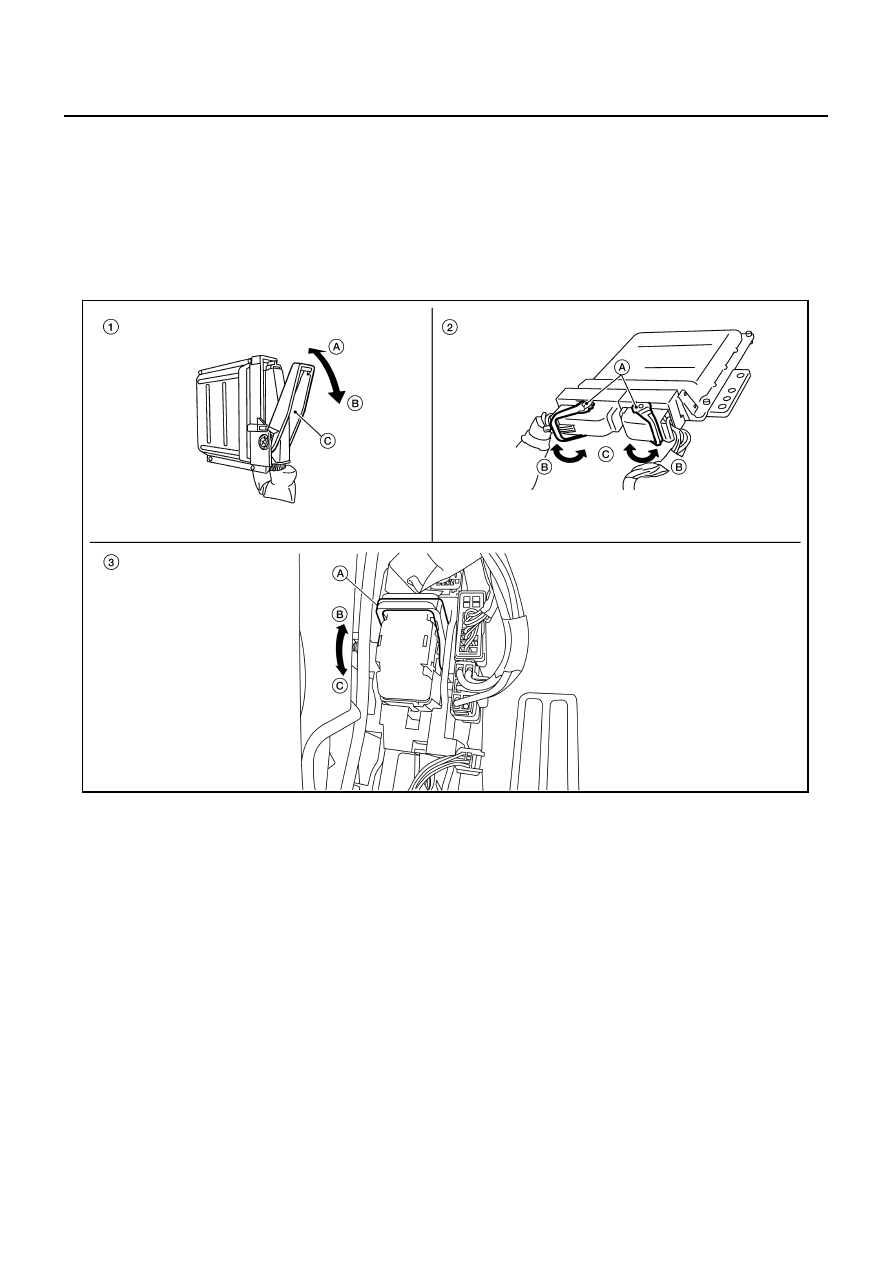

LKIA0670E

1.

Control unit with single lever
A. Fasten
B. Loosen
C. Lever

2.

Control unit with dual levers
A. Levers
B. Fasten
C. Loosen

3.

SMJ connector
A. Lever
B. Fasten
C. Loosen
