POWER SUPPLY ROUTING

PG-7

C

D

E

F

G

H

I

J

L

M

A

B

PG

TKWM3846E

PG-8

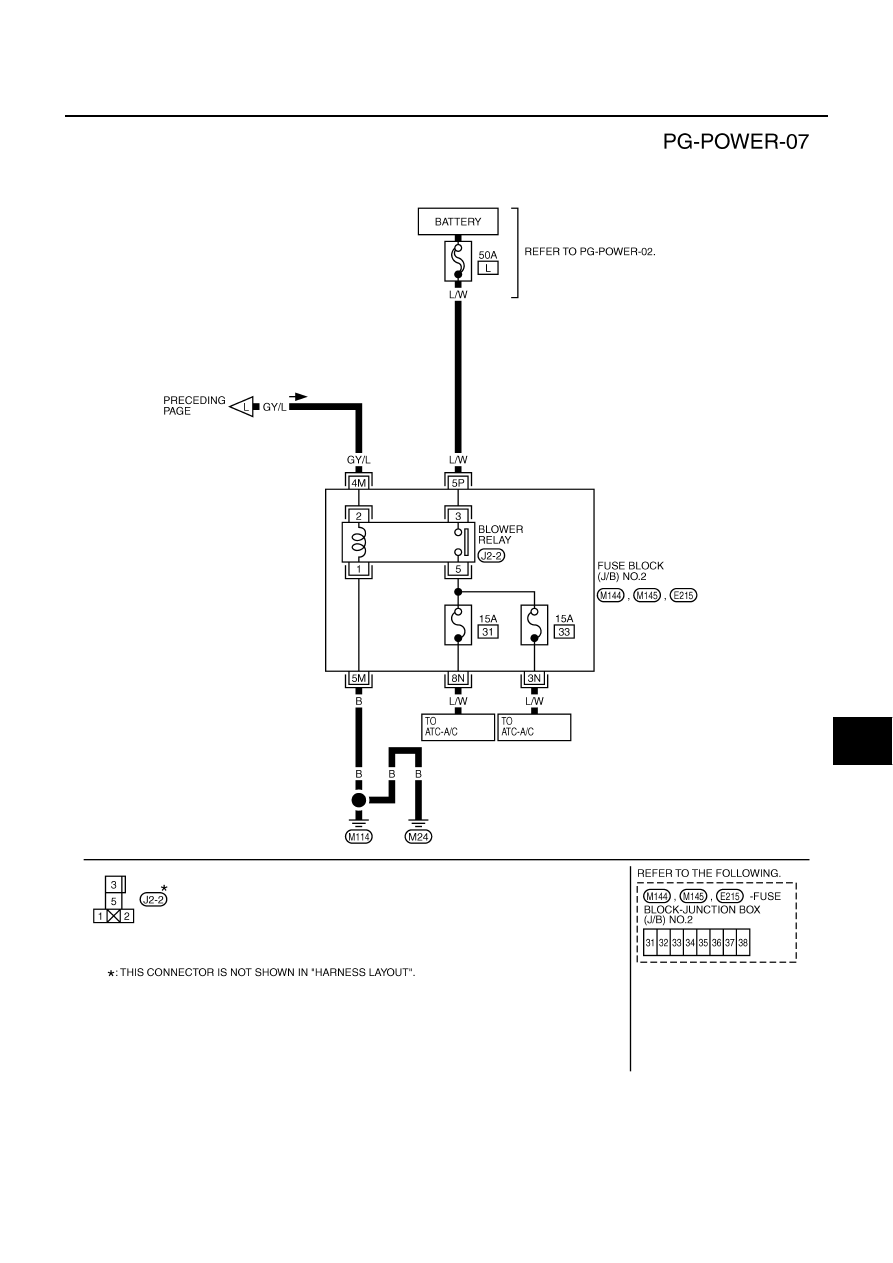

POWER SUPPLY ROUTING

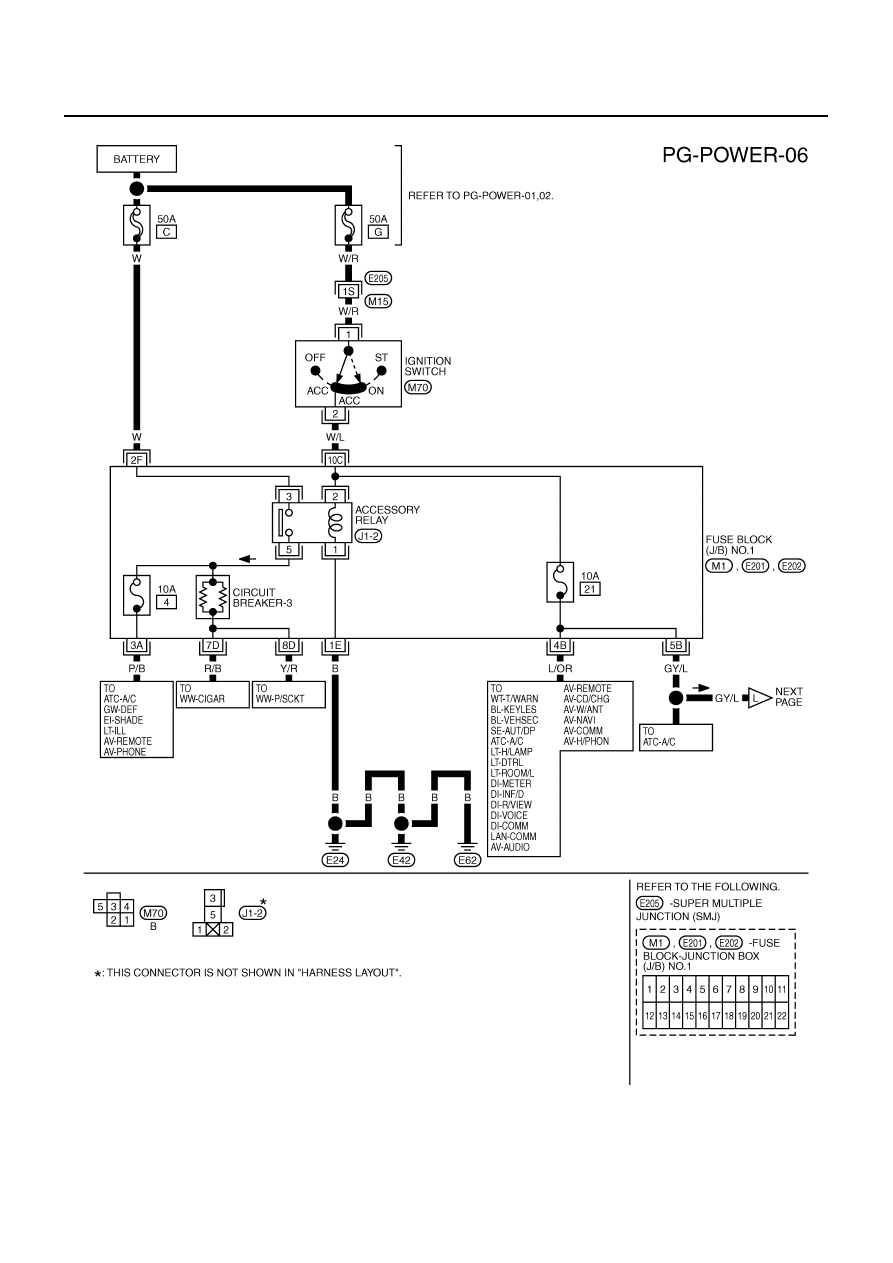

ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON”

TKWM3847E

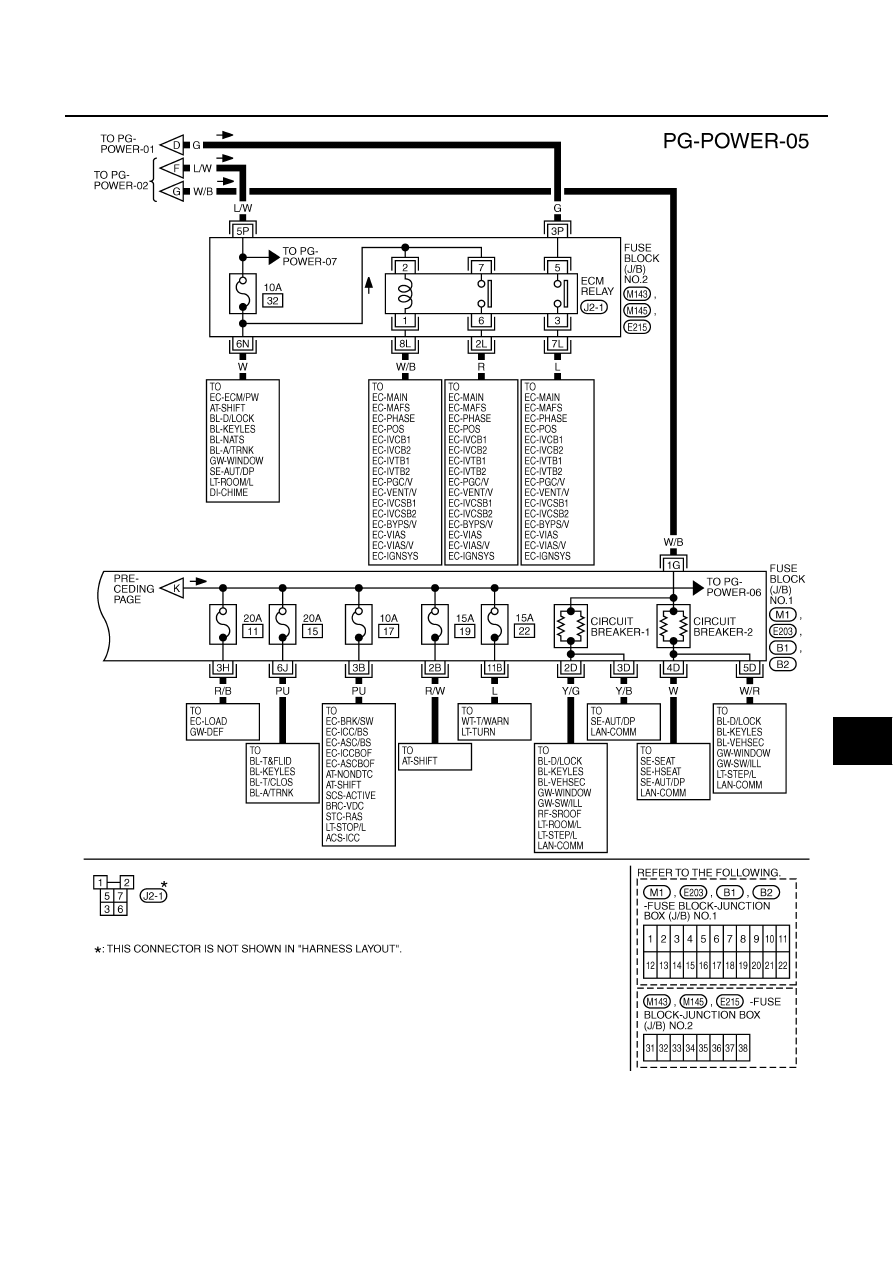

POWER SUPPLY ROUTING

PG-9

C

D

E

F

G

H

I

J

L

M

A

B

PG

TKWM1449E

PG-10

POWER SUPPLY ROUTING

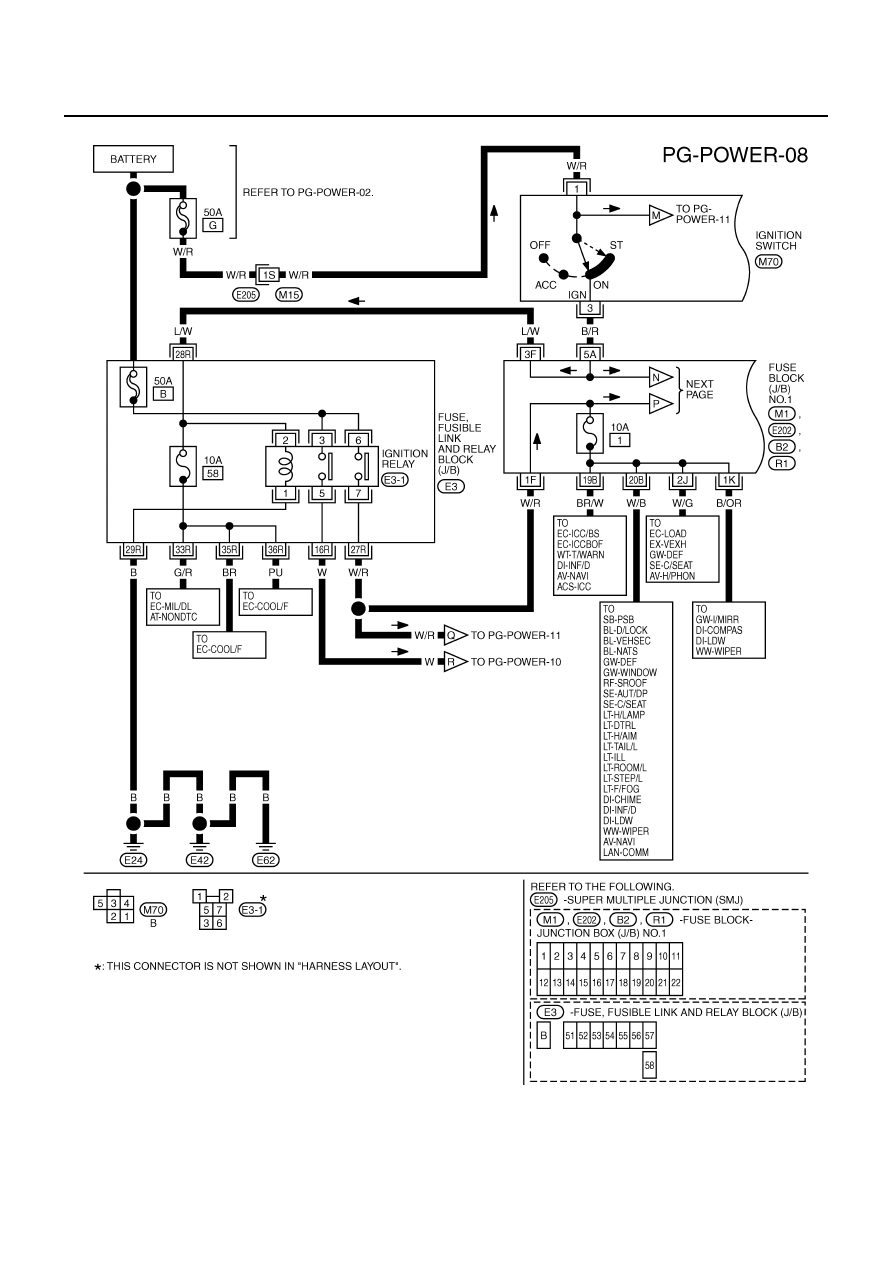

IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START”

TKWM3848E
