Infiniti Q45. Manual - part 695





INTERIOR ROOM LAMP

LT-117

C

D

E

F

G

H

I

J

L

M

A

B

LT

INTERIOR ROOM LAMP

PFP:26410

System Description

NKS0019P

OUTLINE

Controls on/off and afterglow time of the map lamp (front personal light), personal lamp (rear personal light),
and ignition key hole illumination.

TIMER FUNCTION

Controls the illumination duration of the lamps and illuminations according to the signals from the door unlock
sensor, front door switch (driver side), ignition switch, and key switch.

The timer operates for approx. 30 seconds.

The timer will be actuated or cancelled by the signals from the following switches.

If a new timer actuation signal is input while the timer is operating, the later input will have priority.

If any lamp switch is operated and a separate actuation signal is input while the timer is operating, the
lamp operation will be prioritized. However, the timer operation will not be renewed or cancelled.

SKIA3770E

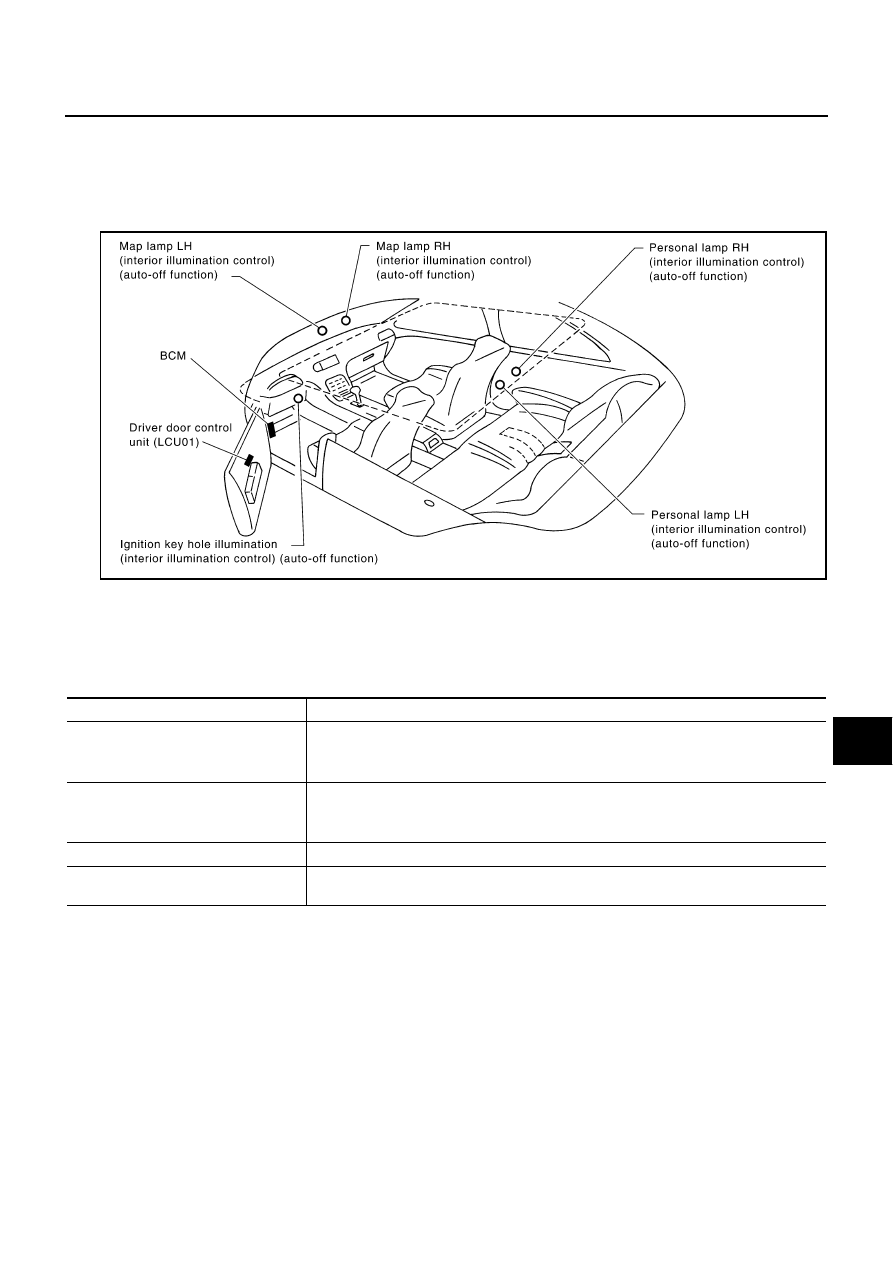

Components

Operation

Front door lock actuator (driver side)
(Door unlock sensor)

Timer will be actuated by input of the switch ON (door unlocked) signal when the driver
door switch is OFF (door closed) and the key-in detection switch is OFF (key withdrawn).

Timer will be cancelled by input of the switch OFF (door locked) signal.

Front door switch (driver side)

Timer will be cancelled by input of the switch ON (door open) signal.

Timer will be actuated by input of the switch ON

OFF (door open

closed) signal when

the key-in detection switch is OFF.

Ignition switch

Timer will be cancelled by input of the switch ACC or ON signal.

Key switch and key lock solenoid
(Key switch)

Timer will be actuated by input of the switch ON

OFF (key inserted

withdrawn) signal

when the driver door switch is OFF (door closed).

LT-118

INTERIOR ROOM LAMP

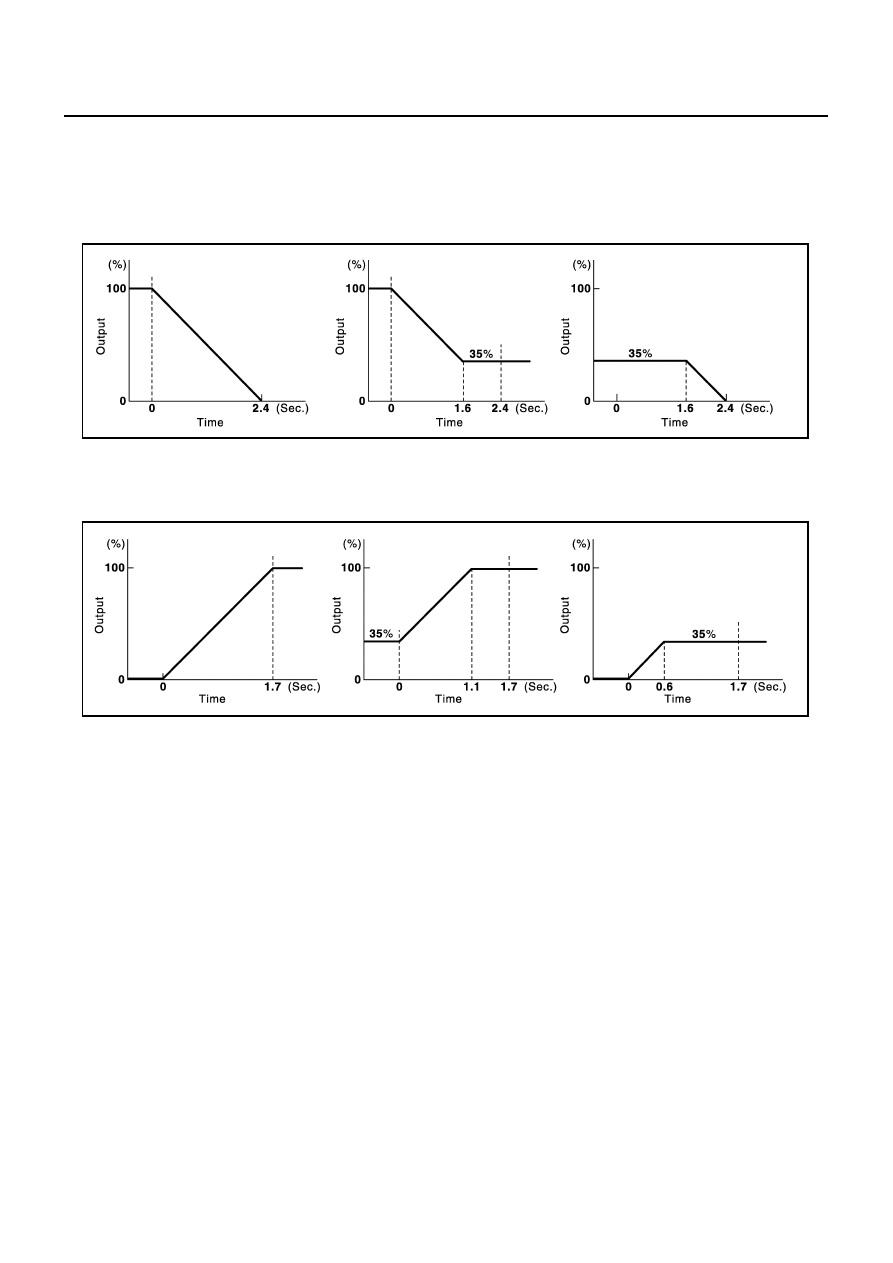

LAMP OUTPUT CONTROL FUNCTION

This function controls output of lamps except for the ignition key hole illumination.

Full illumination

 off, from full illumination

 half illumination, and from half illumination

 off

NOTE:
In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal
lamp).

Off

 full illumination, half illumination

 full illumination, off

 half illumination

NOTE:
In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal
lamp).

AUTO OFF FUNCTION

When ignition switch is in OFF, and following condition is continued for approximately 30 minutes without the
change, then interior room lamps are automatically turned OFF.

Interior lamp illumination switch and personal lamps switch are “AUTO” position, and then door switch of
either is opened.

Interior lamp illumination switch is “ON” position.

Personal lamp switch is “FULL” position.

The auto off function is turned OFF when the one of following change is operated, and executes a usual oper-
ation control thereafter.

Ignition switch is turned from OFF to ON.

Each door switch is switched from OFF to ON. (Door closed

 open)

Interior lamp illumination switch is switched from OFF to ON.

Personal lamp switch is switched from AUTO to ON.

PKIA0175E

PKIA0176E

INTERIOR ROOM LAMP

LT-119

C

D

E

F

G

H

I

J

L

M

A

B

LT

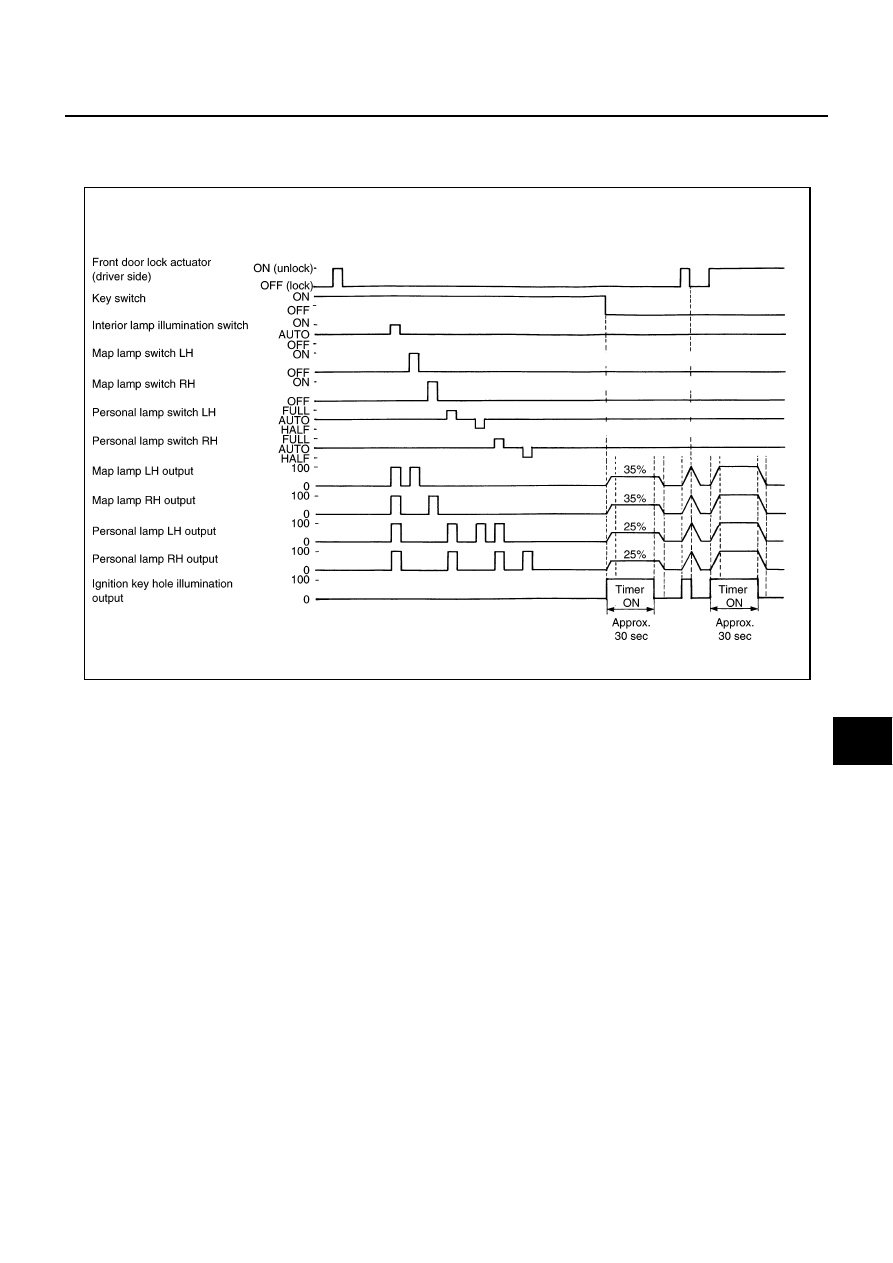

LIGHTS ON/OFF MODES

Separate signal from each switch and signals of higher output have priority over these modes.

1.

Lights on-off modes when each lamp switch is operated.

PKIA7730E

LT-120

INTERIOR ROOM LAMP

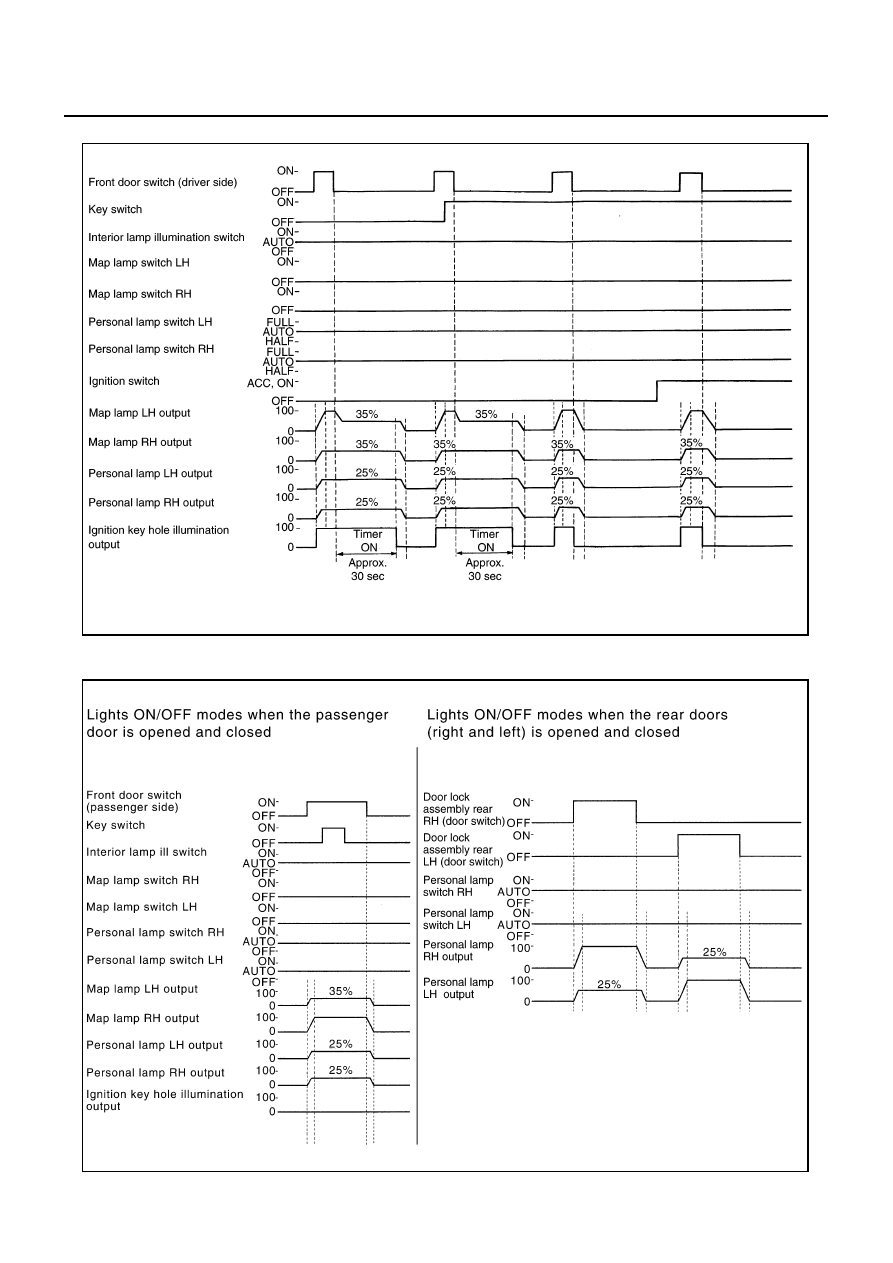

2.

Lights on-off modes when the driver door is opened and closed.

3.

Lights on-off modes when the passenger door is opened and closed, lights on-off modes when rear doors
(LH, RH) are opened and closed.

PKIA7731E

SKIA3788E
