FRONT FOG LAMP

LT-77

C

D

E

F

G

H

I

J

L

M

A

B

LT

FRONT FOG LAMP

PFP:26150

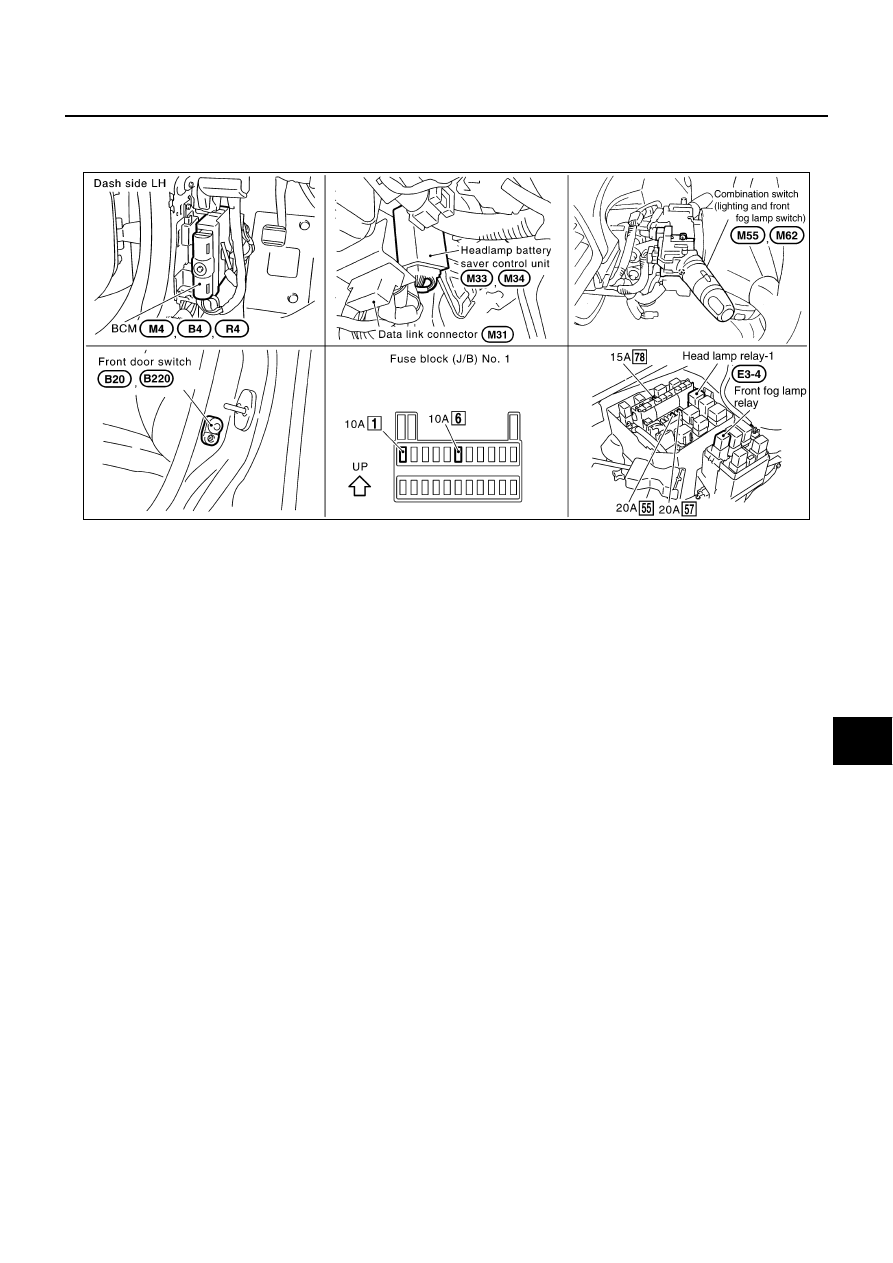

Component Parts and Harness Connector Location

NKS0018N

System Description

NKS0018O

OUTLINE

Power is supplied at all times

headlamp relay-1 terminal 2 from battery,

to headlamp relay-1 terminal 3

through 20A fuse [No. 57, located in fuse, fusible link and relay block (J/B)],

to headlamp relay-1 terminal 7

through 20A fuse [No. 55, located in fuse, fusible link and relay block (J/B)],

to headlamp battery saver control unit terminal 7

through 10A fuse [No. 6, located in fuse block (J/B) No. 1],

to front fog lamp relay terminal 5

through 15A fuse [No. 78, located in fuse, fusible link and relay box].

When the ignition switch is in ON or START position, power is supplied

to headlamp battery saver control unit terminal 1

through 10A fuse [No. 1, located in fuse block (J/B) No. 1].

Ground is supplied

to headlamp battery saver control unit terminals 4 and 11

through grounds M25 and M115.

When lighting switch is in 2ND position, ground is supplied

to headlamp relay-1 terminal 1 from headlamp battery saver control unit terminals 2 and 8

through headlamp battery saver control unit terminals 3 and 9

through lighting switch terminals 8 and 12

through grounds M25 and M115.

Front Fog Lamp Operation

The front fog lamp switch is built in the combination switch. The lighting switch must be in the 2ND position
and LOW position, and the front fog lamp switch must be ON for front fog lamp operation.
With the front fog lamp switch in the ON position, ground is supplied

to front fog lamp relay terminal 1

through front fog lamp switch terminal 31

to front fog lamp switch terminal 32

PKIA9818E

LT-78

FRONT FOG LAMP

through lighting switch terminal 10

to lighting switch terminal 8

through grounds M25 and M115.

The front fog lamp relay is energized and power is supplied

from front fog lamp relay terminal 3

to front fog lamp LH and RH terminals 1.

Ground is supplied

to front fog lamp LH and RH terminals 2

through grounds E24, E42 and E62.

With power and ground supplied, the front fog lamps illuminate.

BATTERY SAVER CONTROL

When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while front fog lamps are
illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit from BCM ter-
minal 135.
After counting 45 seconds by the RAP signal from the BCM to headlamp battery saver control unit, the ground
supply to headlamp relay-1 terminal 1 from headlamp battery saver control unit terminals 2 and 8 is termi-
nated.
Then the front fog lamps are turned off.
The front fog lamps are turned off when driver or passenger door is opened even if 45 seconds have not
passed after ignition switch is turned from ON (or START) to OFF (or ACC) positions while front fog lamp are
illuminated.
When the lighting switch is turned from OFF to 2ND after front fog lamps are turned to off by the battery saver
control, ground is supplied

to headlamp relay-1 terminal 1 from headlamp battery saver control unit terminals 2 and 8

through headlamp battery saver control unit terminals 3 and 9 from lighting switch terminal 12.

Then front fog lamps illuminate again.

FRONT FOG LAMP

LT-79

C

D

E

F

G

H

I

J

L

M

A

B

LT

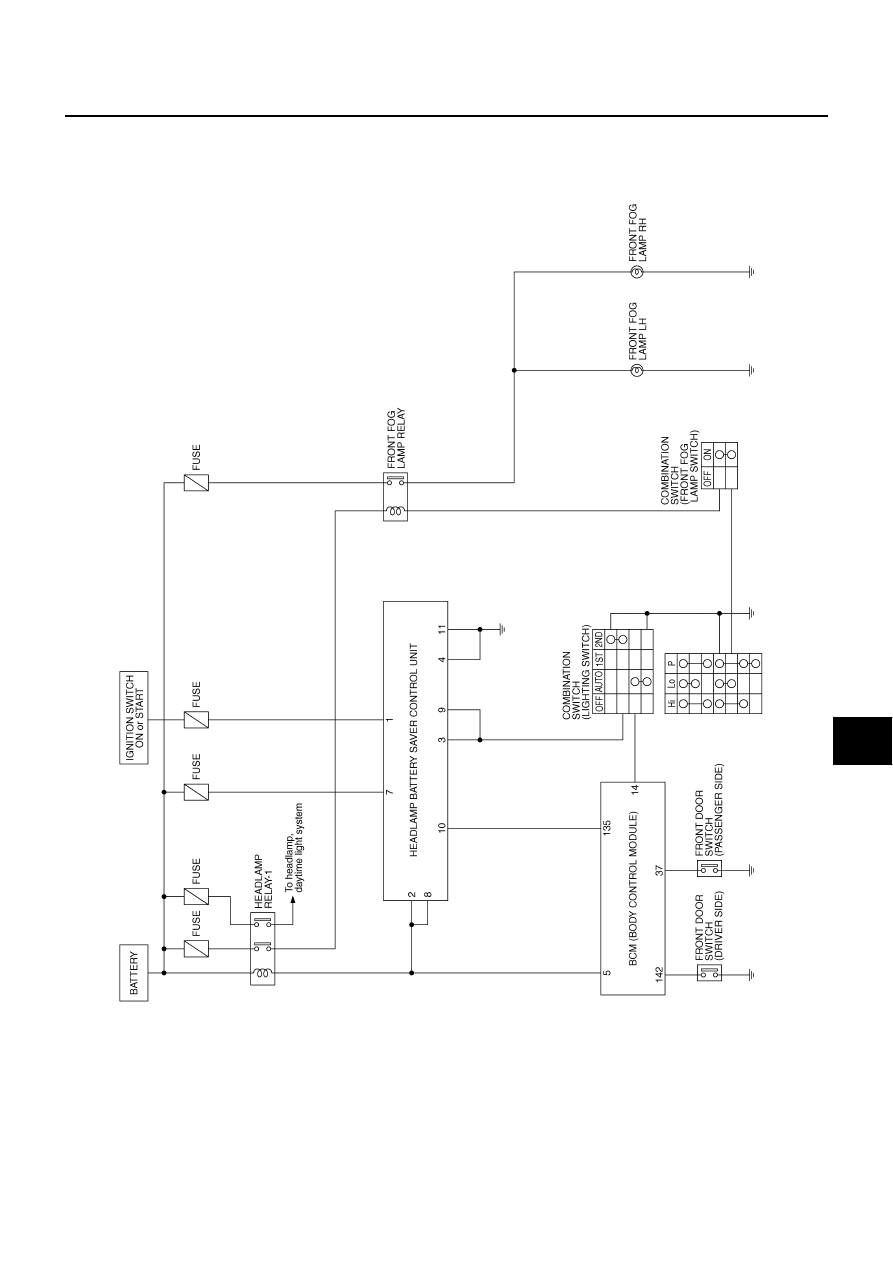

Schematic

NKS0018P

TKWM1528E

LT-80

FRONT FOG LAMP

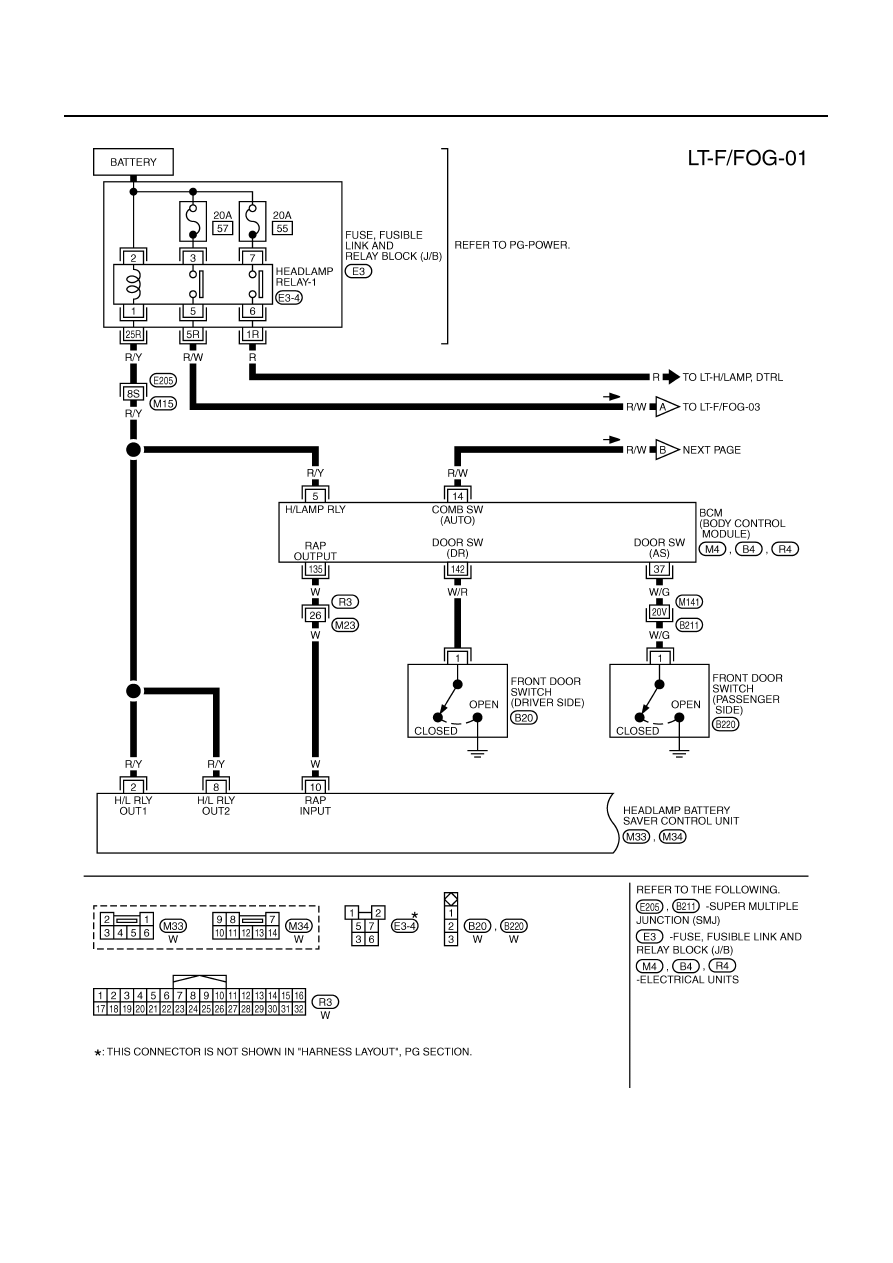

Wiring Diagram — F/FOG —

NKS0018Q

TKWM3720E
