TROUBLE DIAGNOSIS FOR SYSTEM

LAN-105

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect VDC/TCS/ABS control unit connector.

2.

Check resistance between VDC/TCS/ABS control unit harness
connector terminals.

OK or NG

OK

>> Replace VDC/TCS/ABS control unit.

NG

>> Repair harness between VDC/TCS/ABS control unit and

harness connector E224.

ICC Unit Circuit Inspection

NKS002IZ

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of ICC unit for damage, bend and loose connection (unit side and harness
side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect ICC unit connector.

2.

Check resistance between ICC unit harness connector termi-
nals.

OK or NG

OK

>> Replace ICC unit.

NG

>> Repair harness between ICC unit and pre-crash seat

belt control unit.

Pre-Crash Seat Belt Control Unit and Data Link Connector Circuit Inspection

NKS002J0

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of data link connector for damage, bend and loose connection (connector
side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

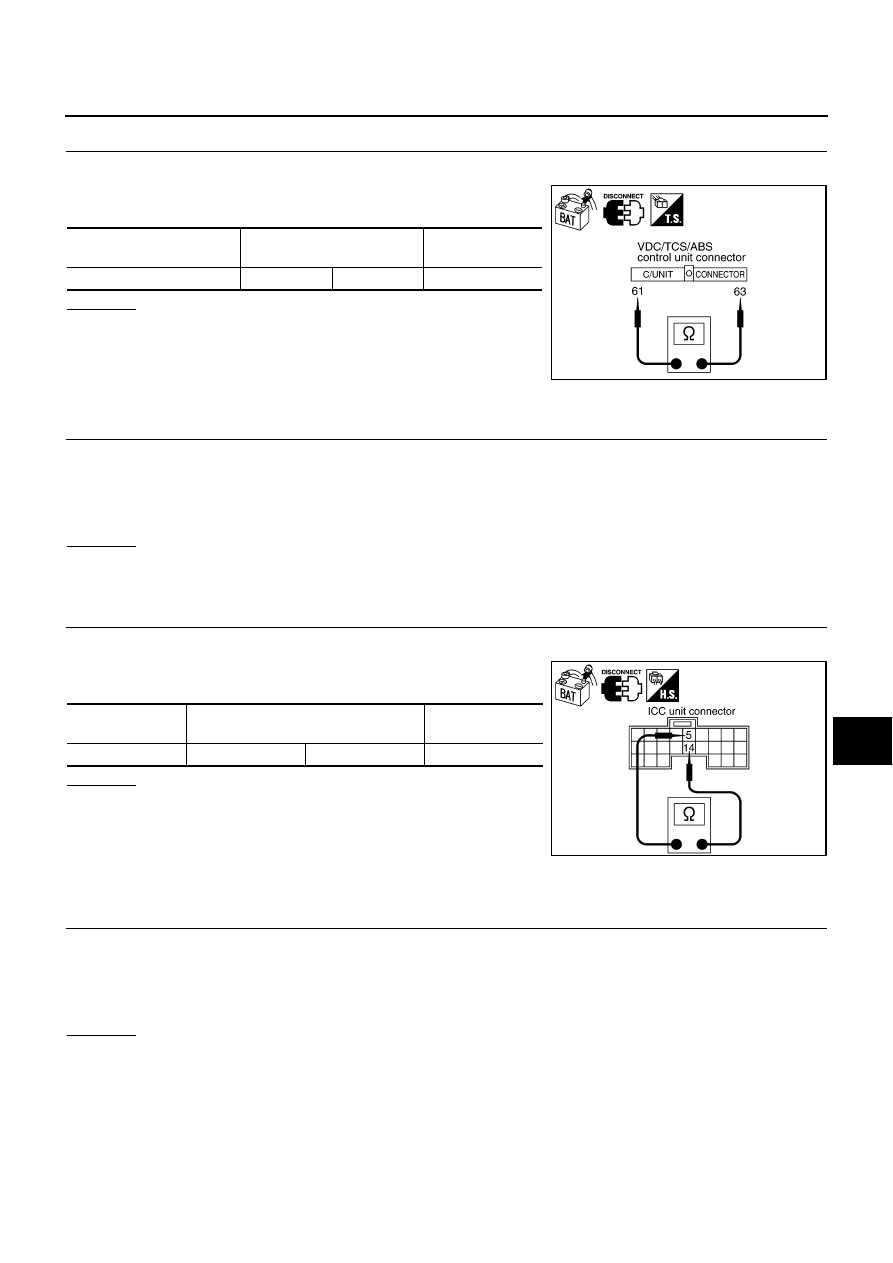

VDC/TCS/ABS control unit

connector

Terminal

Resistance

(Approx.)

E218

61

63

54 – 66

Ω

PKIA9862E

ICC unit

connector

Terminal

Resistance

(Approx.)

B243

14

5

54 – 66

Ω

PKIA9879E

LAN-106

[CAN]

TROUBLE DIAGNOSIS FOR SYSTEM

2.

CHECK HARNESS FOR OPEN CIRCUIT

Check resistance between data link connector terminals.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness between data link connector and steer-

ing angle sensor.

3.

CHECK CONNECTOR

Check terminals and connector of pre-crash seat belt control unit for damage, bend and loose connection
(control unit side and harness side).
OK or NG

OK

>> GO TO 4.

NG

>> Repair terminal or connector.

4.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect pre-crash seat belt control unit connector.

2.

Check resistance between pre-crash seat belt control unit har-
ness connector terminals.

OK or NG

OK

>> Replace pre-crash seat belt control unit.

NG

>> Repair harness between pre-crash seat belt control unit

and harness connector B263.

Pre-Crash Seat Belt Control Unit Circuit Inspection

NKS002J7

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of pre-crash seat belt control unit for damage, bend and loose connection
(control unit side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

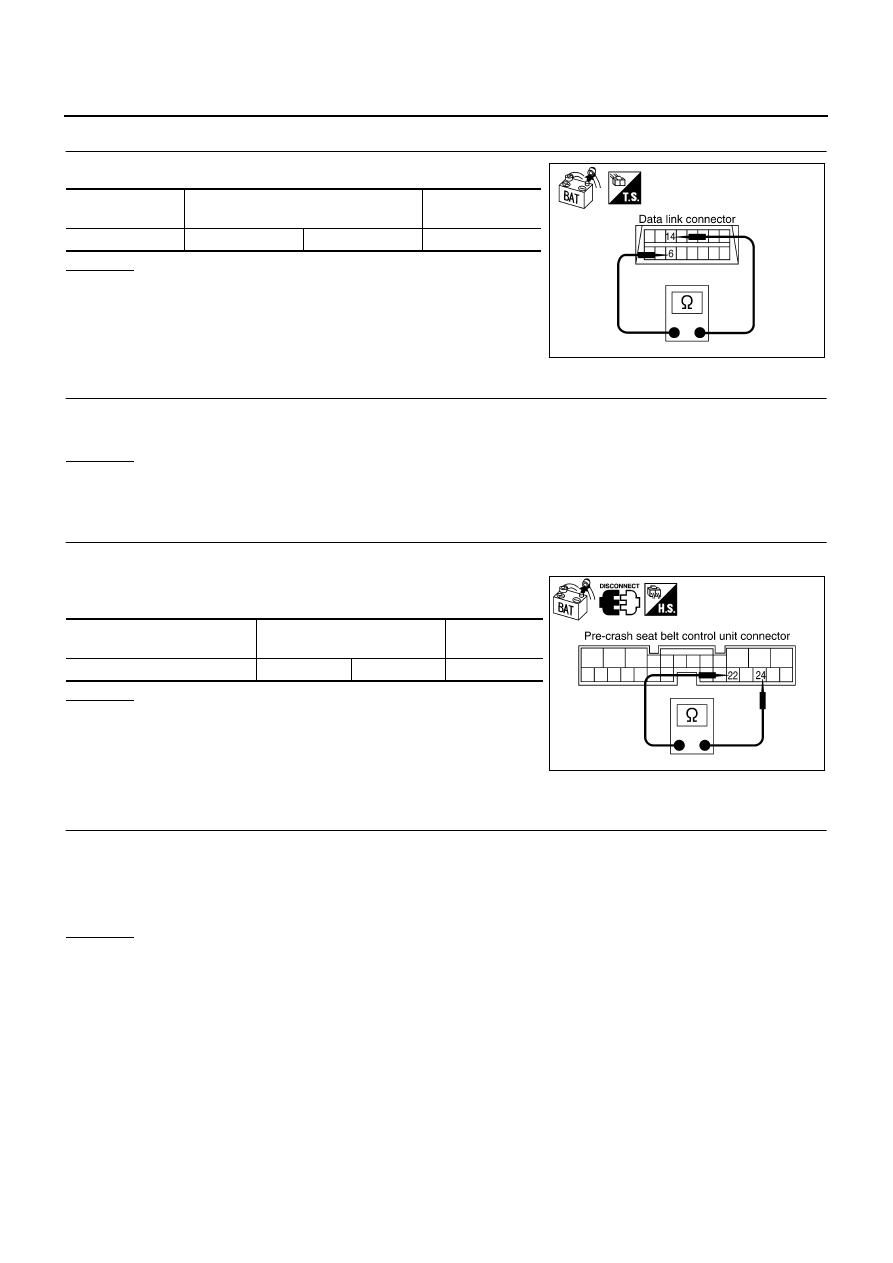

Data link

connector

Terminal

Resistance

(Approx.)

M31

6

14

54 – 66

Ω

PKIA9865E

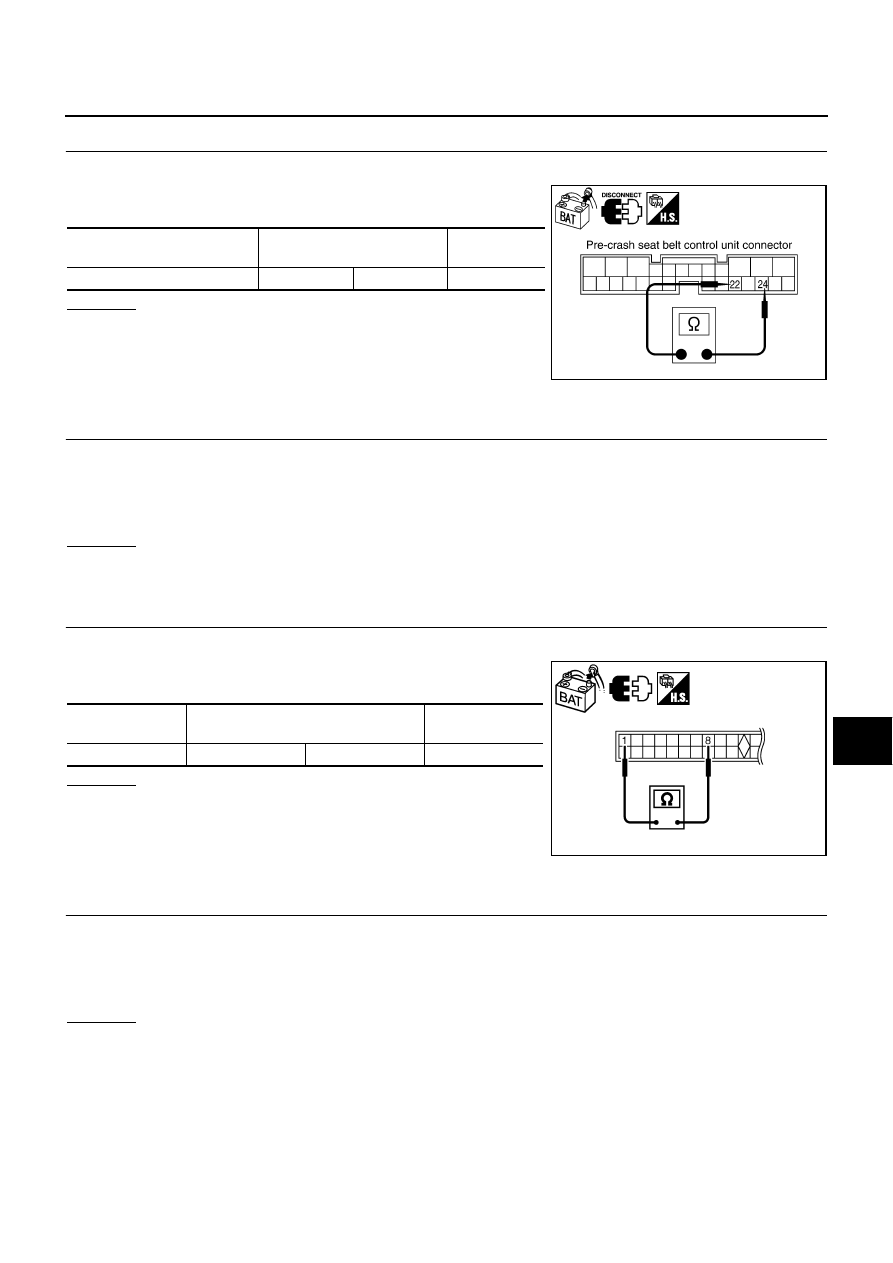

Pre-crash seat belt control unit

connector

Terminal

Resistance

(Approx.)

B318

24

22

54 – 66

Ω

PKIA9863E

TROUBLE DIAGNOSIS FOR SYSTEM

LAN-107

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect pre-crash seat belt control unit connector.

2.

Check resistance between pre-crash seat belt control unit har-
ness connector terminals.

OK or NG

OK

>> Replace pre-crash seat belt control unit.

NG

>> Repair harness between pre-crash seat belt control unit

and harness connector B263.

RAS Control Unit Circuit Inspection

NKS002J2

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of RAS control unit for damage, bend and loose connection (control unit
side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect RAS control unit connector.

2.

Check resistance between RAS control unit harness connector
terminals.

OK or NG

OK

>> Replace RAS control unit.

NG

>> Replace harness between RAS control unit and harness

connector B6.

LDW Camera Unit Circuit Inspection

NKS002J1

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of LDW camera unit for damage, bend and loose connection (unit side
and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

Pre-crash seat belt control unit

connector

Terminal

Resistance

(Approx.)

B318

24

22 54

–

66

Ω

PKIA9863E

RAS control unit

connector

Terminal

Resistance

(Approx.)

B39

1

8

54 – 66

Ω

PKIC0303E

LAN-108

[CAN]

TROUBLE DIAGNOSIS FOR SYSTEM

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect LDW camera unit connector.

2.

Check resistance between LDW camera unit harness connector
terminals.

OK or NG

OK

>> Replace LDW camera unit.

NG

>> Repair harness between LDW camera unit and harness

connector R3.

Steering Angle Sensor Circuit Inspection

NKS002J3

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect steering angle sensor connector.

2.

Check resistance between steering angle sensor harness con-
nector terminals.

OK or NG

OK

>> Replace steering angle sensor.

NG

>> Repair harness between steering angle sensor and data

link connector.

Data Link Connector Circuit Inspection

NKS002J8

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of data link connector for damage, bend and loose connection (connector
side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

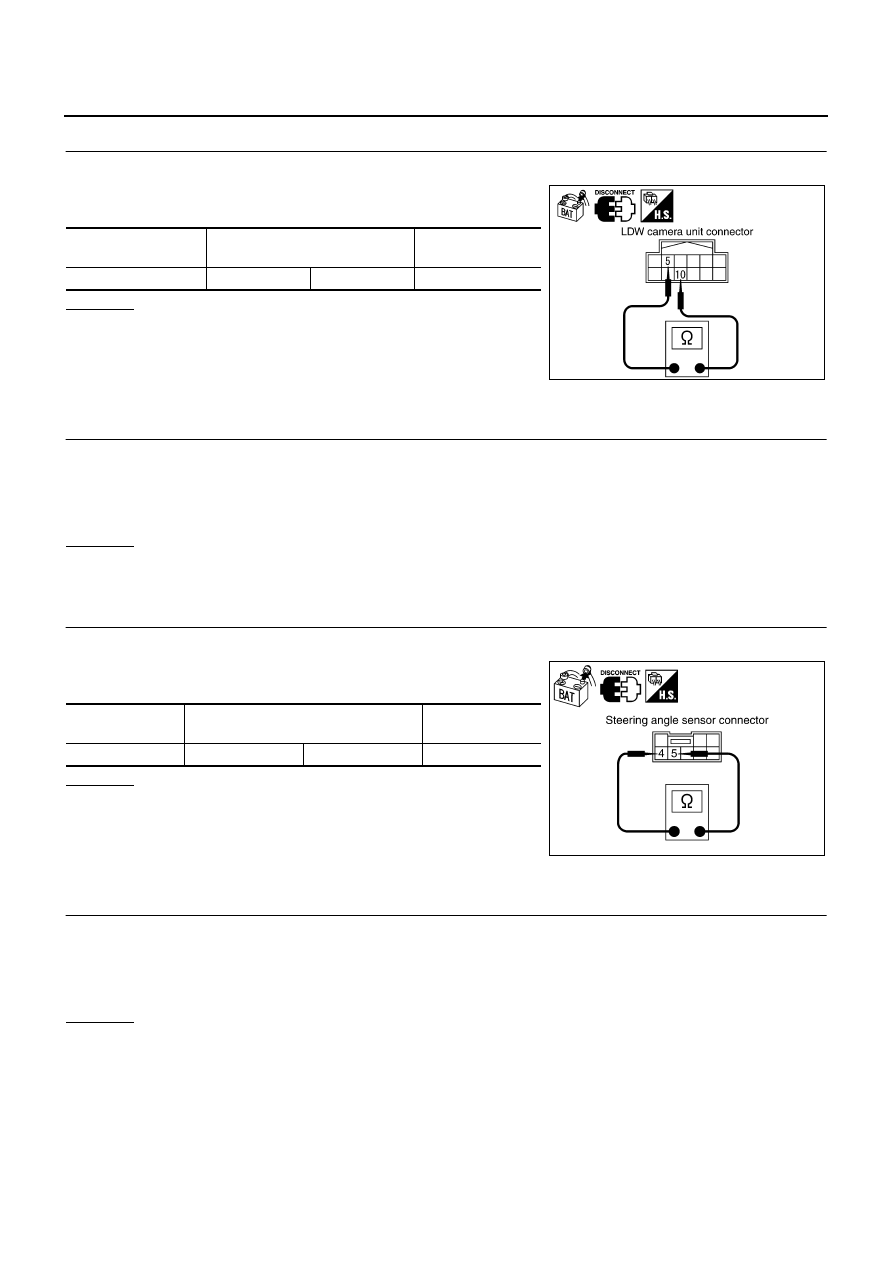

LDW camera unit

connector

Terminal

Resistance

(Approx.)

R26

10

5

54 – 66

Ω

SKIB2333E

Steering angle

sensor connector

Terminal

Resistance

(Approx.)

M52

4

5

54 – 66

Ω

PKIA9864E
