CAN SYSTEM (TYPE 3)

LAN-81

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

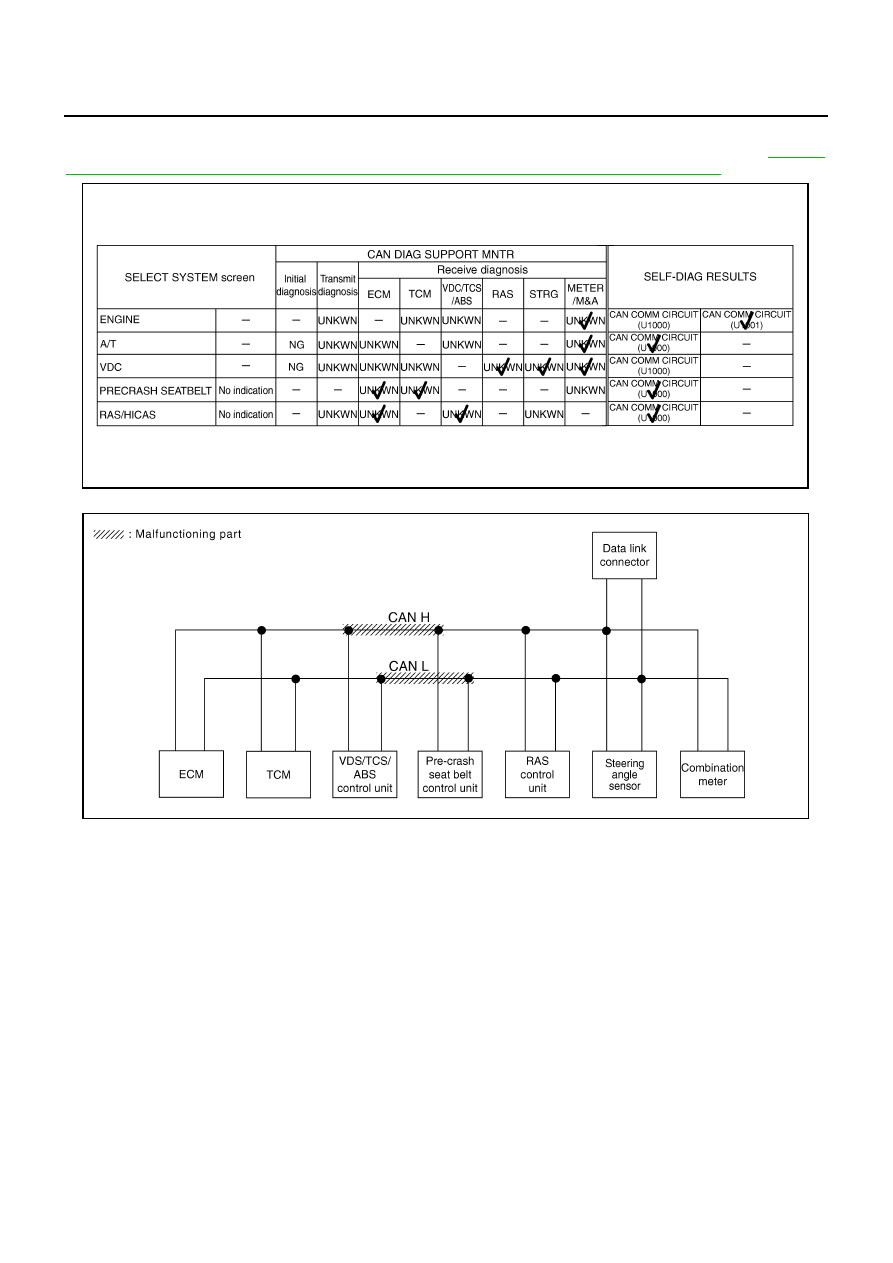

Case 1

Check harness between TCM and VDC/TCS/ABS control unit. Refer to

LAN-93, "Inspection Between TCM

and VDC/TCS/ABS Control Unit Circuit"

 .

SKIB7505E

SKIB7518E

LAN-82

[CAN]

CAN SYSTEM (TYPE 3)

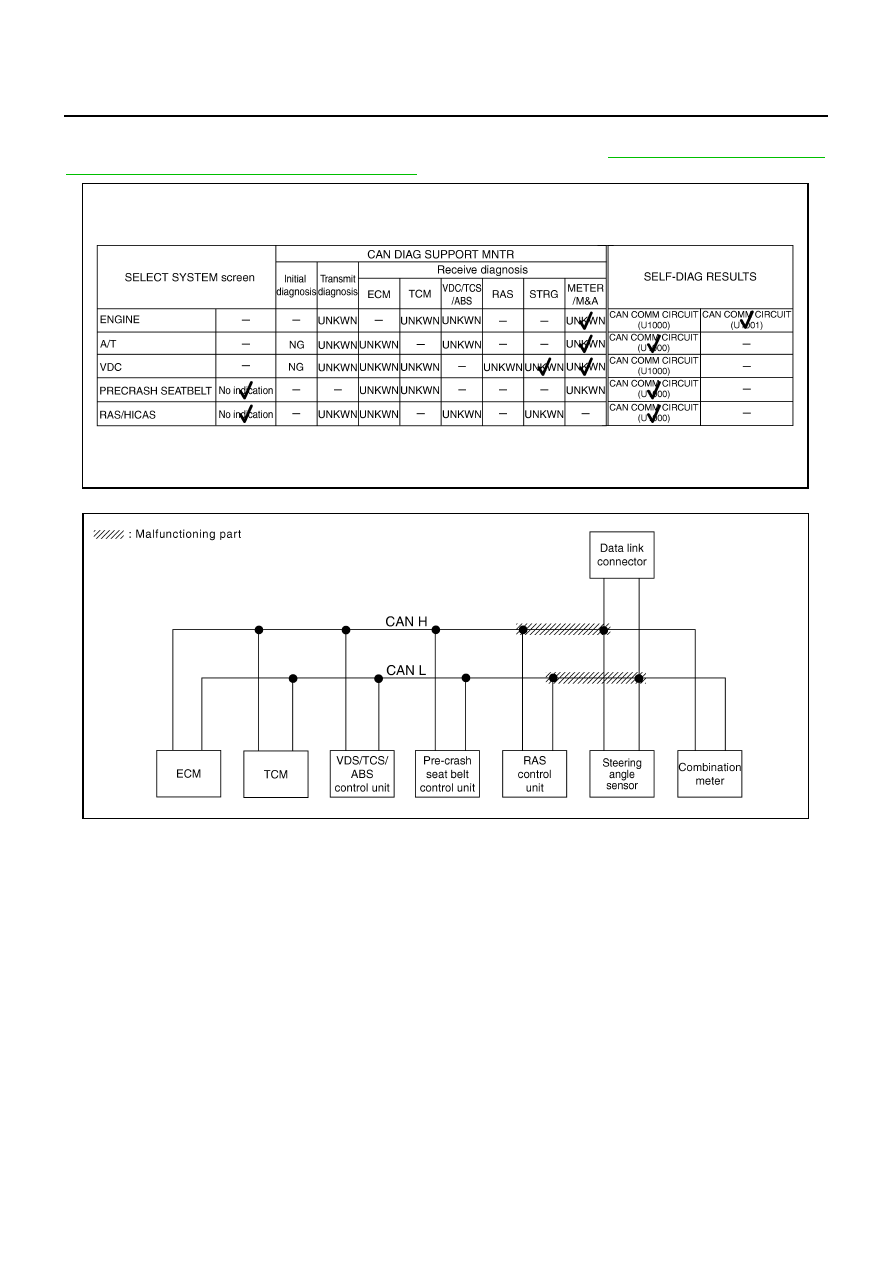

Case 2

Check harness between VDC/TCS/ABS control unit and pre-crash seat belt control unit. Refer to

LAN-95,

"Inspection Between VDC/TCS/ABS Control Unit and Pre-Crash Seat Belt Control Unit Circuit"

 .

SKIB7506E

SKIB7519E

CAN SYSTEM (TYPE 3)

LAN-83

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

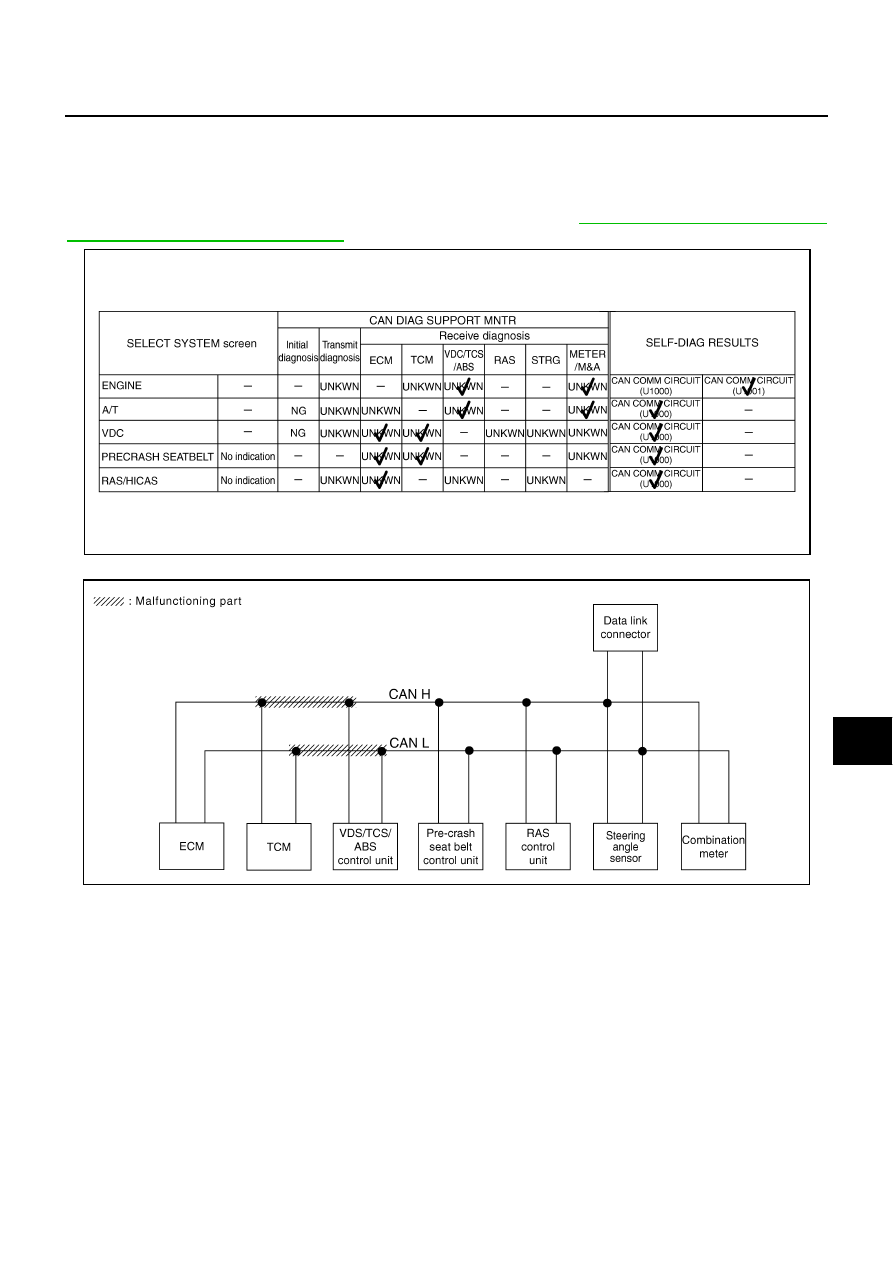

Case 3

Check harness between pre-crash seat belt control unit and RAS control unit. Refer to

LAN-99, "Inspection

Between Pre-Crash Seat Belt Control Unit and RAS Control Unit Circuit"

 .

SKIB7507E

SKIB7520E

LAN-84

[CAN]

CAN SYSTEM (TYPE 3)

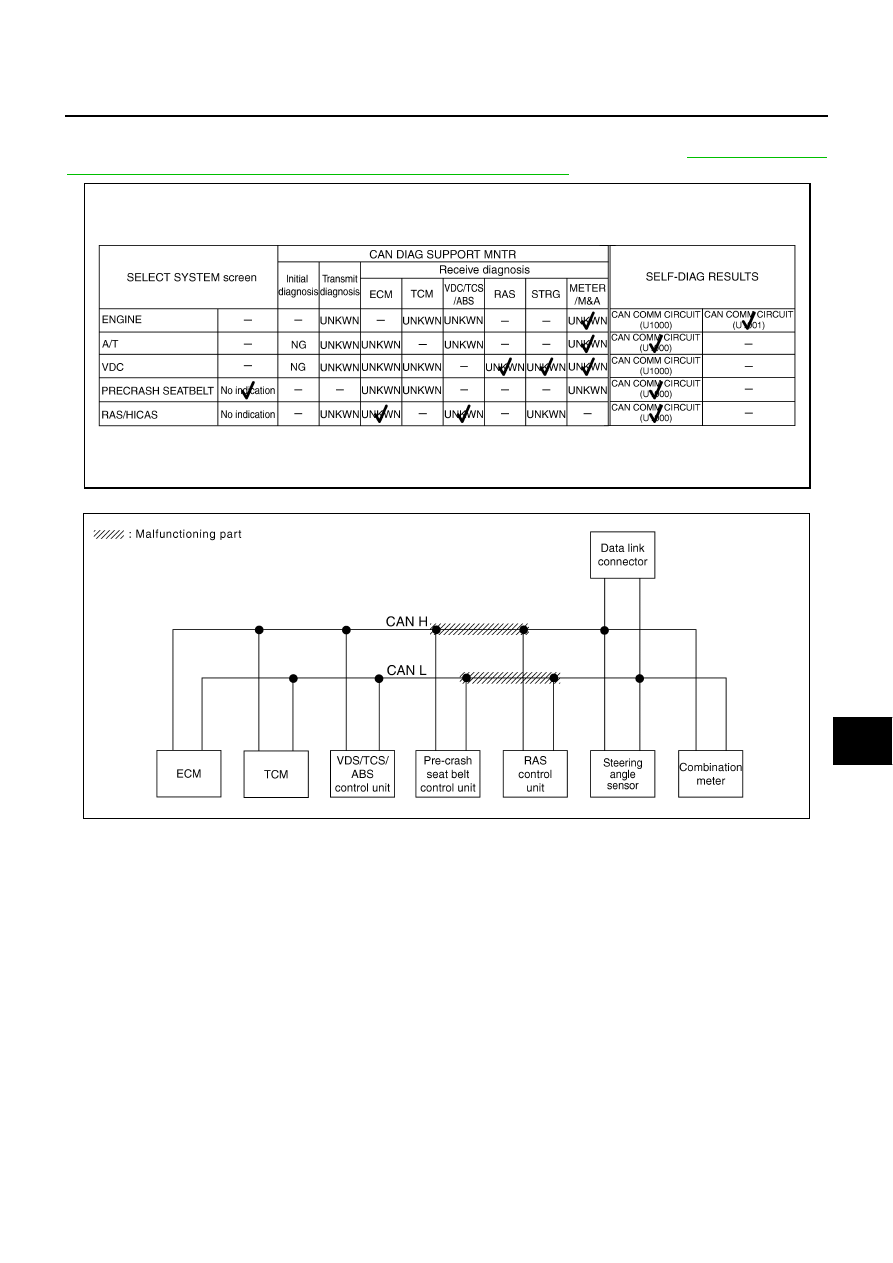

Case 4

Check harness between RAS control unit and data link connector. Refer to

LAN-101, "Inspection Between

RAS Control Unit and Data Link Connector Circuit"

 .

SKIB7508E

SKIB7521E
