CAN SYSTEM (TYPE 2)

LAN-73

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Case 12

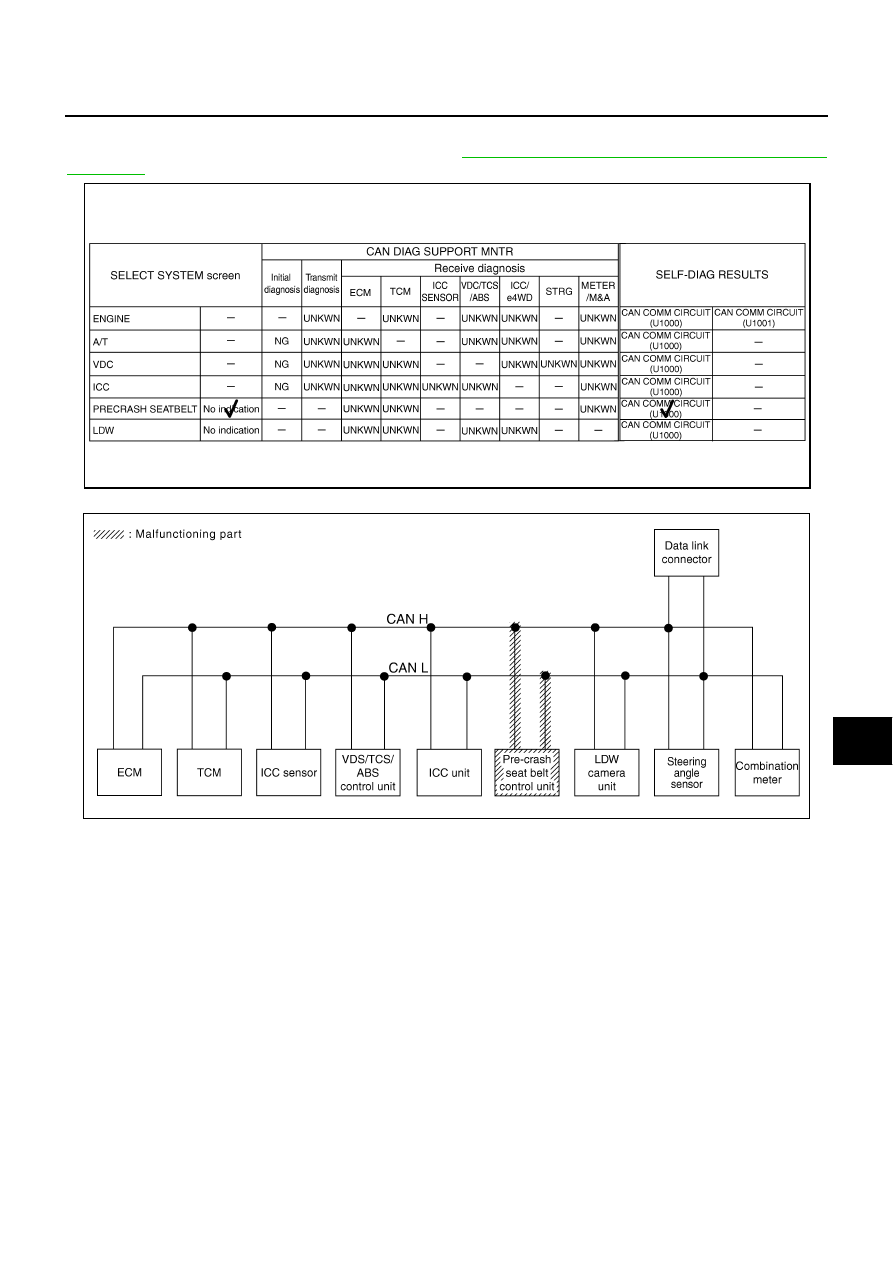

Check pre-crash seat belt control unit circuit. Refer to

LAN-106, "Pre-Crash Seat Belt Control Unit Circuit

Inspection"

 .

SKIB7481E

SKIB7498E

LAN-74

[CAN]

CAN SYSTEM (TYPE 2)

Case 13

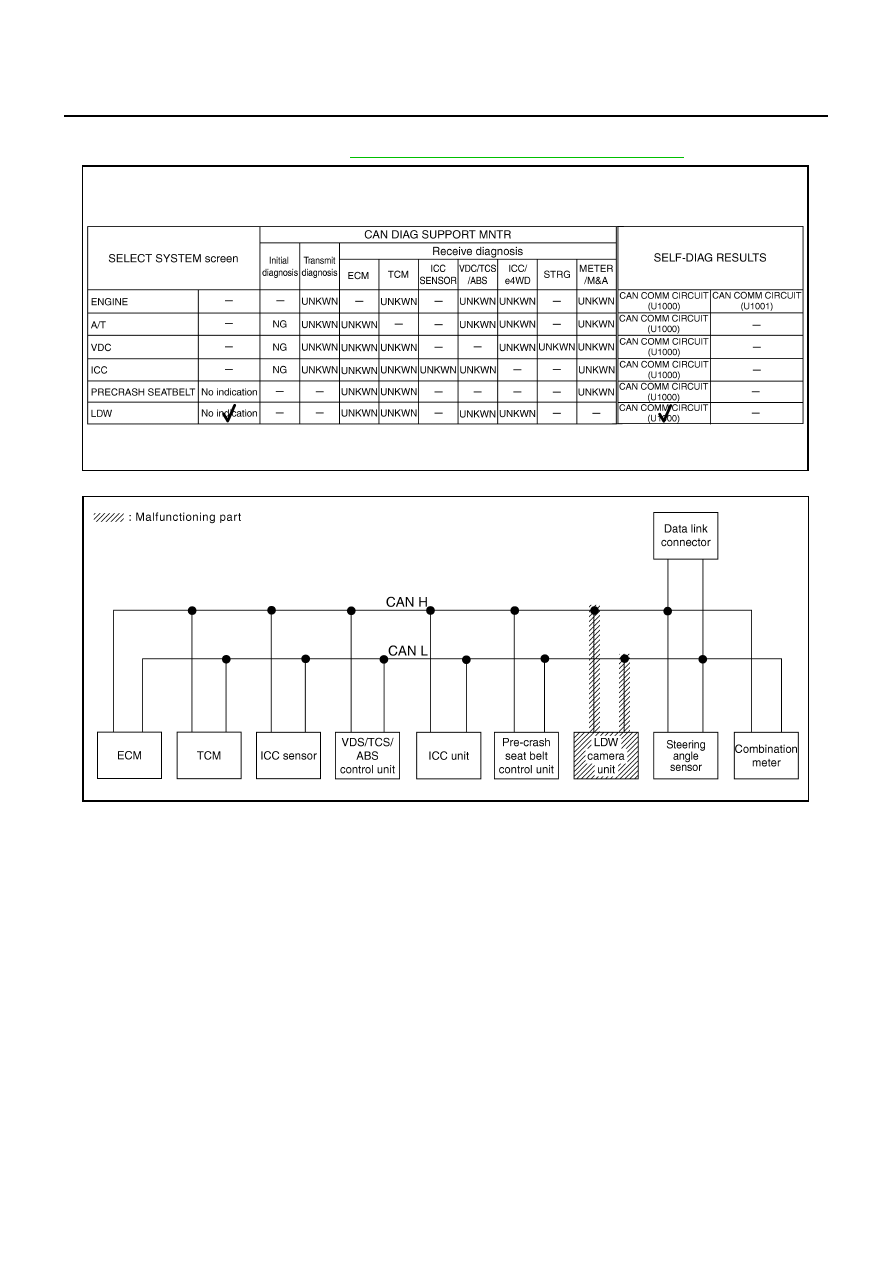

Check LDW camera unit circuit. Refer to

LAN-107, "LDW Camera Unit Circuit Inspection"

 .

SKIB7482E

SKIB7499E

CAN SYSTEM (TYPE 2)

LAN-75

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Case 14

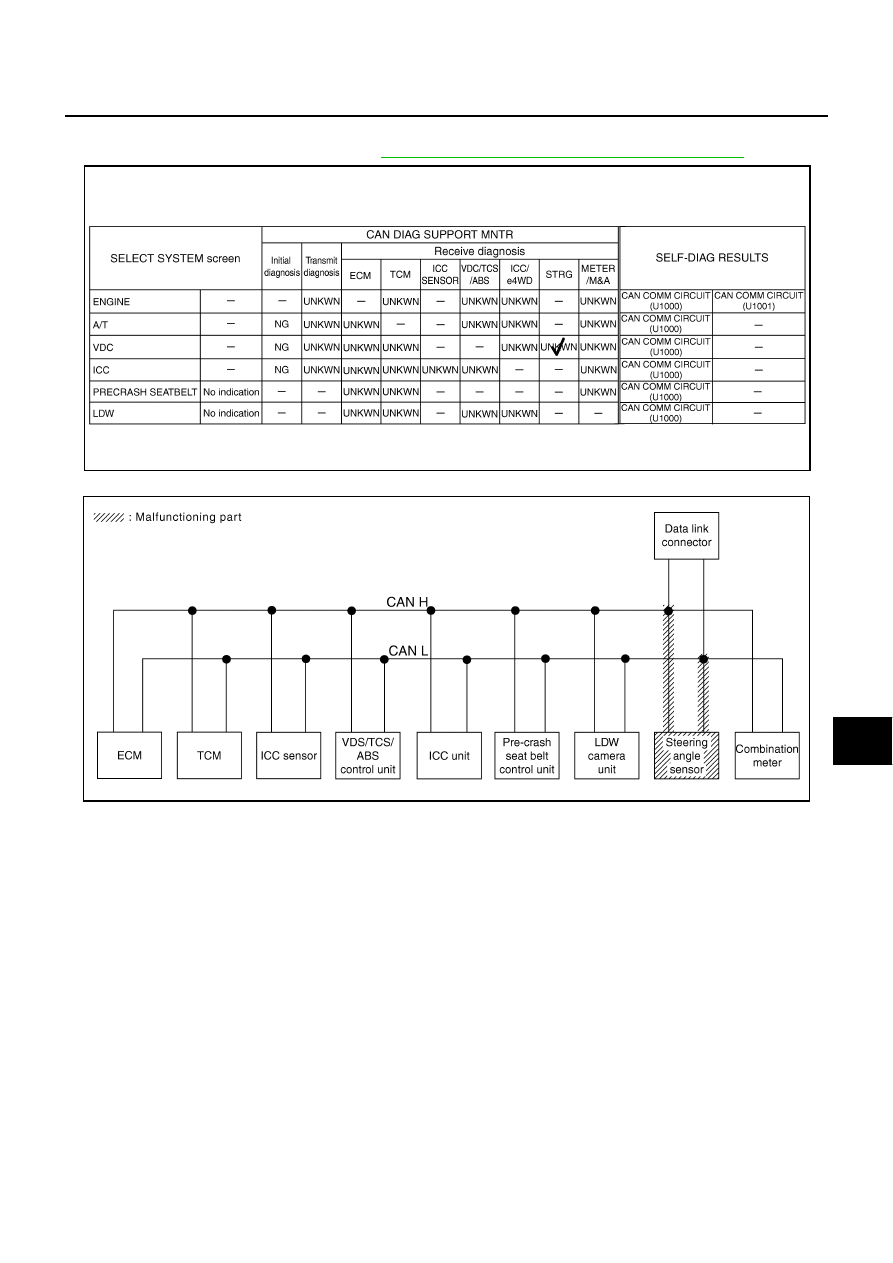

Check steering angle sensor circuit. Refer to

LAN-108, "Steering Angle Sensor Circuit Inspection"

 .

SKIB7483E

SKIB7500E

LAN-76

[CAN]

CAN SYSTEM (TYPE 2)

Case 15

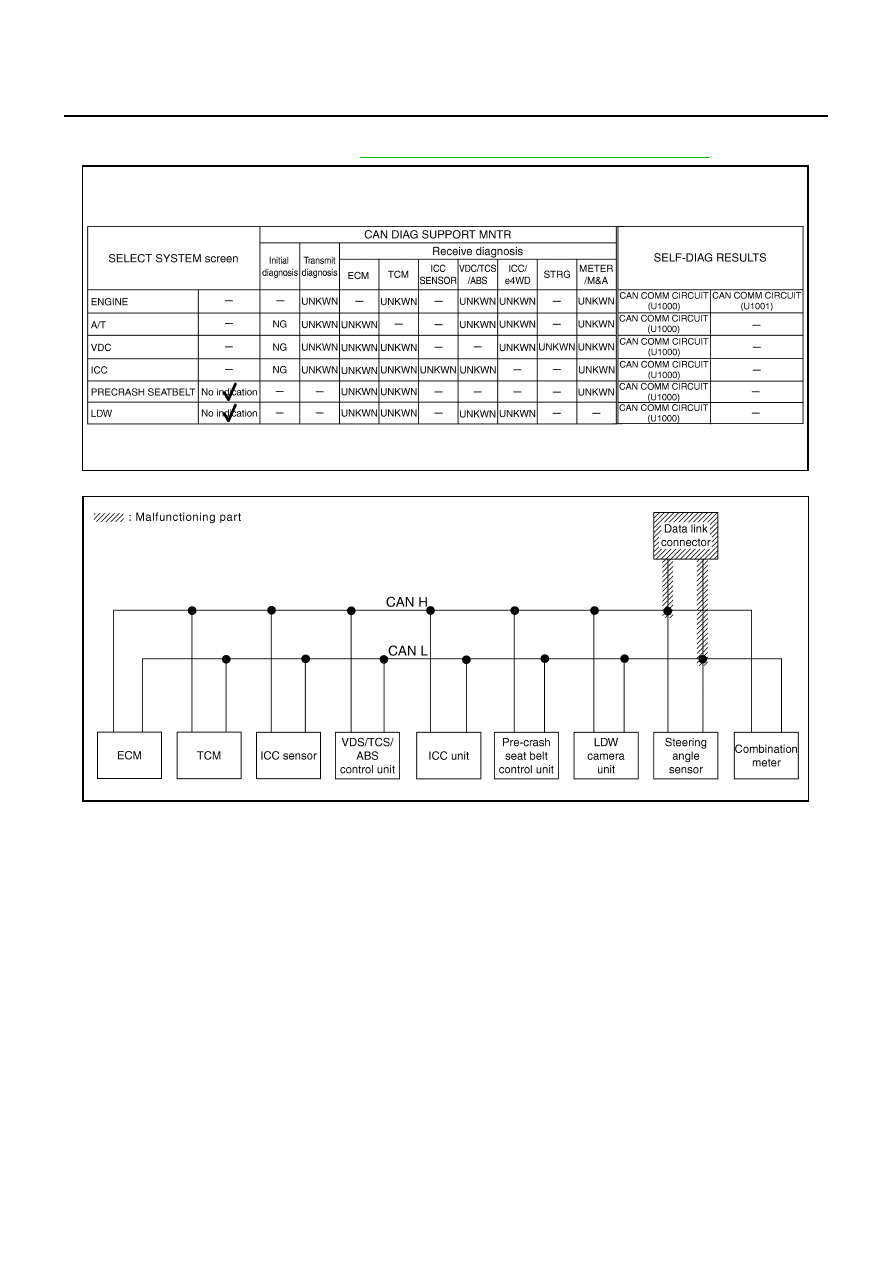

Check data link connector circuit. Refer to

LAN-108, "Data Link Connector Circuit Inspection"

 .

SKIB7484E

SKIB7501E
