CAN SYSTEM (TYPE 2)

LAN-61

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

SKIB6968E

LAN-62

[CAN]

CAN SYSTEM (TYPE 2)

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

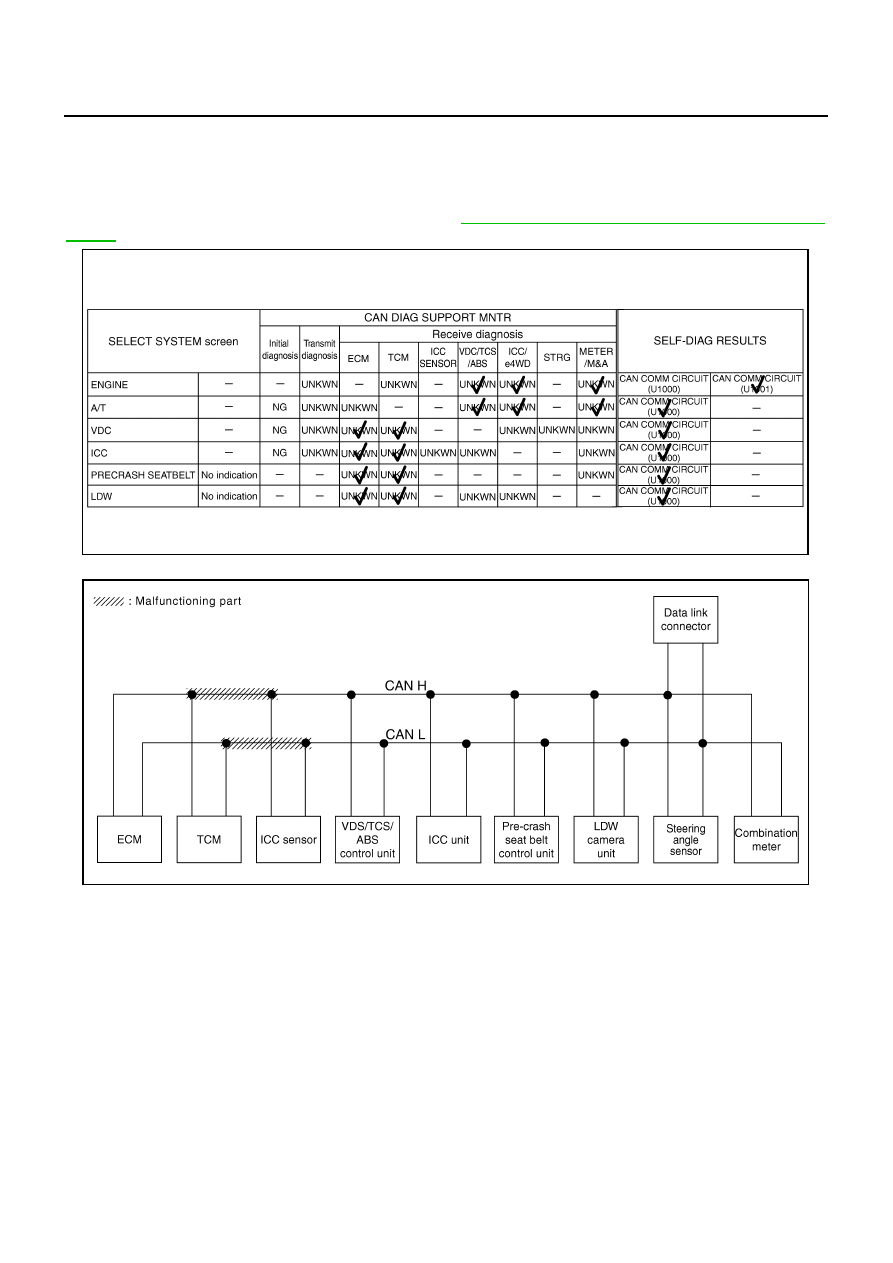

Case 1

Check harness between TCM and ICC sensor. Refer to

LAN-94, "Inspection Between TCM and ICC Sensor

Circuit"

 .

SKIB7470E

SKIB7487E

CAN SYSTEM (TYPE 2)

LAN-63

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

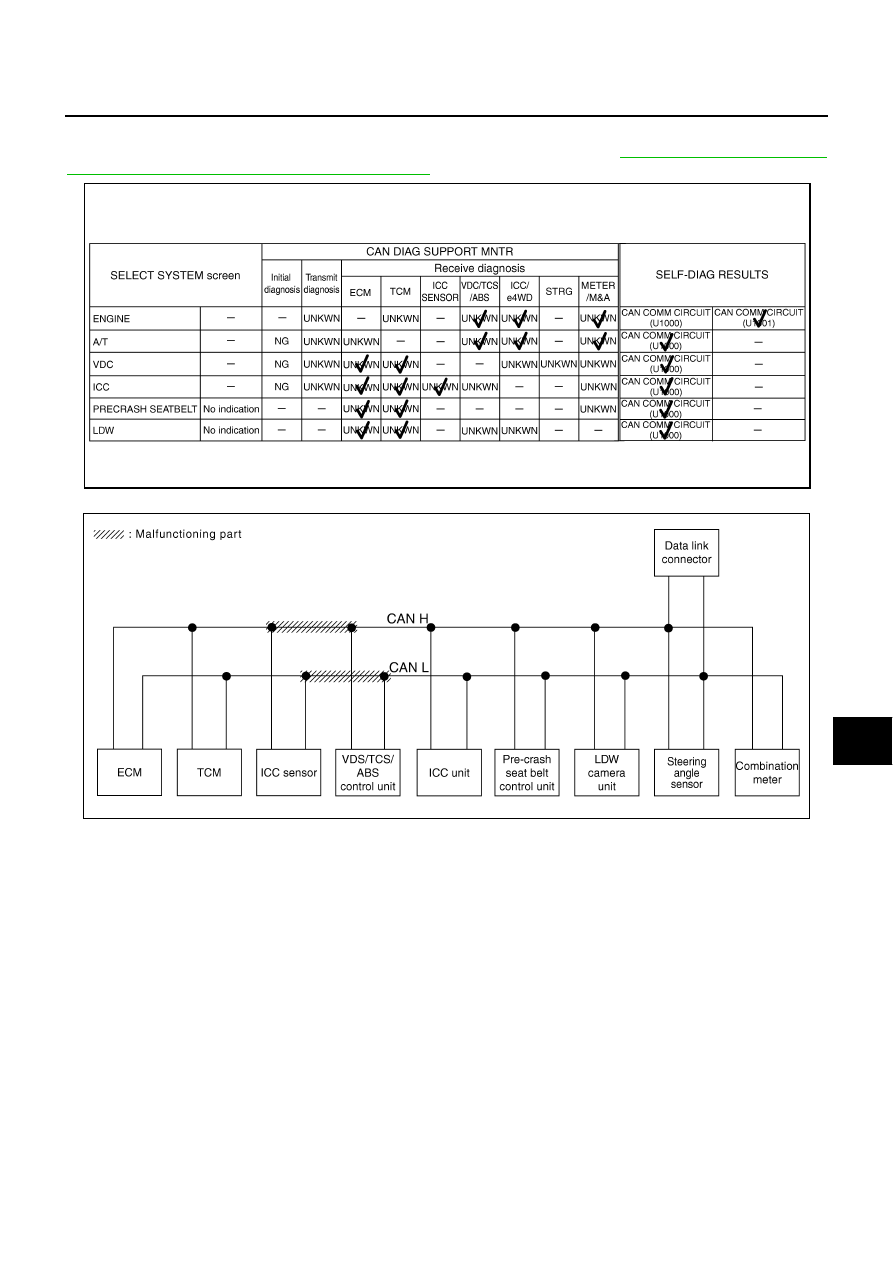

Case 2

Check harness between ICC sensor and VDC/TCS/ABS control unit. Refer to

LAN-95, "Inspection Between

ICC Sensor and VDC/TCS/ABS Control Unit Circuit"

 .

SKIB7471E

SKIB7488E

LAN-64

[CAN]

CAN SYSTEM (TYPE 2)

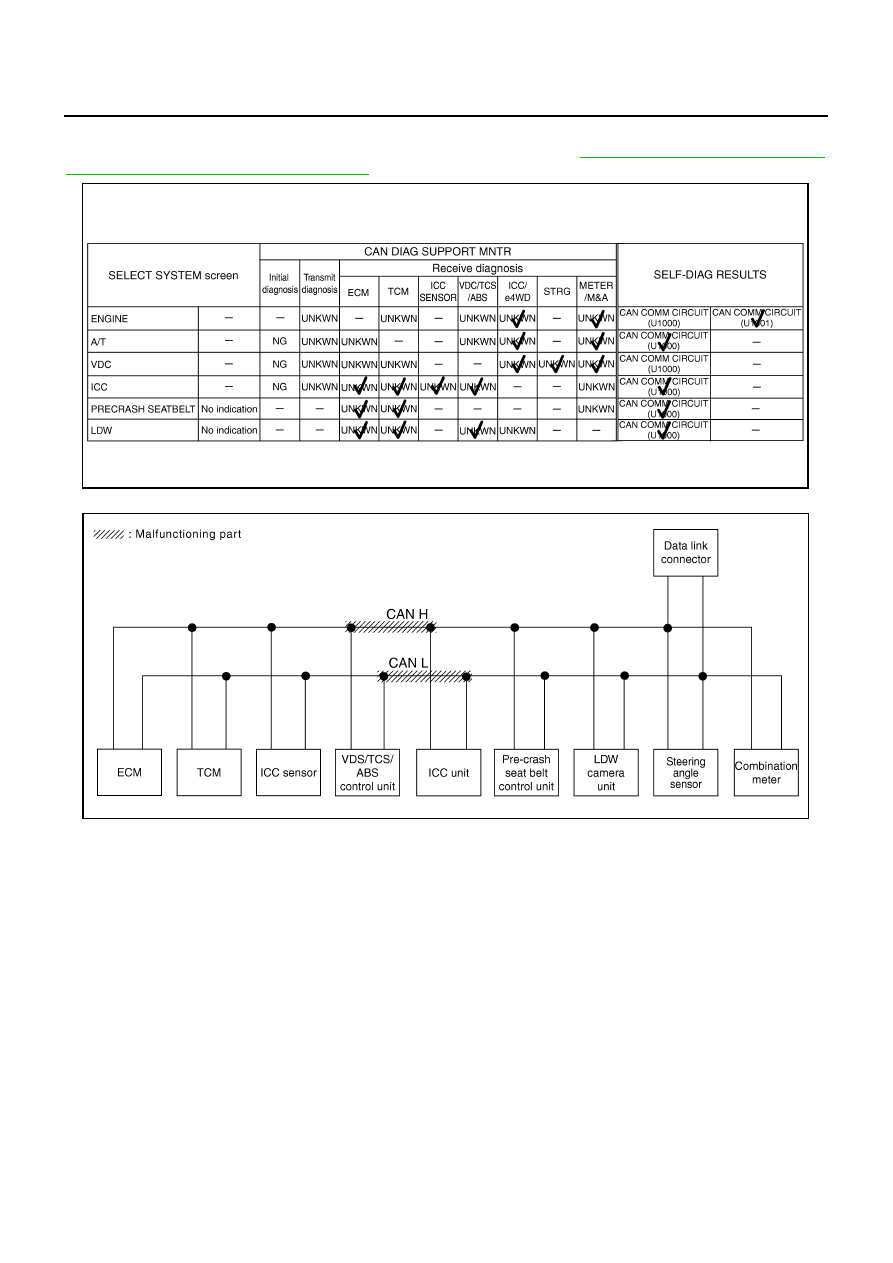

Case 3

Check harness between VDC/TCS/ABS control unit and ICC unit. Refer to

LAN-96, "Inspection Between VDC/

TCS/ABS Control Unit and ICC Unit Circuit"

 .

SKIB7472E

SKIB7489E
