Infiniti Q45. Manual - part 621





REAR WINDOW DEFOGGER

GW-77

C

D

E

F

G

H

J

K

L

M

A

B

GW

6.

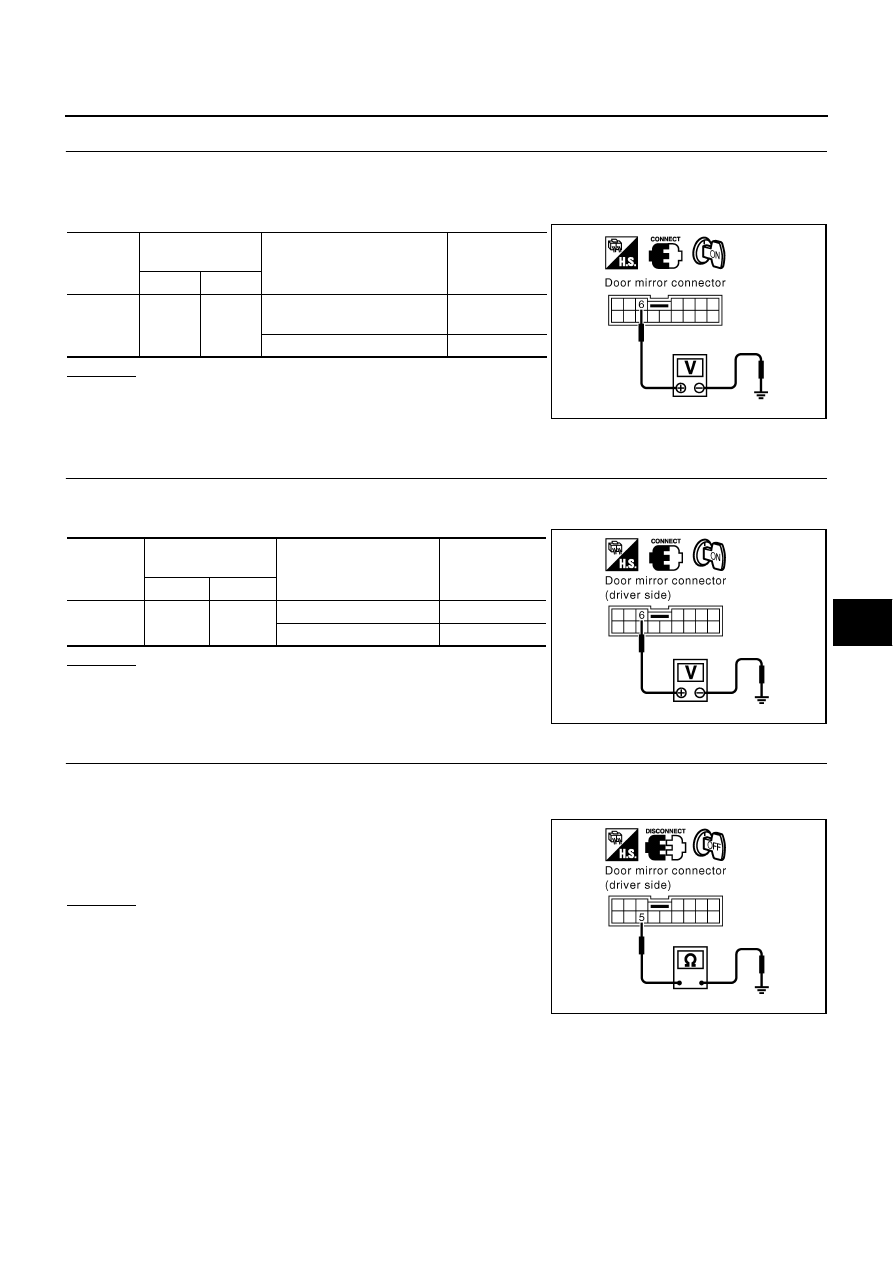

CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT

1.

Connect door mirror defogger relay.

2.

Turn ignition switch ON.

3.

Check voltage between door mirror connector (driver side) or (passenger side) and ground.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> Repair or replace harness.

Check Driver Side Door Mirror Defogger Circuit

NIS000ZR

1.

CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between door mirror (driver side) connector and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace harness.

2.

CHECK DOOR MIRROR DEFOGGER GROUND HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect door mirror (driver side) connector.

3.

Check continuity between driver side door mirror defogger con-
nector D2 terminal 5 and ground.

OK or NG

OK

>> Check the following, if it is OK, replace door mirror

(driver side).

Check the condition of the harness and the connector.

Door mirror defogger firmament continuity check.

NG

>> Repair or replace harness.

Connector

Terminals

(Wire color)

Condition of rear window

defogger switch

Voltage [V]

(Approx.)

(+)

(–)

D2

D32

6 (L/R)

Ground

ON

Battery
voltage

 OFF

0

PIIA3521E

Connector

Terminal

(Wire color)

Condition of rear window

defogger switch

Voltage [V]

(Approx.)

(+)

(–)

D2

6 (L/R)

Ground

 ON

 Battery voltage

OFF

0

PIIA3523E

5 (B) – Ground

: Continuity should exist.

PIIA3524E

GW-78

REAR WINDOW DEFOGGER

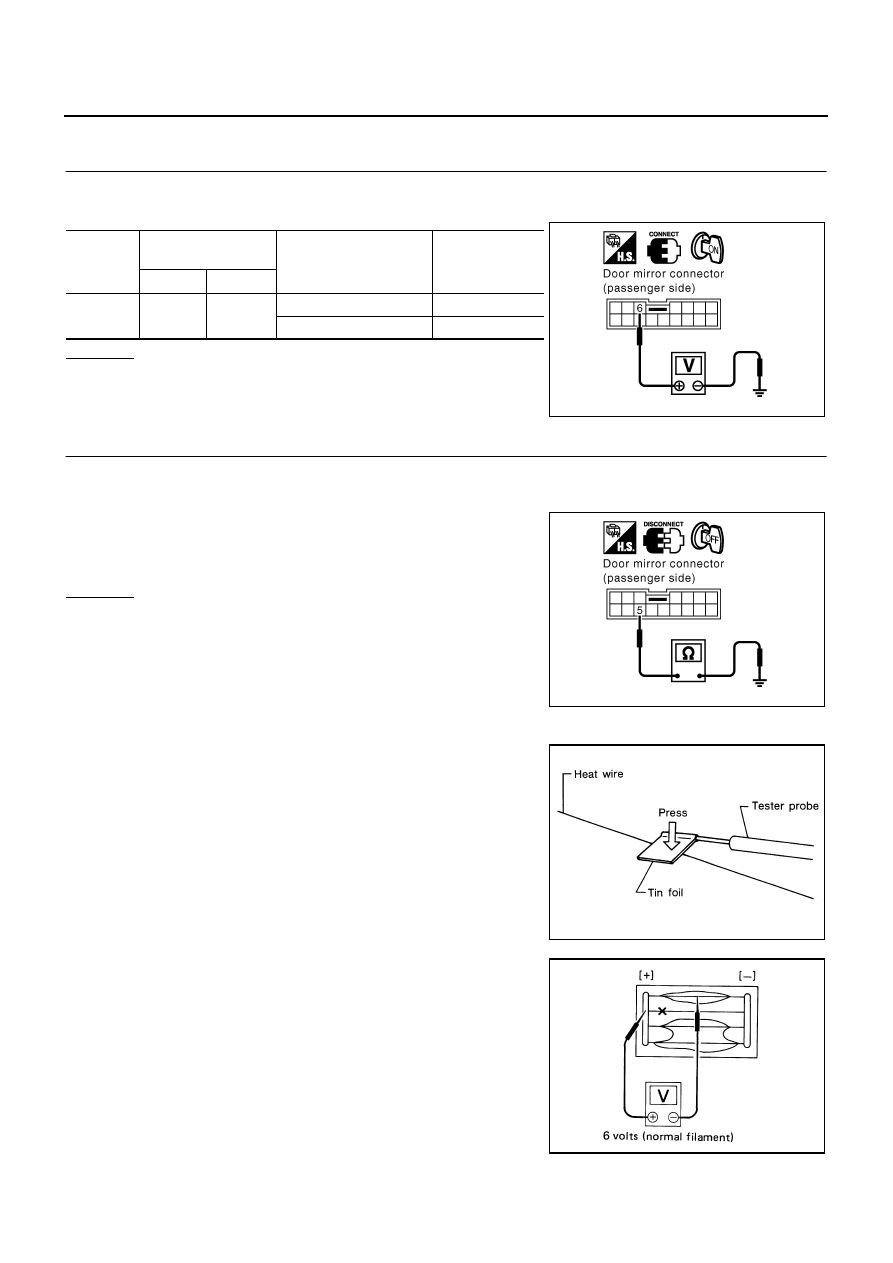

Passenger Side Door Mirror Defogger Circuit Check

NIS000ZS

1.

CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between door mirror (passenger side) connector and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace harness.

2.

CHECK DOOR MIRROR DEFOGGER GROUND HARNESS INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect door mirror (passenger side) connector.

3.

Check continuity between door mirror (passenger side) connec-
tor D32 terminal 5 and ground.

OK or NG

OK

>> Check the following, if it is OK, replace door mirror pas-

senger side.

Check the condition of the harness and the connector.

Door mirror defogger firmament continuity check.

NG

>> Repair or replace harness.

Filament Check

NIS000ZT

1.

When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finder.

2.

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

Connector

Terminal

(Wire color)

Condition of rear window

defogger switch

Voltage [V]

(Approx.)

(+)

(–)

D32

6 (L/R)

Ground

 ON

 Battery voltage

 OFF

0

PIIA3525E

5 (B) – Ground

: Continuity should exist.

PIIA3526E

SEL122R

SEL263

REAR WINDOW DEFOGGER

GW-79

C

D

E

F

G

H

J

K

L

M

A

B

GW

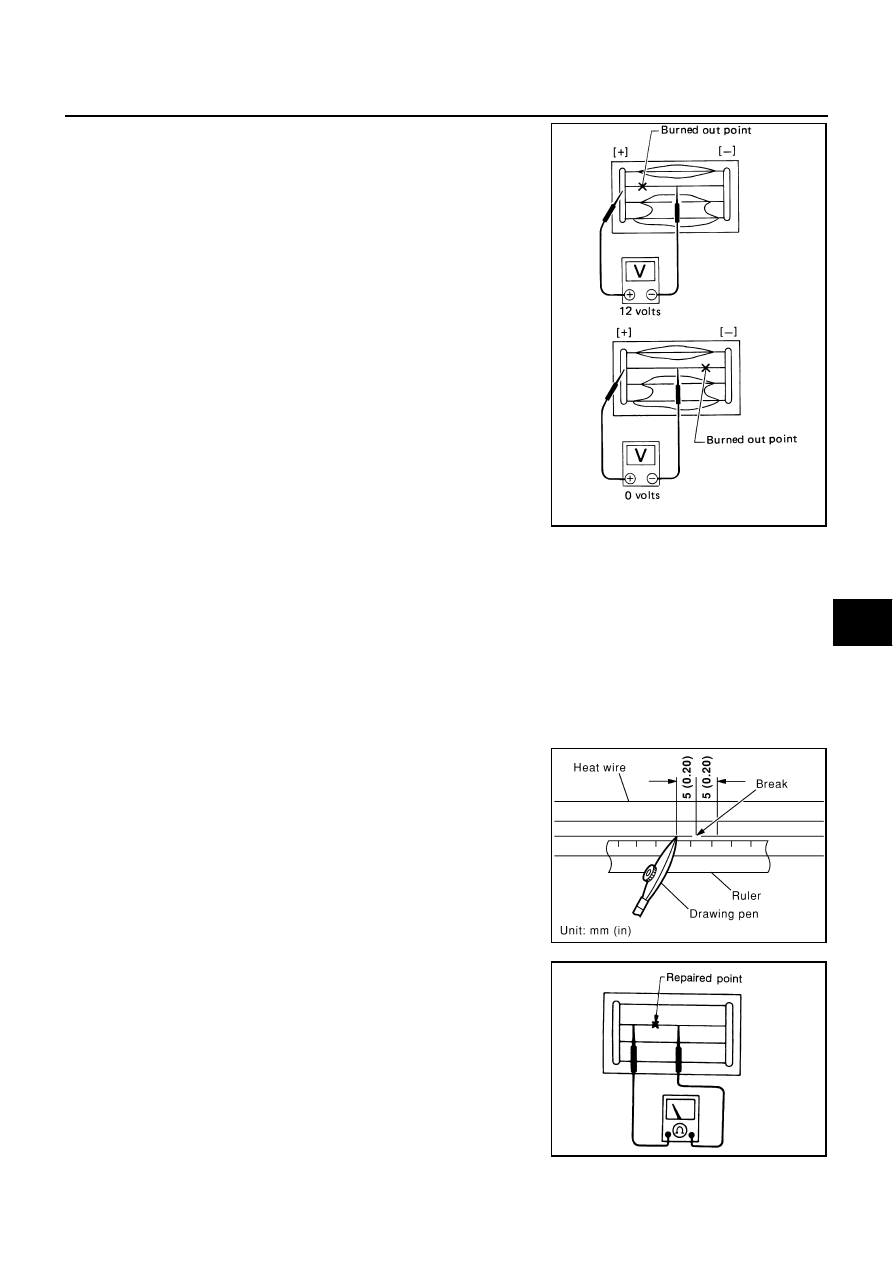

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.

Filament Repair

NIS000ZU

REPAIR EQUIPMENT

Conductive silver composition (Dupont NO.4817 or equivalent)

Ruler 30 cm(11.8in) long

Drawing pen

Heat gun

Alcohol

Cloth

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm(0.20in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity.This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

SEL265

PIIA0215E

SEL012D

GW-80

REAR WINDOW DEFOGGER

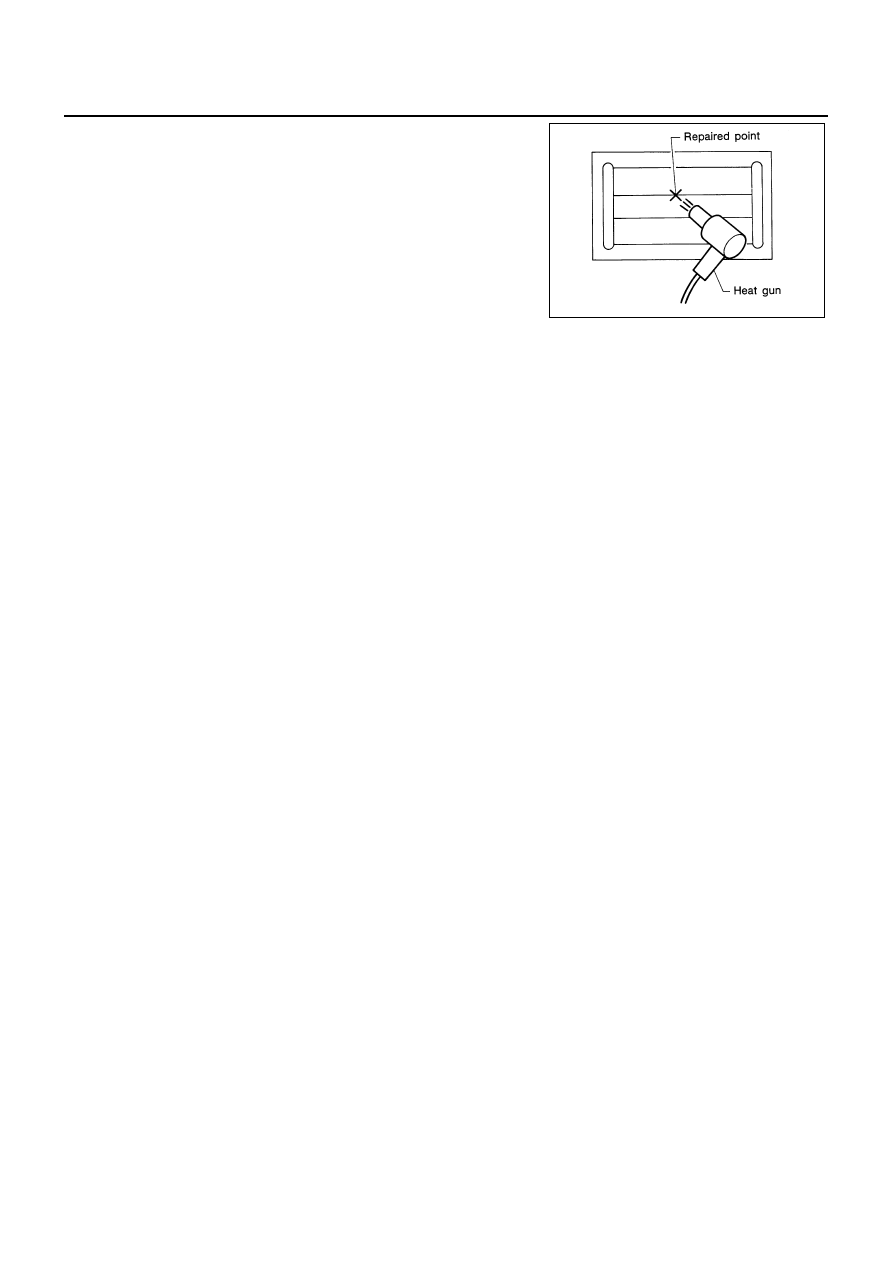

5.

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun.A minimum dis-
tance of 3cm(1.2in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

SEL013D
